2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

488 Technical dataElectrical systemModel
E 350, E 350 4MATIC
E 550, E 550 4MATIC
E63AMG
Generator (alternator)
14 V/180 A
14 V/180 A
14 V/180 A
Starter motor
14 V/1.4 kW
14 V/1.7 kW
12 V/2.1 kW
Battery
12 V/95 Ah
1
1Depending on production date, your vehicle may be equipped with a 12 V/100 Ah battery.
12 V/95 Ah
1
12 V/95 Ah
Spark plugs
Bosch Platin Y 7 MPP33
NGK PLKR 6A
Bosch F8 DPP 332U
NGK PFR 5R-11
NGK ILZKAR7A10
Electrode gap
0.031 in (0.8 mm)
0.039 in (1.00 mm)
0.039 in (1.00 mm)
Tightening torque
15 - 22 lb-ft (20 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
15 - 18.5 lb-ft (20 -25 Nm)
Model
E 320 BLUETEC
Generator (alternator)
14 V/180 A
Starter motor
14 V/2.0 kW
Battery
12 V/95 Ah
1
1Depending on production date, your vehicle may be equipped with a 12 V/100 Ah battery.

489 Technical data
Main dimensions and weights
Main dimensions and weights
Main dimensionsModel
E 320 BLUETEC
E 350
E 550
Overall vehicle length
191.7 in (4 870 mm)
191.7 in (4 870 mm)
191.7 in (4 870 mm)
Overall vehicle width (exterior view
mirrors folded out)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
Overall vehicle height
58.4 in (1 484 mm)
58.5 in (1 486 mm)
-
Overall vehicle height (Airmatic DC)
(E 550 only)
-
-
57.7 in (1 465 mm)
Wheelbase
112.4 in (2 854 mm)
112.4 in (2 854 mm)
112.4 in (2 854 mm)
Track, front
61.3 in (1 557 mm)
61.7 in (1 567 mm)
61.7 in (1 567 mm)
Track, rear
61.1 in (1 552 mm)
61.4 in (1 560 mm)
61.4 in (1 560 mm)

490 Technical dataMain dimensions and weightsWeightsModel
E 350 4MATIC
E 550 4MATIC
E63AMG
Overall vehicle length
191.7 in (4 870 mm)
191.7 in (4 870 mm)
192.2 in (4 881 mm)
Overall vehicle width (exterior view
mirrors folded out)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
81.2 in (2 063 mm)
Overall vehicle height
59.1 in (1 501 mm)
-
-
Overall vehicle height (Airmatic DC)
(E 550 4MATIC and E 63 AMG only)
-
58.1 in (1 475 mm)
57.7 in (1 465 mm)
Wheelbase
112.4 in (2 854 mm)
112.4 in (2 854 mm)
112.4 in (2 854 mm)
Track, front
61.6 in (1 565 mm)
61.6 in (1 565 mm)
61.1 in (1 551 mm)
Track, rear
61.4 in (1 560 mm)
61.4 in (1 560 mm)
61.4 in (1 560 mm)
Roof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

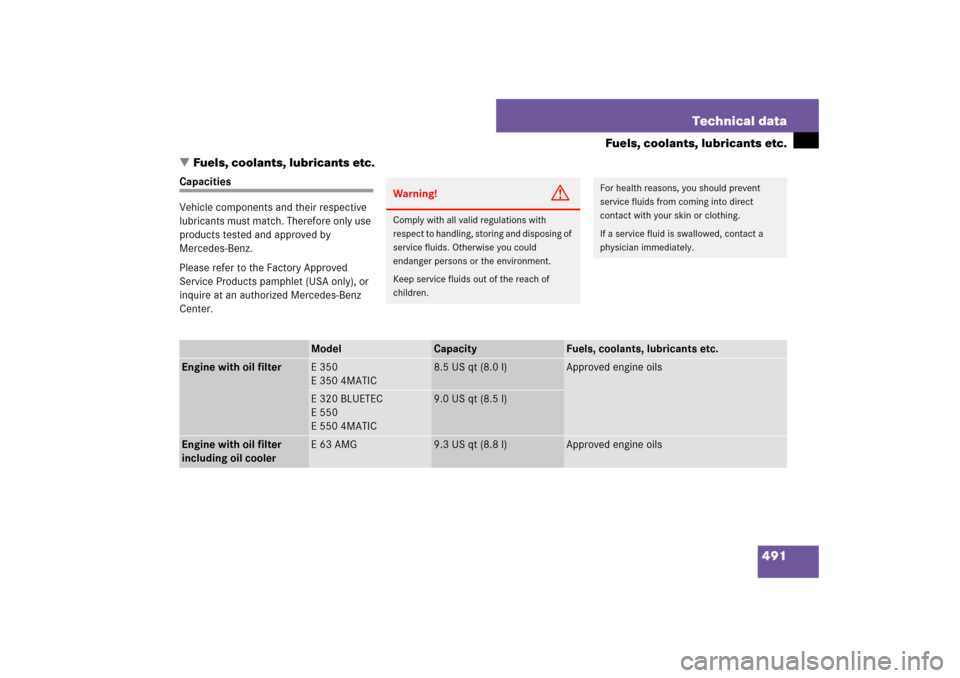

491 Technical data
Fuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Center.
Warning!
G
Comply with all valid regulations with
respect to handling, storing and disposing of
service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
E 350
E 350 4MATIC
8.5 US qt (8.0 l)
Approved engine oils
E 320 BLUETEC
E 550
E 550 4MATIC
9.0 US qt (8.5 l)
Engine with oil filter
including oil cooler
E63AMG
9.3 US qt (8.8 l)
Approved engine oils

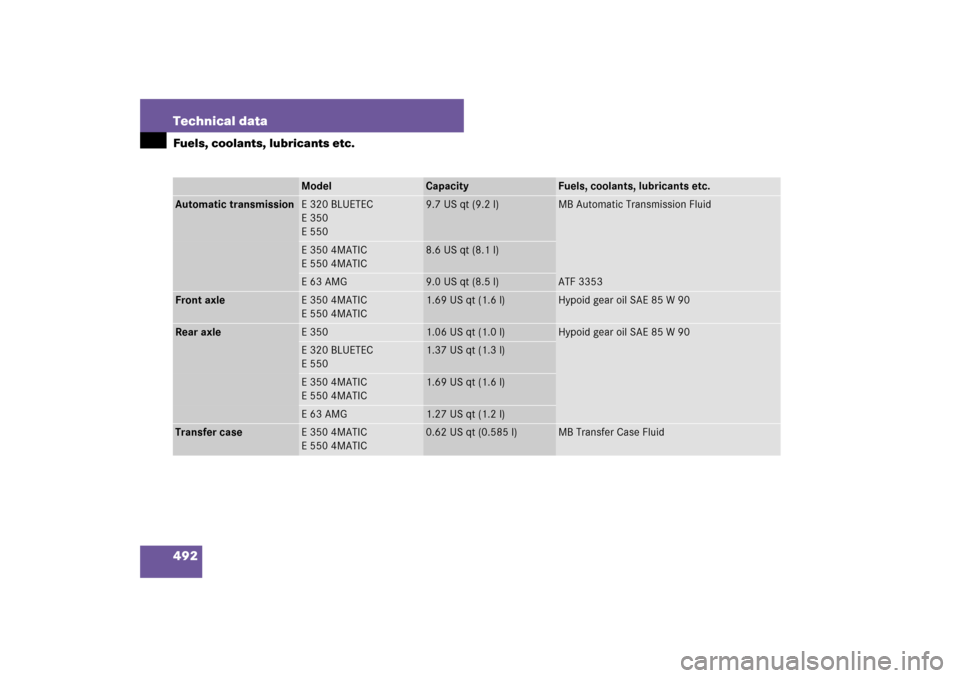

492 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Automatic transmission
E 320 BLUETEC
E 350
E 550
9.7 US qt (9.2 l)
MB Automatic Transmission Fluid
E 350 4MATIC
E 550 4MATIC
8.6 US qt (8.1 l)
E63AMG
9.0 US qt (8.5 l)
ATF 3353
Front axle
E 350 4MATIC
E 550 4MATIC
1.69 US qt (1.6 l)
Hypoid gear oil SAE 85 W 90
Rear axle
E 350
1.06 US qt (1.0 l)
Hypoid gear oil SAE 85 W 90
E 320 BLUETEC
E 550
1.37 US qt (1.3 l)
E 350 4MATIC
E 550 4MATIC
1.69 US qt (1.6 l)
E63AMG
1.27 US qt (1.2 l)
Transfer case
E 350 4MATIC
E 550 4MATIC
0.62 US qt (0.585 l)
MB Transfer Case Fluid

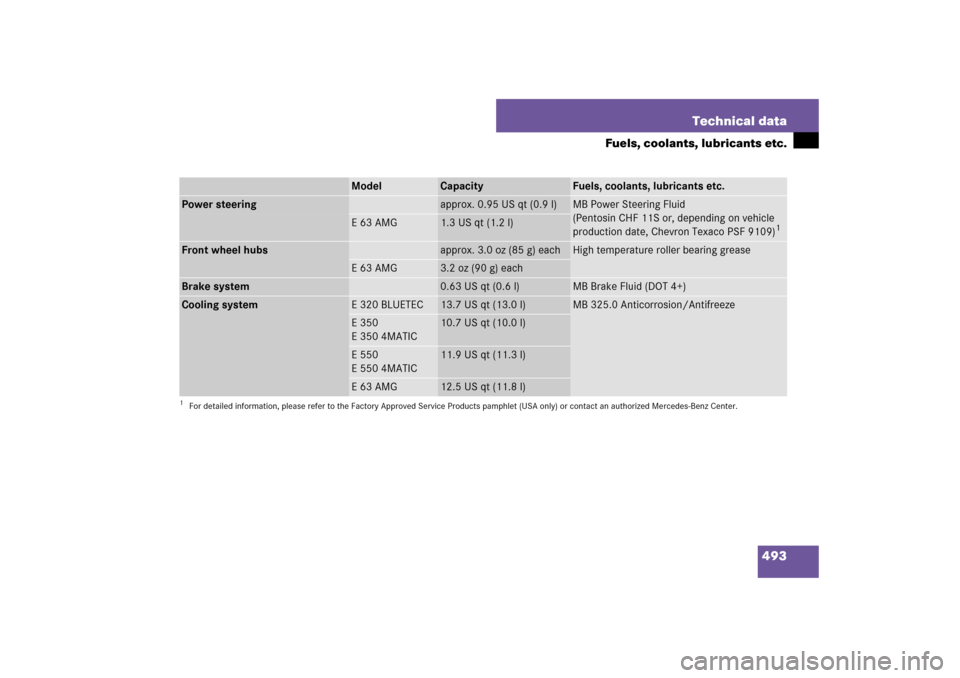

493 Technical data
Fuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Power steering
approx. 0.95 US qt (0.9 l)
MB Power Steering Fluid
(Pentosin CHF 11S or, depending on vehicle
production date, Chevron Texaco PSF 9109)
1
1For detailed information, please refer to the Factory Approved Service Products pamphlet (USA only) or contact an authorized Mercedes-Benz Center.
E63AMG
1.3 US qt (1.2 l)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
E63AMG
3.2 oz (90 g) each
Brake system
0.63 US qt (0.6 l)
MB Brake Fluid (DOT 4+)
Cooling system
E320BLUETEC
13.7 US qt (13.0 l)
MB 325.0 Anticorrosion/Antifreeze
E350
E3504MATIC
10.7 US qt (10.0 l)
E550
E5504MATIC
11.9 US qt (11.3 l)
E63AMG
12.5 US qt (11.8 l)

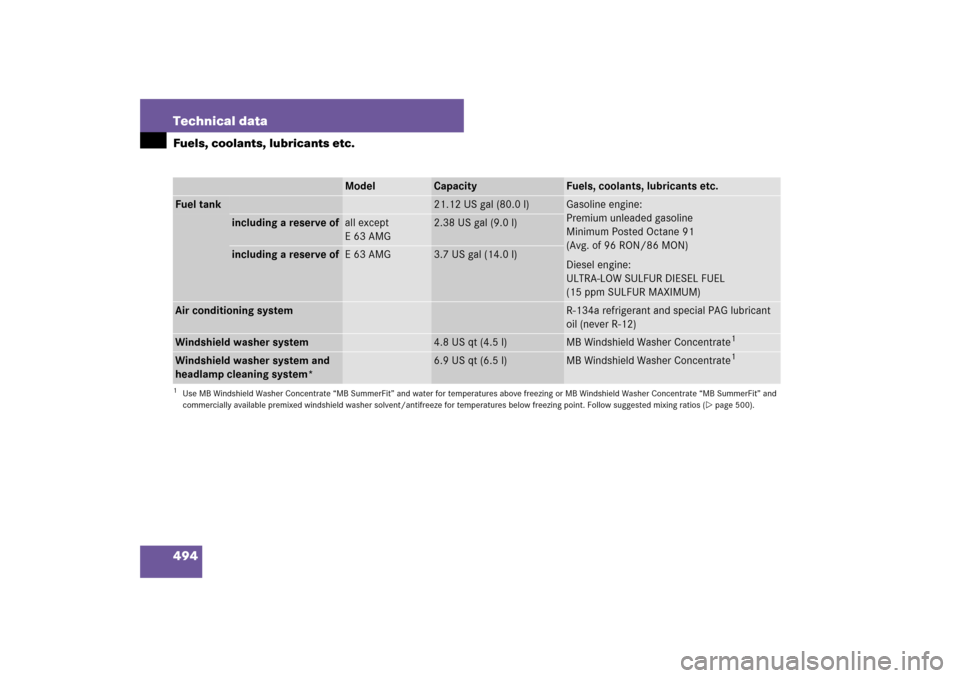

494 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Fuel tank
21.12 US gal (80.0 l)
Gasoline engine:
Premium unleaded gasoline
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Diesel engine:
ULTRA-LOW SULFUR DIESEL FUEL
(15 ppm SULFUR MAXIMUM)
including a reserve of
all except
E63AMG
2.38 US gal (9.0 l)
including a reserve of
E63AMG
3.7 US gal (14.0 l)
Air conditioning system
R-134a refrigerant and special PAG lubricant
oil (never R-12)
Windshield washer system
4.8 US qt (4.5 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing or MB Windshield Washer Concentrate “MB SummerFit” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 500).Windshield washer system and
headlamp cleaning system*
6.9 US qt (6.5 l)
MB Windshield Washer Concentrate
1

495 Technical data
Fuels, coolants, lubricants etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles) or FSS PLUS
(Canada vehicles). For a listing of approved
engine oils and oil filters, refer to the
Factory Approved Service Products
pamphlet (USA only), or contact an
authorized Mercedes-Benz Center.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air
conditioning system.
Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
!
Using engine oils and oil filters of specifica-
tion other than those expressly required for the
Maintenance System (U.S. vehicles) or
FSS PLUS (Canada vehicles), or changing of oil
and oil filter at change intervals longer than
those called for by the Maintenance System
(U.S. vehicles) or FSS PLUS (Canada vehicles)
will result in engine or emission control system
damage not covered by the Mercedes-Benz
Limited Warranty.Please follow Maintenance System (U.S. vehi-
cles) or FSS PLUS (Canada vehicles) recommen-
dations for scheduled oil changes. Failure to do
so will result in engine or emission control sys-
tem damage not covered by the Mercedes-Benz
Limited Warranty.
Warning!
G
During vehicle operation, the boiling point of
the brake fluid is continuously reduced
through the absorption of moisture from the
atmosphere. Under extremely strenuous
operating conditions, this moisture content
can lead to the formation of bubbles in the
system, thus reducing the system’s
efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s
Maintenance Booklet for replacement
interval.
