2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

24 At a glanceCockpit

25 At a glance

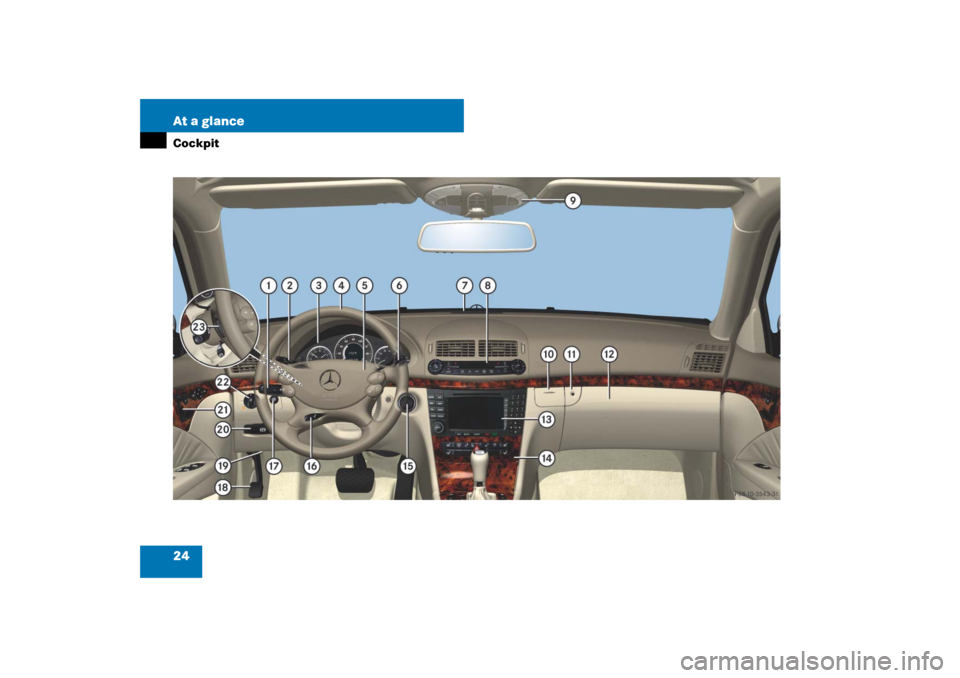

Cockpit
Item
Page
1
Combination switch

Turn signals
57


Windshield wipers
58


High beam
57
2
Cruise control lever

Cruise control
249


Distronic*
252
3
Instrument cluster
26,
148
4
Multifunction steering
wheel
28,
152
5
Horn
6
Lever for Voice Control
System*, see separate
operating instructions
Item
Page
7
Front Parktronic* warning
indicator
269
8
Dual-zone automatic
climate control
204
4-zone automatic climate
control*
220
9
Overhead control panel
31
a
Mobile phone/Glasses box
282
b
Glove box lid release, glove
box lock
282
c
Glove box
282
d
COMAND system, see sepa-
rate operating instructions
e
Center console
29
Item
Page
f
Starter switch
38
g
Steering wheel adjustment
stalk
45
Heated steering wheel
(Canada only)
289
h
Headlamp cleaning button*
198
j
Parking brake pedal
55, 62
k
Hood lock release
325
l
Parking brake release
55
m
Door control panel
34
n
Exterior lamp switch
137
o
Steering wheel gearshift
control*
192

26 At a glanceInstrument cluster

27 At a glance

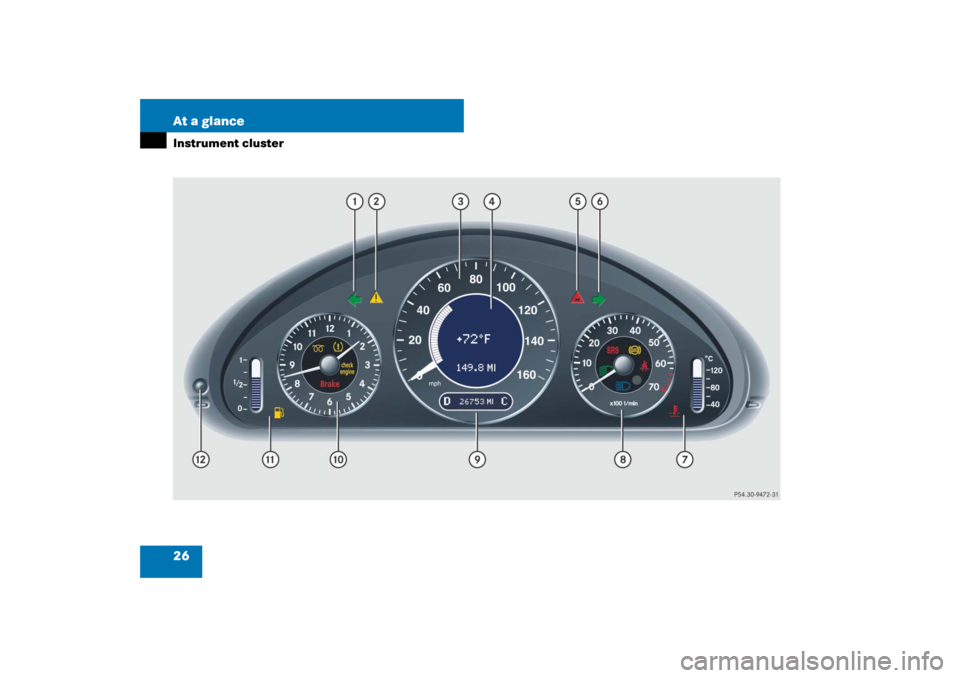

Instrument cluster
Item
Page
1
LLeft turn signal
indicator lamp
2
vESP
® warning lamp
381
3
Speedometer
4
Multifunction display
151
5
lDistance warning lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates when the
ignition is on. It should go out
when the engine is running.
387
6
KRight turn signal
indicator lamp
7
Coolant temperature
indicator with:
149
•Coolant temperature
warning lamp
386
Item
Page
8
Tachometer with:1Supplemental
Restraint System (SRS)
indicator lamp
390
-Antilock Brake System
(ABS) indicator lamp
380
388
BLow beam headlamp
indicator lamp
56
AHigh beam headlamp
indicator lamp
142
9
Main odometer with:

Gear selector lever
position
52


Program mode
190
a
Clock with:
171
;Brake warning lamp,
USA only
383
3Brake warning lamp,
Canada only
383
Item
Page
úEngine malfunction
indicator lamp,
USA only
384
±Engine malfunction
indicator lamp,
Canada only
384
HLow tire pressure tell-
tale*, Canada only
391
qPreglow indicator
lamp, diesel engine
only
53
b
Fuel display with:AFuel tank reserve
warning lamp
387
c
Reset button for:

Resetting trip odometer
149


Adjusting instrument
cluster illumination
148


Confirming new time
settings
171

28 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
151
Operating control system
152
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call
to dial
to redialtto end a call
to reject an incoming
call
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

29 At a glance

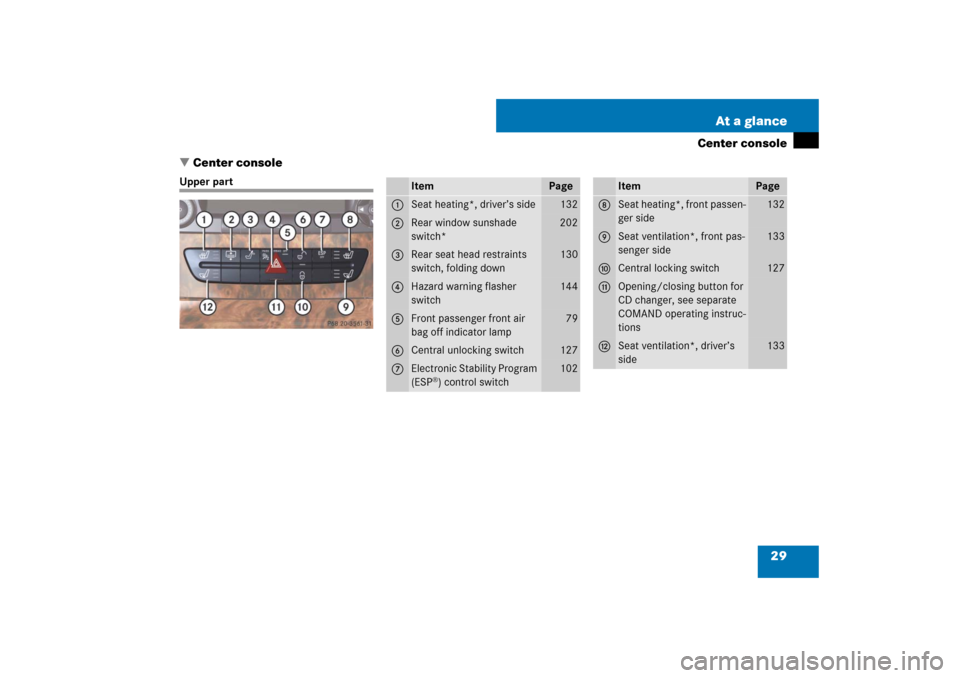

Center console
Center console
Upper part
Item
Page
1
Seat heating*, driver’s side
132
2
Rear window sunshade
switch*
202
3
Rear seat head restraints
switch, folding down
130
4
Hazard warning flasher
switch
144
5
Front passenger front air
bag off indicator lamp
79
6
Central unlocking switch
127
7
Electronic Stability Program
(ESP
®) control switch
102
Item
Page
8
Seat heating*, front passen-
ger side
132
9
Seat ventilation*, front pas-
senger side
133
a
Central locking switch
127
b
Opening/closing button for
CD changer, see separate
COMAND operating instruc-
tions
c
Seat ventilation*, driver’s
side
133

30 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
287
2
KEYLESS-GO* start/stop
button
39
3
Gear selector lever for
automatic transmission
52,
186
4
Parking assist (Parktronic
system)* deactivation
switch
272
5
Adaptive Damping System
(ADS) switch
1
1Only available on E550, E 550 4MATIC and
E63AMG.
265
Item
Page
6
Vehicle level control switch
1
266
7
Thumbwheel for setting
distance for Distronic*
261
8
Distance warning function*
on/off switch
261
9
Program mode selector
switch for automatic
transmission
190

31 At a glance

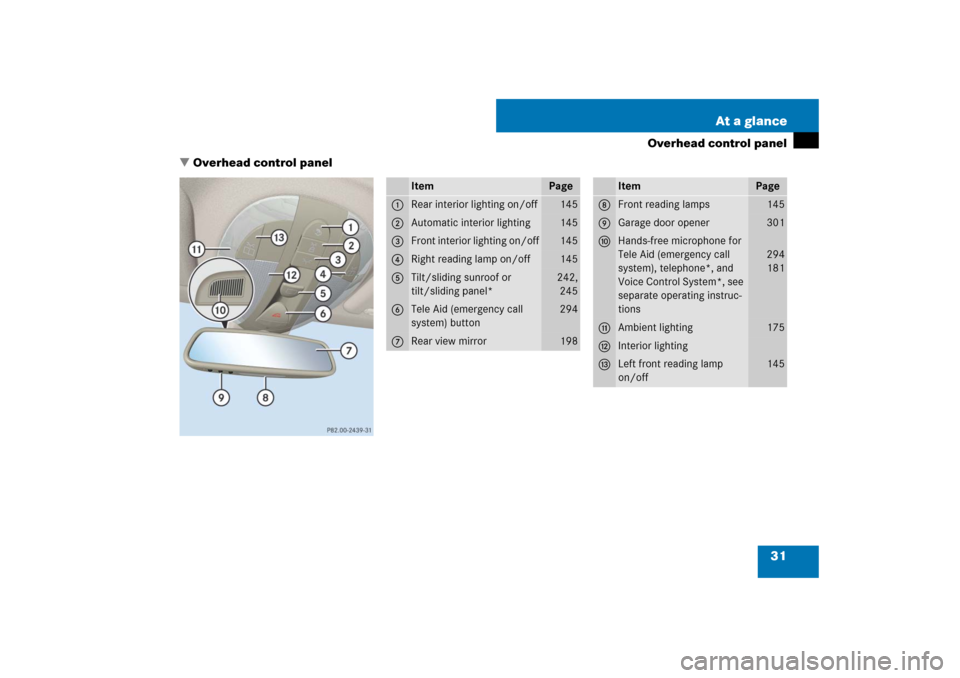

Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting on/off
145
2
Automatic interior lighting
145
3
Front interior lighting on/off
145
4
Right reading lamp on/off
145
5
Tilt/sliding sunroof or
tilt/sliding panel*
242,
245
6
Tele Aid (emergency call
system) button
294
7
Rear view mirror
198
Item
Page
8
Front reading lamps
145
9
Garage door opener
301
a
Hands-free microphone for
Tele Aid (emergency call
system), telephone*, and
Voice Control System*, see
separate operating instruc-
tions
294
181
b
Ambient lighting
175
c
Interior lighting
d
Left front reading lamp
on/off
145
