2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

88 Safety and SecurityOccupant safetyFor information on resetting the activated
active head restraints, see “Resetting acti-
vated head restraints” (
page 440).
You cannot remove the active head re-
straint on the driver’s and front passen-
ger’s seats.
For removal of the active head restraints
we recommend that you contact an autho-
rized Mercedes-Benz Center.
For information on head restraint adjust-
ment, see “Seats” (
page 41).
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:
Secure the child using an infant or child
restraint appropriate to the age and
size of the child.

Make sure that the infant or child is
properly secured at all times while the
vehicle is in motion.
Infant and child restraint seats and
information on choosing an appropriate
restraint system can be obtained from any
Mercedes-Benz Center.
Warning!
G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model. Us-
ing other seat or head restraint covers may
interfere with or prevent the activation of
the active head restraints. Contact your au-
thorized Mercedes-Benz Center for availabil-
ity.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust the head restraint so that the center
of the head restraint supports the back of
the head at eye level. This will reduce the po-
tential for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Warning!
G
Do not leave children unattended in the ve-
hicle, even if they are secured in a child re-
straint system. The children could

injure themselves on parts of the vehicle


be seriously or fatally injured through
excessive exposure to extreme heat or
cold.

89 Safety and Security
Occupant safety
Infant and child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
Canada only:
Use only a BabySmart
TM compatible child
restraint for the front passenger seat in
this vehicle.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child
restraint instructions for mounting. Then
pull the shoulder belt out completely and
let it retract. During seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The seat belt is now locked. Push
down on child restraint to take up any
slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.The use of infant or child restraints is
required by law in all 50 states, the District
of Columbia, the U.S. territories and all
Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system properly secured in
accordance with the manufacturer’s
instructions for the child restraint, that
complies with U.S. Federal Motor Vehicle
Safety Standards 213 and 225 and
Canadian Motor Vehicle Safety Standards
213 and 210.2.
Do not expose the child restraint system to
direct sunlight. The child restraint system’s
metal parts, for example, could become very
hot, and the child could be burned on these
parts.
If children open a door, they could

injure other persons


get out of the vehicle and injure them-
selves or be injured by following traffic.
Do not carry heavy or hard objects in the
passenger compartment or trunk unless
they are firmly secured in place. For more in-
formation, see “Loading” (
page 273) and
“Useful features” (
page 282).
Unsecured or improperly positioned cargo
increases a child’s risk of injury in the event
of:


strong braking maneuvers


sudden changes of direction


an accident
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.i
Information on child seats with mounting fit-
tings for tether anchorages (
page 92).
For information on LATCH-type child seat an-
chors (
page 94).

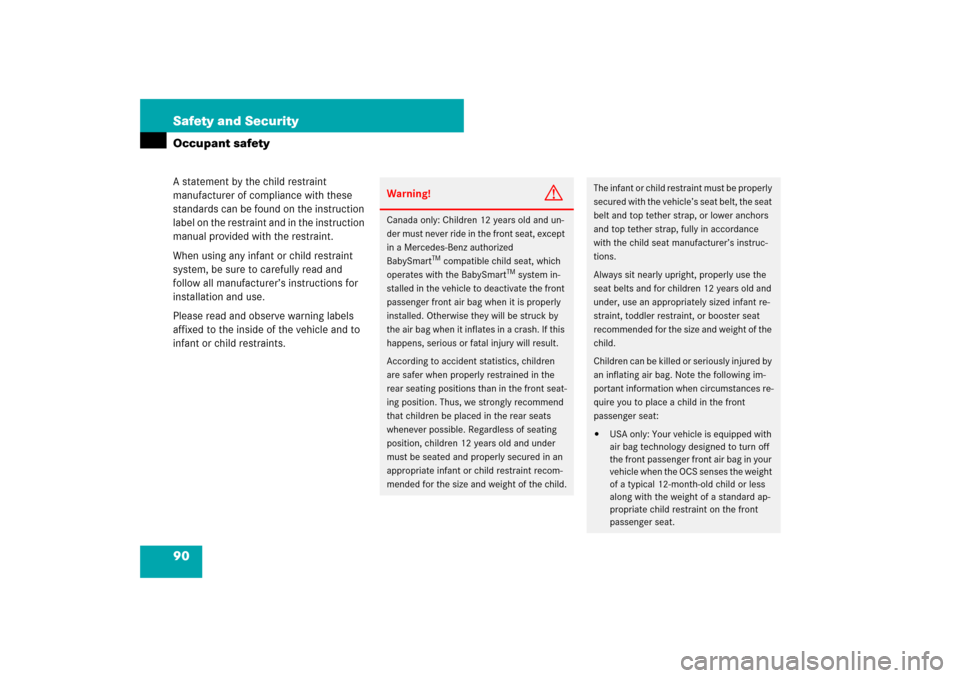

90 Safety and SecurityOccupant safetyA statement by the child restraint
manufacturer of compliance with these
standards can be found on the instruction
label on the restraint and in the instruction
manual provided with the restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions for
installation and use.
Please read and observe warning labels
affixed to the inside of the vehicle and to
infant or child restraints.
Warning!
G
Canada only: Children 12 years old and un-
der must never ride in the front seat, except
in a Mercedes-Benz authorized
BabySmart
TM compatible child seat, which
operates with the BabySmart
TM system in-
stalled in the vehicle to deactivate the front
passenger front air bag when it is properly
installed. Otherwise they will be struck by
the air bag when it inflates in a crash. If this
happens, serious or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.
Always sit nearly upright, properly use the
seat belts and for children 12 years old and
under, use an appropriately sized infant re-
straint, toddler restraint, or booster seat
recommended for the size and weight of the
child.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

USA only: Your vehicle is equipped with
air bag technology designed to turn off
the front passenger front air bag in your
vehicle when the OCS senses the weight
of a typical 12-month-old child or less
along with the weight of a standard ap-
propriate child restraint on the front
passenger seat.

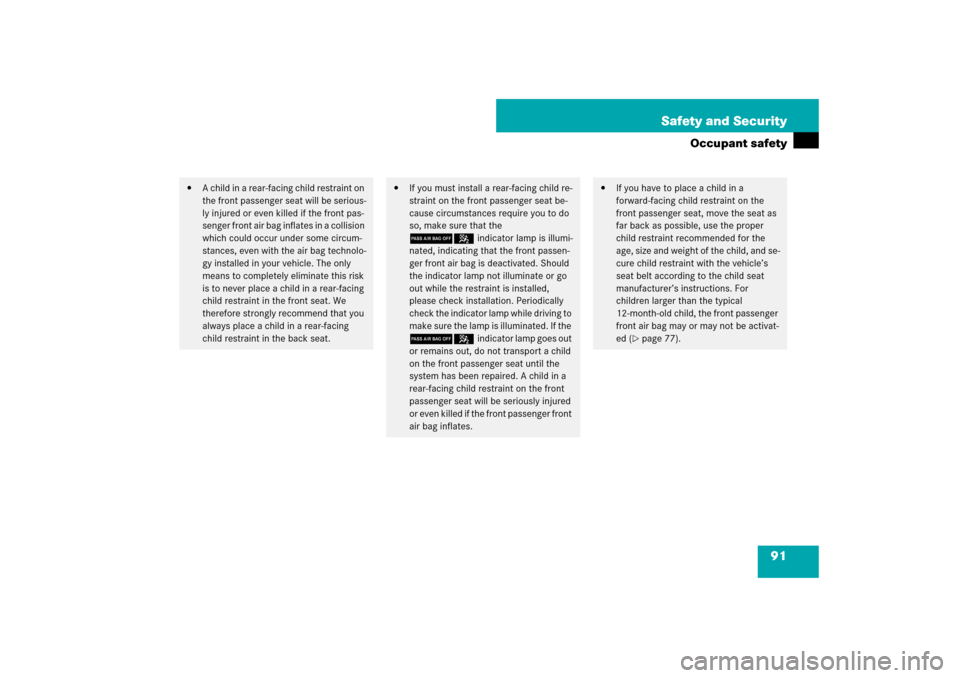

91 Safety and Security
Occupant safety


A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates in a collision
which could occur under some circum-
stances, even with the air bag technolo-
gy installed in your vehicle. The only
means to completely eliminate this risk
is to never place a child in a rear-facing
child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.


If you must install a rear-facing child re-
straint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the
75indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the indicator lamp not illuminate or go
out while the restraint is installed,
please check installation. Periodically
check the indicator lamp while driving to
make sure the lamp is illuminated. If the
75indicator lamp goes out
or remains out, do not transport a child
on the front passenger seat until the
system has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be activat-
ed (
page 77).

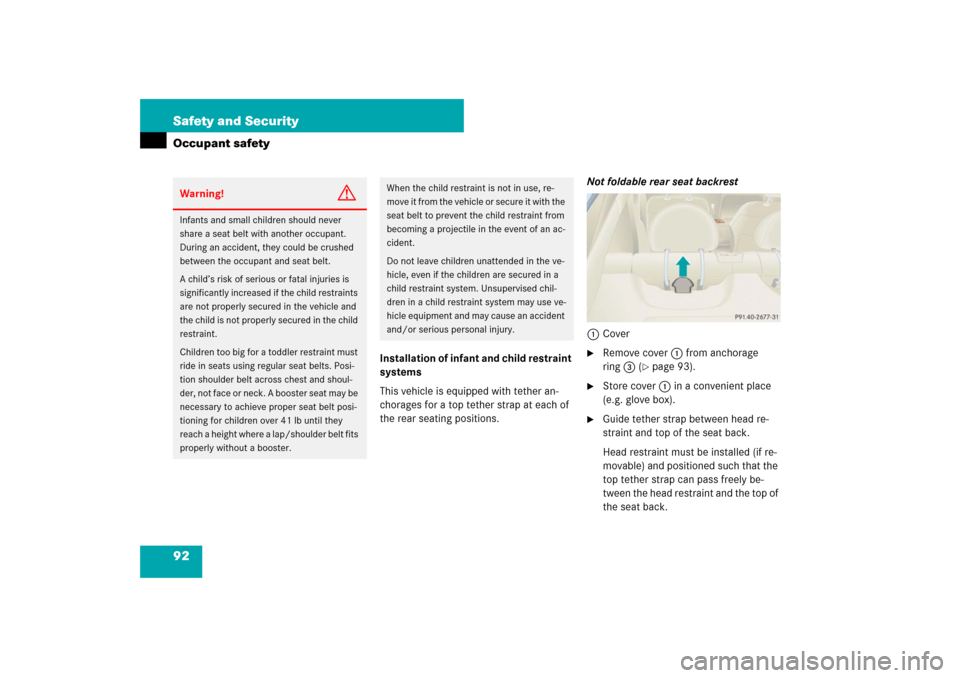

92 Safety and SecurityOccupant safety
Installation of infant and child restraint
systems
This vehicle is equipped with tether an-
chorages for a top tether strap at each of
the rear seating positions.Not foldable rear seat backrest
1Cover

Remove cover1 from anchorage
ring3 (
page 93).

Store cover1 in a convenient place
(e.g. glove box).

Guide tether strap between head re-
straint and top of the seat back.
Head restraint must be installed (if re-
movable) and positioned such that the
top tether strap can pass freely be-
tween the head restraint and the top of
the seat back.
Warning!
G
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper seat belt posi-
tioning for children over 41 lb until they
reach a height where a lap/shoulder belt fits
properly without a booster.
When the child restraint is not in use, re-
move it from the vehicle or secure it with the
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.

93 Safety and Security
Occupant safety

Make sure the tether strap is not twist-
ed.
2Hook
3Anchorage ring

Securely fasten the hook2, which is
part of the tether strap, to the anchor-
age ring3.
Once the top tether anchorage hook is at-
tached, the child restraint itself can be se-
cured.

Install the child restraint system and
tighten the top tether strap according
to the child restraint manufacturer’s in-
structions.
Foldable rear seat backrest*

Fold rear seat backrest slightly forward
(page 277).

Remove cover from anchorage ring3.

Guide tether strap between head re-
straint and top of the seat back.
Head restraint must be positioned such
that the top tether strap can pass freely
between the head restraint and the top
of the seat back.

Make sure the tether strap is not twist-
ed.2Hook
3Anchorage ring

Securely fasten the hook2, which is
part of the tether strap, to the anchor-
age ring3.
i
For safety, make sure the hook2 has at-
tached to the anchorage ring3 beyond the
safety catch, as illustrated.
i
For safety, make sure the hook2 has at-
tached to the anchorage ring3 beyond the
safety catch, as illustrated.


94 Safety and SecurityOccupant safety2Hook
3Anchorage ring
S w i n g r e a r s e a t b a c k r e s t t o t h e r e a r u n -
til it engages.

Check the rear seat backrest to be
locked in its upright position
(page 412).
Once the top tether anchorage hook is
attached, the child restraint itself can be
secured.

Install the child restraint system and
tighten the top tether strap according
to the child restraint manufacturer’s in-
structions.Child seat anchors - LATCH type
This vehicle is equipped with two LATCH
(L
ower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the outer rear
seats) for the installation of a “LATCH”
child seat with the matching mounting fit-
tings.
The anchors are located behind an uphol-
stery blend.
1Indicates the position of the anchors
2Anchors

Lift up upholstery blend to access the
anchors2.

Install child seat according to the
manufacturer’s instructions.
!
Make sure the seat belt for the center seat
can operate freely with a child seat installed.
i
Non-LATCH type child seats may also be
used and can be installed using the vehicle’s
seat belt system (
page 88). Install child seat
according to the manufacturer’s instructions.


95 Safety and Security
Occupant safety
Blocking of rear door window operation
1Override switch
2Indicator lamp
Press override switch1.
Indicator lamp2 comes on. The rear
door windows can no longer be operat-
ed using the switches located in the
rear doors.For more information on power windows,
see the “Controls in detail” section
(
page 237).
Warning!
G
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper seat belt posi-
tioning for children over 41 lb until they
reach a height where a lap/shoulder belt fits
properly without a booster.
Install child seat according to manufactur-
er’s instructions.
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d t o t h e
right and left side anchors2 (
page 94).
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to the child.
Damaged or impact damaged child seats or
child seat mounting fittings must be re-
placed.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.
!
Operation of the rear door windows with the
switches located on the door control panel of the
driver’s door is still possible.
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
