2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

440 Practical hintsResetting activated head restraintsIf the active head restraints have been trig-
gered in an accident, the active head re-
straints must be reset. Otherwise, the
active head restraints cannot offer any ad-
ditional protection in the event of another
rear-end collision.
You can tell that the head restraints have
been triggered when they have been
moved forward and cannot be adjusted.

Take the reset tool out of the
Mercedes-Benz vehicle literature
pouch.

Guide reset tool into center of head re-
straint between head restraint cushion
and rear head restraint cover.

Press reset tool forward in direction of
arrow.

Press reset tool downward until you
hear the head restraint release
mechanism audibly engage.

Pull out reset tool.

Firmly press head restraint cushion
backward towards the rear of the vehi-
cle until it engages.

Repeat this procedure on the active
head restraints for second head re-
straint.
For information on active head restraints,
see “Active head restraints” (
page 87).
For information on head restraint adjust-
ment, see “Seats” (
page 43).
i
For your convenience, we recommend that
you have this work carried out by an authorized
Mercedes-Benz Center.
You will find the reset tool for manually operating
the head restraints in the Mercedes-Benz vehicle
literature pouch.Warning!
G
For safety reasons, have the active head re-
straints checked by an authorized
Mercedes-Benz Center after a rear-end colli-
sion.
Warning!
G
When pushing back the head restraint cush-
ion, take care that your fingers do not be-
come caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.
!
Be careful not to damage upholstery.

441 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey/SmartKey
with KEYLESS-GO* are discharged, the ve-
hicle can no longer be locked or unlocked.
It is recommended to have the batteries re-
placed at an authorized Mercedes-Benz
Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.SmartKey/SmartKey with
KEYLESS-GO*
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key1 out of
the SmartKey/SmartKey with
KEYLESS-GO* (
page 436).
1Mechanical key
2Battery compartment

Insert mechanical key1 into opening.

Press mechanical key1 in direction of
arrow.
The battery compartment is unlatched.
Warning!
G
Batteries contain poisonous and corrosive
substances. Therefore keep the batteries
out of reach of children.
If a battery is swallowed, seek medical help
immediately.
i
When inserting the batteries, make sure
they are clean and free of lint.
i
When replacing batteries, always replace
both batteries.
The required replacement batteries are available
at any Mercedes-Benz Center.


442 Practical hintsReplacing SmartKey batteries
Pull battery compartment2
(page 441) out of the housing.
3Batteries
4Contact springs

Pull out batteries3.

Using a lint-free cloth, insert new bat-
teries 3 under contact springs 4 with
the positive terminal (+) side facing up.

Return battery compartment 2
(page 441) into housing until it locks
into place.

Slide mechanical key 1 (
page 441)
back into the SmartKey/SmartKey
with KEYLESS-GO*.

Check the operation of the
SmartKey/SmartKey with
KEYLESS-GO*.


443 Practical hints
Replacing bulbs
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. Contact your au-
thorized Mercedes-Benz Center for head-
lamp adjustment.
i
If the headlamps or front fog lamps are
fogged up on the inside as a result of high humid-
ity, driving the vehicle a distance with the lights
on should clear up the fogging.
i
Substitute bulbs will be brought into use
when lamps malfunction. Read and observe mes-
sages in the multifunction display (
page 422).

444 Practical hintsReplacing bulbs

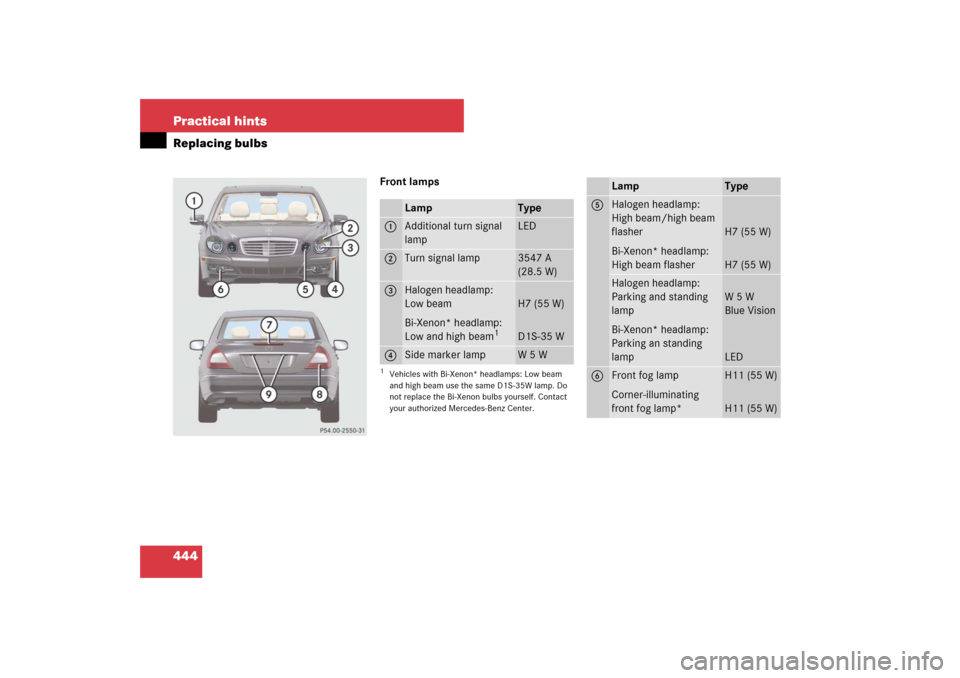

Front lamps
Lamp
Type
1
Additional turn signal
lamp
LED
2
Turn signal lamp
3547 A
(28.5 W)
3
Halogen headlamp:
Low beam
Bi-Xenon* headlamp:
Low and high beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D1S-35W lamp. Do
not replace the Bi-Xenon bulbs yourself. Contact
your authorized Mercedes-Benz Center.
H7 (55 W)
D1S-35 W
4
Side marker lamp
W 5 W
Lamp
Type
5
Halogen headlamp:
High beam/high beam
flasher
Bi-Xenon* headlamp:
High beam flasher
H7 (55 W)
H7 (55 W)
Halogen headlamp:
Parking and standing
lamp
Bi-Xenon* headlamp:
Parking an standing
lamp
W 5 W
Blue Vision
LED
6
Front fog lamp
Corner-illuminating
front fog lamp*
H11 (55 W)
H11 (55 W)

445 Practical hints
Replacing bulbs
Rear lamps Notes on bulb replacement


Only use 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.

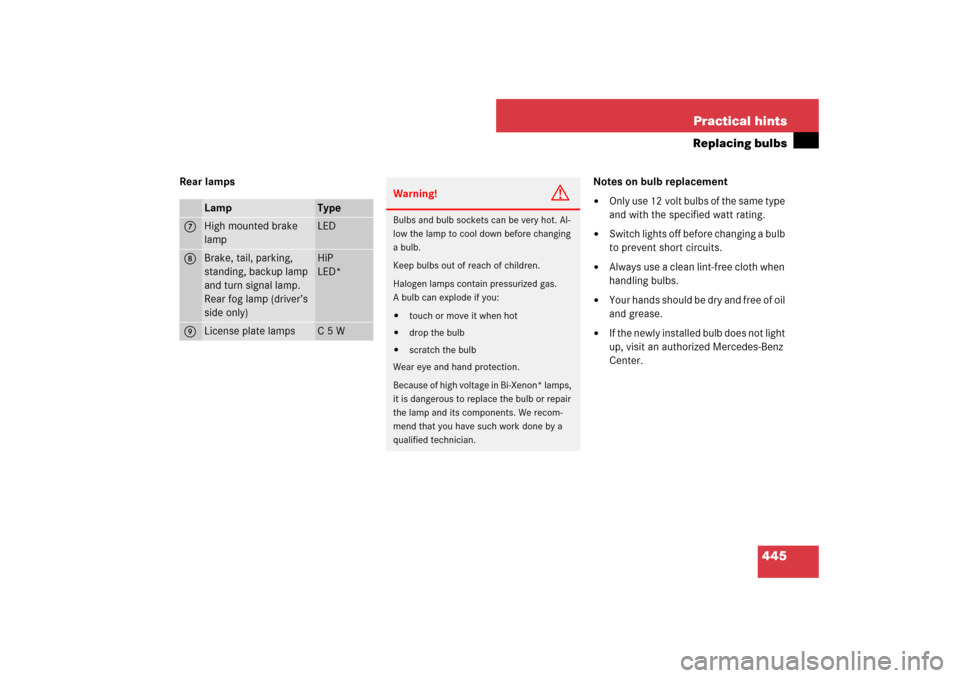

Lamp
Type
7
High mounted brake
lamp
LED
8
Brake, tail, parking,
standing, backup lamp
and turn signal lamp.
Rear fog lamp (driver’s
side only)
HiP
LED*
9
License plate lamps
C5W
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Bi-Xenon* lamps,
it is dangerous to replace the bulb or repair
the lamp and its components. We recom-
mend that you have such work done by a
qualified technician.

446 Practical hintsReplacing bulbsHave the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:

Additional turn signals in the exterior
rear view mirrors


High mounted brake lamp


Bi-Xenon* lamps


Front fog lamps


Rear lamps (except license plate
lamps)


Front side marker lamps

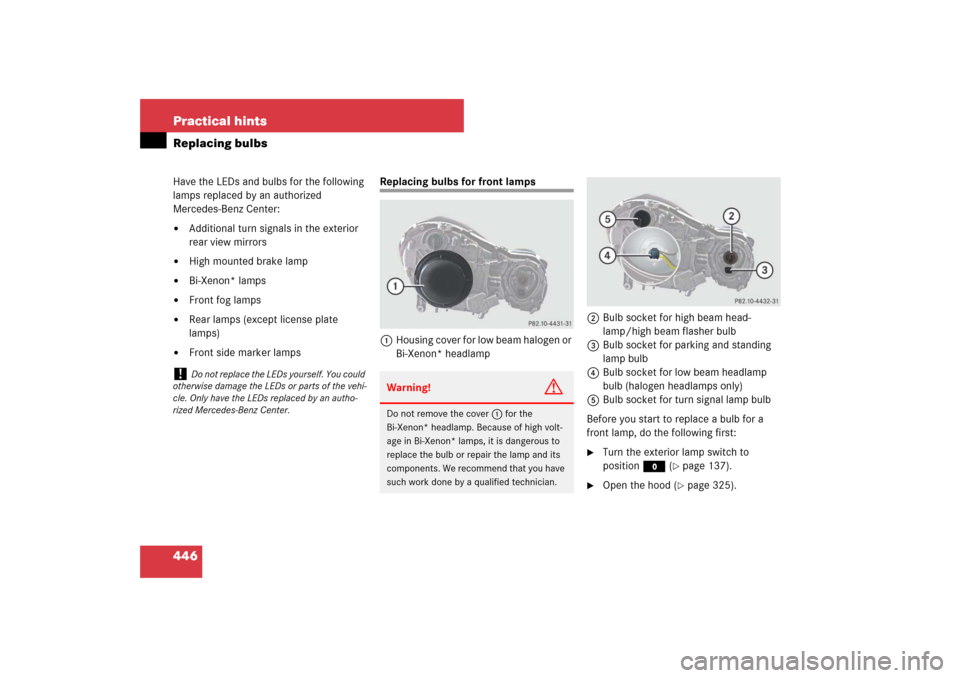

Replacing bulbs for front lamps
1Housing cover for low beam halogen or
Bi-Xenon* headlamp2Bulb socket for high beam head-
lamp/high beam flasher bulb
3Bulb socket for parking and standing
lamp bulb
4Bulb socket for low beam headlamp
bulb (halogen headlamps only)
5Bulb socket for turn signal lamp bulb
Before you start to replace a bulb for a
front lamp, do the following first:

Turn the exterior lamp switch to
positionM (
page 137).

Open the hood (
page 325).
!
Do not replace the LEDs yourself. You could
otherwise damage the LEDs or parts of the vehi-
cle. Only have the LEDs replaced by an autho-
rized Mercedes-Benz Center.
Warning!
G
Do not remove the cover1 for the
Bi-Xenon* headlamp. Because of high volt-
age in Bi-Xenon* lamps, it is dangerous to
replace the bulb or repair the lamp and its
components. We recommend that you have
such work done by a qualified technician.

447 Practical hints
Replacing bulbs
Low beam bulb (halogen headlamps
only)
Turn housing cover1 counterclock-
wise and remove it.

Turn bulb socket4 with the bulb
counterclockwise and remove it.

Pull the bulb out of bulb socket 4.

Press the new bulb gently into bulb
socket 4.

Place bulb socket4 back into the
lamp and turn it clockwise until it en-
gages.

Align housing cover1 and turn it
clockwise until it engages.High beam bulb/high beam flasher
bulb (halogen headlamps)/high beam
flasher bulb (Bi-Xenon* headlamps)

Turn bulb socket2 with the bulb
counterclockwise and remove it.

Pull the bulb out of bulb socket2.

Press the new bulb gently into bulb
socket2.

Place bulb socket2 back into the
lamp and turn it clockwise until it en-
gages.Front turn signal lamp bulb

Turn bulb socket5 with the bulb
counterclockwise and remove it.

Press gently onto the bulb and turn
counterclockwise out of bulb
socket5.

Press the new bulb gently into bulb
socket5 and turn clockwise until it
engages.

Place bulb socket5 back into the
lamp and turn it clockwise until it en-
gages.
