2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

472

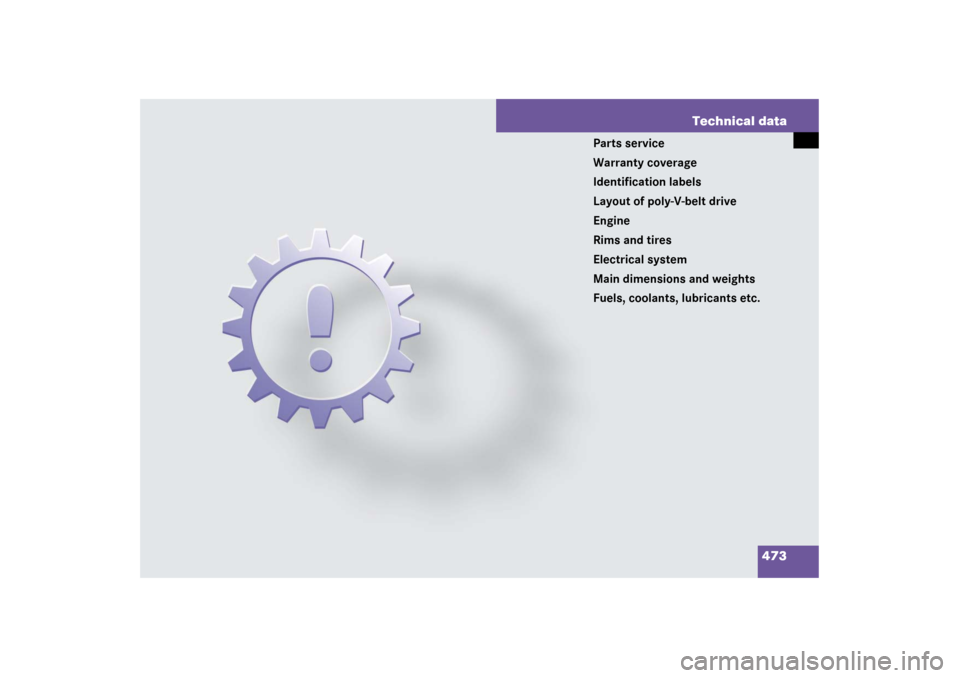

473 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants etc.

474 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz Parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz Parts
should be installed.
!
The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s du-
rability or safety.

475 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information Booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts,
New York, and Vermont Emission Con-
trol System WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories Warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information Booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

476 Technical dataIdentification labels1Certification label (on driver’s B-pillar)
The V
ehicle I
dentification N
umber (VIN)
can be found in the following locations:


on the certification label


embossed under a cover in the front
passenger footwell (
page 477)


lower edge of windshield (
page 477)
Example certification label (U.S. vehicles)2VIN
3Paintwork code
Example certification label
(Canada vehicles)2VIN
3Paintwork codei
Data shown on certification label are for il-
lustration purposes only. These data are specific
to each vehicle and may vary from data shown in
the illustration. Refer to certification label on ve-
hicle for actual data specific to your vehicle.

477 Technical data
Identification labels
4Cover
5VIN
6Emission control information label, in-
cludes both federal and California cer-
tification exhaust emission standards
7Vacuum line routing diagram label
8VIN (lower edge of windshield)
9Engine number (engraved on engine)
i
When ordering parts, please specify vehicle
identification and engine number.

478 Technical dataLayout of poly-V-belt driveE 320 BLUETEC
1Coolant pump
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Idler pulley
8Generator (alternator)
E 350 / E 550
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
E63AMG
1Idler pulley
2Idler pulley
3Idler pulley
4Automatic belt tensioner
5Power steering pump
6Air conditioning compressor
7Crankshaft
8Coolant pump
9Generator (alternator)

479 Technical data
Engine
Engine
Model
E 320 BLUETEC (211.022
1)
E 350 (211.056
1)
E 350 4MATIC (211.087
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.Engine
OM 642
272
Mode of operation
Diesel 4-stroke
4-stroke engine, gasoline injection
No. of cylinders
6
6
Bore
3.27 in (83.00 mm)
3.66 in (92.90 mm)
Stroke
3.62 in (92.00 mm)
3.39 in (86.00 mm)
Total piston displacement
182.9 cu in (2 987 cm
3)
213.5 cu in (3 498 cm
3)
Compression ratio
16.5:1
10.7:1
Output acc. to SAE J 1349
208 hp/3 600 rpm
(155 kW/3 600 rpm)
268 hp / 6 000 rpm
2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.Maximum torque acc. to SAE J 1349
398 lb-ft/1 600 rpm - 2 400 rpm
(540 Nm/1 600 rpm - 2 400 rpm)
258 lb-ft / 2 400 rpm - 5 000 rpm
(350 Nm / 2 400 rpm - 5 000 rpm)
Maximum engine speed
4 500 rpm
6 500 rpm
Firing order
1-4-2-5-3-6
1-4-3-6-2-5
Poly-V-belt
2 035 mm
2 404 mm
