224 Controls in detail4-zone automatic climate control
The climate control is a 4-zone intelligent
climate control system. Your vehicle interi-
or is divided into 4 zones.With the help of a sun sensor, the climate
control determines the relation of the sun
to the vehicle and automatically adjusts
the inside temperature for every individual
zone.
You can set the temperature for each of
the 4 zones separately.
The climate control is operational whenev-
er the engine is running. It cools the vehi-
cle’s interior according to the angle and
intensity of the sun’s rays, the outside tem-
perature and the selected temperature.
You can operate the climate control sys-
tem in either the automatic or manual
mode.
Warning!
G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burn or frostbite to unpro-
tected skin in the immediate area of the air
vents. Always keep sufficient distance be-
tween unprotected parts of the body and the
air vents. If necessary, use the air distribu-
tion controls (
page 222) or (
page 223)
to direct the air to air vents in the vehicle in-
terior that are not in the immediate area of
unprotected skin.

225 Controls in detail
4-zone automatic climate control
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/Cmode (
page 234) is
deactivated.Deactivating the climate control
system
Deactivating
Press button´ (
page 222) or
(
page 223) until the display4
(page 222) or (
page 223) is
cleared.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
i
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (page 239). The climate control will then
adjust the interior temperature to the set value
much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
Do not obstruct air flow by placing objects on the
air flow-through exhaust slots below the rear
window.
Warning!
G
When the climate control is switched off, the
outside air supply and circulation are also
switched off. Only choose this setting for a
short time. Otherwise the windows could
fog up, impairing visibility and endangering
you and others.

226 Controls in detail4-zone automatic climate controlReactivating
Make sure the ignition is switched on.

Press button´ (
page 222) or
(
page 223) again.
The previous settings are once again in
effect.Operating the climate control system
in automatic modeActivating

Press one buttonU (
page 222) or
(
page 223) while the engine is run-
ning.
The indicator lamp on the button
comes on.
AUTO
appears in the
display4 (
page 222) or
(
page 223). The air volume and air
distribution are adjusted automatically.

Use temperature rocker switches3
and5 (
page 222) or (
page 223)
to separately adjust the air tempera-
ture on each side of the passenger
compartment.
The temperature of the vehicle interior
is adjusted automatically.
i
To switch the system on, you can also press
another button, with the exception of 1
(USA only) (
page 222) or F and T
(Canada only) (page 223).
i
When operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off.Warning!
G
If you switch off the cooling function the
windows can fog up more quickly. Window
fogging may impair visibility and endanger
you and others.i
You can switch the automatic climate con-
trol system on and off for each side of the pas-
senger compartment as desired.

227 Controls in detail
4-zone automatic climate control
Deactivating
Press button
orQ
(page 222) or (
page 223).
The
AUTO
indicator in the display4
(
page 222) or (
page 223) goes
out. The automatic function for air vol-
ume is switched off, and air volume is
controlled according to the desired set-
ting.
or

Turn air distribution control1 or7
(page 222) or (
page 223) on each
side of the passenger compartment to
the desired symbol.
The indicator lamp on the correspond-
ing button goes out. Automatic air dis-
tribution is switched off in the
corresponding zone, and air distribu-
tion is controlled according to the de-
sired position.
The automatic air volume remains
switched on.
Setting the temperature
Use temperature control rocker
switches3 and5 (
page 222) or
(
page 223) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The adjusted temperature appears in the
display 4 (
page 222) or (
page 223).
The climate control will adjust to the set
temperature as fast as possible.Increasing

Push top of temperature control rocker
switch3 and/or5 (
page 222) or
(
page 223).
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Decreasing

Push bottom of temperature control
rocker switch3 and/or 5
(page 222) or (
page 223).
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
i
You can also adjust the temperature in the
rear passenger compartment (
page 235).
i
When operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.

228 Controls in detail4-zone automatic climate controlAdjusting air distribution
Use the air distribution controls1 and7
(page 222) or (
page 223) to separate-
ly adjust the air distribution on each side of
the passenger compartment.
The following symbols are located on the
controls:

Turn air distribution controls1
and7 (
page 222) or (
page 223)
on each side of the passenger compart-
ment to the desired symbol.
The indicator lamp on the correspond-
ing button goes out and the automatic
air distribution is switched off for the
corresponding side. The air distribution
is controlled according to the thumb-
wheel setting.
Opening the cockpit air vent (Canada
only) and center air vents

Turn thumbwheels 1 and 5
(page 220) upward.
The cockpit air vent 3 and the center
air vents 2 and 4 are open.Closing the cockpit air vent (Canada
only) and center air vents

Turn thumbwheels 1 and 5
(page 220) downward.
The cockpit air vent 3 and the center
air vents 2 and 4 are closed.
Opening the side air vents

Turn thumbwheels 8 and a
(page 220) upward.
The side air vents 7 and b are open.
Closing the side air vents

Turn thumbwheels 8 and a
(page 220) downward.
The side air vents 7 and b are
closed.

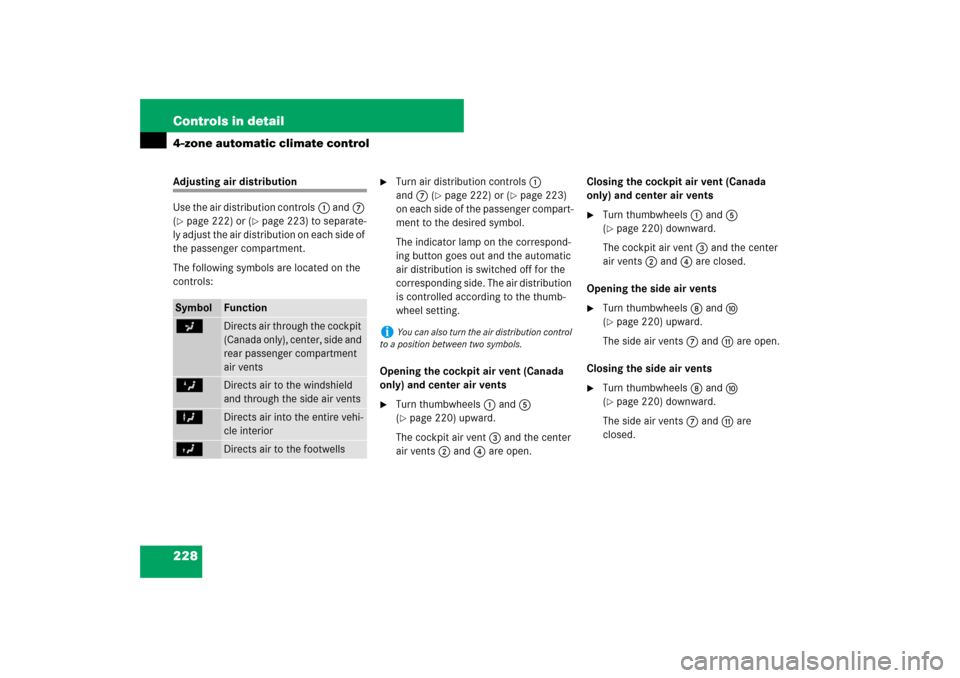

Symbol
Function
a
Directs air through the cockpit
(Canada only), center, side and
rear passenger compartment
air vents
Z
Directs air to the windshield
and through the side air vents
X
Directs air into the entire vehi-
cle interior
Y
Directs air to the footwells
i
You can also turn the air distribution control
to a position between two symbols.

229 Controls in detail
4-zone automatic climate control
Adjusting air volume
Use buttonsU (
page 222) or
(
page 223) for automatic mode or air
volume buttons
orQ
(page 222) or (
page 223) to adjust air
volume manually.
Nine blower speeds are available.

Press button
to decrease or
buttonQ to increase air volume to
the desired level.
The
AUTO
indicator for air volume in the
display4 (
page 222) or
(
page 223) goes out. The selected
blower speed is shown in the
display4. Automatic air distribution
remains switched on.
The indicator lamps on the U but-
tons remain lit.
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
windows.
Activating
Press button0 or P
(page 222) or (
page 223).
The indicator lamp on the button
comes on. Display4 (
page 222) or
(
page 223) is cleared.The air conditioning switches
automatically to the following functions:


cooling on to dehumidify


maximum blowing and heating power
(depends on cooling temperature)


air flows onto the windshield and the
front windows


the air recirculation mode is switched
off
Deactivating

Press button0 or P
(page 222) or (
page 223) again.
The indicator lamp on the button goes
out. Defrosting is turned off.
The previous settings are once again in
effect.
i
Keep this setting selected only until the
windshield or the windows are clear again.
i
If you have switched on the defrost function
using the0 or P button, you cannot make
any other settings.
i
The cooling remains switched on.

230 Controls in detail4-zone automatic climate controlWindshield fogged on the outside
Switch the windshield wipers on
(page 58).
If the automatic mode of the climate con-
trol is switched off:

Turn air distribution controls1 and 7
to a or Y (
page 222) or
(
page 223).Maximum cooling MAX COOL
(USA only)
You can use this setting to provide the fast-
est possible cooling of the vehicle interior
(when windows and tilt/sliding sunroof or
tilt/sliding panel* are closed).
Activating
Press buttone (
page 222).
MAX COOL
appears in the display4
(
page 222).
The air conditioning switches
automatically to the following functions:


maximum cooling


maximum blowing power


the air recirculation mode is switched
onDeactivating

Press buttone (
page 222) again.
MAX COOL
disappears in the display4
(
page 222).
The previous settings are once again in
effect.
i
Keep this setting selected only until the
windshield is clear again.
i
To switch the maximum cooling function off,
you can also press button ´, U, 0 or
1 (
page 222).

231 Controls in detail
4-zone automatic climate control
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Press button, (
page 222) or
(
page 223).
The indicator lamp on the button
comes on.Deactivating

Press button, (
page 222) or
(
page 223) again.
The indicator lamp on the button goes
out.
Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to

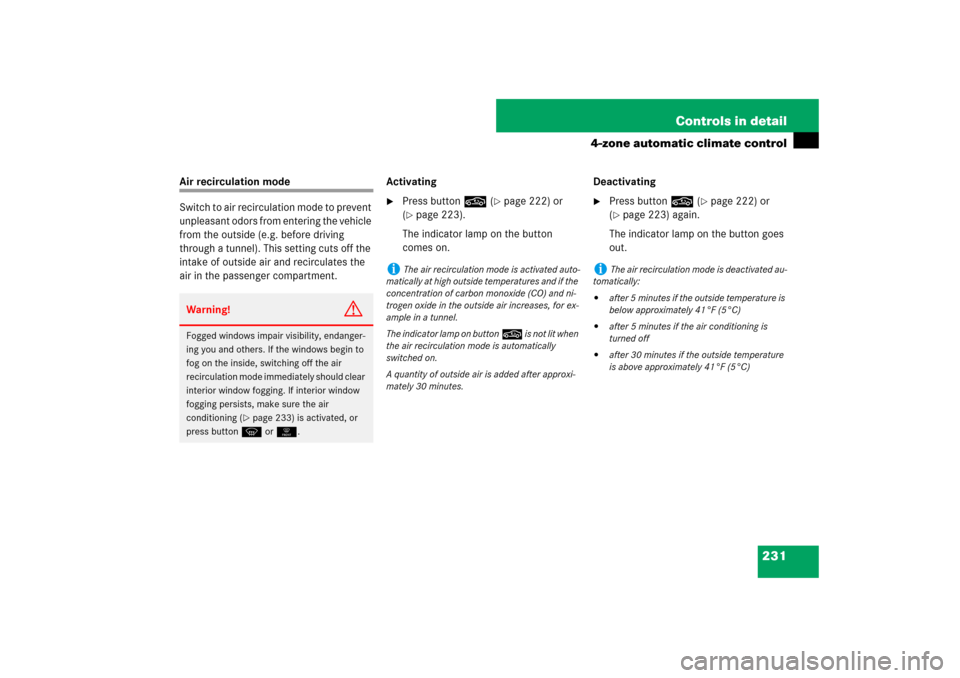

fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 233) is activated, or
press buttonP or0.
i
The air recirculation mode is activated auto-
matically at high outside temperatures and if the
concentration of carbon monoxide (CO) and ni-
trogen oxide in the outside air increases, for ex-
ample in a tunnel.
The indicator lamp on button, is not lit when
the air recirculation mode is automatically
switched on.
A quantity of outside air is added after approxi-
mately 30 minutes.
i
The air recirculation mode is deactivated au-
tomatically:


after 5 minutes if the outside temperature is
below approximately 41°F (5°C)


after 5 minutes if the air conditioning is
turned off


after 30 minutes if the outside temperature
is above approximately 41°F (5°C)
