2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

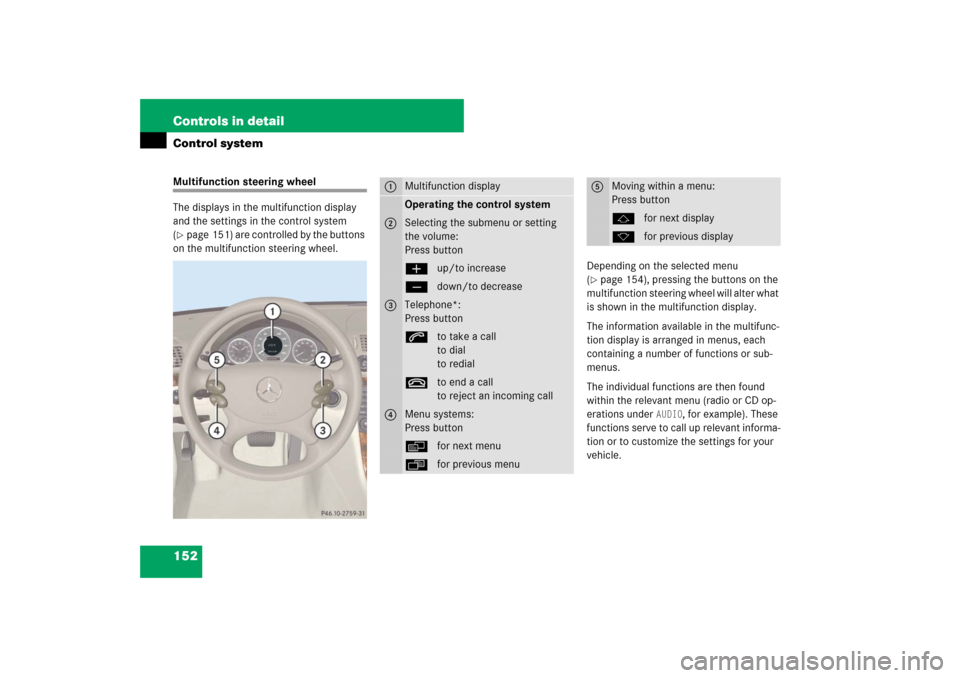

152 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system
(page 151) are controlled by the buttons
on the multifunction steering wheel.
Depending on the selected menu
(
page 154), pressing the buttons on the
multifunction steering wheel will alter what
is shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
AUDIO
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.
1
Multifunction displayOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call
to dial
to redialtto end a call
to reject an incoming call
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

153 Controls in detail
Control system
It is helpful to think of the menus, and the
functions within each menu, as being ar-
ranged in a circular pattern.

If you press buttonè orÿ re-
peatedly, you will pass through each
menu one after the other.


If you press buttonk orj re-
peatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings
menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For in-
structions on using these submenus, see
the “Settings menu” section (
page 166).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.

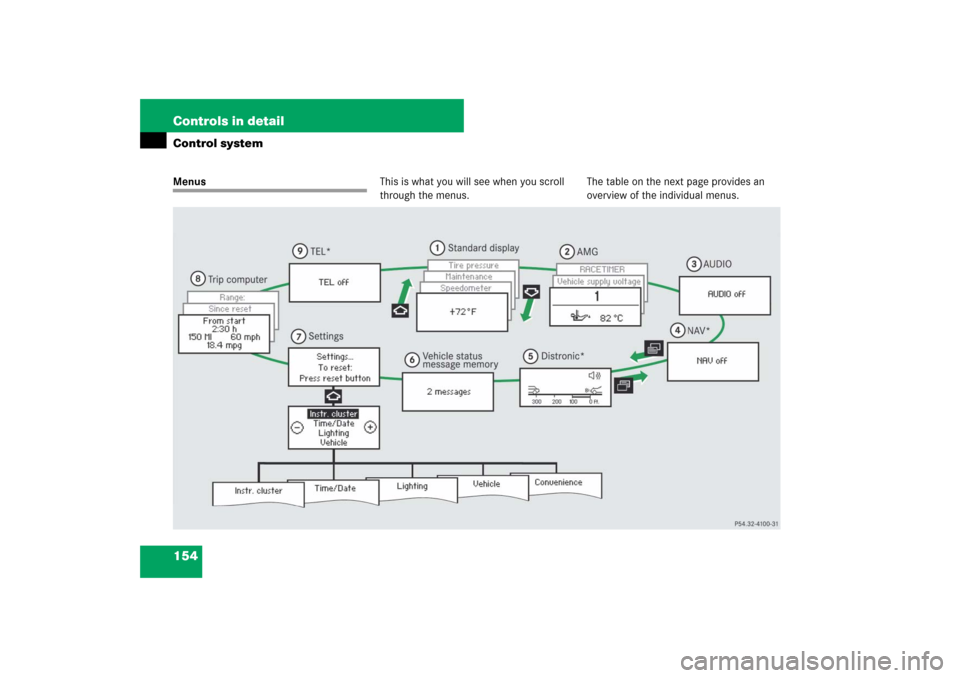

154 Controls in detailControl systemMenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.

155 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Standard display
AMG
1
1AMG vehicles only.
AUDIO
NAV*
Distronic*
(page 157)
(page 157)
(page 161)
(page 163)
(page 163)
Commands/submenusDigital speedometer
Engine oil temperature
Selecting radio station
Show route guidance in-
structions, current direc-
tion traveled
Calling up settings
Calling up maintenance
system display
Vehicle supply voltage
Selecting satellite radio
station*
RACETIMER
Operating CD player
Overall analysisLap analysis

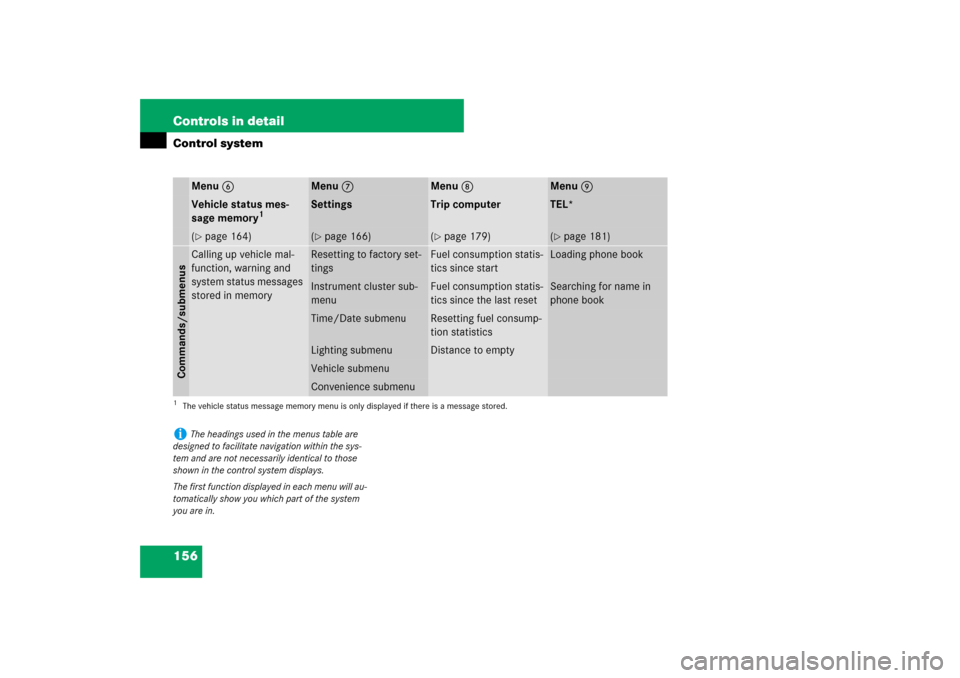

156 Controls in detailControl system
Menu6
Menu7
Menu8
Menu9
Vehicle status mes-
sage memory
1
1The vehicle status message memory menu is only displayed if there is a message stored.
Settings
Trip computer
TEL*
(page 164)
(page 166)
(page 179)
(page 181)
Commands/submenusCalling up vehicle mal-
function, warning and
system status messages
stored in memory
Resetting to factory set-
tings
Fuel consumption statis-
tics since start
Loading phone book
Instrument cluster sub-
menu
Fuel consumption statis-
tics since the last reset
Searching for name in
phone book
Time/Date submenu
Resetting fuel consump-
tion statistics
Lighting submenu
Distance to empty
Vehicle submenuConvenience submenu
i
The headings used in the menus table are
designed to facilitate navigation within the sys-
tem and are not necessarily identical to those
shown in the control system displays.
The first function displayed in each menu will au-
tomatically show you which part of the system
you are in.

157 Controls in detail
Control system
Standard display menu
Press buttonk orj repeatedly
to select the functions in the standard
display menu.
The following functions are available:
Display digital speedometer

Press button k orj repeatedly
until the digital speedometer appears
in the multifunction display.
AMG menu
The main screen of the AMG menu shows
you the gear currently engaged as well as
the engine oil temperature.
Press buttonè orÿ repeatedly
until the AMG menu appears.
1Gear indicator
2Engine oil temperatureUse buttons k or j to select the fol-
lowing functions in the AMG menu:
Function
Page
Calling up digital speedometer
157
Calling up maintenance service
indicator
366
i
This function is only available in AMG vehi-
cles.
i
The engine oil temperature symbol flashes if
the engine oil temperature has not yet reached
80°C. During this time, avoid driving at full en-
gine speed.
Function
Page
Vehicle supply voltage
158
RACETIMER
158
Overall analysis
160
Lap analysis
160
i
If the engine reaches the overspeed range in
the manual shift program, the menu will be
shown in red. In addition, you will see
UP next to
gear indicator1 as a reminder to upshift.

158 Controls in detailControl systemVehicle supply voltage
Press buttonè orÿ repeatedly
until the AMG menu appears.

Press buttonj repeatedly until you
see the vehicle supply voltage.
1Gear indicator
2Vehicle supply voltageRACETIMER
The RACETIMER allows you to time and
save driving stretches in hours, minutes
and seconds.

Press button è or ÿ repeatedly
until you see the AMG menu.

Press button j repeatedly until you
see the RACETIMER.1Gear indicator
2RACETIMER
3Lap
Starting the RACETIMER

Press button æ.
The timer starts.
Warning!
G
The RACETIMER feature is only for use on
roads and in conditions where high speed
driving is permitted. Racing on public roads
is prohibited under all circumstances and
the driver is and must always remain re-
sponsible for following posted speed limits.
i
You can start the RACETIMER when the
engine is running or the starter switch is in
position2 (
page 37).
i
While the RACETIMER is being displayed,
you cannot adjust the volume using
buttonsæ or ç.

159 Controls in detail
Control system
Displaying intermediate time
Press button ç while the timer is
running.
The intermediate time is shown for
5 seconds.
Stopping the RACETIMER

Press button æ.
The timer stops.Saving lap time and starting a new lap

Press button ç while the timer is
running. The intermediate time will be
shown for 5 seconds.

Press button ç within the next
5 seconds.
The intermediate time shown will be
saved as a lap time.
The RACETIMER begins timing the new
lap. The new lap begins to be timed as
soon as the intermediate time is called
up.1Gear indicator
2RACETIMER
3Best lap time
4Lap number
i
When you stop the vehicle and turn the
Smartkey to position 1 (
page 38) or, in vehi-
cles with KEYLESS-GO*, turn off the engine and
do not open the driver’s door, the RACETIMER
stops timing. Timing is resumed when you
switch the ignition back on (page 38) or
restart the engine (
page 52) and then press
theæbutton.
i
You can save up to nine laps.
