2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

216 Controls in detailDual-zone automatic climate control
Convenience closing
Press button, (
page 206) or
(
page 207) for approximately
2 seconds.
The windows and tilt/sliding sunroof
will close. You can release button,
once the closing procedure has begun.
The windows and tilt/sliding sunroof
continue closing until they are fully
closed. The indicator lamp on the but-
ton comes on. The air recirculation
mode is activated.Convenience opening

Press button, for approximately
2 seconds.
The windows and tilt/sliding sunroof
will return to their previous position.
You can release button , once the
opening procedure has begun. The win-
dows and tilt/sliding sunroof continue
opening until they have reached their
previous position. The indicator lamp
on the button goes out. The air recircu-
lation mode is deactivated.
Vehicles with panorama roof*:
When using the air recirculation mode with
convenience closing feature, should the up-
ward movement of a window be blocked by
some obstruction including but not limited
to arms, hands, fingers, etc., the automatic
reversal feature will not operate.
In the event that the procedure causes po-
tential danger, the closing of the windows
and tilt/sliding panel can be immediately
halted by releasing the, button.
The closing of the windows and the tilt/slid-
ing sunroof can be reversed by again press-
ing and holding the, button.
i
A window or tilt/sliding sunroof will only re-
turn to its previous position if it has not been
moved to another position using the respective
window switch or tilt/sliding sunroof switch af-
ter it was closed with button,.
A window or tilt/sliding sunroof that has been
moved will remain in its current position if
button, is used to reopen the remaining
windows or tilt/sliding sunroof.


217 Controls in detail
Dual-zone automatic climate control
Vehicles with panorama roof*
Convenience closing:
Press and hold button,
(page 206) or (
page 207) until the
windows and the tilt/sliding panel are
closed or have reached the desired po-
sition. The indicator lamp on the button
comes on. The air recirculation mode is
activated.
Convenience opening:

Press and hold button, until the
windows and the tilt/sliding panel are
opened or have reached the desired
position. The indicator lamp on the but-
ton goes out. The air recirculation
mode is deactivated.
Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle interior down to the selected tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thus preventing the windows from fogging
up.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.

Press button2 (
page 206) or
(
page 207).
The indicator lamp on the button goes
out.
i
Condensation may drip out from underneath
the vehicle. This is normal and not an indication
of a malfunction.Warning!
G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.

218 Controls in detailDual-zone automatic climate controlActivating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.
Press button2 (
page 206) or
(
page 207) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.Residual heat and ventilation
(Canada only)
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.Activating

Switch off the ignition.

Press buttonT (
page 207).
REST
in the display4 (
page 207)
comes on.
Deactivating

Press buttonT (
page 207) again.
REST
in the display4 (
page 207)
goes out.
!
If the air conditioning cannot be turned on
again, this indicates that the air conditioning is
losing refrigerant. The compressor has turned it-
self off.
Have the air conditioning checked at the nearest
authorized Mercedes-Benz Center.
i
If you switch on the residual heat function
when temperatures are high, only the ventilation
will be switched on.
i
Regardless of the selected air volume, the
blower operates at low speed.
i
How long the system will provide heating de-
pends on


the coolant temperature


the temperature set by the operator
The blower will run at speed setting1 regardless
of the air distribution control setting.
i
The residual heat is automatically turned off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops


if the coolant temperature is too low

219 Controls in detail
Dual-zone automatic climate control
Rear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the climate
control panel (
page 206) or
(
page 207).The air vents for the rear passenger
compartment are located in the rear
center console.
1Left center air vent, adjustable
2Right center air vent, adjustable
3Thumbwheel for air volume control for
right rear center air vent
4Thumbwheel for air volume control for
left rear center air ventAdjusting air distribution

Move the slider for the left center air
vent1 or right center air vent2 to
the left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume

Turn thumbwheel3 or4 up or down.
The air volume is increased or
decreased.
i
The temperature at the center air vents1
and2 for the rear passenger compartment is
nearly the same as at the dashboard center air
vents.
i
For draft-free ventilation, move the sliders
for the center air vents1 and2 upward.

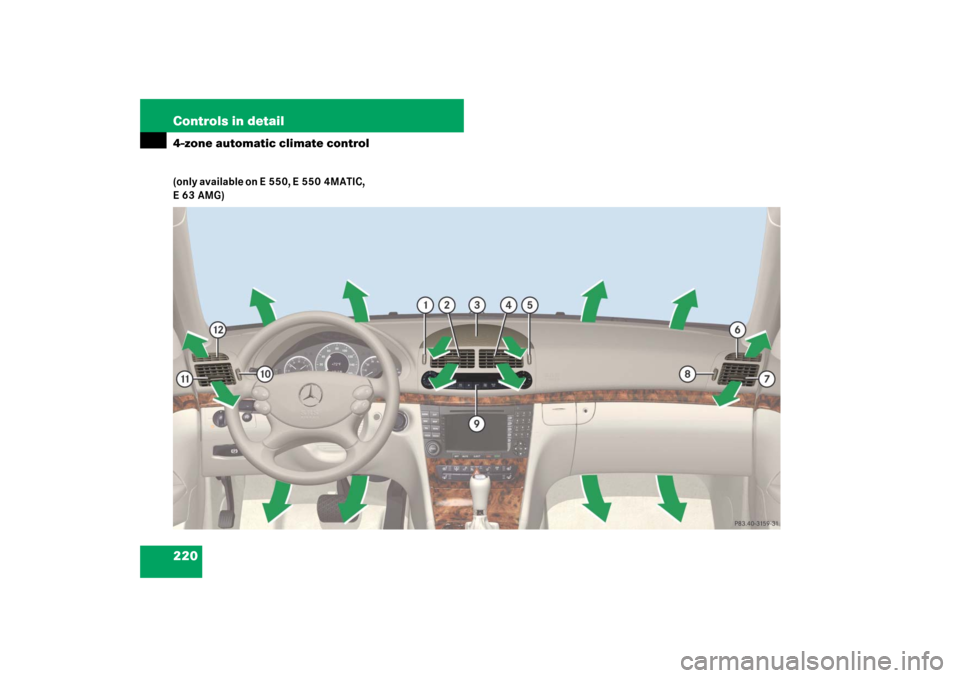

220 Controls in detail4-zone automatic climate control(only available on E 550, E 550 4MATIC,
E63AMG)

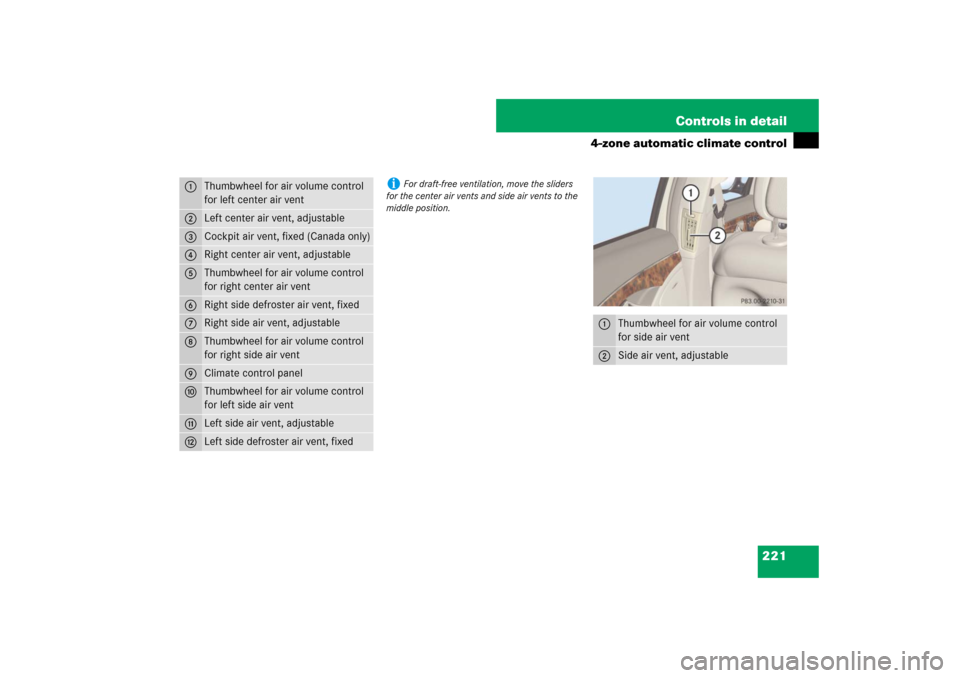

221 Controls in detail
4-zone automatic climate control
1
Thumbwheel for air volume control
for left center air vent
2
Left center air vent, adjustable
3
Cockpit air vent, fixed (Canada only)
4
Right center air vent, adjustable
5
Thumbwheel for air volume control
for right center air vent
6
Right side defroster air vent, fixed
7
Right side air vent, adjustable
8
Thumbwheel for air volume control
for right side air vent
9
Climate control panel
a
Thumbwheel for air volume control
for left side air vent
b
Left side air vent, adjustable
c
Left side defroster air vent, fixed
i
For draft-free ventilation, move the sliders
for the center air vents and side air vents to the
middle position.
1
Thumbwheel for air volume control
for side air vent
2
Side air vent, adjustable

222 Controls in detail4-zone automatic climate controlUSA only1
Air distribution, driver’s side
2
Front defroster
3
Temperature rocker switch, driver’s
side
4
Display
5
Temperature rocker switch,
passenger side
6
Rear window defroster
7
Air distribution, passenger side
8
Air distribution and air volume,
passenger side (automatic, manual)
9
AC cooling on/off
a
Rear air-conditioning remote control
b
Increasing air volume
c
Climate control on/off
d
Decreasing air volume
e
MAX COOL on/off
f
Air recirculation
g
Air distribution and air volume,
driver’s side (automatic, manual)

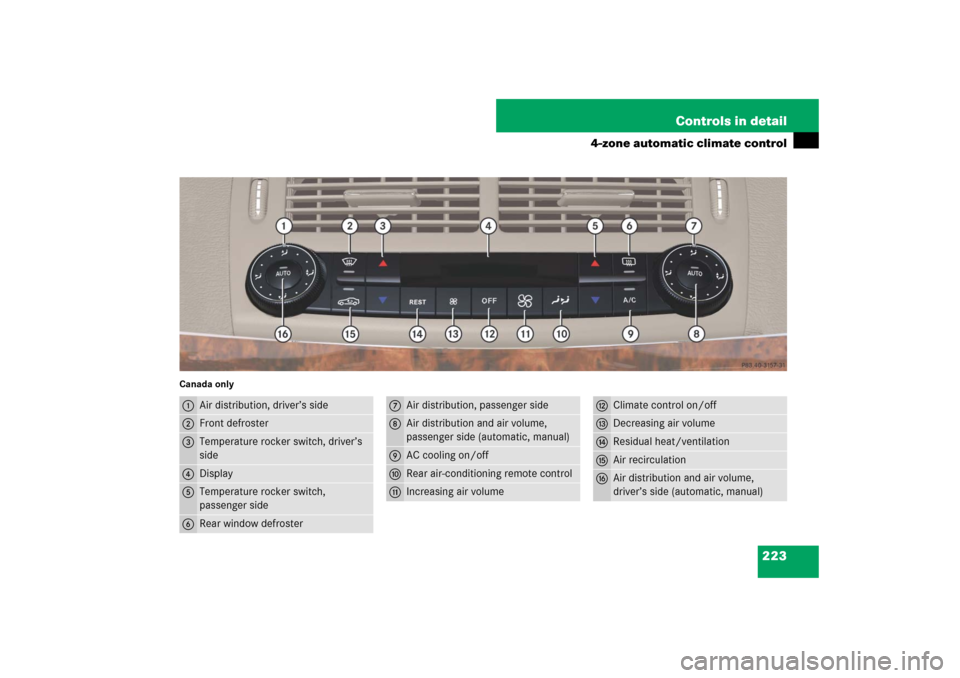

223 Controls in detail
4-zone automatic climate control
Canada only1
Air distribution, driver’s side
2
Front defroster
3
Temperature rocker switch, driver’s
side
4
Display
5
Temperature rocker switch,
passenger side
6
Rear window defroster
7
Air distribution, passenger side
8
Air distribution and air volume,
passenger side (automatic, manual)
9
AC cooling on/off
a
Rear air-conditioning remote control
b
Increasing air volume
c
Climate control on/off
d
Decreasing air volume
e
Residual heat/ventilation
f
Air recirculation
g
Air distribution and air volume,
driver’s side (automatic, manual)
