2007 MERCEDES-BENZ E550 4MATIC Owner's Manual

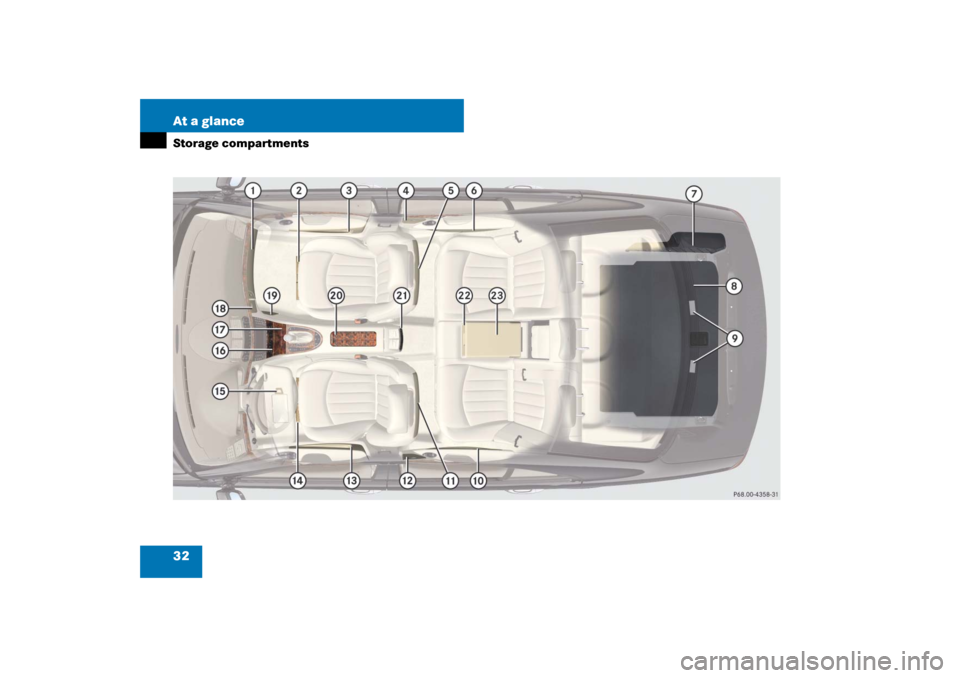

32 At a glanceStorage compartments

33 At a glance
Storage compartments
Item
Page
1
Glove box
282
2
Front passenger seat storage
compartment with first aid kit
432
3
Door pocket
4
Ashtray
287
5
Ruffled storage bag
283
6
Door pocket
7
Side storage pocket in trunk*
8
Luggage box under the trunk
floor
433
Item
Page
9
Retaining hooks
281
a
Door pocket
b
Ruffled storage bag
283
c
Ashtray
287
d
Door pocket
e
Driver’s seat storage compart-
ment
f
Sun visor card clip
g
CD changer
h
Ashtray with cigarette lighter
287
Item
Page
j
Mobile phone/Glasses box
282
k
Parcel net in front passenger
footwell
284
l
Storage compartment with
cup holders/telephone* com-
partment
285
m
Rear storage compartment in
the rear center console
282
n
Cup holder in the rear armrest
285
o
Storage compartment in the
rear armrest
283

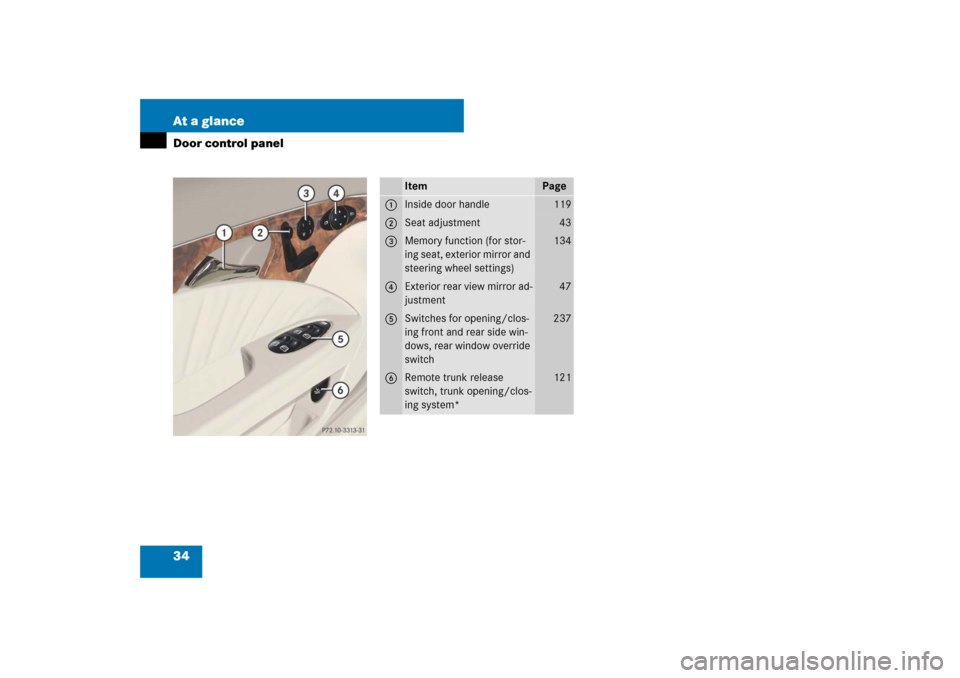

34 At a glanceDoor control panel
Item
Page
1
Inside door handle
119
2
Seat adjustment
43
3
Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)
134
4
Exterior rear view mirror ad-
justment
47
5
Switches for opening/clos-
ing front and rear side win-
dows, rear window override
switch
237
6
Remote trunk release
switch, trunk opening/clos-
ing system*
121

35 Getting started
Unlocking
Adjusting
Driving
Parking and locking

36 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic
functions. First-time Mercedes-Benz own-
ers should pay special attention to the in-
formation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.Unlocking
Unlocking with the SmartKeySmartKey with remote control 1‹Lock button
2ŠOpening button for trunk
3ŒUnlock button
4ÂPanic button (
page 96)

Press unlock button Πon the
SmartKey.

All turn signal lamps flash once.


An acoustic signal sounds once.


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.

Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “SmartKey”
(
page 110).Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s un-
supervised access to a vehicle could result
in an accident and/or serious personal inju-
ry.

37 Getting started
Unlocking
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.

Pull an outside door handle.

All turn signal lamps flash once.


An acoustic signal sounds once.


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.

Get in the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 113).
Starter switch positions
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.i
To unlock the vehicle, the SmartKey with
KEYLESS-GO must be outside the vehicle, no fur-
ther than approximately 3 feet (1 meter) away
from the door.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.

38 Getting startedUnlockingSmartKeyStarter switch0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except low beam headlamp
indicator lamp, high beam headlamp in-
dicator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 380).
3Starting position
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 52).
i
When you switch on the ignition, the indica-
tor and warning lamps (except low beam head-
lamp indicator lamp, high beam headlamp
indicator lamp, and turn signal indicator lamps
unless activated) in the instrument cluster come
on. The indicator and warning lamps (except low
beam headlamp indicator lamp, high beam head-
lamp indicator lamp, and turn signal indicator
lamps if activated) should go out when the en-
gine is running. This indicates that the respective
systems are operational.
i
The SmartKey can only be removed from the
starter switch with the gear selector lever in
positionP.
i
If the SmartKey is left in starter switch
position0 for an extended period of time, it can
no longer be turned in the switch. In this case,
the steering is locked. To unlock, remove
SmartKey from the starter switch and reinsert.
!
If the SmartKey cannot be turned in the
starter switch, the battery may not be
sufficiently charged.


Check the battery and charge it if necessary
(page 462).


Get a jump start (
page 464).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.

39 Getting started
Unlocking
SmartKey with KEYLESS-GO*
If the SmartKey with KEYLESS-GO is inside
the vehicle, pressing the KEYLESS-GO
start/stop button on the gear selector le-
ver corresponds to turning the SmartKey
to the various starter switch positions.
If you firmly depress the brake pedal dur-
ing pressing the KEYLESS-GO start/stop
button, the engine starts automatically.
KEYLESS-GO start/stop button1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.Position 0
Before you press the KEYLESS-GO start/
stop button, the vehicle’s on-board elec-
tronics have status 0 (a s wit h Sma rtKey re-
moved).
Position 1

Press KEYLESS-GO start/stop button
once.
This supplies power for some electrical
consumers, such as seat adjustment.
i
The function of the SmartKey overrules the
KEYLESS-GO function.
i
If you now press the KEYLESS-GO
start/stop button


once again, the ignition (position2) is
switched on


twice, the power supply is again switched off
