2007.5 Peugeot 207 Dag Owner's Manual

10
162
TECHNICAL DATA
SW CONSUMPTION In accordance with EC Directive 80/1268 (as amended)

Diesel engines Gearbox
Model codes
WE...

Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed driving
mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)

1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 4.0 4.6 123

9HV-C 6.1 4.4 5.0 131

1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C - - - -

9HZ-C 6.1 4.4 5.0 131

SW OUTDOOR CONSUMPTION In accordance with EC Directive 80/1268 (as amended)

Diesel engines Gearbox
Model
codes WU...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)

1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 4.1 4.7 125

9HV-C - - - -

1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C - - - -

9HZ-C 6.4 4.5 5.2 136
The consumption i gures shown here correspond to the values commun icated at the time of printing.
These consumption values were established in accordance with EC D irective 80/1268 (as amended). They may vary
depending on the style of driving, trafi c conditions, weat her conditions, the load in the vehicle, the maintenance o f the vehicle
and the use of the accessories.

10
154
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

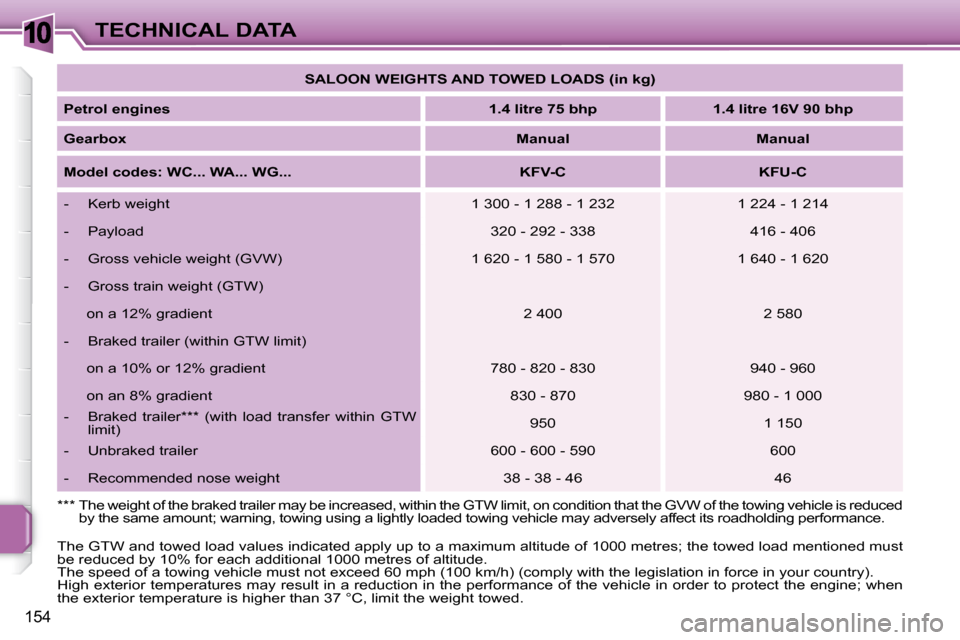

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre 75 bhp 1.4 litre 16V 90 bhp

Gearbox
Manual Manual

Model codes: WC... WA... WG... KFV-C KFU-C
- Kerb weight 1 300 - 1 288 - 1 232 1 224 - 1 214
- Payload 320 - 292 - 338 416 - 406
- Gross vehicle weight (GVW) 1 620 - 1 580 - 1 570 1 640 - 1 620
- Gross train weight (GTW)
on a 12% gradient 2 400 2 580
- Braked trailer (within GTW limit) on a 10% or 12% gradient 780 - 820 - 830 940 - 960
on an 8% gradient 830 - 870 980 - 1 000
- Braked trailer *** (with load transfer within GTW limit) 950 1 150
- Unbraked trailer 600 - 600 - 590 600
- Recommended nose weight 38 - 38 - 46 46
*** The weight of the braked trailer may be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10TECHNICAL DATA
155

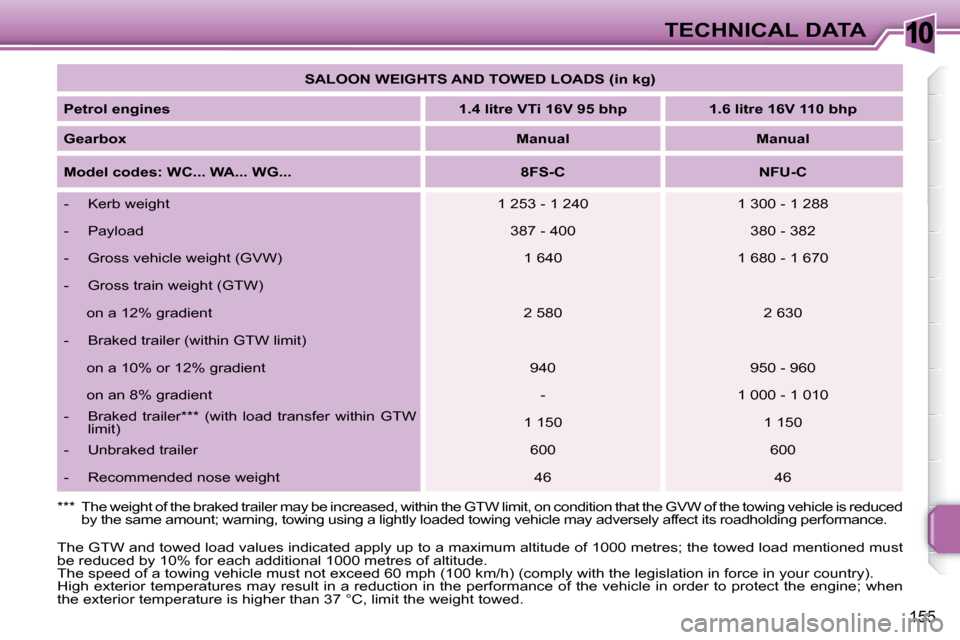

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre VTi 16V 95 bhp 1.6 litre 16V 110 bhp

Gearbox
Manual Manual

Model codes: WC... WA... WG... 8FS-C NFU-C
- Kerb weight 1 253 - 1 240 1 300 - 1 288
- Payload 387 - 400 380 - 382
- Gross vehicle weight (GVW) 1 640 1 680 - 1 670
- Gross train weight (GTW)
on a 12% gradient 2 580 2 630
- Braked trailer (within GTW limit) on a 10% or 12% gradient 940 950 - 960
on an 8% gradient - 1 000 - 1 010
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
156
TECHNICAL DATA

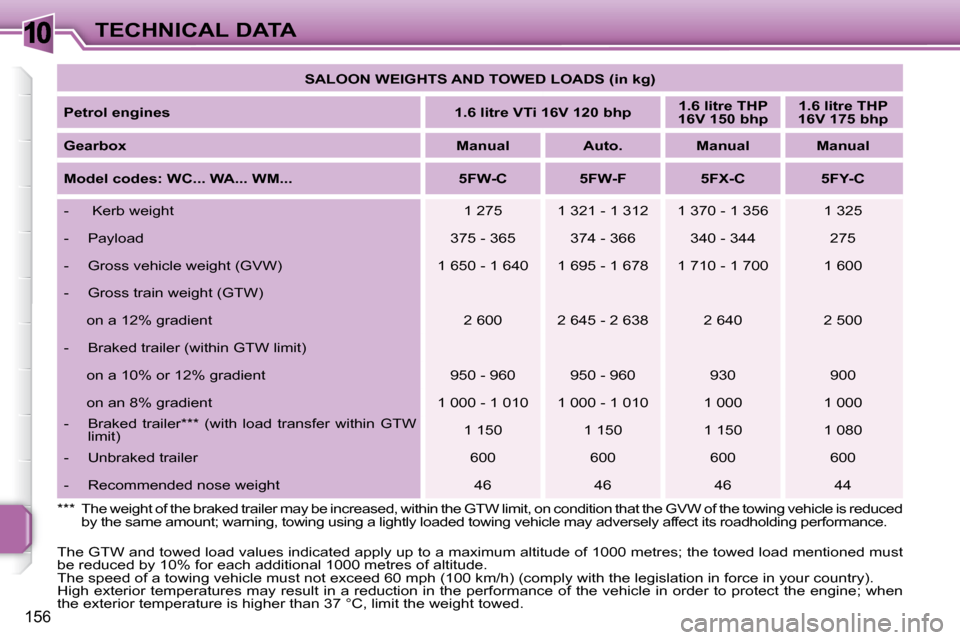

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp
1.6 litre THP
16V 175 bhp

Gearbox
Manual Auto. Manual Manual

Model codes: WC... WA... WM... 5FW-C 5FW-F 5FX-C 5FY-C
- Kerb weight 1 275 1 321 - 1 312 1 370 - 1 356 1 325
- Payload 375 - 365 374 - 366 340 - 344 275
- Gross vehicle weight (GVW) 1 650 - 1 640 1 695 - 1 678 1 710 - 1 700 1 600
- Gross train weight (GTW)
on a 12% gradient 2 600 2 645 - 2 638 2 640 2 500
- Braked trailer (within GTW limit) on a 10% or 12% gradient 950 - 960 950 - 960 9 30 900
on an 8% gradient 1 000 - 1 010 1 000 - 1 010 1 000 1 000
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150 1 080
- Unbraked trailer 600 600 600 600
- Recommended nose weight 46 46 46 44
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10TECHNICAL DATA
163
** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

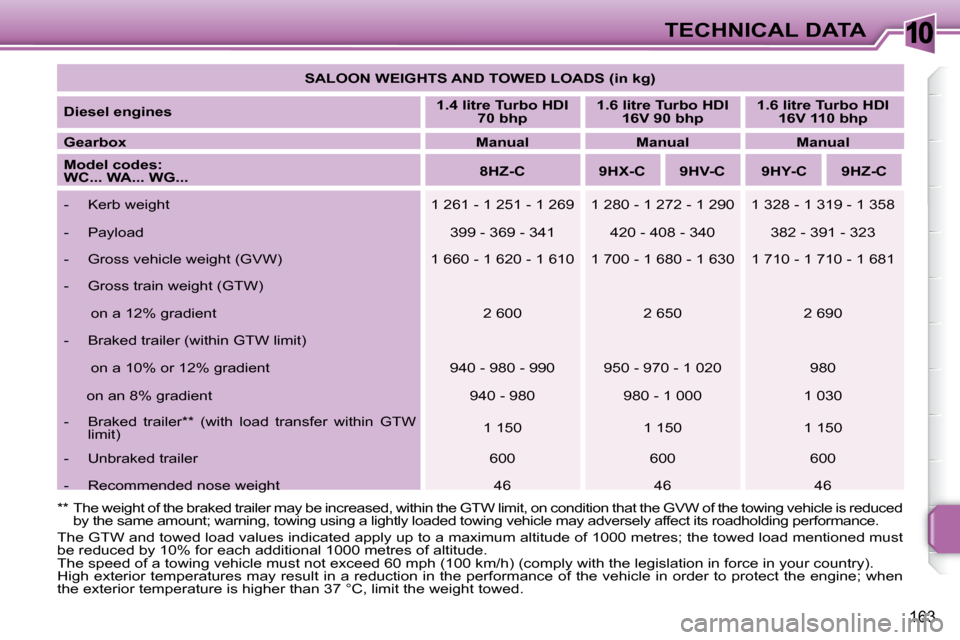

SALOON WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.4 litre Turbo HDI
70 bhp
1.6 litre Turbo HDI
16V 90 bhp
1.6 litre Turbo HDI
16V 110 bhp

Gearbox
Manual Manual Manual

Model codes:
WC... WA... WG...
8HZ-C 9HX-C 9HV-C 9HY-C 9HZ-C
- Kerb weight 1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290 1 328 - 1 319 - 1 358
- Payload 399 - 369 - 341 420 - 408 - 340 382 - 391 - 323

- Gross vehicle weight (GVW) 1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630 1 710 - 1 710 - 1 681

- Gross train weight (GTW)
on a 12% gradient 2 600 2 650 2 690
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 940 - 980 - 990 950 - 97 0 - 1 020 980
on an 8% gradient 940 - 980 980 - 1 000 1 030
- Braked trailer ** (with load transfer within GTW
limit) 1 150 1 150 1 150
- Unbraked trailer
600 600 600

- - Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

10TECHNICAL DATA
157

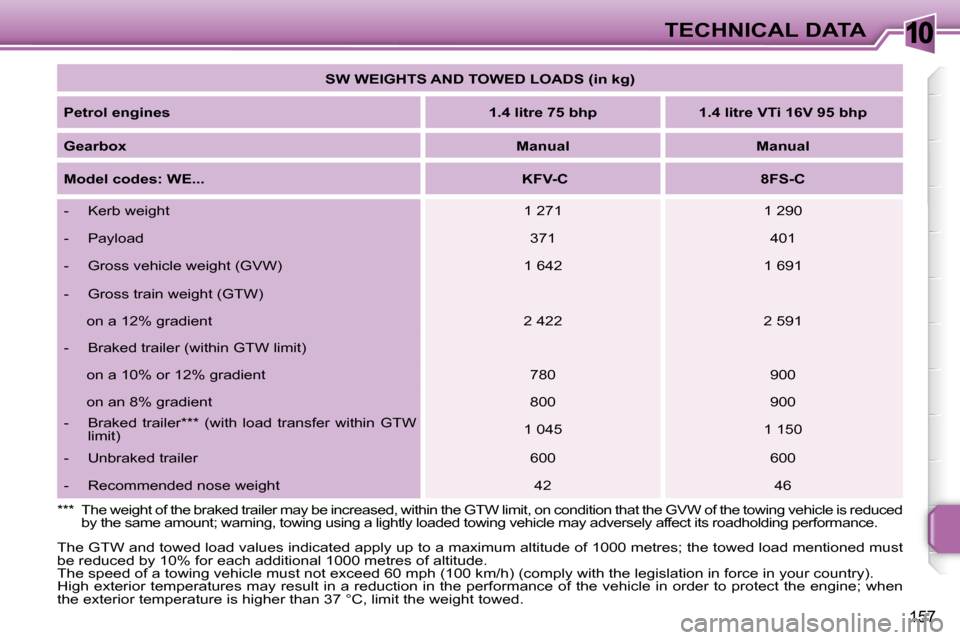

SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre 75 bhp 1.4 litre VTi 16V 95 bhp

Gearbox
Manual Manual

Model codes: WE...
KFV-C 8FS-C
- Kerb weight 1 271 1 290
- Payload 371 401
- Gross vehicle weight (GVW) 1 642 1 691
- Gross train weight (GTW) on a 12% gradient 2 422 2 591
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 780 900
on an 8% gradient 800 900
- Braked trailer *** (with load transfer within GTW limit) 1 045 1 150
- Unbraked trailer 600 600
- Recommended nose weight 42 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
158
TECHNICAL DATA
SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP 16V
175 bhp

Gearbox
Manual Auto. Manual

Model codes: WE...
5FW-C 5FW-F 5FY-C
- Kerb weight 1 302 1 335 1 428
- Payload 403 402 340
- Gross vehicle weight (GVW) 1 705 1 737 1 768
- Gross train weight (GTW)
on a 12% gradient 2 605 2 687 2 718
- Braked trailer (within GTW limit) on a 10% or 12% 900 950 950
on an 8% gradient 950 950 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10TECHNICAL DATA
159

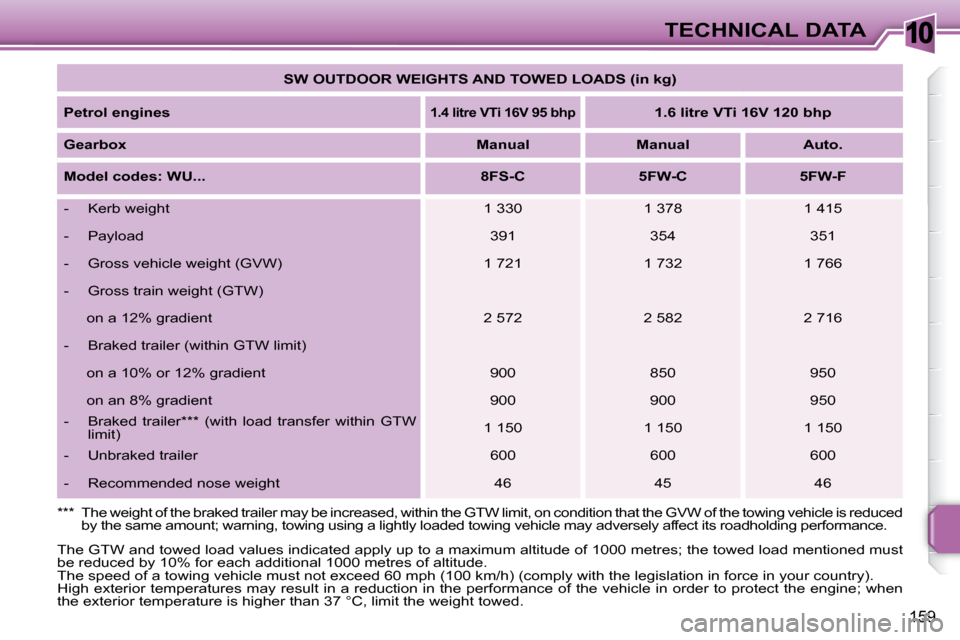

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4 litre VTi 16V 95 bhp
1.6 litre VTi 16V 120 bhp

Gearbox
Manual Manual Auto.

Model codes: WU...
8FS-C 5FW-C 5FW-F
- Kerb weight 1 330 1 378 1 415
- Payload 391 354 351
- Gross vehicle weight (GVW) 1 721 1 732 1 766
- Gross train weight (GTW) on a 12% gradient 2 572 2 582 2 716
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 900 850 950
on an 8% gradient 900 900 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 45 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
