2007.5 Peugeot 207 Dag Owner's Manual

!
i
i
48
As a safety precaution, do not han-
dle the cartridge while driving.
Do not disassemble the cartridges.
Do not try to rei ll the fragrance dif-
fuser or the cartridges. Only use
genuine PEUGEOT cartridges.
Avoid any contact with the skin and
the eyes.
Store out of reach of children and
pets.
The intensity of diffusion of the fra-
grance may depend on the ventila-
tion or air conditioning settings.
FRAGRANCE DIFFUSER
System which permits the diffusion of
fragrance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.
Fitting the cartridge

 Remove the sealing cap from the
cartridge.

 Install the cartridge in the fascia.

 Press the cartridge and turn it one
quarter of a turn.
Controls

A. Adjustment dial.
This dial permits simultaneous adjust-
ment of the ventilation and of the inten-
sity of diffusion of the fragrance. There
are three main positions:

0. Zero ventilation.

1. Maximum ventilation/Zero diffusion.

2. Maximum ventilation/Maximum dif-
fusion. B. Fragrance cartridge.
This cartridge can be removed very easily.
You can change it at any time and store
it, using the cap which seals it if it has
been partly used.
You can obtain different fragrance car-
tridges from your PEUGEOT dealer. Removing the cartridge

 Turn the cartridge one quarter of a
turn.

 Remove the cartridge from the fascia.

 Rei t its sealing cap.
Do not discard the original car-
tridge as this is used as a closer
when you are not using a fragrance
cartridge.
To prolong the lifespan of the car-
tridge, set the dial to position "0" or

"1" as soon as you no longer wish
to diffuse the fragrance in the pas-
senger compartment.

49
FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.
1. Forwards-backwards adjustment

 Lift the control and slide the seat for-
wards or backwards. 2. Driver's or passenger's seat
height adjustment

 Pull the handle upwards or push it
downwards as many times as ne-
cessary to obtain the required posi-
tion. 3.
Seat back angle adjustment

 Push the handle towards the rear.

!
!
50
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.
Take care not to trap the seat belt
to avoid hindering the passage of
the rear passengers.
4. Access to rear seats
(3 door)

 Pull the handle to fold the seat back
and move the seat forwards. On re-
positioning, the seat returns to its
initial position. 5. Head restraint height and angle
adjustment

 To raise the head restraint, pull it up-
wards.

 To remove the head restraint, press
the lug A and pull the head restraint
upwards.

 To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.

 To lower the head restraint, press
the lug A and the head restraint at
the same time.

 To tilt the head restraint, tilt the low-
er part forwards or rearwards. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.

The adjustment is correct when
the upper edge of the head
restraint is level with the top of
the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

!
i
51
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
rei tting (GTi).
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of heat-
ing of the seat(s) remains memorised
for two minutes after the ignition has
been switched off.
7. Heated seats switch
With the engine running, the front seats
can be heated separately.

 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0 : Off.

1 : Low.

2 : Medium.

3 : High.
They can also be removed; to remove
them:

 pull the head restraint upwards to
the stop,

 then, press the lug.
6. Armrests (except 3 door)
These can be folded down and are re-
movable.

 To remove them, press the button
located between the armrest and
the side of the seat and pull it.

!
i
51
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
rei tting (GTi).
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of heat-
ing of the seat(s) remains memorised
for two minutes after the ignition has
been switched off.
7. Heated seats switch
With the engine running, the front seats
can be heated separately.

 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0 : Off.

1 : Low.

2 : Medium.

3 : High.
They can also be removed; to remove
them:

 pull the head restraint upwards to
the stop,

 then, press the lug.
6. Armrests (except 3 door)
These can be folded down and are re-
movable.

 To remove them, press the button
located between the armrest and
the side of the seat and pull it.

!
i
52

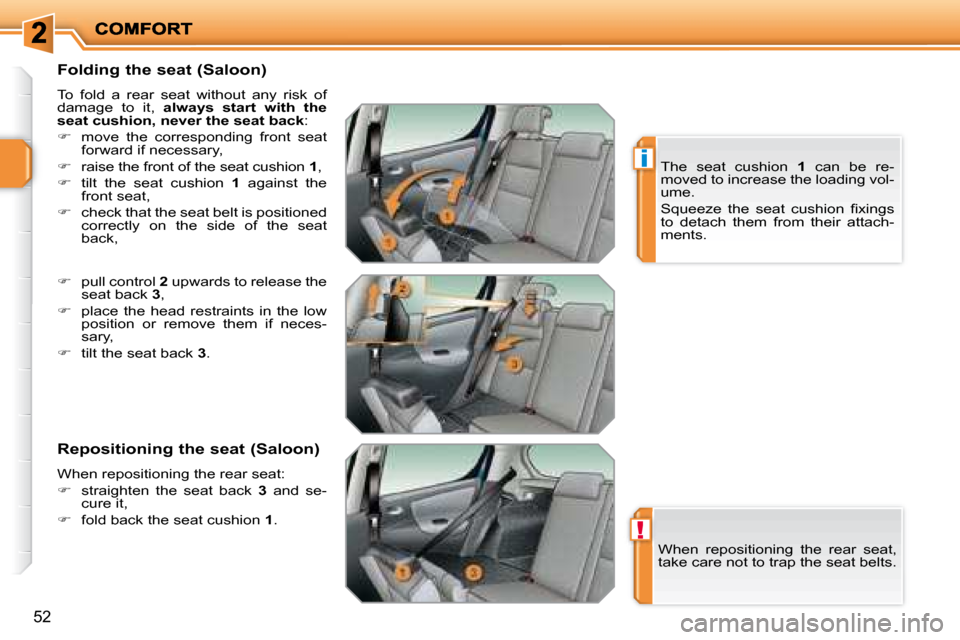

Folding the seat (Saloon)
To fold a rear seat without any risk of
damage to it, always start with the
seat cushion, never the seat back :

 move the corresponding front seat
forward if necessary,

 raise the front of the seat cushion 1 ,

 tilt the seat cushion 1 against the
front seat,

 check that the seat belt is positioned
correctly on the side of the seat
back,
Repositioning the seat (Saloon)
When repositioning the rear seat:

 straighten the seat back 3 and se-
cure it,

 fold back the seat cushion 1 .

 pull control 2 upwards to release the
seat back 3 ,

 place the head restraints in the low
position or remove them if neces-
sary,

 tilt the seat back 3 .
When repositioning the rear seat,
take care not to trap the seat belts. The seat cushion
1 can be re-
moved to increase the loading vol-
ume.
Squeeze the seat cushion i xings
to detach them from their attach-
ments.

!
i
51
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot. Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
As the head restraints are not inter-
changeable, take care to put them
back in their original position when
rei tting (GTi).
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of heat-
ing of the seat(s) remains memorised
for two minutes after the ignition has
been switched off.
7. Heated seats switch
With the engine running, the front seats
can be heated separately.

 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0 : Off.

1 : Low.

2 : Medium.

3 : High.
They can also be removed; to remove
them:

 pull the head restraint upwards to
the stop,

 then, press the lug.
6. Armrests (except 3 door)
These can be folded down and are re-
movable.

 To remove them, press the button
located between the armrest and
the side of the seat and pull it.

!
i
53
Folding the seat (SW)
This operation can be carried out at the
rear seats or through the opening rear
screen.
To fold a rear seat without any risk of
damage:

 move the corresponding front seat
forward if necessary,

 place the head restraints in the low
position, Check that no object could hinder
the movement of the bench seat,
either above or below.
Repositioning the seat (SW) The seat cushion lowers in order to
be covered by the seat back; this
quickly enables you to benei t from
a l at boot l oor.

 pull the control 1 forward to release
the seat back 2 which folds easily
onto the seat cushion 3 .

 When repositioning the rear seat,
straighten the seat back 2 and lock it.

 Check that the red indicator, located
at control 1 , is no longer visible.
