FITTING ROOF BARS
(SALOON)
When i tting transverse roof bars, use
the four quick-i t i xings provided for this
purpose:

 lift the concealing l aps,

 adjust the roof bar quick-i t i xings.
Maximum authorised weight on the
roof rack, for a loading height not ex-
ceeding 40 cm (with the exception of
bicycle carriers): 65 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
i le of the road to avoid damaging the
roof bars and the i xings on the roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS (SW)
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
When i tting transverse roof bars, en-
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's i tting instructions.
In order to place a load on the roof, your
vehicle must be i tted with longitudinal
roof bars with transverse roof bars i tted
on top of these.
The longitudinal roof bars cannot be re-
moved.

Maximum authorised weight on the roof
bars, for a loading height not exceeding
40 cm (except bicycle carriers): 75 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the con-
dition of the road, to avoid damag-
ing the roof bars and the i xings on
the roof.
Please refer to national legislation
to comply with the regulations re-
garding the transportation of objects
which are longer than the vehicle.
Lashing the straps through the ends
of the longitudinal roof bars is pro-
hibited.

!
i
149
The i tting of electrical equipment
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
Please note this specii c warning.
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benei t from PEUGEOT's recommenda-
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cate-
gories: PROTECTION - TOURING -IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection": "Touring":

"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never i t one mat on top of another. Depending on the country in which
the vehicle is sold, it is compulsory
to have a safety jacket, warning tri-
angle and spare bulbs available in
the vehicle.
anti-theft alarm, window en-
graving, wheel locks, i rst aid
kit, warning triangle, safety
jacket, stolen vehicle tracking
system, snow chains.
mats * , boot tray, luggage net,
i xed coat hook on head restraint,
aluminium or PVC door sills.
For leisure pursuits: roof bars,
bicycle carrier on towbar, bi-
cycle carrier on roof bars, ski
carrier, roof box, booster seats
and child seats, side blinds
and rear blind, front centre armrest, CD
storage, under shelf storage.
Trailer towbar which must be i tted by
the PEUGEOT network.
audio systems, telephone, am-
plii ers, satellite navigation sys-
tems, hands-free kit, CD changer,
speakers, DVD player, connection
kit for MP3 player or portable CD
player, rear parking assistance.
seat covers compatible with
side air bags, aluminium gear
lever knob, fog lamps, door de-
l ectors, spoiler, styling strips,
alloy wheels, trims, sport ex-
haust, chromed mirror shells. screenwash, interior and exte-
rior maintenance and cleaning
products.

10
150
TECHNICAL DATA
MODELS: ENGINES AND GEARBOXES

Model codes: KFV-C KFU-C 8FS-C

PETROL ENGINES 1.4 litre 75 bhp 1.4 litre 16V
90 bhp * 1.4 litre VTi 16V 95 bhp
Cubic capacity (cm 3
) 1 360 1 360 1 397
Bore x stroke (mm) 75 x 77 75 x 77 75 x 77
Maximum power: EU standard (kW) 54 65 70
Maximum power engine speed (rpm) 5 400 5 250 6 000
Maximum torque: EU standard (Nm) 118 133 136
Maximum torque engine speed (rpm) 3 300 3 250 4 000
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes

GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.25 3.25 4.25
Gearbox - Final drive 1.9 1.9 1.9
* Not available on SW and SW Outdoor.

10TECHNICAL DATA
151

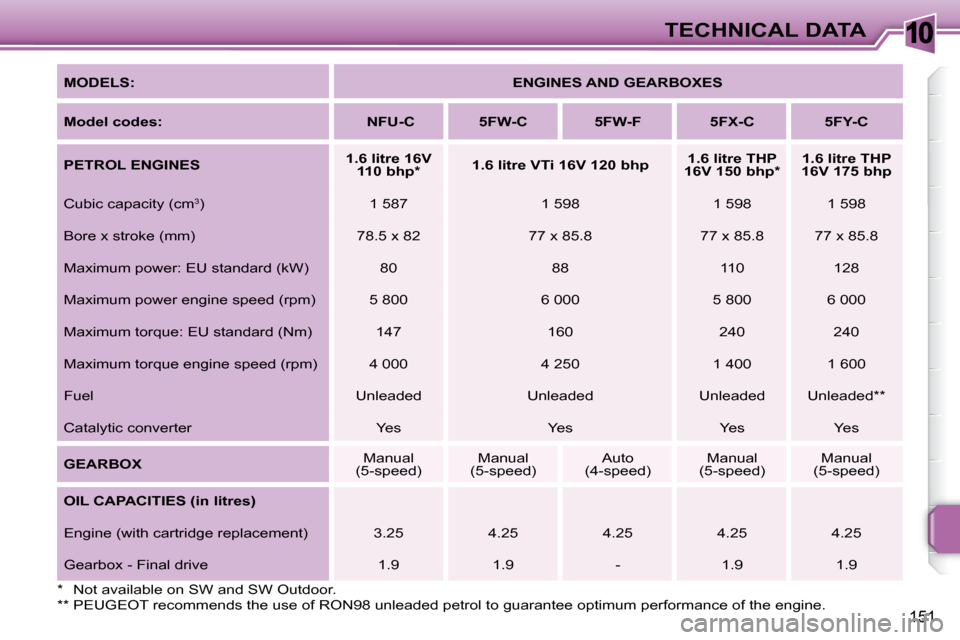

MODELS:
ENGINES AND GEARBOXES

Model codes: NFU-C 5FW-C 5FW-F 5FX-C 5FY-C

PETROL ENGINES
1.6 litre 16V
110 bhp *
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp *
1.6 litre THP
16V 175 bhp
Cubic capacity (cm 3
) 1 587 1 598 1 598 1 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8 77 x 85.8 77 x 85.8
Maximum power: EU standard (kW) 80 88 110 128
Maximum power engine speed (rpm) 5 800 6 000 5 800 6 000
Maximum torque: EU standard (Nm) 147 160 240 240
Maximum torque engine speed (rpm) 4 000 4 250 1 400 1 600
Fuel Unleaded Unleaded Unleaded Unleaded **
Catalytic converter Yes Yes Yes Yes

GEARBOX Manual
(5-speed) Manual
(5-speed) Auto
(4-speed) Manual
(5-speed) Manual
(5-speed)

OIL CAPACITIES
(in litres)
Engine (with cartridge replacement) 3.25 4.25 4.25 4.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9 1.9
** PEUGEOT recommends the use of RON98 unleaded petrol to guarantee optimum performance of the engine. * Not available on SW and SW Outdoor.

10
160
TECHNICAL DATA

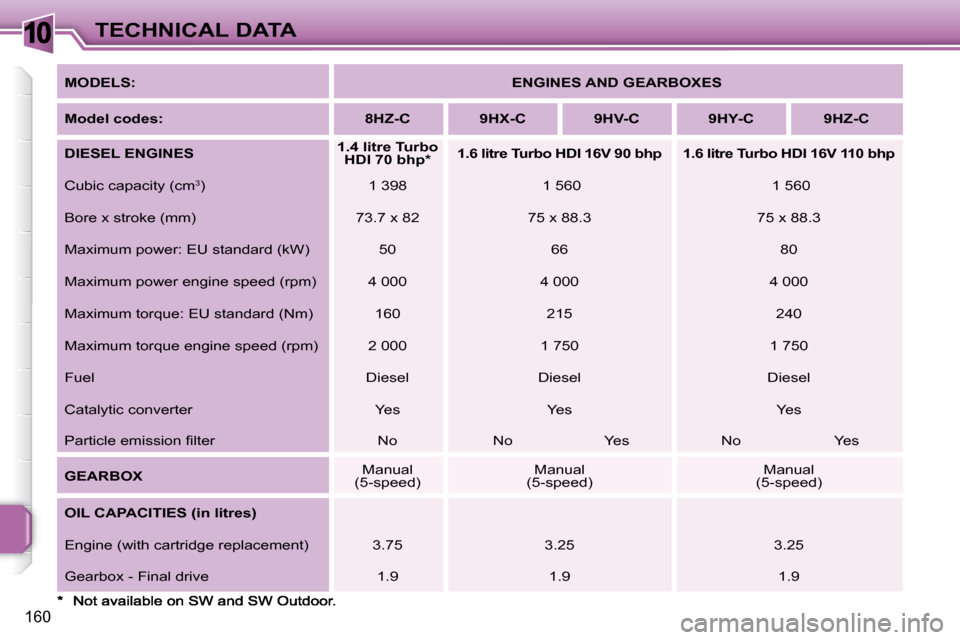

MODELS:
ENGINES AND GEARBOXES

Model codes: 8HZ-C 9HX-C 9HV-C 9HY-C 9HZ-C

DIESEL ENGINES
1.4 litre Turbo
HDI 70 bhp *
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Cubic capacity (cm 3
) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3 75 x 88.3
Maximum power: EU standard (kW) 50 66 80
Maximum power engine speed (rpm) 4 000 4 000 4 000
Maximum torque: EU standard (Nm) 160 215 240
Maximum torque engine speed (rpm) 2 000 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particle emission i lter No No Yes No Yes

GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement) 3.75 3.25 3.25
Gearbox - Final drive 1.9 1.9 1.9

10
152
TECHNICAL DATA
SALOON
CONSUMPTION
In accordance with EC Directive 80/1268 (as amended)

Petrol engines Gearbox
Model
codes
WC... WA...
WG... WM...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)

1.4 litre 75 bhp Manual KFV-C 33.6 (8.4) 56.5 (5.0) 44.8 (6.3) 150

1.4 litre 16V 90 Manual KFU-C 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 152

1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.9 (8.1) 56.5 (5.0) 46.3 (6.1) 145

1.6 litre 16V 110 bhp Manual NFU-C 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166

1.6 litre VTi 16V
120 bhp
Manual 5FW-C 33.6 (8.4) 58.8 (4.8) 46.3 (6.1) 145

Auto. 5FW-F 28.8 (9.8) 51.4 (5.5) 40.4 (7.0) 167

1.6 litre THP 16V
150 bhp
Manual 5FX-C 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166

1.6 litre THP 16V
175 bhp
Manual 5FY-C 28.5 (9.9) 49.6 (5.7) 39.2 (7.2) 171
The consumption i gures shown here correspond to the values commu nicated at the time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
depending on the style of driving, trafi c conditions, weat her conditions, the load in the vehicle, the maintenance o f the vehicle
and the use of the accessories.

10TECHNICAL DATA
The consumption i gures shown here correspond to the values communicated at the time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
depending on the style of driving, trafi c conditions, weat her conditions, the load in the vehicle, the maintenance o f the vehicle
and the use of the accessories.

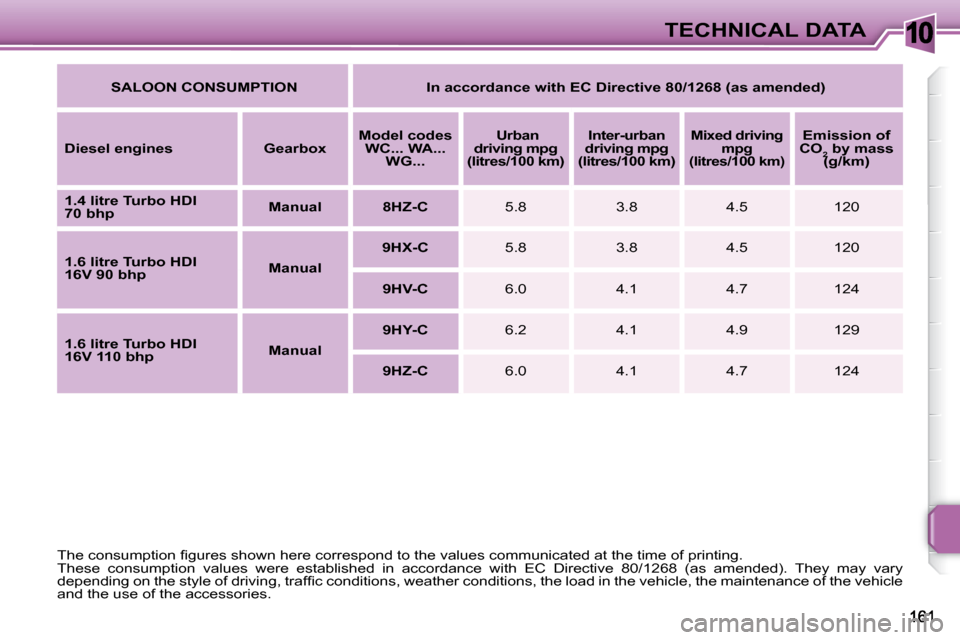

SALOON CONSUMPTION In accordance with EC Directive 80/1268 (as amended)

Diesel engines Gearbox
Model codes
WC... WA... WG...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)

Mixed driving
mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)

1.4 litre Turbo HDI
70 bhp
Manual 8HZ-C 5.8 3.8 4.5 120

1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 3.8 4.5 120

9HV-C 6.0 4.1 4.7 124

1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C 6.2 4.1 4.9 129

9HZ-C 6.0 4.1 4.7 124

10TECHNICAL DATA
153

SW CONSUMPTION In accordance with EC Directive 80/1268 (as amended)

Petrol engines Gearbox
Model codes
WE...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by
mass (g/km)

1.4 litre 75 bhp Manual KFV-C 32.1 (8.8) 53.3 (5.3) 43.5 (6.5) 155

1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.4 (8.2) 54.3 (5.2) 44.8 (6.3) 150

1.6 litre VTi 16V 120 bhp
Manual 5FW-C 32.8 (8.6) 56.5 (5.0) 44.8 (6.3) 150

Auto. 5FW-F 28.8 (9.8) 51.4 (5.5) 40.4 (7.0) 167

1.6 litre THP 16V 175 bhp
Manual 5FY-C 27.7 (10.2) 47.9 (5.9) 38.2 (7.4) 175

SW OUTDOOR CONSUMPTION In accordance with EC directive 80/1268 (as amended)

Petrol engines Gearbox
Model codes
WU...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by
mass (g/km)

1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.0 (8.3) 53.3 (5.3) 44.1 (6.4) 153

1.6 litre VTi 16V 120 bhp
Manual 5FW-C 32.4 (8.7) 55.4 (5.1) 44.1 (6.4) 152

Auto. 5FW-F 27.5 (10.1) 49.6 (5.7) 38.7 (7.3) 173
The consumption i gures shown here correspond to the values commu nicated at the time of printing.
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
depending on the style of driving, trafi c conditions, weat her conditions, the load in the vehicle, the maintenance o f the vehicle
and the use of the accessories.
