2007.5 Peugeot 207 Dag Owner's Manual

!
i
CHILD SAFETY
93
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation .
The seats, represented below, are i tted
with regulation ISOFIX mountings: These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , for i xing the upper strap
referred to as the TOP TETHER . This ISOFIX mounting system guaran-
tees you fast, reliable and safe i tting of
the child seat in your vehicle.
The
ISOFIX child seats are i tted with
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then i x the hook on
ring B and tighten the upper strap.

Saloon

GTi

SW

i
CHILD SAFETY
94
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not i tted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using t he three point seat belt.
Follow the instructions for i tting the child seat given in the seat manufacturer's installation guide.

ISOFIX RÖMER Duo Plus (size category B1 )

Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX uppe r ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

CHILD SAFETY
95
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats
on the vehicle seats i tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.

IUF: seat suitable for the installation of an I soi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.

IL-SU: seat suitable for the installation an I soi x S emi- U niversal seat which is:
- "rear facing" i tted with a "Top Tether" upper strap or a stay,
- "forward facing" i tted with a stay,
- an infant car seat i tted with a "Top Tether" upper stra p or a stay.
For the securing of the "Top Tether" upper strap, refer to the "Isoi x Mountings" section.

X : seat which is not suitable for the installation of an ISO FIX seat of the size category indicated.

Weight of the child / indicative age

Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)

Less than 13 kg
(group 0+)
Up to
1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx

Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"

ISOFIX size category
F
G
C
D
E C
D A
B B1

Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
IL-SU **
X
IL-SU **


X
IL-SU ** IUF **
IL-SU **
* The ISOFIX infant car seat, i xed to the lowe r rings of a seat equipped with ISOFIX mountings, o ccupies the three rear seats.
To install it on the rear seats of a 3-door model, the fron t seat belt must be adjusted to the lowest position.
** The head restraint of the seat equipped with ISOF IX mountings must be removed and stored.

CHILD SAFETY
96
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (GTI)
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats
on the vehicle seats i tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I soi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap. IL-SU: seat suitable for the installation of an I soi x S emi- U niversal seat which is: - "rear facing" i tted with a "Top Tether" upper strap or a stay,
- "forward facing" i tted with a stay.
For the securing of the "Top Tether" upper strap, refer to the "Isoi x Mountings" section.

X : seat which is not suitable for the installation of an I SOFIX seat of the size category indicated.

Weight of the child / indicative age

Less than 10 kg
(group 0)
Up to
6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to
1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx

Type of ISOFIX child seat Infant car seat "rear facing" "rear facing" "rear facing"

ISOFIX size category F
G C * D ** E C * D ** A B B1

Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
X IL-SU IL-SU
IUF

IL-SU
* The corresponding front seat belt must be adjusted to the highest position minus one notch. The corresponding front seat must be adjusted to the mid-way longitudinal position plus two notches. ** The corresponding front seat belt must be adjusted to the highest position minus one notch.

CHILD SAFETY
97
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SW)
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats
on the vehicle seats i tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.

IUF: seat suitable for the installation of an I soi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.

IL-SU: seat suitable for the installation an I soi x S emi- U niversal seat which is:
- "rear facing" i tted with a "Top Tether" upper strap or a stay,
- "forward facing" i tted with a stay,
- an infant car seat i tted with a "Top Tether" upper stra p or a stay.
For the securing of the "Top Tether" upper strap, refer to the "Isoi x Mountings" section.

X: seat which is not suitable for the installation of an ISO FIX seat of the category indicated.
(a) The head restraint where the ISOFIX seat is i tted must be removed and stored safely.

Weight of the child / indicative age

Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)

Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx

Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"

ISOFIX size category F G C ** D E C ** D A B B1

Universal and semi-universal
ISOFIX child seats which can
be installed on the rear seats
IL-SU(a) IL-SU(a) IL-SU(a)
IUF(a)
IL-SU(a)
seats and prevents use of the 2/3 - 1/3 modularity. ** The front seat must be adjusted to the most forward p osition minus i ve notches.

!

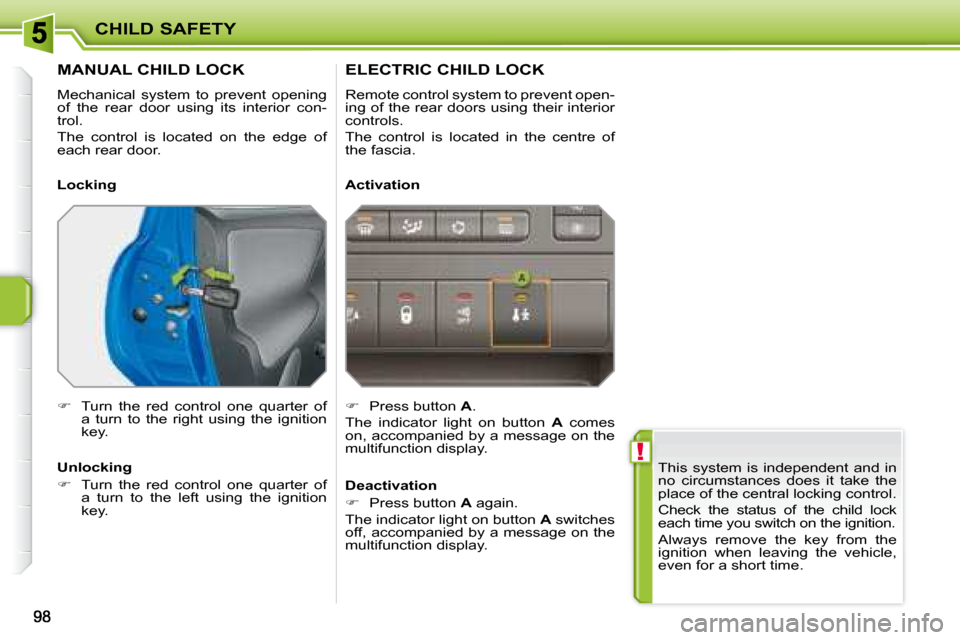

CHILD SAFETY
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
MANUAL CHILD LOCK
Mechanical system to prevent opening
of the rear door using its interior con-
trol.
The control is located on the edge of
each rear door.

 Turn the red control one quarter of
a turn to the right using the ignition
key.
ELECTRIC CHILD LOCK
Remote control system to prevent open-
ing of the rear doors using their interior
controls.
The control is located in the centre of
the fascia.

 Press button A .
The indicator light on button A comes
on, accompanied by a message on the
multifunction display.
Locking
Unlocking

 Turn the red control one quarter of
a turn to the left using the ignition
key. Activation
Deactivation

 Press button A again.
The indicator light on button A switches
off, accompanied by a message on the
multifunction display.

i
i
i
SAFETY
99
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).

 Lower the lights stalk when moving
to the left.

 Raise the lights stalk when moving
to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
As a safety precaution in a trafi c jam,
switch on the hazard warning lights if
you are the last in the queue.

 Press button A , the direction indica-
tors l ash.
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lights come on.
They will switch off automatically the
i rst time you accelerate.

 If they do not, press button A to
switch the direction indicators off.
HORN

 Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when overtaking a cyclist or a pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.

!
i
i
i
SAFETY
100
TYRE UNDER-INFLATION
DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of tyres
on a wheel i tted with this system
must be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you ins-
tall a wheel which is not detected
by your vehicle (example: i tting
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
"Identii cation features" paragraph)
to ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
The tyre under-inl ation detection
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
Sensors i tted in each valve trigger a
warning in the event of malfunction
(speed above 12 mph (20 km/h).
A message appears on the multifunc-
tion display, accompanied by an audible
signal, to locate the wheel concerned.

 Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre
This warning light and the
STOP
warning light come on on the ins-
trument panel, accompanied by
an audible signal and a mes-
sage on the multifunction display
locating the wheel concerned.

 Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.

 Change the damaged wheel (punc-
tured or very del ated tyre), and
have the tyre pressure checked as
soon as possible.
Puncture
The tyre under-inl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or
faulty
A message appears on the multifunc-
tion display, accompanied by an audi-
ble signal, to locate the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are i tted.
The spare wheel is not i tted with
a sensor.
