The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be increased, with in the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a light ly loaded towing vehicle may adversely affect its roadholding performance.

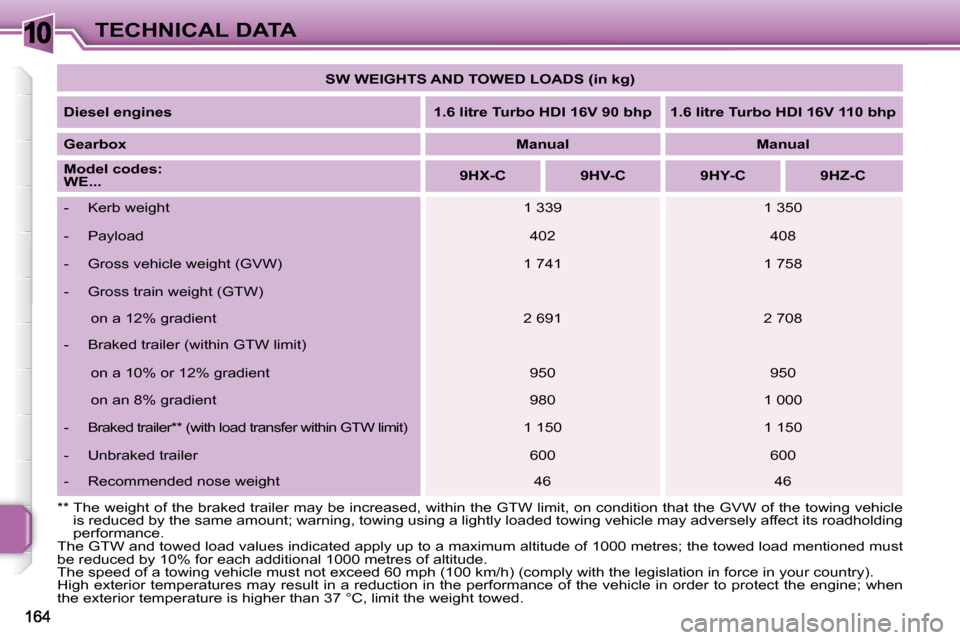

SW WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp

Gearbox
Manual Manual

Model codes:
WE...
9HX-C 9HV-C 9HY-C 9HZ-C

Kerb weight 1 339 1 350
- Payload 402 408

- Gross vehicle weight (GVW) 1 741 1 758

- Gross train weight (GTW)
on a 12% gradient 2 691 2 708
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 950 950
on an 8% gradient 980 1 000

- Braked trailer ** (with load transfer within GTW l imit) 1 150 1 150

- Unbraked trailer 600 600
- Recommended nose weight 46 46

10TECHNICAL DATA
165

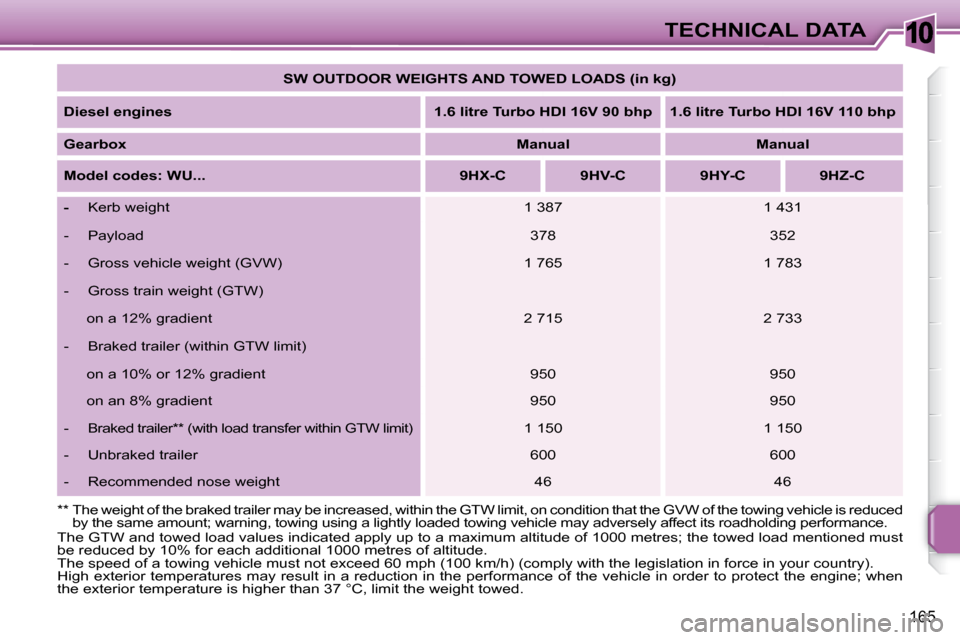

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp

Gearbox
Manual Manual

Model codes: WU... 9HX-C 9HV-C 9HY-C 9HZ-C

Kerb weight 1 387 1 431
- Payload 378 352

- Gross vehicle weight (GVW) 1 765 1 783

- Gross train weight (GTW)
on a 12% gradient 2 715 2 733

- Braked trailer (within GTW limit)
on a 10% or 12% gradient 950 950
on an 8% gradient 950 950
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be incre
ased, within the GTW limit, on condition that the G VW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
166
TECHNICAL DATA

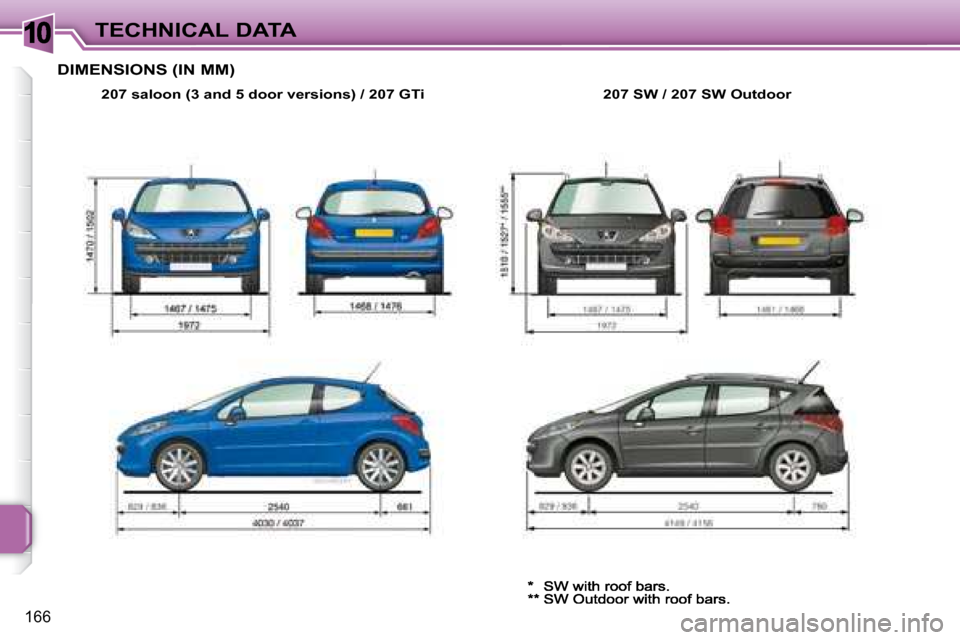

DIMENSIONS (IN MM)

207 saloon (3 and 5 door versions) / 207 GTi 207 SW / 207 SW Outdoor
** SW Outdoor with roof bars.

10
!
i
TECHNICAL DATA
167

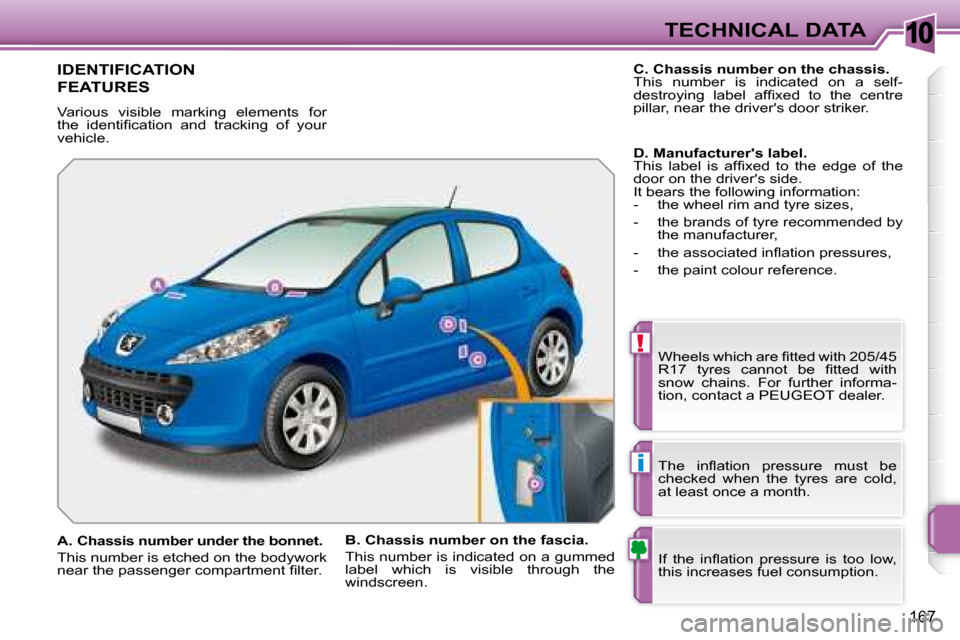

IDENTIFICATION
FEATURES
Various visible marking elements for
the identii cation and tracking of your
vehicle. Wheels which are i tted with 205/45
R17 tyres cannot be i tted with
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
If the inl ation pressure is too low,
this increases fuel consumption.
The inl ation pressure must be
checked when the tyres are cold,
at least once a month.

A. Chassis number under the bonnet.
This number is etched on the bodywork
near the passenger compartment i lter.
B. Chassis number on the fascia.
This number is indicated on a gummed
label which is visible through the
windscreen.
C. Chassis number on the chassis.
This number is indicated on a self-
destroying label afi xed to the centre
pillar, near the driver's door striker.

D. Manufacturer's label.
This label is afi xed to the edge of the
door on the driver's side.
It bears the following information:
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the associated inl ation pressures,
- the paint colour reference.

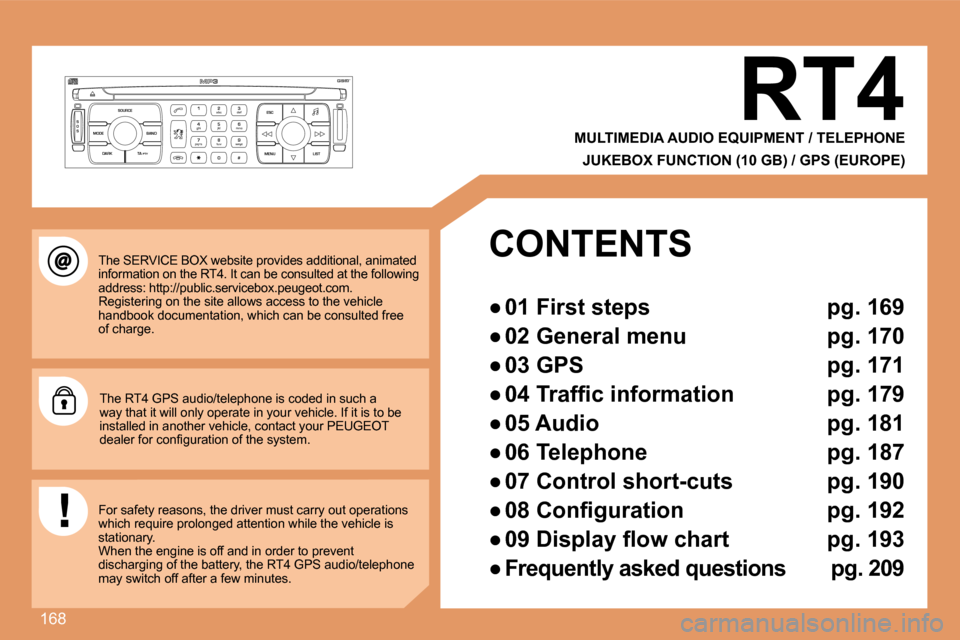

168
S
O S SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
The SERVICE BOX website provides additional, animat ed
information on the RT4. It can be consulted at the following
address: http://public.servicebox.peugeot.com.
Registering on the site allows access to the vehicl e
handbook documentation, which can be consulted free
of charge.
The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If i t is to be
installed in another vehicle, contact your PEUGEOT
dealer for coniguration of the system.
For safety reasons, the driver must carry out opera tions
which require prolonged attention while the vehicle is
stationary.
When the engine is off and in order to prevent
discharging of the battery, the RT4 GPS audio/telep hone
may switch off after a few minutes. RT4
MULTIMEDIA AUDIO EQUIPMENT / TELEPHONE JUKEBOX FUNCTION (10 GB) / GPS (EUROPE)
CONTENTS

169
S
O S
SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
2
1
5
3 4
89 10 15
11 17 18
12 16
14
7
6
13
01

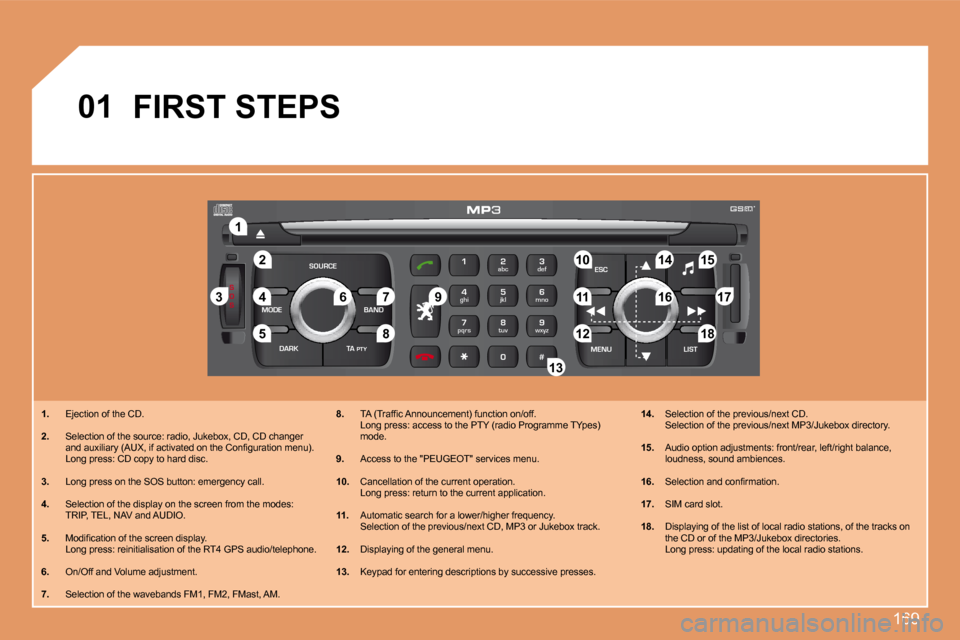

1. Ejection of the CD.
2. Selection of the source: radio, Jukebox, CD, CD ch anger
and auxiliary (AUX, if activated on the Coniguratio n menu).
Long press: CD copy to hard disc.
3. Long press on the SOS button: emergency call.
4. Selection of the display on the screen from the mo des:
TRIP, TEL, NAV and AUDIO.
5. Modiication of the screen display.
Long press: reinitialisation of the RT4 GPS audio /telephone.
6. On/Off and Volume adjustment.
7. Selection of the wavebands FM1, FM2, FMast, AM. 8.
TA (Trafic Announcement) function on/off.
Long press: access to the PTY (radio Programme TY pes)
mode.
9. Access to the "PEUGEOT" services menu.
10. Cancellation of the current operation.
Long press: return to the current application.
11. Automatic search for a lower/higher frequency.
Selection of the previous/next CD, MP3 or Jukebox track.
12. Displaying of the general menu.
13. Keypad for entering descriptions by successive pre sses.14.
Selection of the previous/next CD.
Selection of the previous/next MP3/Jukebox directo ry.
15. Audio option adjustments: front/rear, left/right b alance,
loudness, sound ambiences.
16. Selection and conirmation.
17. SIM card slot.
18. Displaying of the list of local radio stations, of the tracks on
the CD or of the MP3/Jukebox directories.
Long press: updating of the local radio stations.
FIRST STEPS

170
02
GENERAL MENU
MAP: orientation, details,
display. AUDIO FUNCTIONS: radio,
CD, Jukebox, options.For maintenance of the
display, the use of a
soft, non-abrasive cloth
(spectacles cloth) is
recommended without any
additional product.
TELEMATIC: telephone,
directory, SMS.
CONFIGURATION: vehicle,
display, time, languages,
voice, auxiliary socket (AUX)
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS:
warnings log, status of the
functions.
NAVIGATION GUIDANCE:
GPS, stages, options. TRAFFIC INFORMATION: TMC
information, messages.

171
MENUESCLIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
1
2
3 5
7
4 6
8
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03 GPS

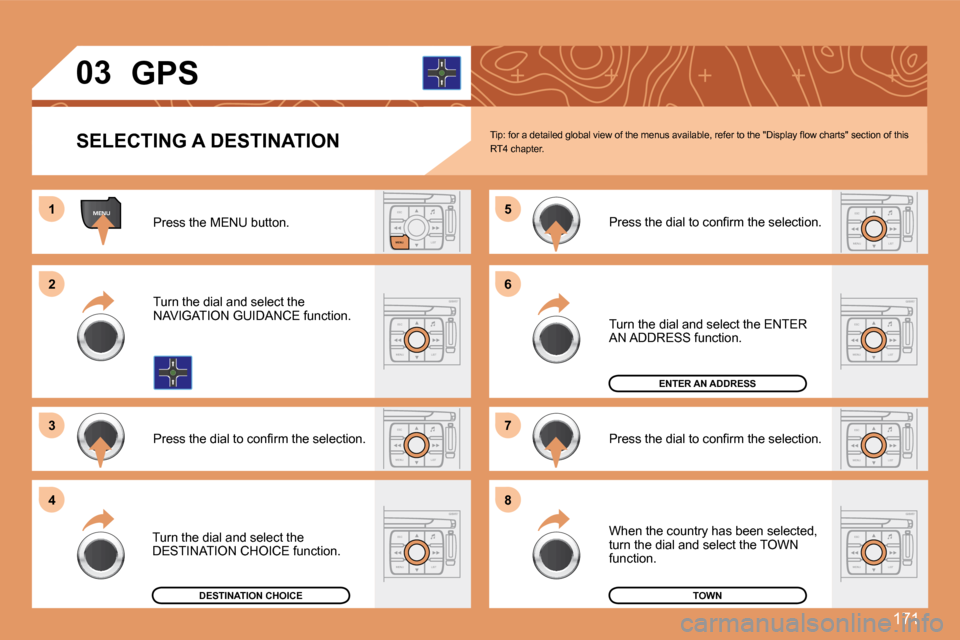

SELECTING A DESTINATION
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
Turn the dial and select the
DESTINATION CHOICE function. Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the ENTER
AN ADDRESS function.
When the country has been selected,
turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE Tip: for a detailed global view of the menus availa
ble, refer to the "Display low charts" section of this
RT4 chapter.
