2007.5 Peugeot 207 Dag Owner's Manual

133
Changing the side lights

 Disconnect the main headlamp con-
nector.

 Remove the plastic protective cover
by pulling on the tab.

 Turn the bulb holder one quarter of
a turn and remove it.

 Pull the bulb and change it.
To rei t, carry out these operations in re-
verse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps

 Disconnect the main headlamp con-
nector.

 Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the re-
peater and remove the repeater.

 Disconnect the repeater connector.
To rei t, carry out these operations in re-
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.

 Disconnect the connector of the cor-
responding light.

 Move aside the spring to release the
bulb and remove the bulb.
To rei t, carry out these operations in re-
verse order. Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.

ii
134

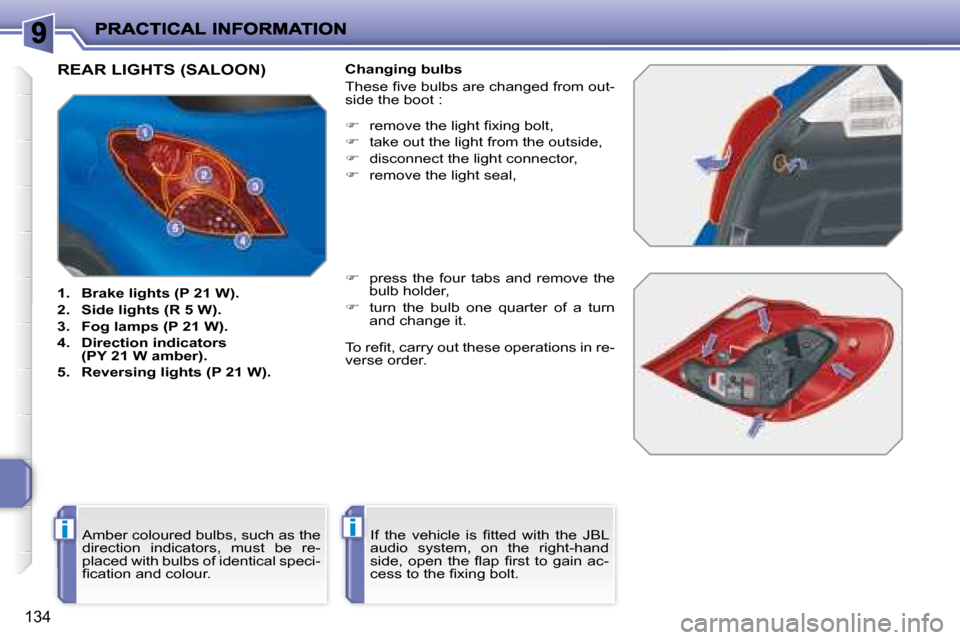

REAR LIGHTS (SALOON)

1. Brake lights (P 21 W).

2. Side lights (R 5 W).

3. Fog lamps (P 21 W).

4. Direction indicators
(PY 21 W amber).

5. Reversing lights (P 21 W). Changing bulbs
These i ve bulbs are changed from out-
side the boot :

 remove the light i xing bolt,

 take out the light from the outside,

 disconnect the light connector,

 remove the light seal,

 press the four tabs and remove the
bulb holder,

 turn the bulb one quarter of a turn
and change it.
If the vehicle is i tted with the JBL
audio system, on the right-hand
side, open the l ap i rst to gain ac-
cess to the i xing bolt.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
i cation and colour. To rei t, carry out these operations in re-
verse order.

!
135
Changing the third brake
light bulbs (4 bulbs W 5 W)

 Press on the i xing pins on each side
of the light.

 Take out the light from the outside.

 Turn the bulb holder which corre-
sponds to the faulty bulb one quar-
ter of a turn and remove it.

 Pull the bulb and change it. Changing the number plate light
bulbs (W 5 W)

 Insert a thin screwdriver in one of
the exterior holes of the lens.

 Push it towards the outside to unclip it.

 Remove the lens.

 Pull the bulb and change it.
To rei t, carry out these operations in re-
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.

i
136
Rear lights (SW)
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Direction indicators (PY 21 W amber).
4. Fog lamps (P 21 W).
5. Reversing lights (P 21 W). Changing bulbs
These i ve bulbs are changed from out-
side the boot:

 remove the access l ap,

 disconnect the light connector,

 remove the light i xing bolt,

 take out the light from the outside,

 press on the four tabs and remove
the bulb holder,

 turn the bulb a quarter of a turn and
change it.
To rei t, carry out these operations in re-
verse order.
Take care to engage the light in its
guides keeping it in the centreline of the
vehicle.
Tighten the i xing bolt sufi ciently by hand
to guarantee the sealing of the light.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specii cation
and colour.
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Direction indicators
(PY 21 W amber).
4. Fog lamps (P 21 W).
5. Reversing lights (P 21 W).

!
137
Changing the third brake light
bulbs (4 bulbs W 5 W)

 Remove the two light i xing nuts.

 Take out the light from the outside.

 Press on the two tabs and remove
the bulb holder.

 Pull the bulb and change it.
To rei t, carry out these operations in re-
verse order.
Tighten the i xing bolt sufi ciently by hand
to guarantee the sealing of the light. Changing the number plate
bulbs (W 5 W)

 Insert a thin screwdriver into one of
the exterior holes of the lens.

 Push it towards the outside to unclip it.

 Remove the lens.

 Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.

!
i
138
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all
additional equipment connected
exceeds 10 milliamperes.
Installation of electrical
accessories
Your vehicle's electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT deal-
er.
CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction pliers are installed on the
back of the fascia fuse box cover.
To gain access to them:

 unclip the cover pulling at the top,

 remove the cover completely,

 remove the pliers. Replacing a fuse
Before replacing a fuse, the cause of the
failure must be identii ed and rectii ed.

 Identify the faulty fuse by examining
the condition of its i lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow.
Correct

Incorrect

139
Fascia fuses
The fuse box is placed in the lower part
of the fascia (left-hand side).
Access to the fuses

 refer to the "Access to the tools"
paragraph. Fuse tables

Fuse N° Rating Functions

G39 20 A Hi-Fi amplii er.

G40 20 A Driver and passenger heated seats.

Fuse N° Rating Functions

F1 15 A Rear wiper.

F2 - Not used.

F3 5 A Air bags and pre-tensioners control unit.

F4 10 A
Clutch pedal switch, diagnostic socket, electrochro
matic
interior mirror, air conditioning, steering wheel a ngle
sensor, particle emission i lter pump (Diesel).

F5 30 A Electric windows, rear one-touch electric windows,
sunroof, panoramic roof shutter (SW).

F6 30 A Front one-touch electric windows, folding mirrors
supply.

F7 5 A Front and rear courtesy lights, map reading lights,
sun visor lighting, glove box lighting, clock.

140

Fuse N° Rating Functions

F8 20 A Audio equipment, audio/telephone, CD changer,
multifunction display, clock, steering wheel
controls, tyre under-inl ation detection, trailer fuse
box.

F9 30 A Front 12 V socket, rear 12 V socket (SW).

F10 15 A Alarm siren, alarm control unit, directional he adlamps.

F11 15 A
Diagnostic socket, low current ignition switch, aut
omatic
gearbox control unit.

F12 15 A Rain / brightness sensor, amplii er, trailer fuse box,
driving school module.

F13 5 A Engine fuse box, ABS relay, dual-function brake
switch.

F14 15 A Instrument panel, seat belt warning lights bar,
headlamp adjustment, air conditioning, hands-free
kit, rear parking assistance control unit, air bags.

F15 30 A Locking and deadlocking.

F17 40 A Rear screen and exterior mirrors de-icing.

SH - PARC shunt.
