2007.5 Peugeot 207 Dag Owner's Manual

43

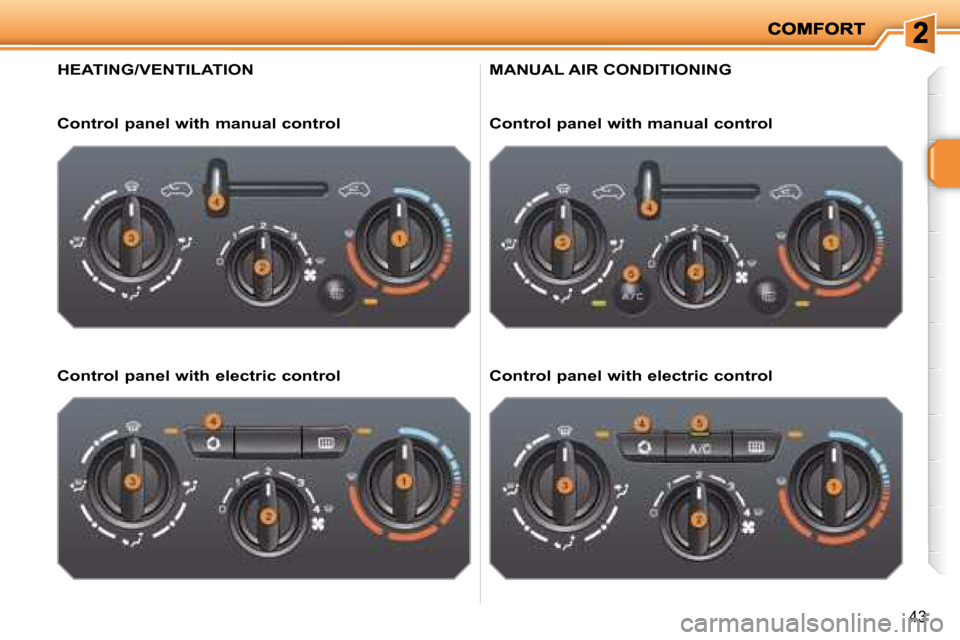

HEATING/VENTILATION
Control panel with manual control
Control panel with electric control
MANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control

i
44
2. Air l ow adjustment
 Turn the dial from position 1
to position 4 to obtain an
air l ow sufi cient to ensure
your comfort. Windscreen, side windows and
footwells.
Footwells.
(vents closed)
Central and side vents.

 Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to suit your
requirements. Windscreen and side windows.
1. Temperature adjustment
The air distribution can be adap-
ted by placing the dial in an in-
termediate position, marked by a
dot "

43
HEATING/VENTILATION
Control panel with manual control
Control panel with electric control
MANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control

i
44
2. Air l ow adjustment
 Turn the dial from position 1
to position 4 to obtain an
air l ow sufi cient to ensure
your comfort. Windscreen, side windows and
footwells.
Footwells.
(vents closed)
Central and side vents.

 Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to suit your
requirements. Windscreen and side windows.
1. Temperature adjustment
The air distribution can be adap-
ted by placing the dial in an in-
termediate position, marked by a
dot "

i
45
5. Air conditioning On/Off The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING

 Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
Switching on
The rear screen de-icing can only ope-
rate when the engine is running.

 Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.

 It is possible to stop the de-icing op-
eration before it is switched off au-
tomatically by pressing the button
again. The indicator light associated
with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de-
misting, in winter above 0 °C.
Switching on

 Press the "A/C" button, the associ-
ated indicator light comes on.

The air conditioning does not ope-
rate when the air l ow adjustment
dial 2 is in position "0".
Switching off

 Press the "A/C" button again, the as-
sociated indicator light switches off.

i
45
5. Air conditioning On/Off The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DE-ICING

 Switch off the de-icing of the
rear screen and exterior mir-
rors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the de-icing is switched off auto-
matically, de-icing will resume next
time the engine is switched on.
Switching on
The rear screen de-icing can only ope-
rate when the engine is running.

 Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
Switching off
The de-icing switches off automatically
to prevent an excessive consumption of
current.

 It is possible to stop the de-icing op-
eration before it is switched off au-
tomatically by pressing the button
again. The indicator light associated
with the button switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de-
misting, in winter above 0 °C.
Switching on

 Press the "A/C" button, the associ-
ated indicator light comes on.

The air conditioning does not ope-
rate when the air l ow adjustment
dial 2 is in position "0".
Switching off

 Press the "A/C" button again, the as-
sociated indicator light switches off.

i
i
46
When the engine is cold, to prevent
too great a distribution of cold air,
the air l ow will only reach its opti-
mum level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, the side windows and the
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re-
quired level of comfort. The system
eliminates the temperature differ-
ence automatically and as quickly
as possible.
The air conditioning can only operate
with the engine running.
T he dr iv er and his f r ont
passenger can each set the
temperature to suit their re-
quirements.
 Turn dial 2 or 3 to the left to reduce
the value or to the right to increase it.
A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.
4. Automatic visibility programme The automatic comfort pro-
gramme may not be sufi cient
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passen-
gers, ice...).

 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air l ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation

 Press the "AUTO" button.
The "AUTO" symbol is dis-
played. 2. Driver's side adjustment
DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend that you use this mode:
it provides optimised automatic con-
trol of all of the functions, passenger
compartment temperature, air l ow, air
distribution and air recirculation, in ac-
cordance with the comfort value that
you have selected.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
1. Automatic comfort programme
3. Passenger side adjustment

!
!
i
47

 To exit this programme, press the
"visibility" button again or the "AUTO"
button, the indicator light on the button
switches off and "AUTO" is displayed.

 Press this button to switch
the air conditioning off. 6. Air distribution adjustment

 Press this button several
times in succession to di-
rect the air l ow in turn to-
wards:
7. Air l ow adjustment
 Press the "small fan" but-
ton to reduce the air l ow.
8. Air intake/Air recirculation Deactivation of the system

 Press the "small fan" button until
the fan symbol disappears.
This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,
a slight l ow of air, due to the movement
of the vehicle, can still be felt.

 Press the "large fan" button again
or the "AUTO" button to reactivate
the system with the values which
were set before it was deactivated.

 Press this button to recircu-
late the interior air. The air
recirculation symbol is dis-
played.
5. Air conditioning On/Off
Avoid driving for too long with the
air conditioning deactivated.
Avoid prolonged operation in inte-
rior air recirculation mode (risk of
condensation and of deterioration
of the air quality).
- the windscreen, the side windows
and the footwells,
- the windscreen and side windows (demisting or de-icing),
- the central and side vents,
- the central vents, the side vents and the footwells,
- the footwells.

 Press the "large fan" but-
ton to increase the air l ow.
The air l ow symbol, the fan, is i lled in
progressively in relation to the value re-
quired. Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.

 As soon as possible, press this but-
ton again to permit the intake of ex-
terior air and prevent condensation.
For maximum cooling or heating of
the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28 .

 Turn dial 2 or 3 to the left until

"LO" is displayed or to the right
until "HI" is displayed.
Resuming manual control
Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.

 Press the "AUTO" button to return
to fully automatic operation.
Switching the system off may result in
discomfort (humidity, condensation).

 Press the button again to return to au-
tomatic operation of the air condition-
ing. The symbol " A/C " is displayed.
