2007.5 Peugeot 207 Dag Owner's Manual

!
i
SAFETY
101
BRAKING ASSISTANCE
SYSTEMS *
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:
- the anti-lock braking system (ABS),
- the electronic brake force distribu-tion (EBFD),
- the emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces.
When braking in an emergency,
press very i rmly without releasing
the pressure. When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions.
Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the multi-
function display, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning light comes on,
together with the STOP and

ABS warning lights, accompa-
nied by an audible signal and a
message on the multifunction display, it
indicates a malfunction of the electron-
ic brake force distribution which could
result in loss of control of the vehicle
when braking.

You MUST stop as soon as it is safe
to do so. Emergency braking assistance
System which, in an emergency, ena-
bles you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking efi ciency.
* According to country.
In both cases, contact a PEUGEOT
dealer.

!
SAFETY
102
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
 Press the "ESP OFF" button, located
in the centre of the fascia.
If this warning light comes on on
the instrument panel and the in-
dicator light on the button comes
on, this indicates that the ASR
and ESP systems are disarmed.
Reactivation
These systems are reactivated automa-
tically each time the ignition is switched
back on or from 30 mph (50 km/h) (ex-
cept in the case of the 1.6 l 16V THP
175 bhp petrol engine).

 Press the "ESP OFF" button again
to reactivate them manually.
Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction display, this indicates
a malfunction of these systems.
Contact a PEUGEOT dealer to have the
systems checked.
TRAJECTORY CONTROL
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
This is indicated by l ashing of
this warning light on the instru-
ment panel. Steering/ESP coupling system
(SSP)
This system optimises the stability of
the vehicle and its braking capacity by
combining the actions of the ESP and
electric power steering when braking on
surfaces on which the grip of the right-
hand and left-hand wheel differs.
It permits increased braking of the
wheels which are in contact with the
section of road offering the higher level
of grip and, anticipating the instability of
the vehicle, the application of a slight
correction to the turning angle of the
wheels to assist the driver in maintain-
ing his trajectory.

SAFETY
103

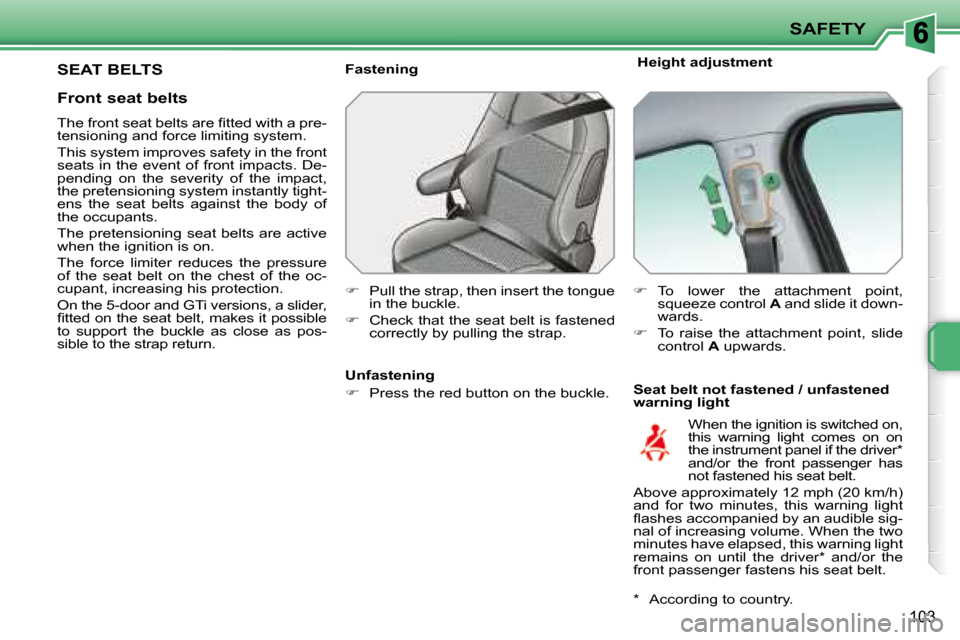

SEAT BELTS Height adjustment
Seat belt not fastened / unfastened
warning light
Fastening

 Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened
correctly by pulling the strap.
 To lower the attachment point,
squeeze control A and slide it down-
wards.

 To raise the attachment point, slide
control A upwards.
When the ignition is switched on,
this warning light comes on on
the instrument panel if the driver *
and/or the front passenger has
not fastened his seat belt.
Above approximately 12 mph (20 km/h)
and for two minutes, this warning light
l ashes accompanied by an audible sig-
nal of increasing volume. When the two
minutes have elapsed, this warning light
remains on until the driver * and/or the
front passenger fastens his seat belt.
* According to country.
Unfastening

 Press the red button on the buckle.
Front seat belts
The front seat belts are i tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of front impacts. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, increasing his protection.
On the 5-door and GTi versions, a slider,
i tted on the seat belt, makes it possible
to support the buckle as close as pos-
sible to the strap return.

SAFETY
104

1. Front left seat belt warning light.

2. Front right seat belt warning light.

3. Rear left seat belt warning light.

4. Rear centre seat belt warning light ** .

5. Rear right seat belt warning light.
On the central bar, the corresponding
warning light 1 or 2 comes on in red if
the seat belt is not fastened or is unfas-
tened.
Seat belt not fastened / unfastened
warning lights bar
Rear seat belts
The rear seats are i tted with three seat
belts ** , each with three anchoring points
and an inertia reel with force limiter.
Seat belt unfastened warning light
This warning light comes on on
the instrument panel if one or
more rear passengers unbuckle
their seat belt.
Fastening

 Pull the strap, then insert the tongue
in the buckle.

 Check that the seat belt is fastened
correctly by pulling the strap. Seat belt unfastened warning lights
bar
When the ignition is switched on, the
corresponding warning lights
3, 4 ** and

5 come on for approximately 30 sec-
onds in red if the seat belt is not fas-
tened:
When the engine is running, the corres-
ponding warning light 3, 4 ** or 5 comes
on in red, accompanied by an audible
signal and a message on the multifunc-
tion display, if a rear passenger has un-
fastened his seat belt.
Unfastening

 Press the red button on the buckle.
** Except GTi.

i
SAFETY
105

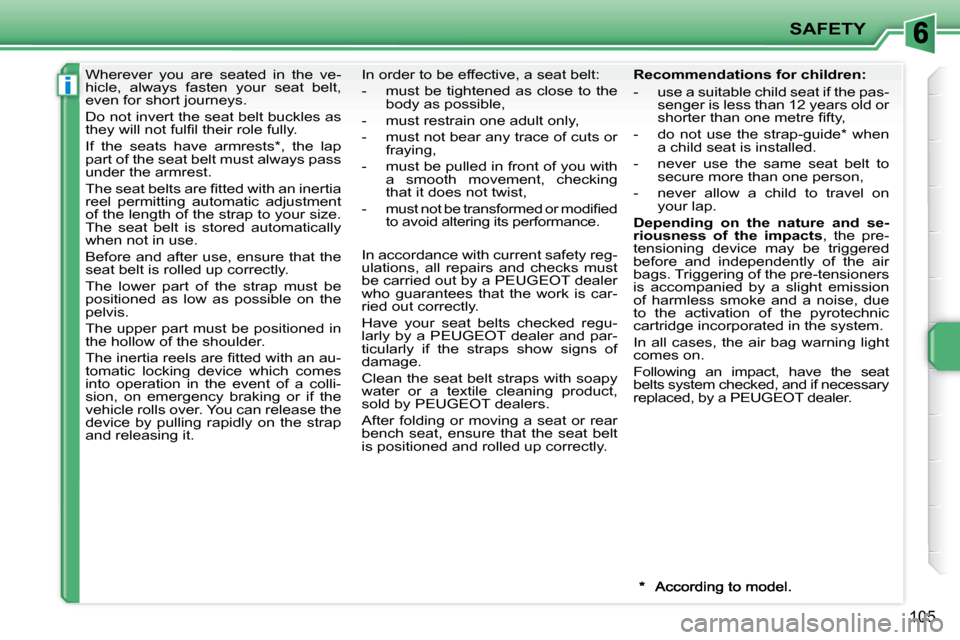

Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
they will not fuli l their role fully.
If the seats have armrests * , the lap
part of the seat belt must always pass
under the armrest.
The seat belts are i tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are i tted with an au-
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modii ed to avoid altering its perfor mance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children:
- use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one metre i fty,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.

Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight emission
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if necessary
replaced, by a PEUGEOT dealer.

!
i
SAFETY
106

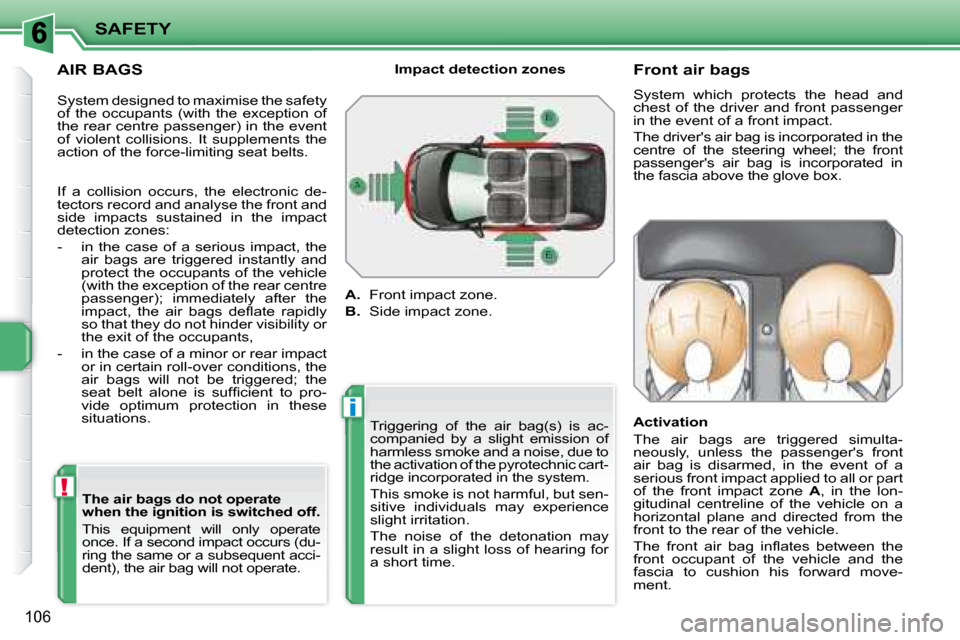

AIR BAGS The air bags do not operate
when the ignition is switched off.
This equipment will only operate
once. If a second impact occurs (du-
ring the same or a subsequent acci-
dent), the air bag will not operate. Front air bags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's air bag is incorporated in the
centre of the steering wheel; the front
passenger's air bag is incorpora ted in
the fascia above the glove box.
Activation
The air bags are triggered simulta-
neously, unless the passenger's front
air bag is disarmed, in the event of a
se rious front impact applied to all or part
of the front impact zone
A , in the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
front to the rear of the vehicle.
The front air bag inl ates between the
front occupant of the vehicle and the
fascia to cushion his forward move-
ment.
Impact detection zones

A. Front impact zone.

B. Side impact zone.
Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic cart-
ridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.

If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
air bags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
impact, the air bags del ate rapidly
so that they do not hinder visibility or
the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
air bags will not be triggered; the
seat belt alone is sufi cient to pro-
vide optimum protection in these
situations.

!
!
SAFETY
107

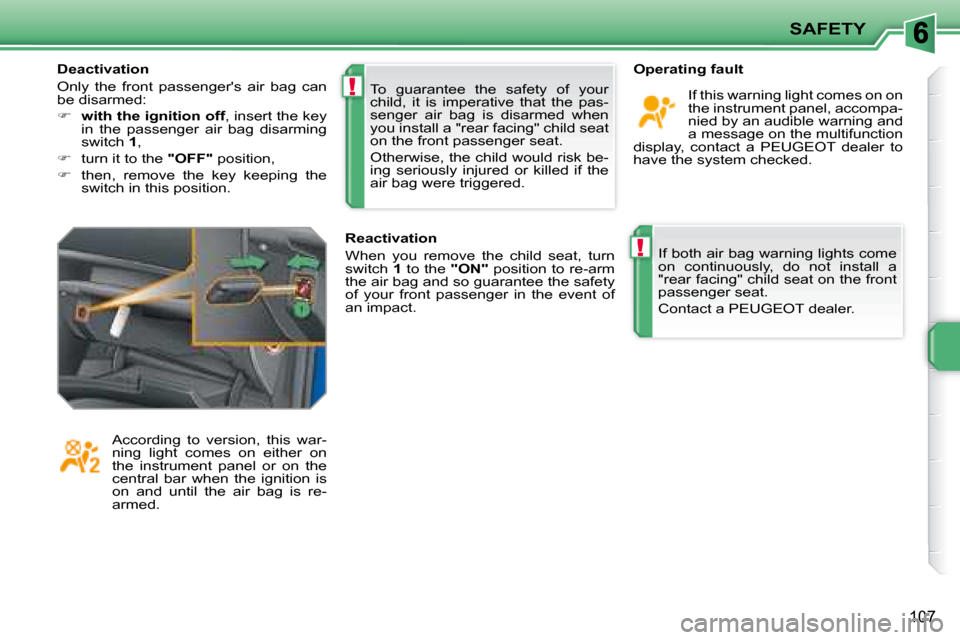

If both air bag warning lights come
on continuously, do not install a
"rear facing" child seat on the front
passenger seat.
Contact a PEUGEOT dealer.
Operating fault
If this warning light comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked.
To guarantee the safety of your
child, it is imperative that the pas-
senger air bag is disarmed when
you install a "rear facing" child seat
on the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
air bag were triggered.
According to version, this war-
ning light comes on either on
the instrument panel or on the
central bar when the ignition is
on and until the air bag is re-
armed. Reactivation
When you remove the child seat, turn
switch
1 to the "ON" position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.
Deactivation
Only the front passenger's air bag can
be disarmed:

 with the ignition off , insert the key
in the passenger air bag disarming
switch 1 ,

 turn it to the "OFF" position,

 then, remove the key keeping the
switch in this position.

!
SAFETY
108

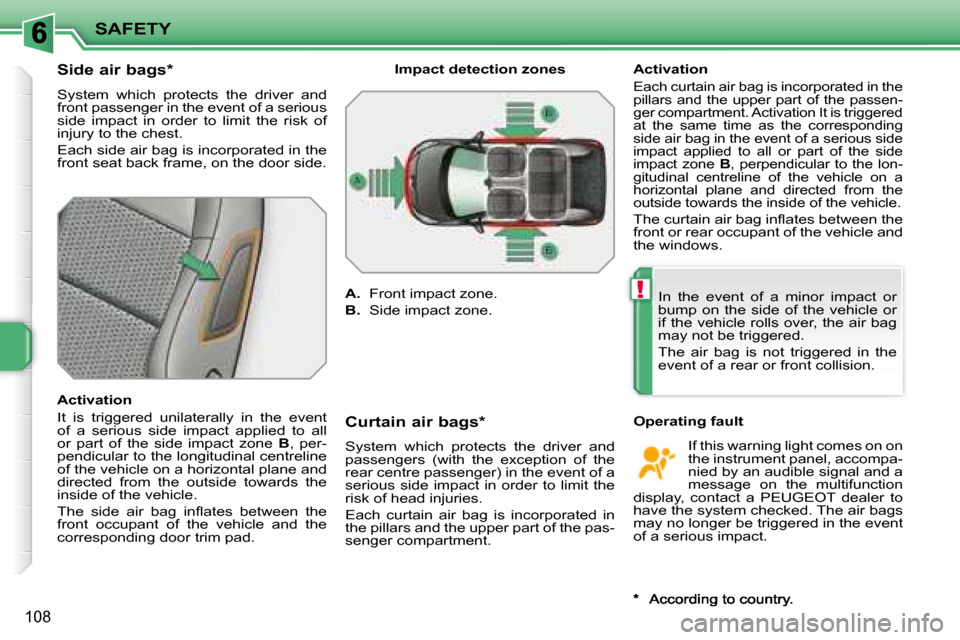

Side air bags *
System which protects the driver and
front passenger in the event of a seri ous
side impact in order to limit the risk of
injury to the chest.
Each side air bag is incorporated in the
front seat back frame, on the door side.
Activation
It is triggered unilaterally in the event
of a serious side impact applied to all
or part of the side impact zone B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
The side air bag inl ates between the
front occupant of the vehicle and the
corresponding door trim pad. Curtain air bags *
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of head injuries.
Each curtain air bag is incorporated in
the pillars and the upper part of the pas-
senger compartment.
If this warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact.
Operating fault
Activation

Each curtain air bag is incorporated in the
pillars and the upper part of the passen-
ger compartment. Activation It is triggered
at the same time as the corresponding
side air bag in the event of a serious side
impact applied to all or part of the side
impact zone
B , perpendicular to the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
outside towards the inside of the vehicle.
The curtain air bag inl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
The air bag is not triggered in the
event of a rear or front collision.
Impact detection zones

A. Front impact zone.

B. Side impact zone.
