2007.5 Peugeot 207 Dag Owner's Manual

!
i
86
Special position of the windscreen
wipers

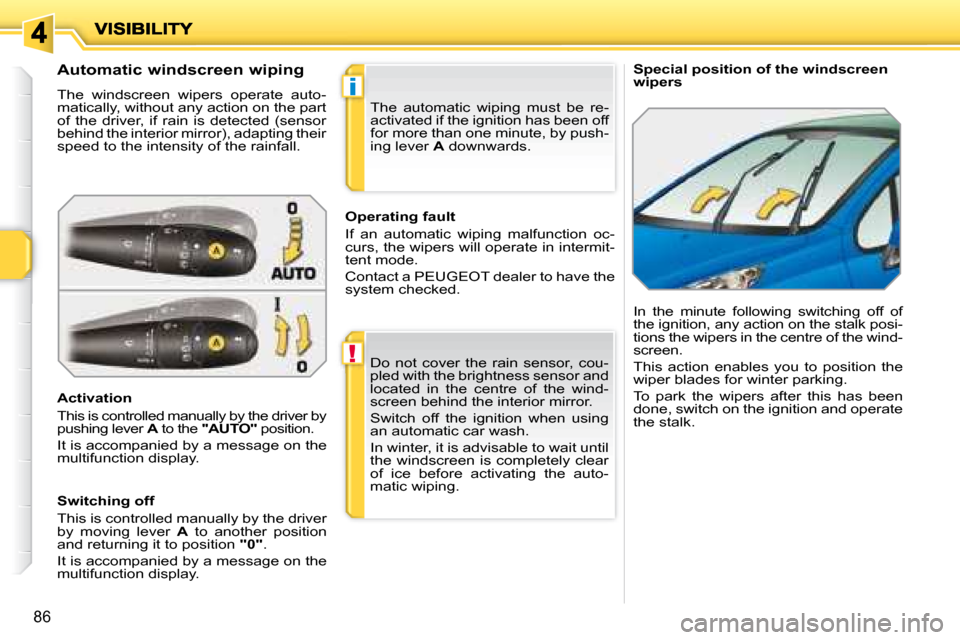

Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by
pushing lever
A to the "AUTO" position.
It is accompanied by a message on the
multifunction display. In the minute following switching off of
the ignition, any action on the stalk posi-
tions the wipers in the centre of the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the ignition when using
an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing lever
A downwards.
Switching off
This is controlled manually by the driver
by moving lever A to another position
and returning it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Contact a PEUGEOT dealer to have the
system checked.

i
87

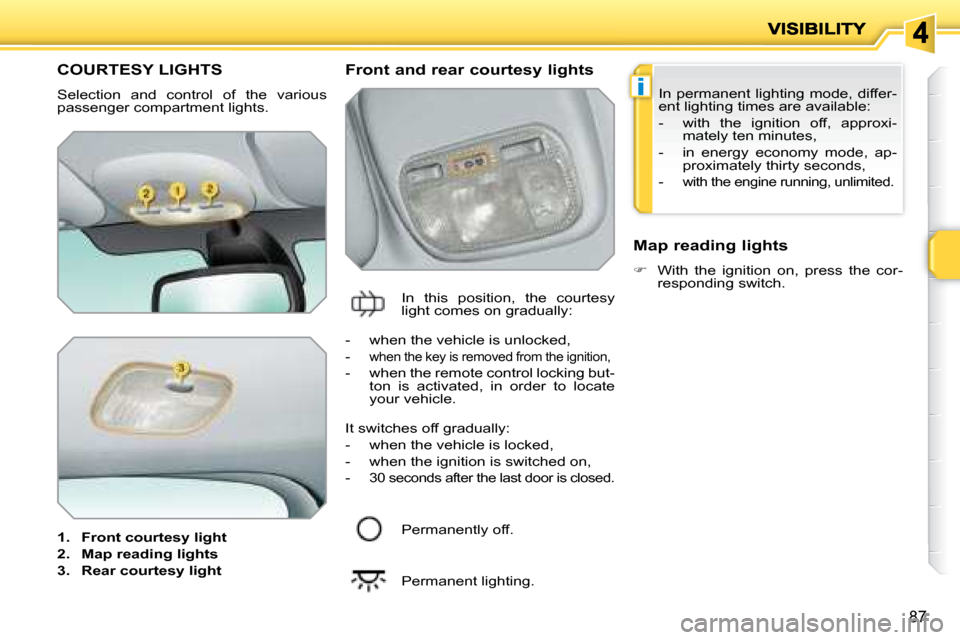

COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear courtesy light Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: Map reading lights

 With the ignition on, press the cor-
responding switch. In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
-
when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
-
30 seconds after the last door is closed.

i
CHILD SAFETY
88

PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
GENERAL POINTS RELATING
TO CHILD SEATS
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger air
bag is disarmed. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to inl ate.
Intermediate longitudinal position

* The rules for transporting children are specii c to each country. Consult the current legislation in your country.
Although one of PEUGEOT's main crite-
ria when designing your vehicle, the safe-
ty of your children also depends on you.
For maximum safety, please follow
these precautions:
- in accordance with Directive 2003/20, all children under the
age of 12 or less than one metre
i fty tall must travel in approved
child seats suited to their weight ,
on seats i tted with a seat belt or
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-fac-
ing" position both in the front and
in the rear.

CHILD SAFETY
89
Passenger air bag OFF

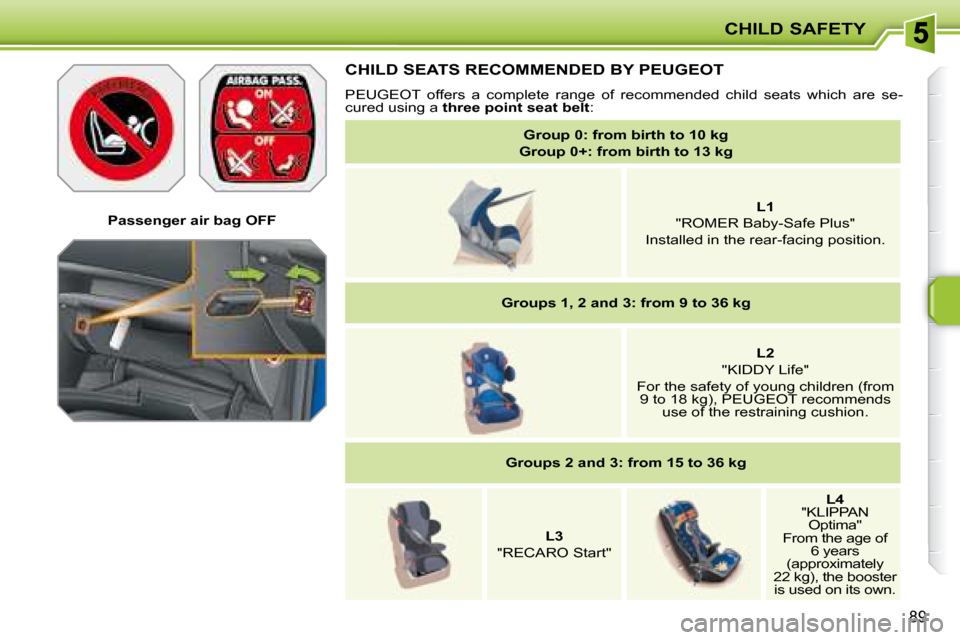

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.

CHILD SAFETY
89
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.

CHILD SAFETY

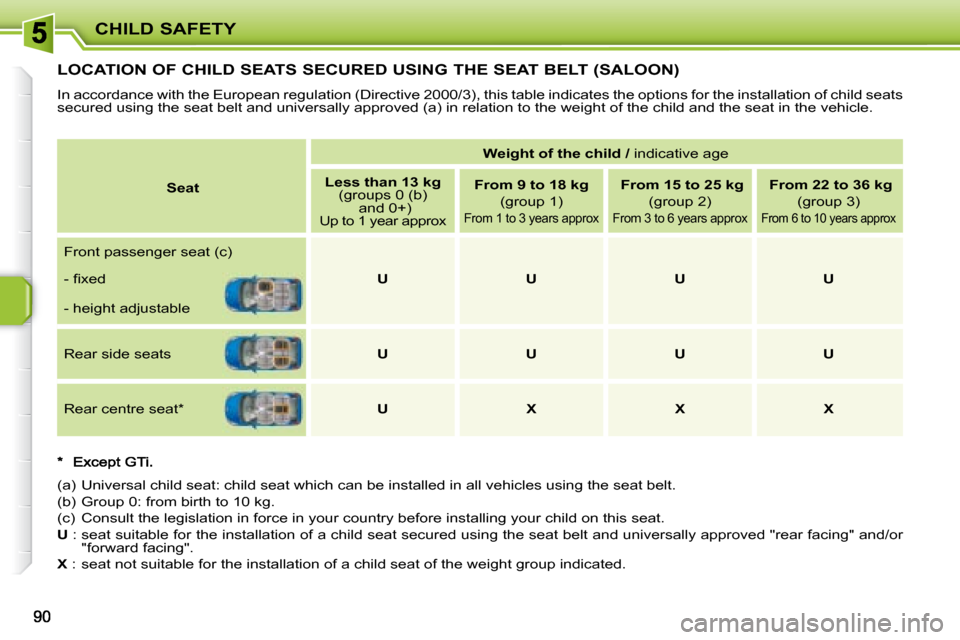

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SALOON)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.

U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".

X : seat not suitable for the installation of a child sea t of the weight group indicated.
Seat

Weight of the child / indicative age

Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx

From 9 to 18 kg
(group 1)
From 1 to 3 years approx

From 15 to 25 kg
(group 2)
From 3 to 6 years approx

From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
- i xed
U U U U
- height adjustable
Rear side seats U U U U
Rear centre seat * U X X X

CHILD SAFETY
91
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SW)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.

U : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/ or
"forward facing".

Seat Weight of the child
/ indicative age

Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx

From 15 to 25 kg
(group 2)
From 3 to 6 years approx

From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)

U U U U
i xed
height adjustable
Rear side seats
U U U
U
Rear centre seat U * U * U*
U*
* The rear left side seat becomes unusable.

!
CHILD SAFETY
92

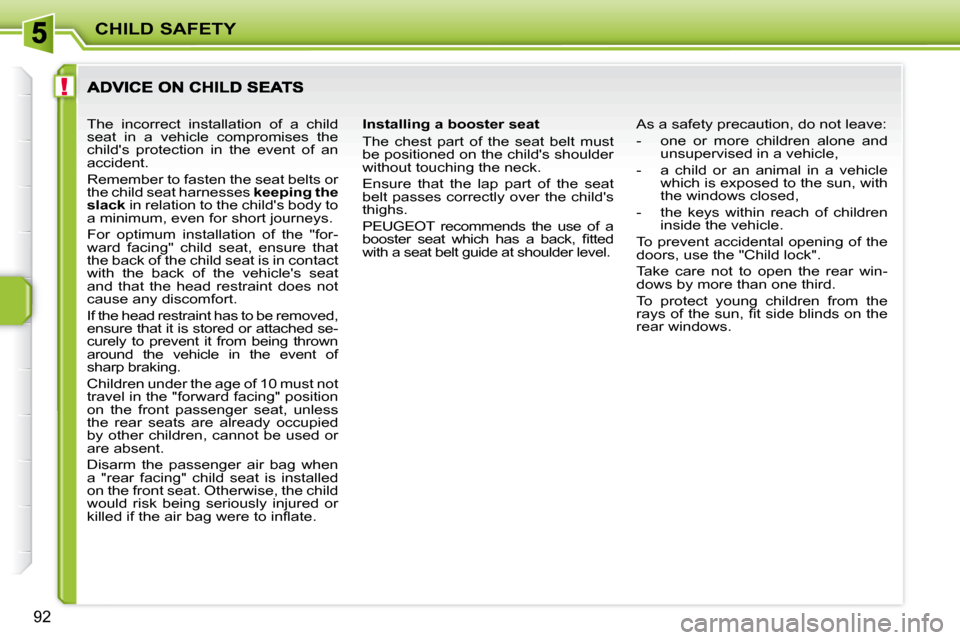

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
booster seat which has a back, i tted
with a seat belt guide at shoulder level.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of
sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to inl ate. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, i t side blinds on the
rear windows.
