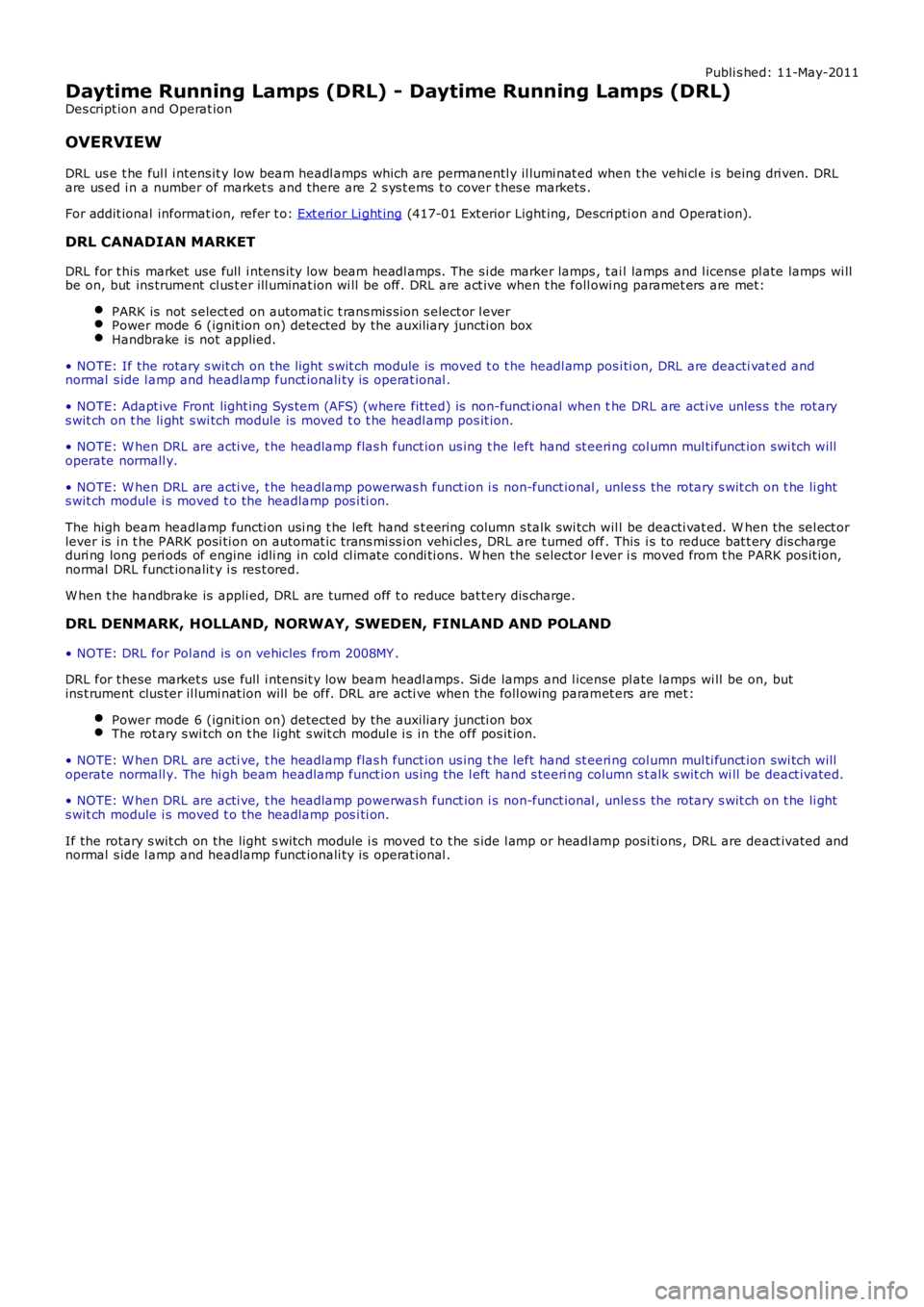

Daytime Running Lamps (DRL) - Daytime Running Lamps (DRL)
Des cript ion and Operat ion
OVERVIEW
DRL us e t he ful l i ntens it y low beam headl amps which are permanentl y il lumi nat ed when t he vehi cl e i s being dri ven. DRLare us ed i n a number of market s and there are 2 s ys t ems t o cover t hes e markets .
For addit ional informat ion, refer t o: Ext eri or Li ght ing (417-01 Ext erior Light ing, Descri pti on and Operat ion).
DRL CANADIAN MARKET
DRL for t his market use full i ntens it y low beam headl amps. The s i de marker lamps , t ai l lamps and l icens e pl ate lamps wi llbe on, but ins trument cl us t er ill uminat ion wi ll be off. DRL are act ive when t he followi ng paramet ers are met:
PARK is not s elect ed on automat ic t rans mis s ion s elect or l everPower mode 6 (ignit ion on) detected by the auxil iary juncti on boxHandbrake is not applied.
• NOTE: If the rotary s wit ch on the light s wit ch module is moved t o t he headl amp posi ti on, DRL are deacti vat ed andnormal s ide l amp and headlamp funct ionali ty i s operat ional .
• NOTE: Adapt ive Front light ing Sys tem (AFS) (where fit ted) is non-funct ional when the DRL are act ive unles s t he rot arys wit ch on t he li ght s wi tch module is moved t o t he headl amp pos it ion.
• NOTE: W hen DRL are acti ve, t he headl amp flas h funct ion us ing t he left hand st eeri ng col umn mul ti funct ion swi tch willoperate normall y.
• NOTE: W hen DRL are acti ve, t he headl amp powerwas h funct ion i s non-funct ional , unles s the rotary s wit ch on t he li ghts wit ch module i s moved t o the headlamp pos i ti on.
The high beam headlamp functi on usi ng t he left hand s t eering column s talk swi tch will be deacti vat ed. W hen the sel ect orlever is i n t he PARK posi ti on on automat ic trans mi ss i on vehi cl es, DRL are t urned off. This i s to reduce bat t ery dis chargeduri ng long peri ods of engine idli ng in cold cl imat e condi ti ons. W hen the s elect or lever i s moved from t he PARK pos it ion,normal DRL funct ionalit y i s res t ored.
W hen t he handbrake is appli ed, DRL are t urned off t o reduce bat tery dis charge.
DRL DENMARK, HOLLAND, NORWAY, SWEDEN, FINLAND AND POLAND
• NOTE: DRL for Pol and is on vehicles from 2008MY .
DRL for t hese market s use full i ntens it y low beam headl amps. Si de lamps and l icense pl ate lamps wi ll be on, butins t rument clus ter il lumi nat ion will be off. DRL are acti ve when the foll owing paramet ers are met :
Power mode 6 (ignit ion on) detected by the auxil iary juncti on boxThe rot ary s wi tch on t he l ight s wit ch modul e i s in the off pos it ion.
• NOTE: W hen DRL are acti ve, t he headl amp flas h funct ion us ing t he left hand st eeri ng col umn mul ti funct ion swi tch willoperate normall y. The hi gh beam headlamp funct ion us ing the l eft hand s teeri ng column s t alk s wit ch wi ll be deact ivated.
• NOTE: W hen DRL are acti ve, t he headl amp powerwas h funct ion i s non-funct ional , unles s the rotary s wit ch on t he li ghts wit ch module i s moved t o the headlamp pos i ti on.
If the rotary s wit ch on the light s wit ch module i s moved t o t he s ide l amp or headl amp posi ti ons , DRL are deact ivated andnormal s ide l amp and headlamp funct ionali ty i s operat ional .
Page 1964 of 3229
12-St eering wheel module
13-Li ght s wi tch module
14-Radio Frequency (RF) recei ver

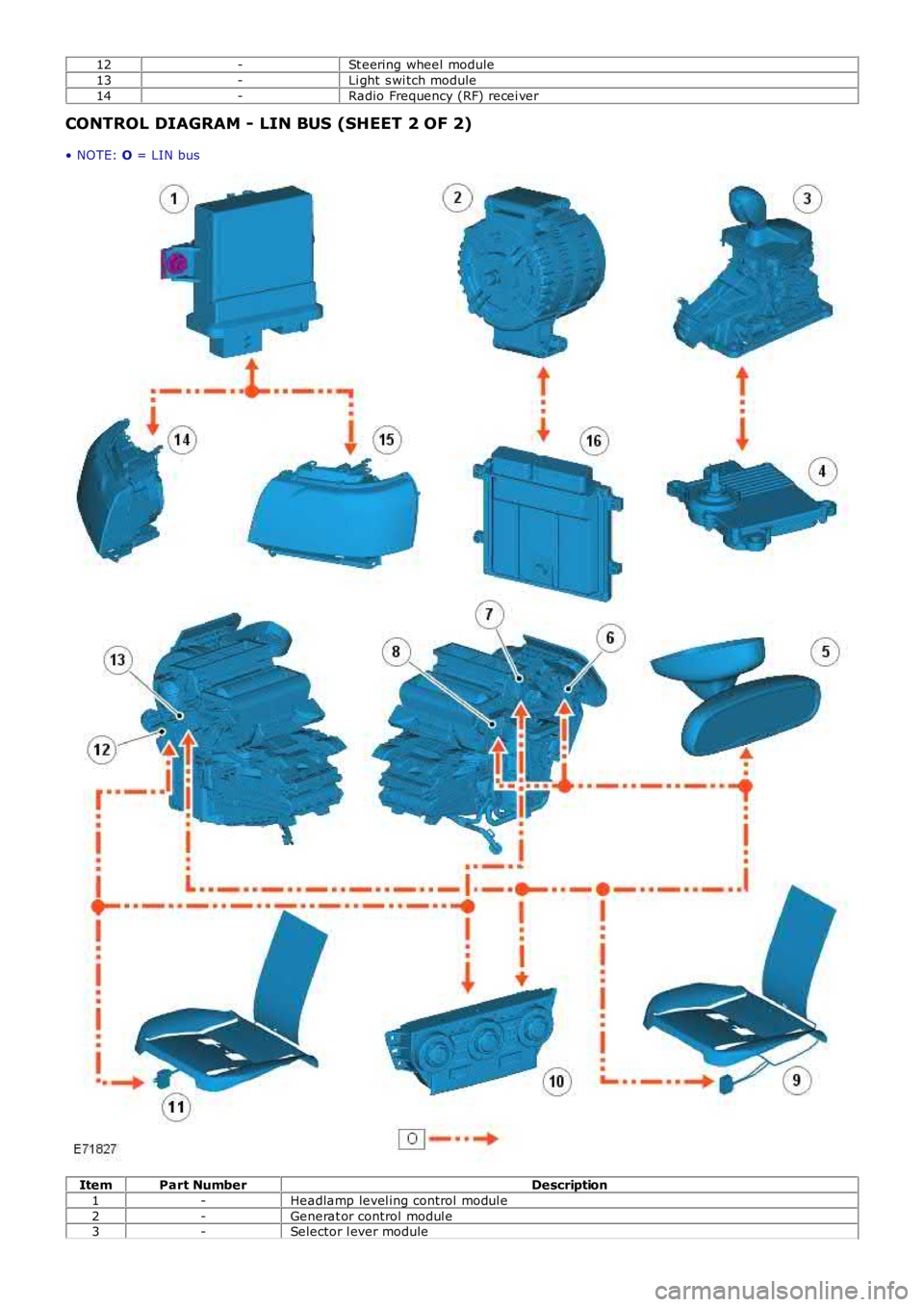

CONTROL DIAGRAM - LIN BUS (SHEET 2 OF 2)
• NOTE: O = LIN bus
ItemPart NumberDescription
1-Headlamp level ing control modul e
2-Generat or control modul e3-Selector l ever module
Page 1965 of 3229
4-Trans mi ss i on Cont rol Module (TCM)
5-Cabin humi dit y s ens or
6-Ai r intake s t epper mot or7-W indshi eld di st ri but ion (defrost ) s tepper motor
8-Ri ght Hand (RH) temperature blend s tepper motor
9-RH seat heat modul e10-Aut omat ic Temperature Cont rol (ATC) modul e
11-Left Hand (LH) s eat heat module
12-LH t emperat ure bl end st epper mot or13-Face/feet s tepper dis tribut ion mot or
14-RH headlamp cont rol module
15-LH headlamp cont rol module16-Engine Control Modul e (ECM)
CONTROL DIAGRAM - MEDIUM SPEED CAN BUS
• NOTE: N = Medium s peed CAN bus
Page 1968 of 3229
6-El ect ronic rear different ial cont rol module
7-TCM
8-Headlamp leveling cont rol module9-Terrain Res ponse cont rol module
10-Ant i-lock Brake Sys tem (ABS) module
11-ECM - TD412-ECM - i6

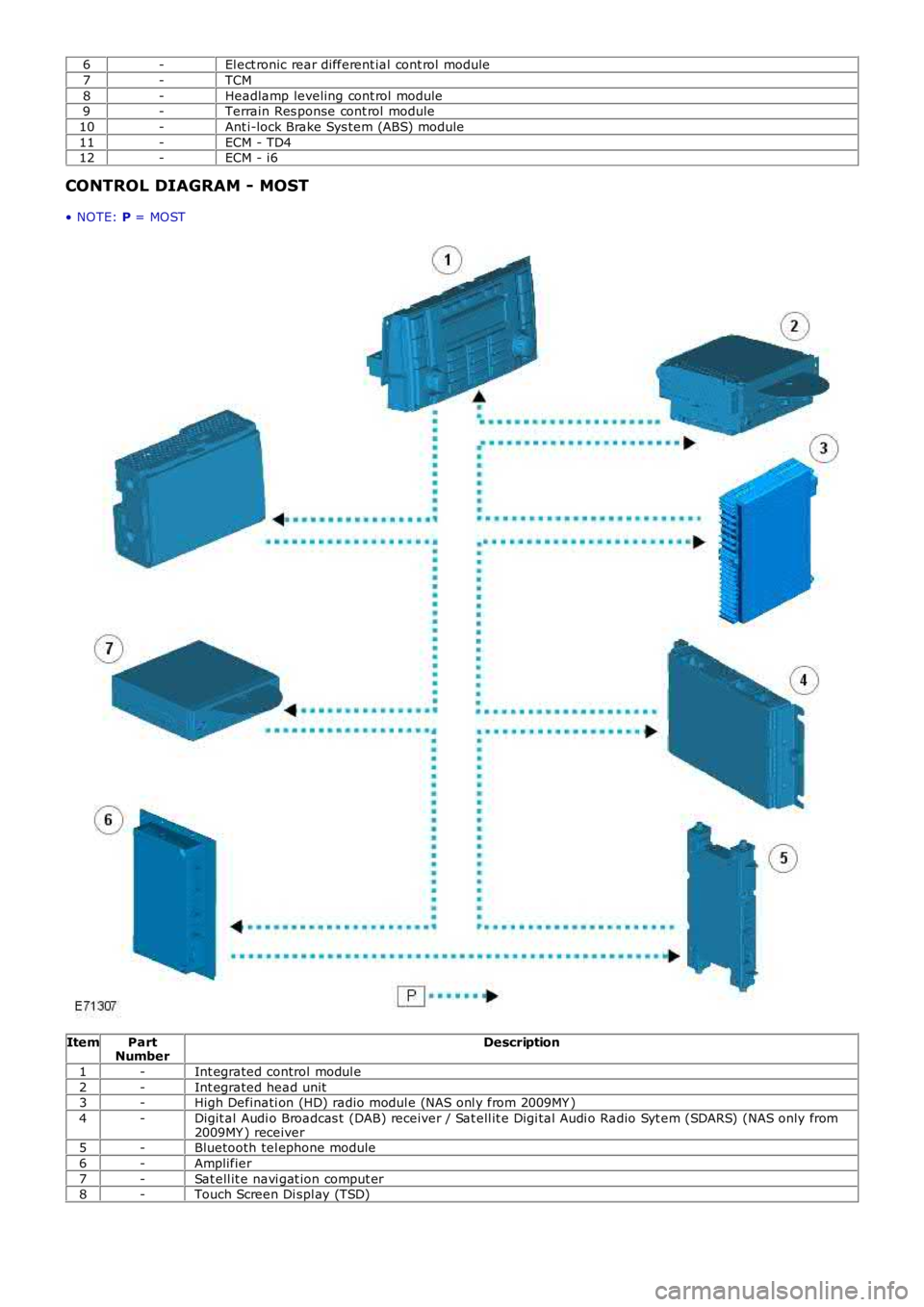

CONTROL DIAGRAM - MOST
• NOTE: P = MOST
ItemPartNumberDescription
1-Int egrated control modul e
2-Int egrated head unit3-High Definati on (HD) radio modul e (NAS onl y from 2009MY )
4-Digit al Audi o Broadcas t (DAB) receiver / Sat ell it e Digi tal Audi o Radio Syt em (SDARS) (NAS only from2009MY ) receiver5-Bluetooth tel ephone module
6-Amplifier
7-Sat ell it e navi gat ion comput er8-Touch Screen Di spl ay (TSD)
Page 1972 of 3229

Publi s hed: 11-May-2011

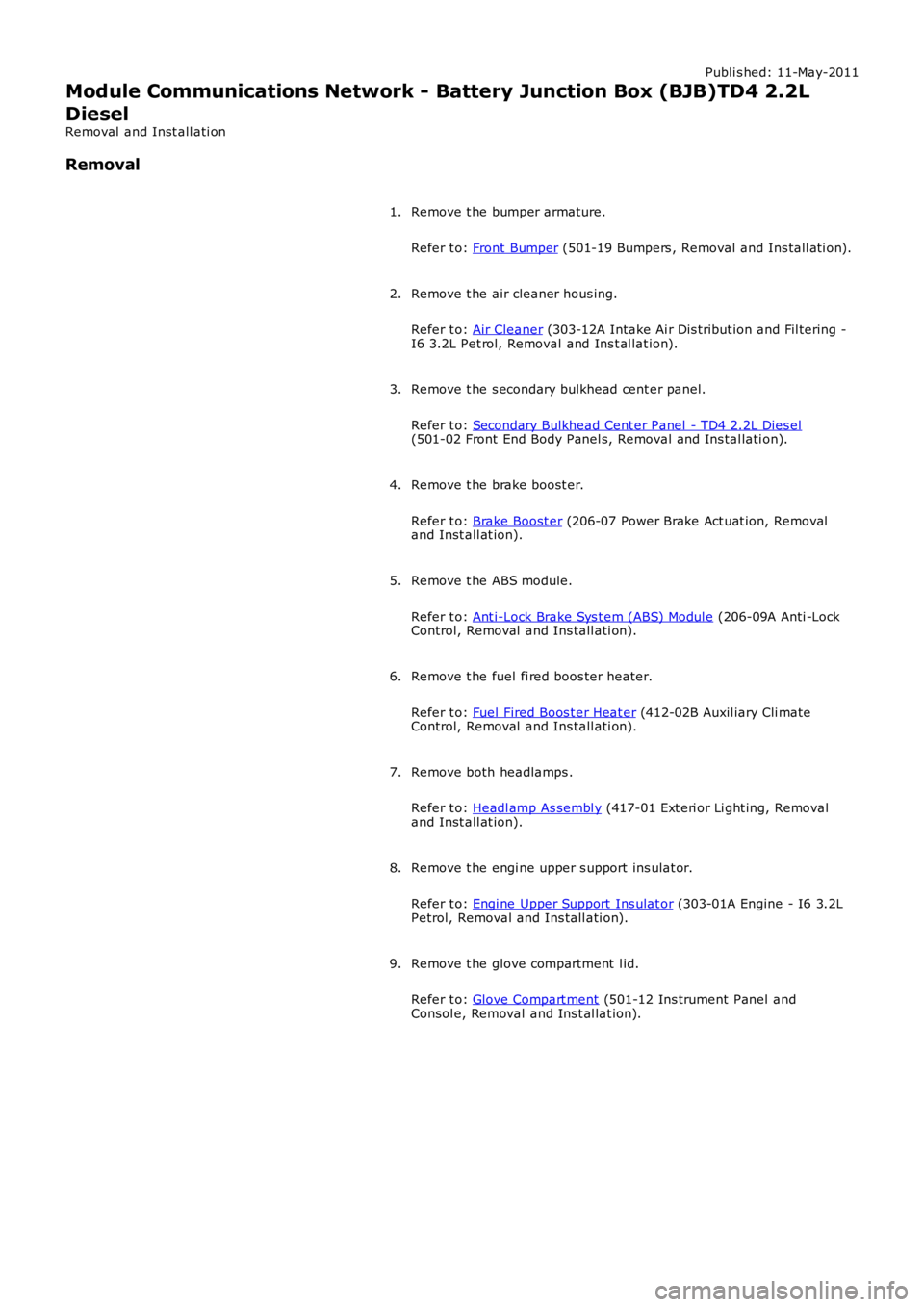

Module Communications Network - Battery Junction Box (BJB)TD4 2.2L
Diesel
Removal and Inst all ati on
Removal
Remove t he bumper armature.
Refer t o: Front Bumper (501-19 Bumpers , Removal and Ins tall ati on).
1.
Remove t he air cleaner hous ing.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -I6 3.2L Pet rol, Removal and Ins t al lat ion).
2.
Remove t he s econdary bulkhead cent er panel.
Refer t o: Secondary Bulkhead Cent er Panel - TD4 2.2L Dies el(501-02 Front End Body Panel s, Removal and Ins tal lati on).
3.
Remove t he brake boost er.
Refer t o: Brake Boost er (206-07 Power Brake Act uat ion, Removaland Inst all at ion).
4.
Remove t he ABS module.
Refer t o: Ant i-Lock Brake Sys t em (ABS) Modul e (206-09A Anti -LockControl, Removal and Ins tall ati on).
5.
Remove t he fuel fi red boos ter heater.
Refer t o: Fuel Fired Boos t er Heat er (412-02B Auxil iary Cli mateControl, Removal and Ins tall ati on).
6.
Remove both headlamps .
Refer t o: Headl amp As sembl y (417-01 Ext eri or Li ght ing, Removaland Inst all at ion).
7.
Remove t he engi ne upper s upport ins ulat or.
Refer t o: Engi ne Upper Support Ins ulat or (303-01A Engine - I6 3.2LPetrol, Removal and Ins tall ati on).
8.
Remove t he glove compartment l id.
Refer t o: Glove Compart ment (501-12 Ins trument Panel andConsol e, Removal and Ins t al lat ion).
9.
Page 1991 of 3229

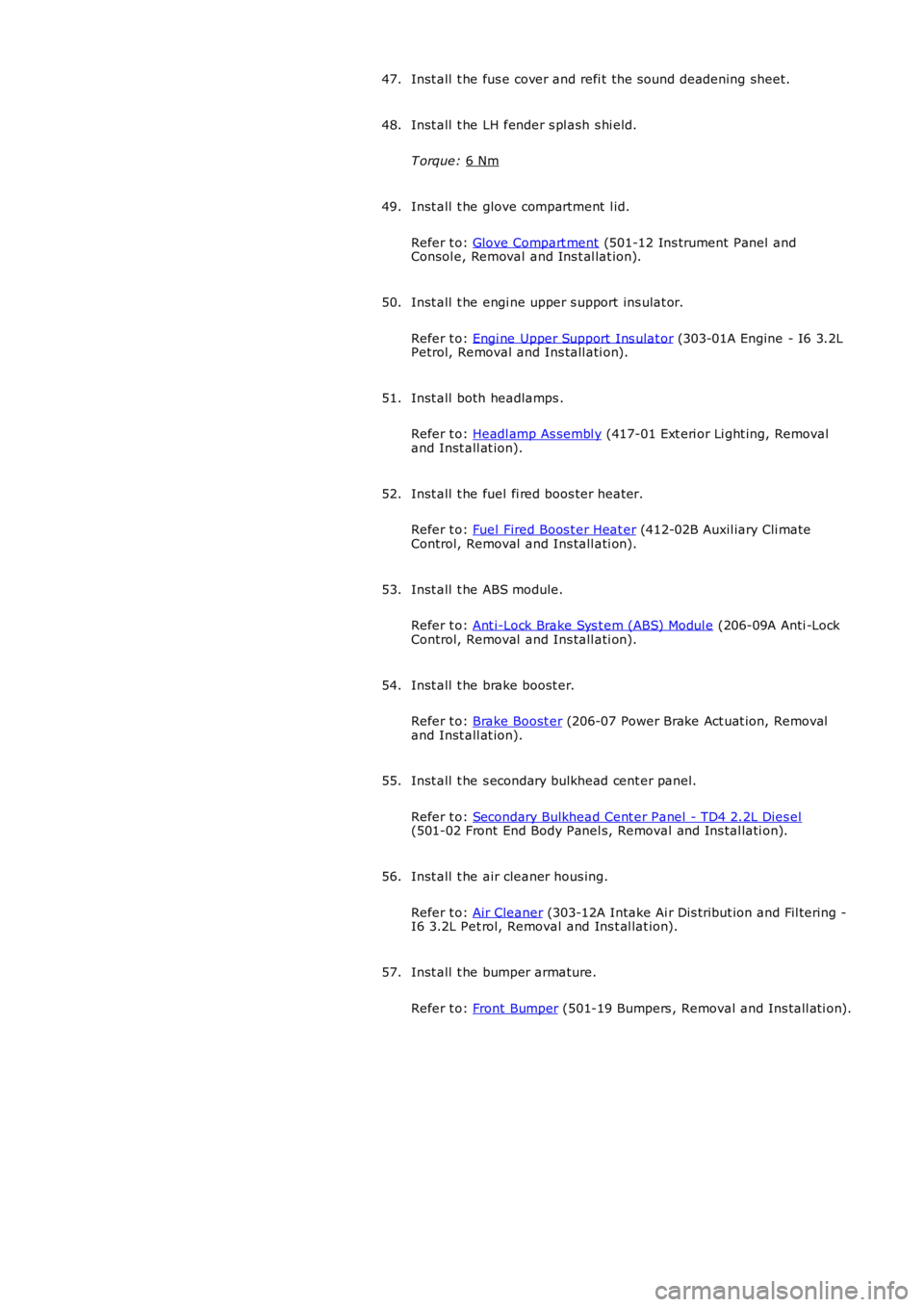

Inst all t he fus e cover and refi t the s ound deadening sheet.
47.
Inst all t he LH fender s pl ash s hi eld.
T orque: 6 Nm 48.
Inst all t he glove compartment l id.
Refer t o: Glove Compart ment (501-12 Ins trument Panel and
Consol e, Removal and Ins t al lat ion).
49.
Inst all t he engi ne upper s upport ins ulat or.
Refer t o: Engi ne Upper Support Ins ulat or (303-01A Engine - I6 3.2L
Petrol, Removal and Ins tall ati on).
50.
Inst all both headlamps .
Refer t o: Headl amp As sembl y (417-01 Ext eri or Li ght ing, Removal
and Inst all at ion).
51.
Inst all t he fuel fi red boos ter heater.
Refer t o: Fuel Fired Boos t er Heat er (412-02B Auxil iary Cli mate
Control, Removal and Ins tall ati on).
52.
Inst all t he ABS module.
Refer t o: Ant i-Lock Brake Sys t em (ABS) Modul e (206-09A Anti -Lock
Control, Removal and Ins tall ati on).
53.
Inst all t he brake boost er.
Refer t o: Brake Boost er (206-07 Power Brake Act uat ion, Removal
and Inst all at ion).
54.
Inst all t he s econdary bulkhead cent er panel.
Refer t o: Secondary Bulkhead Cent er Panel - TD4 2.2L Dies el (501-02 Front End Body Panel s, Removal and Ins tal lati on).
55.
Inst all t he air cleaner hous ing.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -
I6 3.2L Pet rol, Removal and Ins t al lat ion).
56.
Inst all t he bumper armature.
Refer t o: Front Bumper (501-19 Bumpers , Removal and Ins tall ati on).
57.
Page 1992 of 3229

Publi s hed: 11-May-2011

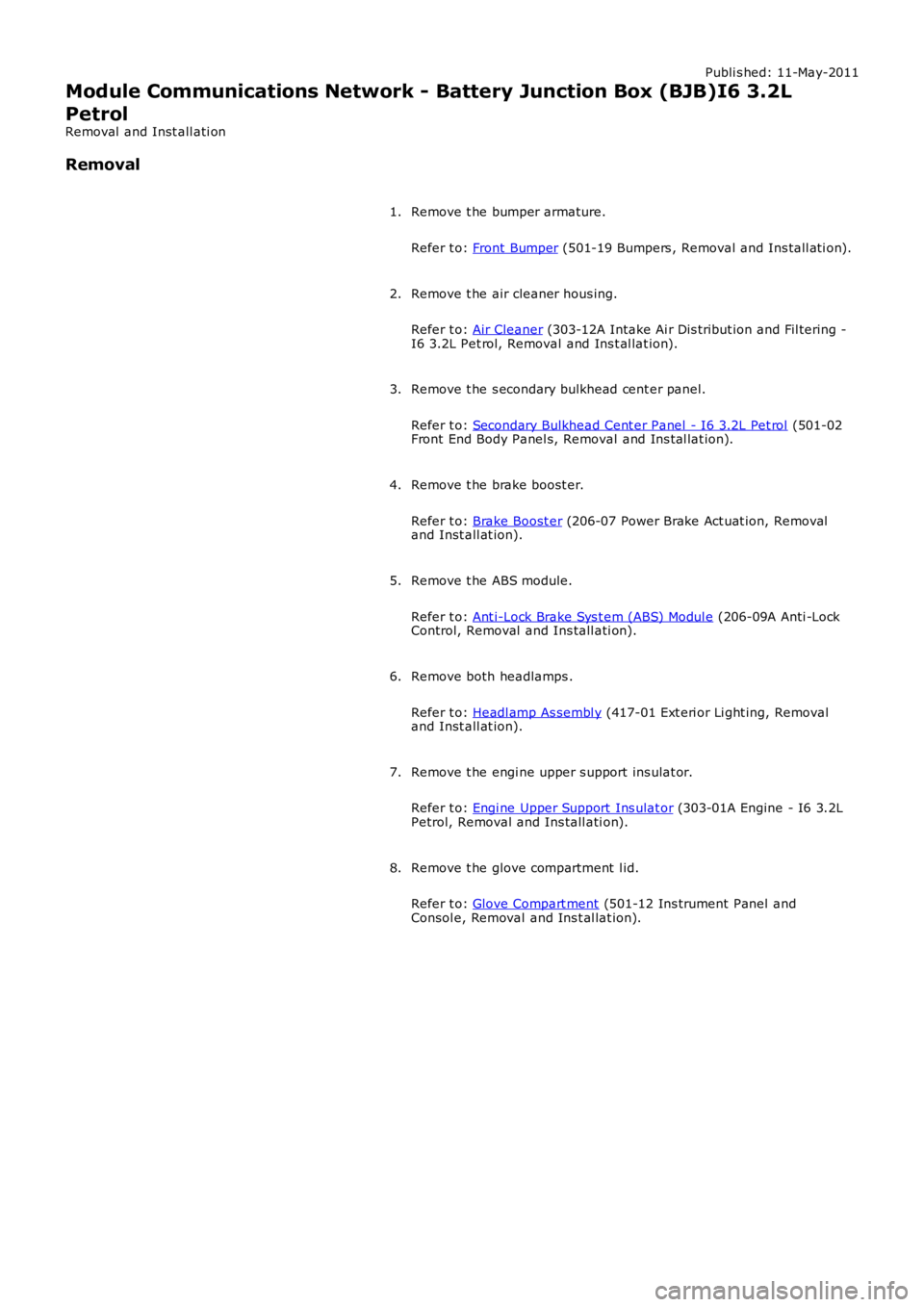

Module Communications Network - Battery Junction Box (BJB)I6 3.2L
Petrol
Removal and Inst all ati on
Removal
Remove t he bumper armature.
Refer t o: Front Bumper (501-19 Bumpers , Removal and Ins tall ati on).
1.
Remove t he air cleaner hous ing.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -I6 3.2L Pet rol, Removal and Ins t al lat ion).
2.
Remove t he s econdary bulkhead cent er panel.
Refer t o: Secondary Bulkhead Cent er Panel - I6 3.2L Pet rol (501-02Front End Body Panel s, Removal and Ins t al lat ion).
3.
Remove t he brake boost er.
Refer t o: Brake Boost er (206-07 Power Brake Act uat ion, Removaland Inst all at ion).
4.
Remove t he ABS module.
Refer t o: Ant i-Lock Brake Sys t em (ABS) Modul e (206-09A Anti -LockControl, Removal and Ins tall ati on).
5.
Remove both headlamps .
Refer t o: Headl amp As sembl y (417-01 Ext eri or Li ght ing, Removaland Inst all at ion).
6.
Remove t he engi ne upper s upport ins ulat or.
Refer t o: Engi ne Upper Support Ins ulat or (303-01A Engine - I6 3.2LPetrol, Removal and Ins tall ati on).
7.
Remove t he glove compartment l id.
Refer t o: Glove Compart ment (501-12 Ins trument Panel andConsol e, Removal and Ins t al lat ion).
8.
Page 2011 of 3229
Refer t o: Engi ne Upper Support Ins ulat or (303-01A Engine - I6 3.2LPetrol, Removal and Ins tall ati on).
Inst all both headlamps .
Refer t o: Headl amp As sembl y (417-01 Ext eri or Li ght ing, Removaland Inst all at ion).
49.
Inst all t he ABS module.
Refer t o: Ant i-Lock Brake Sys t em (ABS) Modul e (206-09A Anti -LockControl, Removal and Ins tall ati on).
50.
Inst all t he brake boost er.
Refer t o: Brake Boost er (206-07 Power Brake Act uat ion, Removaland Inst all at ion).
51.
Inst all t he s econdary bulkhead cent er panel.
Refer t o: Secondary Bulkhead Cent er Panel - I6 3.2L Pet rol (501-02Front End Body Panel s, Removal and Ins t al lat ion).
52.
Inst all t he air cleaner hous ing.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -I6 3.2L Pet rol, Removal and Ins t al lat ion).
53.
Inst all t he bumper armature.
Refer t o: Front Bumper (501-19 Bumpers , Removal and Ins tall ati on).
54.
