Fuses
R

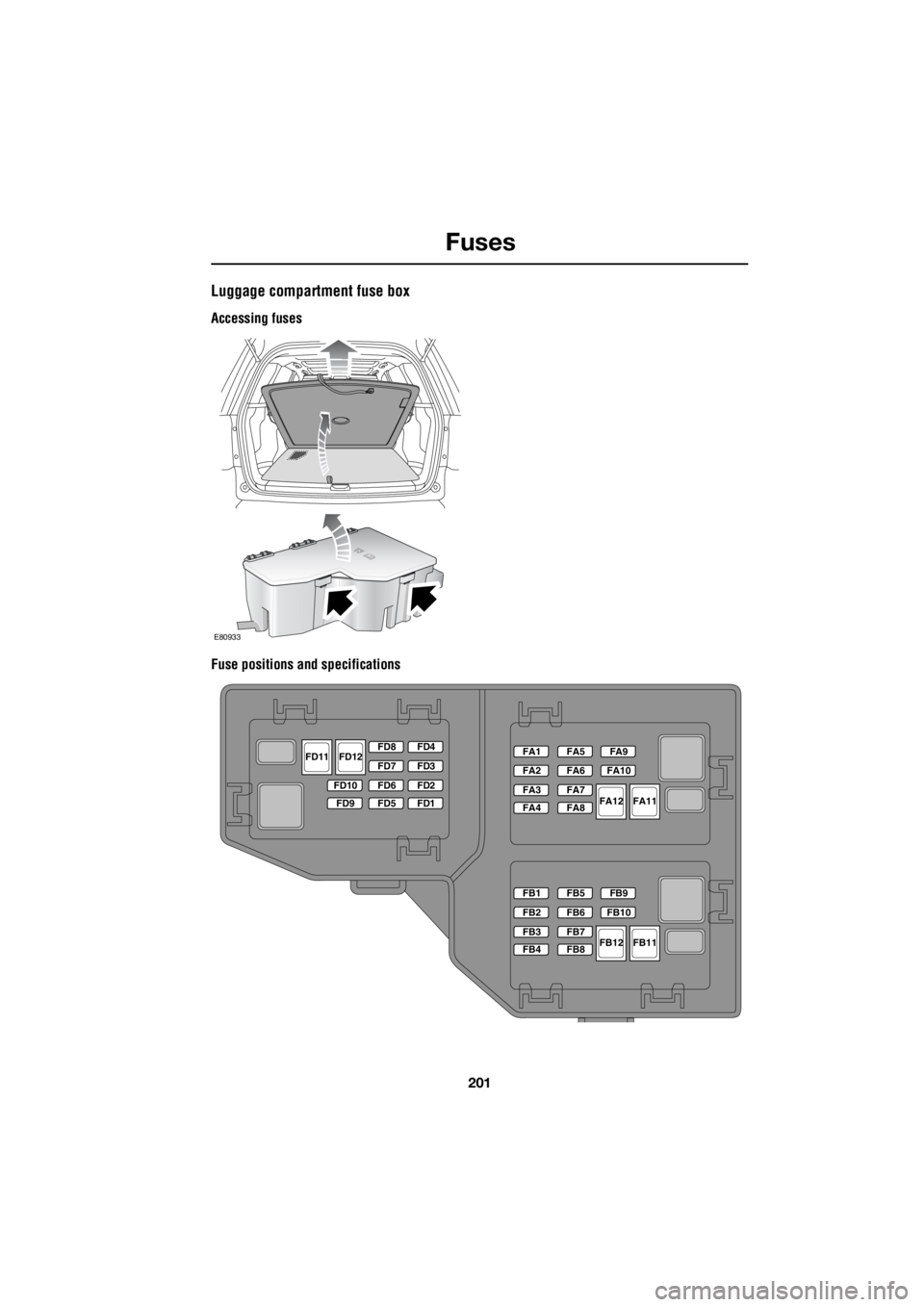

Luggage compartment fuse box
Accessing fuses
Fuse positions and specifications
E80933
FD4
FD3
FD2
FD1
FD8
FD7
FD6
FD5
FD10
FD9
FD12FD11
FA11FA12
FA1
FA2
FA3
FA4
FA5
FA6
FA7
FA8
FA9
FA10
FB11FB12
FB1
FB2
FB3
FB4
FB5
FB6
FB7
FB8
FB9
FB10

Fuses
202
L
Fuse number Rating (Amps) Fuse co lour Circuits protected
FA1 25 clear Driver door controls
FA2 25 clear Passenger door controls
FA3 25 clear Rear left door controls
FA4 25 clear Rear right door controls
FA5 - - -
FA6 15 blue Rear accessory socket
FA7 30 green Heated rear screen
FA8 - - -
FA9 15 blue Trailer power
FA10 30 green Driver electric seat
FA11 40 green Trailer power
FA12 - - - FB1 10 red Park distance control
FB2 - - -
FB3 15 blue Driver's seat heater
FB4 15 blue Front passenger's seat heater
FB5 15 blue Caravan fridge
FB6 15 blue Electronic centre differential
FB7 - - -
FB8 - - -
FB9 30 green Passenger electric seat
FB10 - - -
FB11 - - -
FB12 - - -
FD1 10 red Audio sy stem and touch
screen
FD2 - - -
FD3 10 red DAB
FD4 5 tan Bluetooth telephone
FD5 - - -
FD6 10 red Audio unit

203
Fuses
R
FD7 - - -
FD8 - - -
FD9 30 green Audio amplifier
FD10 - - -
FD11 - - -
FD12 - - -
Fuse number Rating (Amps) Fuse co
lour Circuits protected
