2006 Hyundai Terracan Owner's Manual

1

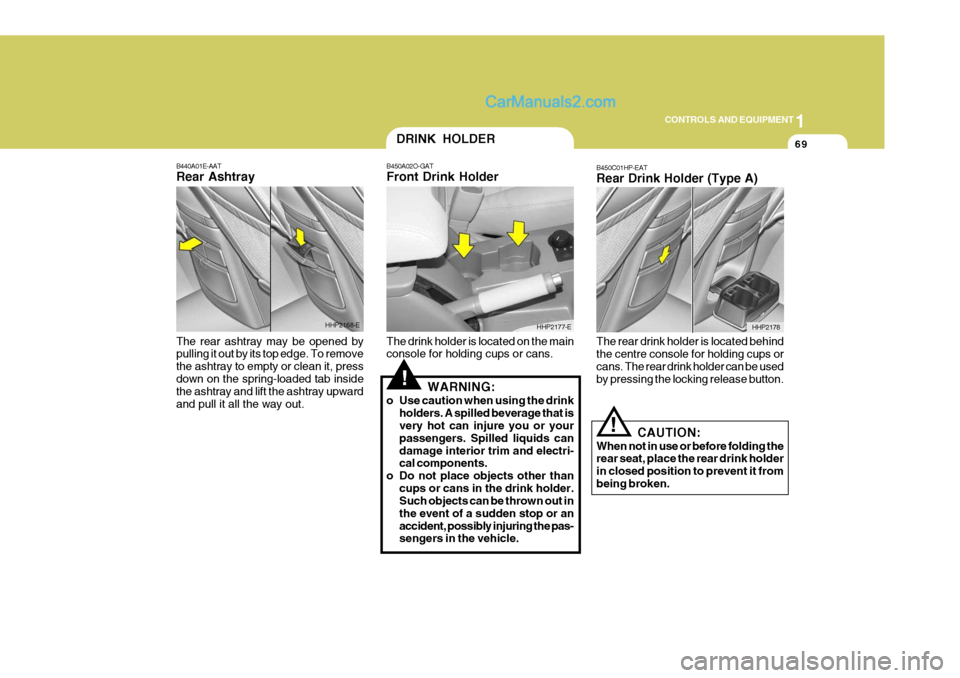

CONTROLS AND EQUIPMENT
69
!
B440A01E-AAT Rear Ashtray The rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray to empty or clean it, pressdown on the spring-loaded tab inside the ashtray and lift the ashtray upward and pull it all the way out. The drink holder is located on the main console for holding cups or cans.
WARNING:
o Use caution when using the drink holders. A spilled beverage that isvery hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place objects other than
cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or anaccident, possibly injuring the pas- sengers in the vehicle.
HHP2168-E
DRINK HOLDER
B450A02O-GAT Front Drink Holder
HHP2177-E
B450C01HP-EAT Rear Drink Holder (Type A) The rear drink holder is located behind the centre console for holding cups or cans. The rear drink holder can be usedby pressing the locking release button. HHP2178
CAUTION:
When not in use or before folding the rear seat, place the rear drink holder in closed position to prevent it frombeing broken.!

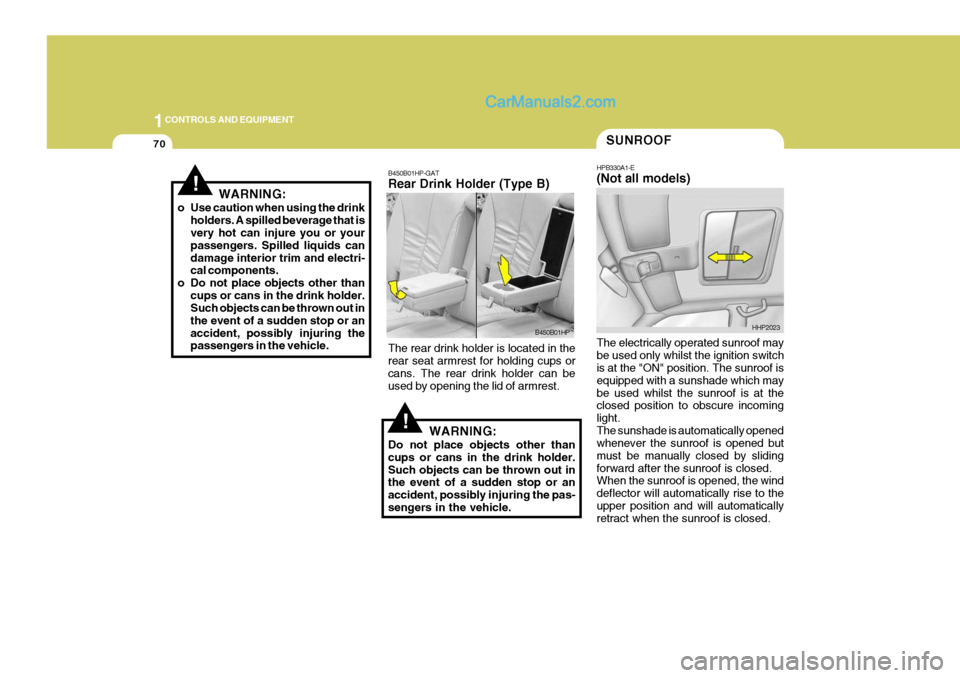

1CONTROLS AND EQUIPMENT
70
The electrically operated sunroof may be used only whilst the ignition switch is at the "ON" position. The sunroof is equipped with a sunshade which maybe used whilst the sunroof is at the closed position to obscure incoming light.The sunshade is automatically opened whenever the sunroof is opened but must be manually closed by slidingforward after the sunroof is closed. When the sunroof is opened, the wind deflector will automatically rise to theupper position and will automatically retract when the sunroof is closed.
SUNROOF
HPB330A1-E (Not all models)
HHP2023
!
B450B01HP-GAT Rear Drink Holder (Type B) The rear drink holder is located in the rear seat armrest for holding cups or cans. The rear drink holder can be used by opening the lid of armrest.
WARNING:
Do not place objects other thancups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the pas-sengers in the vehicle.
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place objects other than cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or anaccident, possibly injuring the passengers in the vehicle. B450B01HP

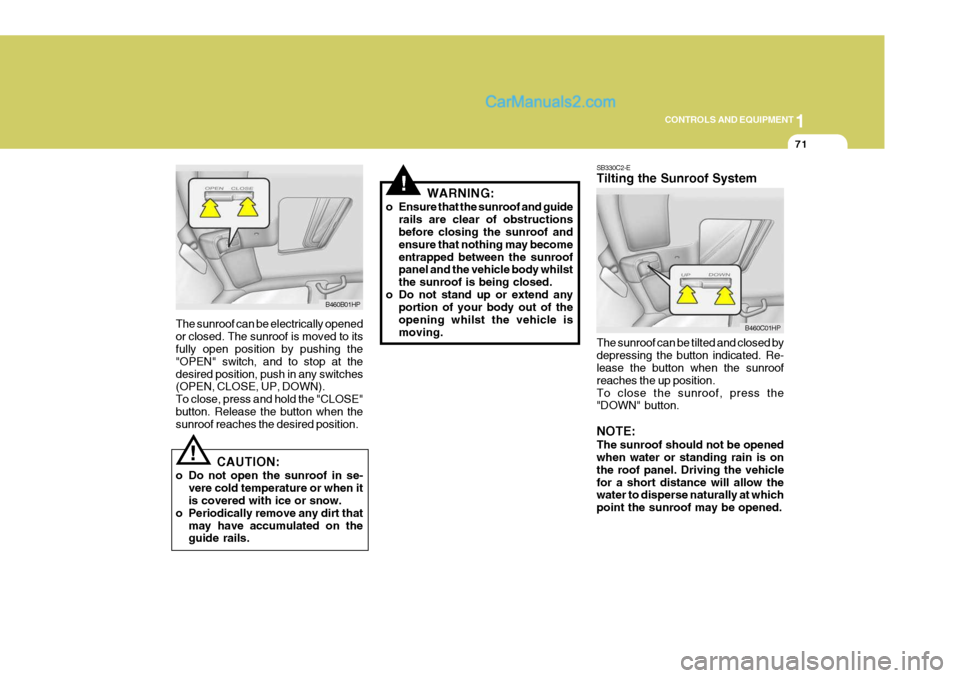

1
CONTROLS AND EQUIPMENT
71
!
!
The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by pushing the "OPEN" switch, and to stop at thedesired position, push in any switches (OPEN, CLOSE, UP, DOWN). To close, press and hold the "CLOSE"button. Release the button when the sunroof reaches the desired position.
CAUTION:
o Do not open the sunroof in se- vere cold temperature or when itis covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails. WARNING:
o Ensure that the sunroof and guide rails are clear of obstructionsbefore closing the sunroof and ensure that nothing may becomeentrapped between the sunroof panel and the vehicle body whilst the sunroof is being closed.
o Do not stand up or extend any portion of your body out of theopening whilst the vehicle ismoving.
B460B01HP SB330C2-E Tilting the Sunroof System The sunroof can be tilted and closed by depressing the button indicated. Re- lease the button when the sunroof reaches the up position.To close the sunroof, press the "DOWN" button. NOTE: The sunroof should not be opened when water or standing rain is on the roof panel. Driving the vehiclefor a short distance will allow the water to disperse naturally at which point the sunroof may be opened.
B460C01HP

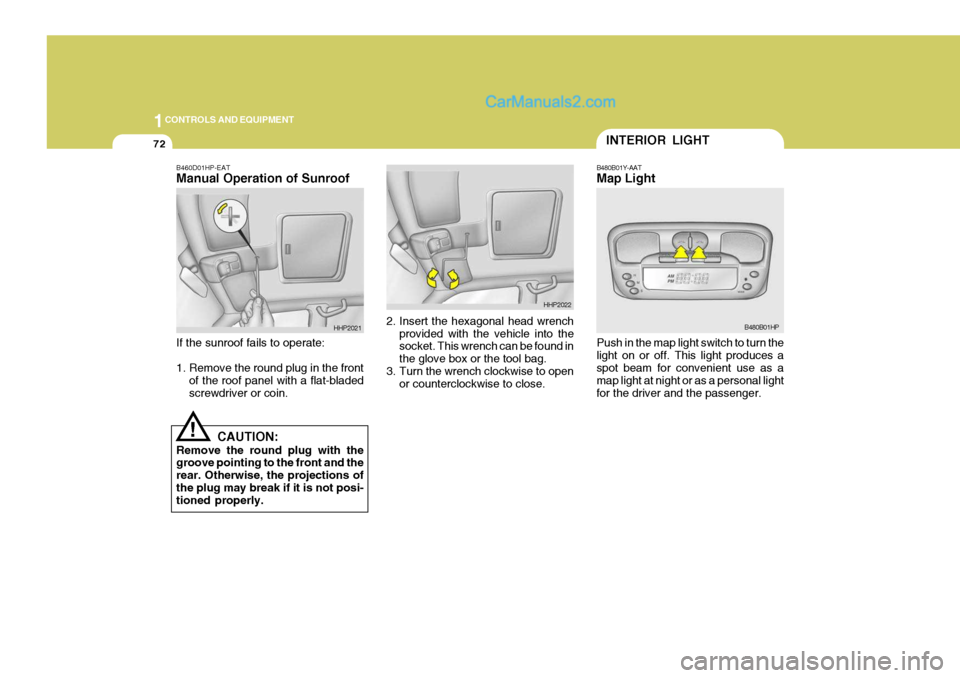

1CONTROLS AND EQUIPMENT
72
Push in the map light switch to turn the light on or off. This light produces a spot beam for convenient use as a map light at night or as a personal lightfor the driver and the passenger.INTERIOR LIGHT
B480B01Y-AAT Map Light
B480B01HP
!
B460D01HP-EAT Manual Operation of Sunroof If the sunroof fails to operate:
1. Remove the round plug in the front
of the roof panel with a flat-bladed screwdriver or coin. 2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the glove box or the tool bag.
3. Turn the wrench clockwise to open
or counterclockwise to close.
CAUTION:
Remove the round plug with the groove pointing to the front and the rear. Otherwise, the projections ofthe plug may break if it is not posi- tioned properly.
HHP2021
HHP2022

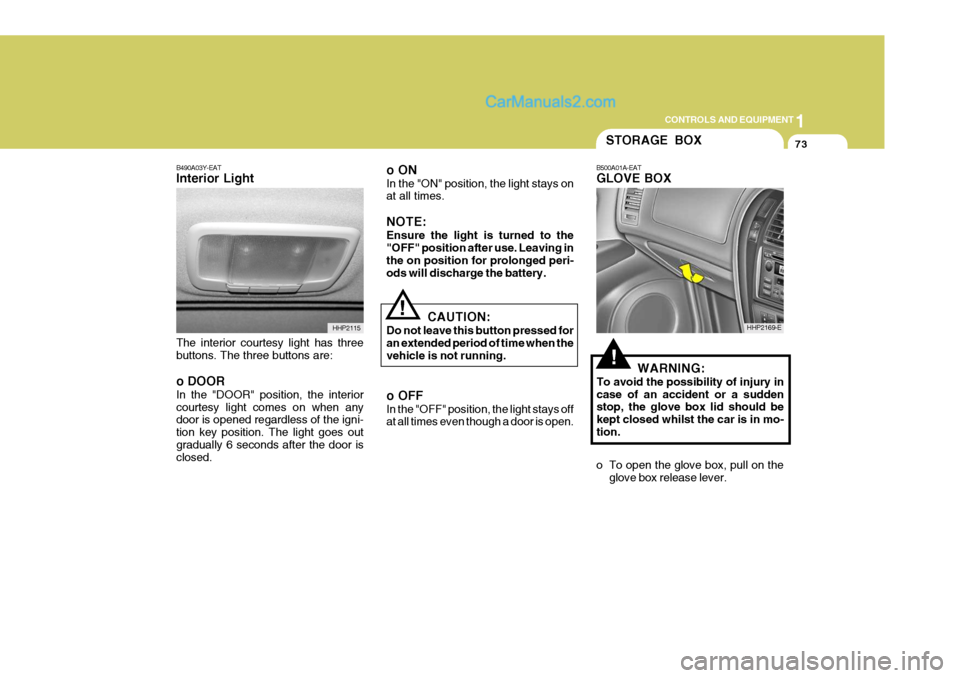

1
CONTROLS AND EQUIPMENT
73
B490A03Y-EAT Interior Light The interior courtesy light has three buttons. The three buttons are: o DOOR In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of the igni- tion key position. The light goes outgradually 6 seconds after the door is closed. o ON In the "ON" position, the light stays on at all times. NOTE: Ensure the light is turned to the "OFF" position after use. Leaving in the on position for prolonged peri-ods will discharge the battery.
HHP2115
!
!WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box lid should be kept closed whilst the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.
STORAGE BOX
B500A01A-EAT GLOVE BOX
HHP2169-E
CAUTION:
Do not leave this button pressed for an extended period of time when the vehicle is not running. o OFF In the "OFF" position, the light stays off at all times even though a door is open.

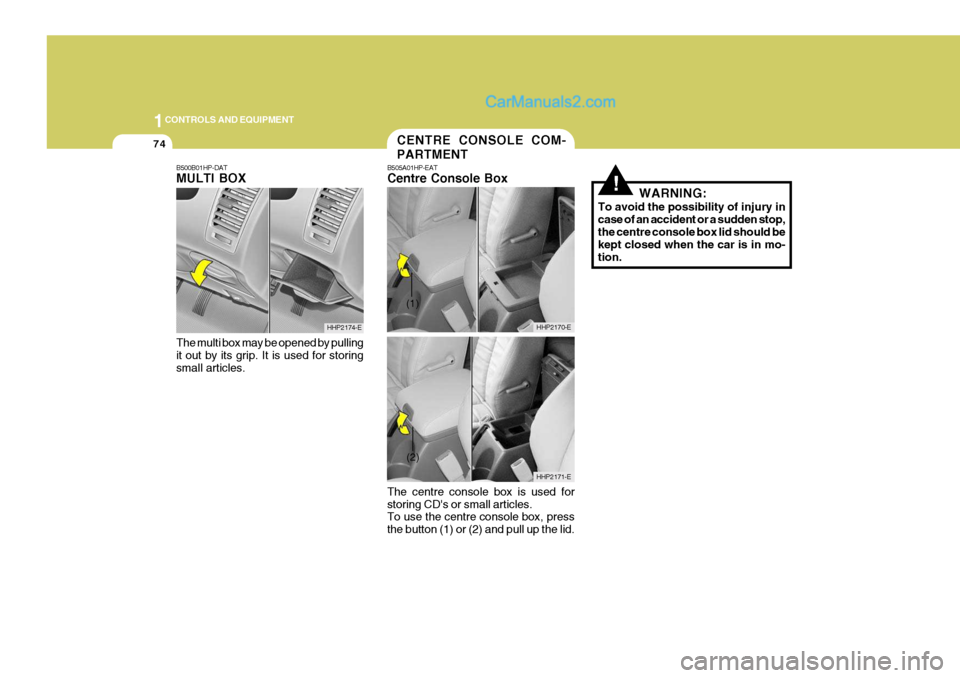

1CONTROLS AND EQUIPMENT
74
!WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the centre console box lid should be kept closed when the car is in mo-tion.
B500B01HP-DAT MULTI BOX The multi box may be opened by pulling it out by its grip. It is used for storing small articles.
HHP2174-E
CENTRE CONSOLE COM- PARTMENT
B505A01HP-EAT Centre Console Box The centre console box is used for storing CD's or small articles. To use the centre console box, press the button (1) or (2) and pull up the lid.
HHP2170-E
HHP2171-E
(2)
(1)

1
CONTROLS AND EQUIPMENT
75
The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by the con- trol lever in the bottom front corner ofthe window. Before driving away, always check that your mirrors are positioned so youcan see directly behind you. When using the mirror, always exercise cau- tion when attempting to judge the dis-tance of vehicles behind or along side of you.
B505B01HP-EAT Centre Console Armrest To use the centre console armrest, press the locking release button. NOTE: When not in use, fix the console armrest by pushing down it with the locking release button pressed. HHP2172-E
B510A01HP-E
OUTSIDE REARVIEW MIR- ROR
B510A01A-AAT
! CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma-nipulating the face of the mirror. Use an approved spray de-icer (not radiator antifreeze) to release thefrozen mechanism or move the ve- hicle to a warm place and allow the ice to melt.

1CONTROLS AND EQUIPMENT
76
HPB270C2-E OUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with heated front/rear window.So, to heat the outside rearview mirror glass, push in the switch for heated front/rear window.The rearview mirror glass will be heated for defrosting or defogging and will give you improved rear vision in all
weather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater au-tomatically turns itself off after 20 min- utes.
HHP2119
Type A
Type B
!
B510B01Y-EAT Electric Type (Not all models) The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and to the rear of the left and right sides.The remote control outside rearview mirror switch controls the adjustments for both right and left outside mirrors. To adjust the position of either mir- ror:
1. Move the selecting switch to the right or left to activate the adjustablemechanism for the correspondingdoor mirror.
2. Now, adjust mirror angle by de-
pressing the appropriate perimeterswitch as illustrated. CAUTION:
o Do not operate the switch continu- ously for an unnecessary lengthof time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge,soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rearview mirror. It is a convex mirror with a curved sur-face. Any objects seen in this mirror are closer than they appear.
!B510B01HP-E
B510B02HP
