2006 Hyundai Terracan Owner's Manual

1
FEATURES OF YOUR HYUNDAI
3BREAKING IN YOUR NEW HYUNDAI
!
B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grainalcohol) may be used in your Hyundai. However, if your engine develops drive ability problems, the use of 100% un-leaded gasoline is recommended. Fu- els with unspecified quantities of alco- hol, or alcohols other than ethanol,should not be used.
B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in your Hyundai. This type of fuel can reducevehicle performance and damage com- ponents of the fuel system.
CAUTION:
Your Hyundai's New Vehicle Lim-ited Warranty may not cover dam- age to the fuel system and perfor-mance problems that are caused by the use of methanol or fuels con- taining methanol. B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you usegasolines treated with detergent addi- tives, which help prevent deposit for- mation in the engine. These gasolineswill help the engine run cleaner and enhance performance of the Emission Control System. B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available. B020A01S-GAT During the First 2,000 Km (1,200 Miles) (Gasoline Engine) No formal "break-in" procedure is re- quired with your new Hyundai. How-ever, you can contribute to the eco- nomical operation and durability of your Hyundai by observing the followingrecommendations during the first 2,000 km (1,200 miles).
o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too high a gear that the engine "bucks":shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.

1FEATURES OF YOUR HYUNDAI
4KEYS
o Don't let the engine idle longer than 3 minutes for a catalytic converter equipped engine.
o Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-tion. B030A01A-AAT For greater convenience, the same key operates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in caseyou accidentally lock one key inside the car.B030A01HR
B020B01FC-GAT During the First 1,000 Km (600 Miles) (Diesel Engine) No formal "break-in" procedure is re- quired with your new Hyundai. How-ever, you can contribute to the eco- nomical operation and durability of your Hyundai by observing the followingrecommendations during the first 1,000 km (600 miles).
o While driving, keep your engine
speed (rpm, or revolutions per minute) within 3,000 rpm.
o While driving, keep under three quar- ters of maximum speed.
o Use moderate acceleration. Don't start, depress the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops. o Don't lug the engine (in other words,
don't drive so slowly in too high a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary
your speed from time to time.
o Don't let the engine idle longer than
3 minutes at one time.
o Don't tow a trailer during the first 1,000 km (600 miles) of operation.

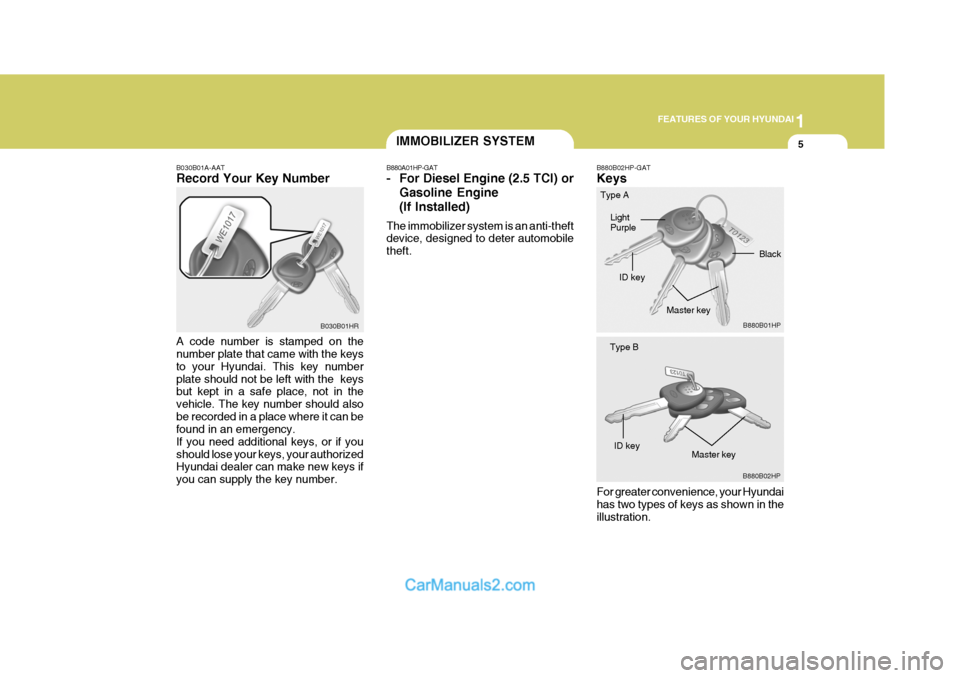

1
FEATURES OF YOUR HYUNDAI
5IMMOBILIZER SYSTEM
B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keys to your Hyundai. This key numberplate should not be left with the keys but kept in a safe place, not in the vehicle. The key number should alsobe recorded in a place where it can be found in an emergency. If you need additional keys, or if youshould lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number. B880A01HP-GAT
- For Diesel Engine (2.5 TCI) or
Gasoline Engine (If Installed)
The immobilizer system is an anti-theft device, designed to deter automobile theft. B880B02HP-GAT Keys For greater convenience, your Hyundai has two types of keys as shown in theillustration.
B030B01HR
B880B01HP
B880B02HP
Light Purple ID key
ID key Master key
Master key Black
Type B
Type A

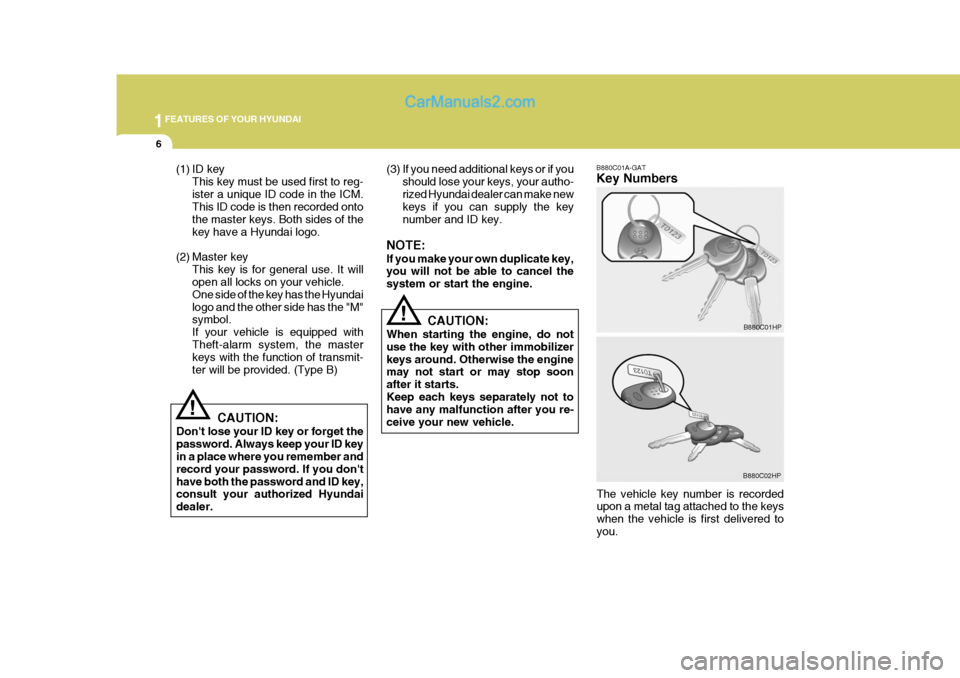

1FEATURES OF YOUR HYUNDAI
6
(3) If you need additional keys or if you
should lose your keys, your autho- rized Hyundai dealer can make new keys if you can supply the key number and ID key.
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine. B880C01A-GAT Key Numbers
B880C01HP
B880C02HP
!
(1) ID key
This key must be used first to reg- ister a unique ID code in the ICM. This ID code is then recorded onto the master keys. Both sides of thekey have a Hyundai logo.
(2) Master key This key is for general use. It will open all locks on your vehicle. One side of the key has the Hyundailogo and the other side has the "M" symbol. If your vehicle is equipped withTheft-alarm system, the master keys with the function of transmit- ter will be provided. (Type B)
CAUTION:
Don't lose your ID key or forget thepassword. Always keep your ID key in a place where you remember and record your password. If you don'thave both the password and ID key, consult your authorized Hyundai dealer. The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou.
!
CAUTION:
When starting the engine, do not use the key with other immobilizer keys around. Otherwise the engine may not start or may stop soon after it starts.Keep each keys separately not to have any malfunction after you re- ceive your new vehicle.

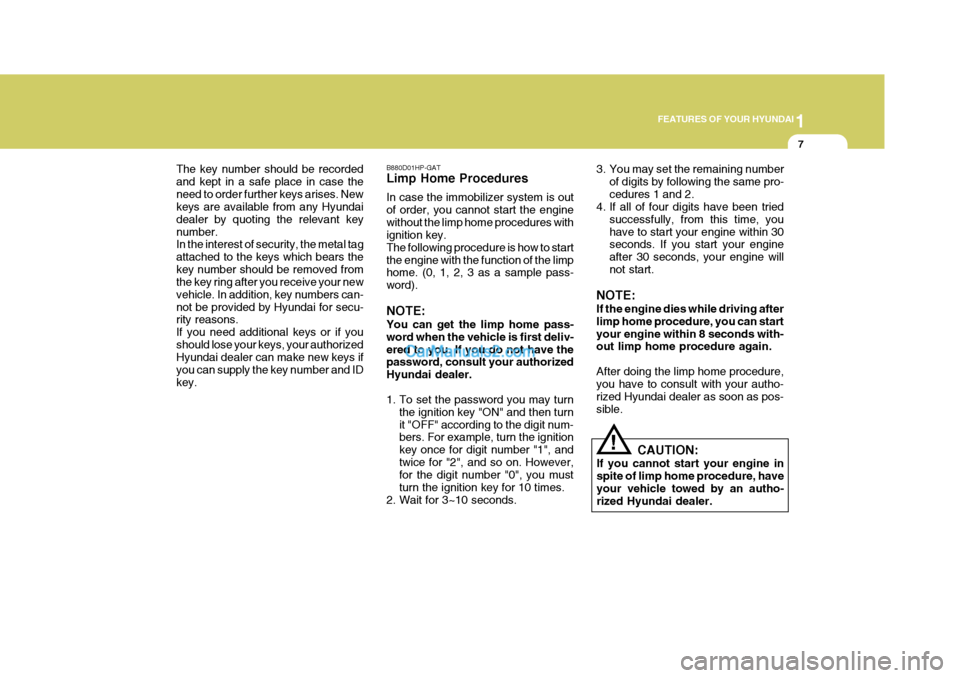

1
FEATURES OF YOUR HYUNDAI
7
!
B880D01HP-GAT Limp Home Procedures In case the immobilizer system is out of order, you cannot start the enginewithout the limp home procedures with ignition key. The following procedure is how to startthe engine with the function of the limp home. (0, 1, 2, 3 as a sample pass- word). NOTE: You can get the limp home pass- word when the vehicle is first deliv-ered to you. If you do not have the password, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num- bers. For example, turn the ignition key once for digit number "1", andtwice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds. 3. You may set the remaining number
of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried
successfully, from this time, youhave to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine willnot start.
NOTE: If the engine dies while driving after limp home procedure, you can startyour engine within 8 seconds with- out limp home procedure again. After doing the limp home procedure, you have to consult with your autho- rized Hyundai dealer as soon as pos-sible.
CAUTION:
If you cannot start your engine inspite of limp home procedure, haveyour vehicle towed by an autho- rized Hyundai dealer.
The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for secu- rity reasons. If you need additional keys or if youshould lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number and IDkey.

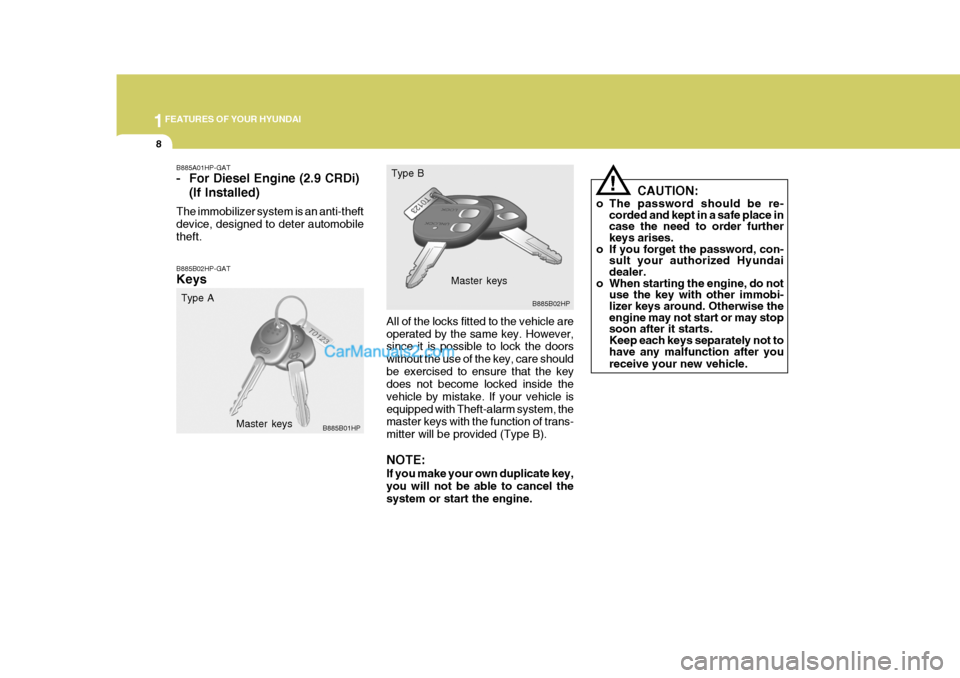

1FEATURES OF YOUR HYUNDAI
8
B885B02HP-GAT Keys
All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care shouldbe exercised to ensure that the key does not become locked inside the vehicle by mistake. If your vehicle isequipped with Theft-alarm system, the master keys with the function of trans- mitter will be provided (Type B). NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine.Master keys
CAUTION:
o The password should be re- corded and kept in a safe place in case the need to order further keys arises.
o If you forget the password, con- sult your authorized Hyundaidealer.
o When starting the engine, do not use the key with other immobi-lizer keys around. Otherwise the engine may not start or may stopsoon after it starts. Keep each keys separately not to have any malfunction after you receive your new vehicle.
!
B885B01HP B885B02HP
Type A Type B
Master keys
B885A01HP-GAT
- For Diesel Engine (2.9 CRDi)
(If Installed)
The immobilizer system is an anti-theft device, designed to deter automobiletheft.

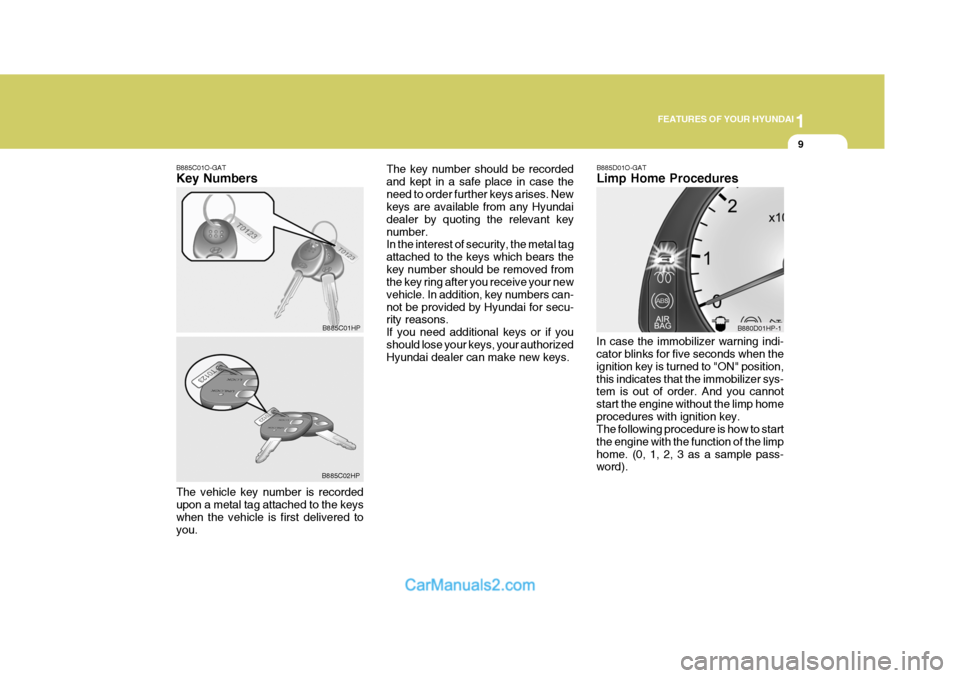

1
FEATURES OF YOUR HYUNDAI
9
B885C01O-GAT Key Numbers B885D01O-GATLimp Home Procedures
In case the immobilizer warning indi- cator blinks for five seconds when the ignition key is turned to "ON" position,this indicates that the immobilizer sys- tem is out of order. And you cannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limphome. (0, 1, 2, 3 as a sample pass- word).
B885C01HP
B885C02HP The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for secu- rity reasons. If you need additional keys or if youshould lose your keys, your authorized Hyundai dealer can make new keys.
B880D01HP-1
The vehicle key number is recorded upon a metal tag attached to the keyswhen the vehicle is first delivered to you.

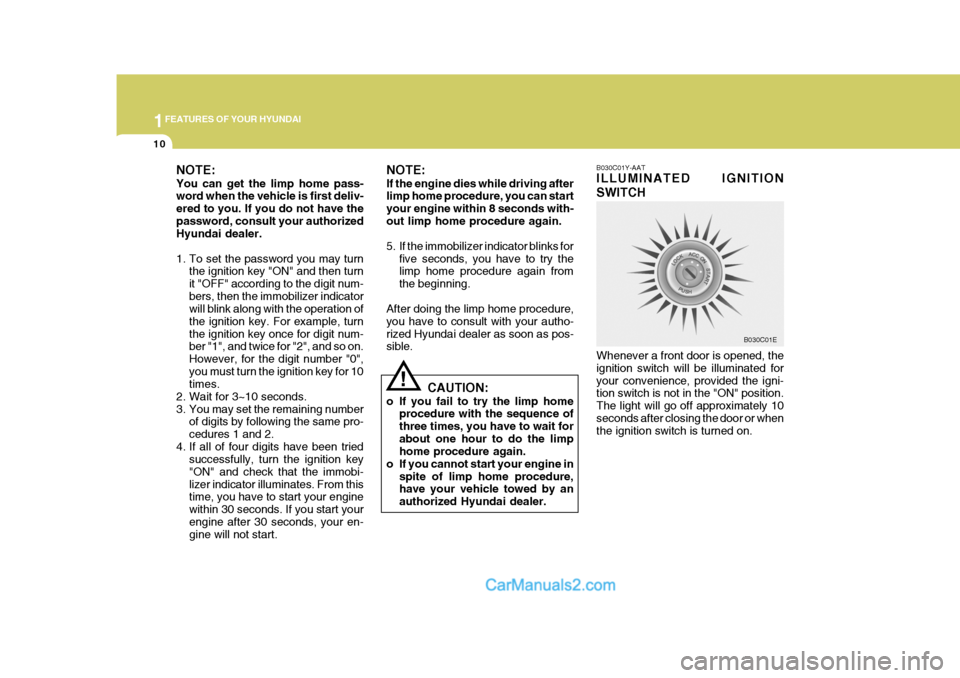

1FEATURES OF YOUR HYUNDAI
10
!
NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait forabout one hour to do the limp home procedure again.
o If you cannot start your engine in spite of limp home procedure,have your vehicle towed by an authorized Hyundai dealer. B030C01Y-AAT ILLUMINATED IGNITION SWITCH Whenever a front door is opened, the ignition switch will be illuminated foryour convenience, provided the igni- tion switch is not in the "ON" position. The light will go off approximately 10seconds after closing the door or when the ignition switch is turned on.
B030C01E
NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have thepassword, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turnthe ignition key once for digit num- ber "1", and twice for "2", and so on. However, for the digit number "0",you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key"ON" and check that the immobi-lizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start yourengine after 30 seconds, your en- gine will not start.
