2006 Hyundai Terracan Owner's Manual

1

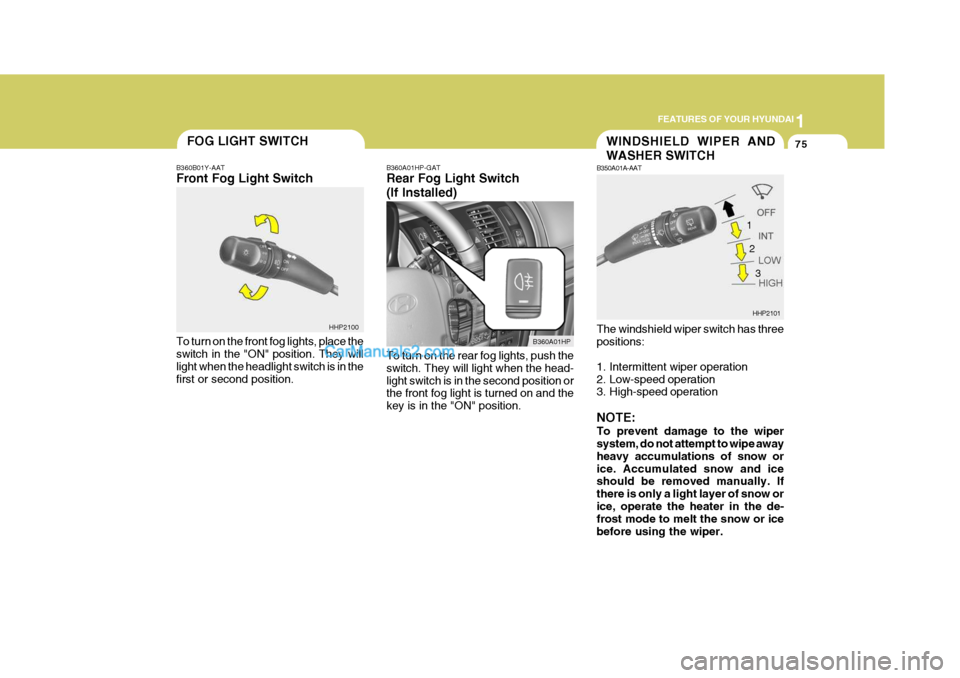

FEATURES OF YOUR HYUNDAI
75FOG LIGHT SWITCH
B360B01Y-AAT Front Fog Light Switch To turn on the front fog lights, place the switch in the "ON" position. They will light when the headlight switch is in thefirst or second position. B360A01HP-GAT Rear Fog Light Switch (If Installed) To turn on the rear fog lights, push the switch. They will light when the head-light switch is in the second position or the front fog light is turned on and the key is in the "ON" position.
HHP2100
B360A01HPWINDSHIELD WIPER AND WASHER SWITCH
B350A01A-AAT The windshield wiper switch has three positions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow orice. Accumulated snow and ice should be removed manually. If there is only a light layer of snow orice, operate the heater in the de- frost mode to melt the snow or ice before using the wiper. HHP2101
1
2
3

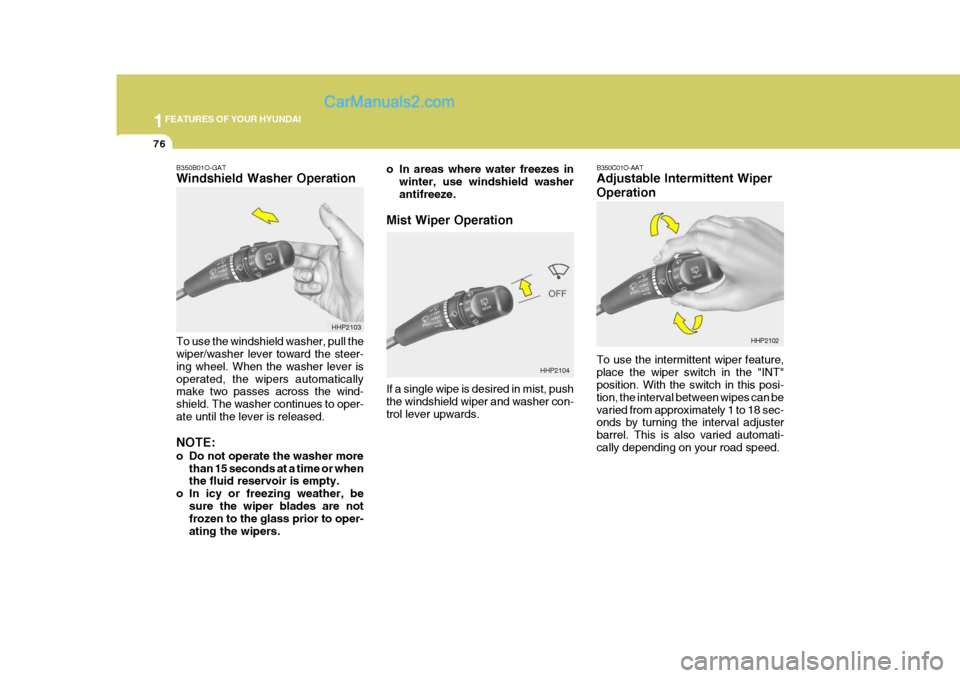

1FEATURES OF YOUR HYUNDAI
76
HHP2104 B350C01O-AAT Adjustable Intermittent Wiper Operation To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi- tion, the interval between wipes can bevaried from approximately 1 to 18 sec- onds by turning the interval adjuster barrel. This is also varied automati-cally depending on your road speed.
HHP2102
B350B01O-GAT Windshield Washer Operation To use the windshield washer, pull the wiper/washer lever toward the steer- ing wheel. When the washer lever isoperated, the wipers automatically make two passes across the wind- shield. The washer continues to oper-ate until the lever is released. NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be
sure the wiper blades are notfrozen to the glass prior to oper- ating the wipers. HHP2103
o In areas where water freezes in
winter, use windshield washerantifreeze.
Mist Wiper Operation If a single wipe is desired in mist, push the windshield wiper and washer con- trol lever upwards.

1
FEATURES OF YOUR HYUNDAI
77
B390A01E-AAT Rear Window Wiper and Washer Switch
1. : The rear window wiper starts to operate three times after the washer fluid sprays onto the rear window.
2.OFF
3.INT: The interval between wipes op-
erates every 5 seconds inter-mittently.
4.ON : The rear window wiper starts
to operate continuously.
5. : The washer fluid will be sprayed
onto the rear window and the wiper operates while the rear window wiper barrel is placedin this position.
HHP2108 NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty;this could damage the system. Do not operate the wiper when the win- dow is dry; this can result in scratch-ing as well as premature wiper blade wear. For the same reason, do not oper-ate the washer when the washer fluid reservoir is empty.
HAZARD WARNING SYS- TEM
B370A01A-AAT The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emer- gency stop, always pull off the road asfar as possible. The hazard warning lights are turned on by pushing in the hazard switch.This causes all turn signal lights to blink. The hazard warning lights will operate even though the key is not inthe ignition. To turn the hazard warning lights off, push the switch a second time. B370A01HP

1FEATURES OF YOUR HYUNDAI
78DIGITAL CLOCK
B400A01HP-GAT (Without Multimeter) There are five control buttons for the digital clock. Their functions are: 1. HOUR - Push "H" to advance the
hour indicated.
2. MIN - Push "M" to advance the
minute indicated.
3. RESET - Push "S" to reset minutes
to ":00" to facilitate resetting the clock to the correct time. When this is done: Pressing "S" between 11 : 01 and 11: 29 changes the readout to 11 : 00. Pressing "S" between 11 : 30 and 11 : 59 changes the readout to 12 : 00. B400A01HPFRONT/REAR WINDOW DE- FROSTER SWITCH
!
B380A03HP-AAT (If Installed) The front/rear window defroster and heated outside rear view mirrors are turned on by pushing in the switch. Atthe same time, the front/rear window defroster indicator light on the switch is turned on. To turn the defroster off,push the switch a second time. The front/rear window defroster automati- cally turns itself off after about 20minutes. To restart the defroster cycle, push in the switch again after it has turned itself off. CAUTION:
Do not clean the inner side of thefront/rear window glass with an abrasive type of glass cleaner or use a scraper to remove foreigndeposits from the inner surface of the glass as this may cause dam- age to the defroster elements.
HHP2119 NOTE: The engine must be running for the front/rear window defroster to oper- ate.
Type A
Type B

1

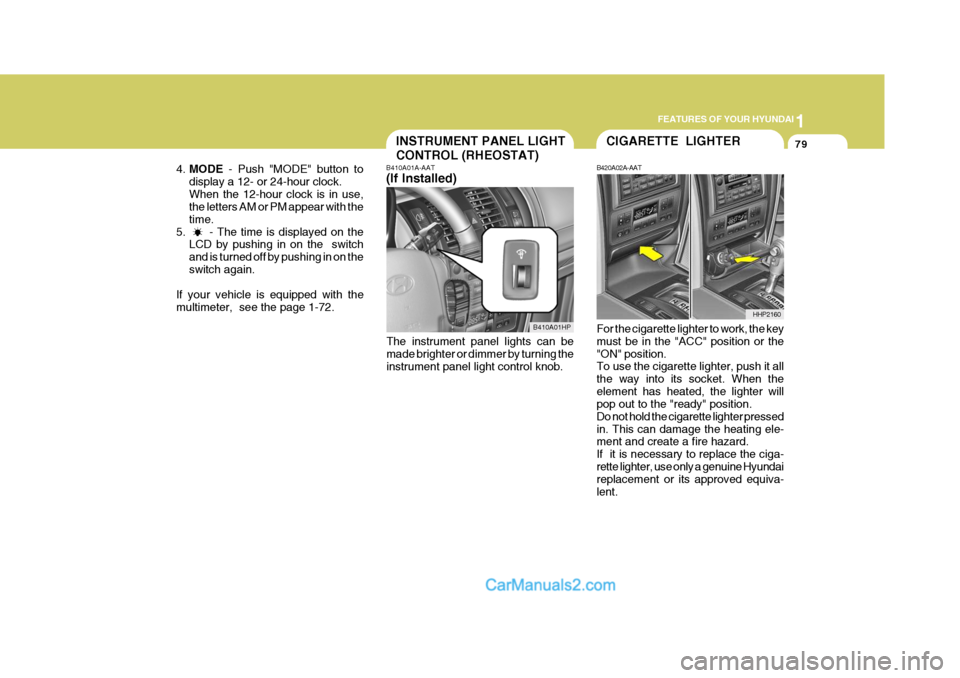

FEATURES OF YOUR HYUNDAI
79INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
4. MODE - Push "MODE" button to
display a 12- or 24-hour clock. When the 12-hour clock is in use, the letters AM or PM appear with the time.
5. - The time is displayed on the LCD by pushing in on the switchand is turned off by pushing in on theswitch again.
If your vehicle is equipped with themultimeter, see the page 1-72. B410A01A-AAT (If Installed)
The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob.
B410A01HP
CIGARETTE LIGHTER
B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it all the way into its socket. When theelement has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard. If it is necessary to replace the ciga-rette lighter, use only a genuine Hyundai replacement or its approved equiva- lent. HHP2160

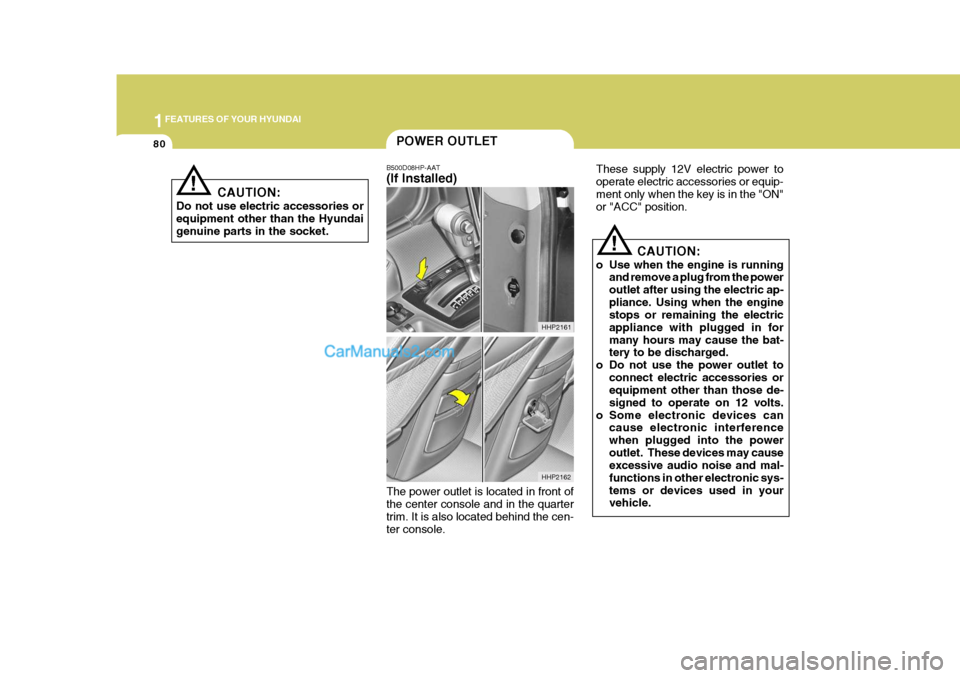

1FEATURES OF YOUR HYUNDAI
80
!
These supply 12V electric power to operate electric accessories or equip-ment only when the key is in the "ON" or "ACC" position.
CAUTION:
o Use when the engine is running and remove a plug from the power outlet after using the electric ap-pliance. Using when the engine stops or remaining the electric appliance with plugged in formany hours may cause the bat- tery to be discharged.
o Do not use the power outlet to connect electric accessories orequipment other than those de- signed to operate on 12 volts.
o Some electronic devices can cause electronic interferencewhen plugged into the poweroutlet. These devices may cause excessive audio noise and mal- functions in other electronic sys-tems or devices used in your vehicle.
POWER OUTLET
! CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket. B500D08HP-AAT (If Installed)
HHP2162HHP2161
The power outlet is located in front of the center console and in the quarter trim. It is also located behind the cen- ter console.

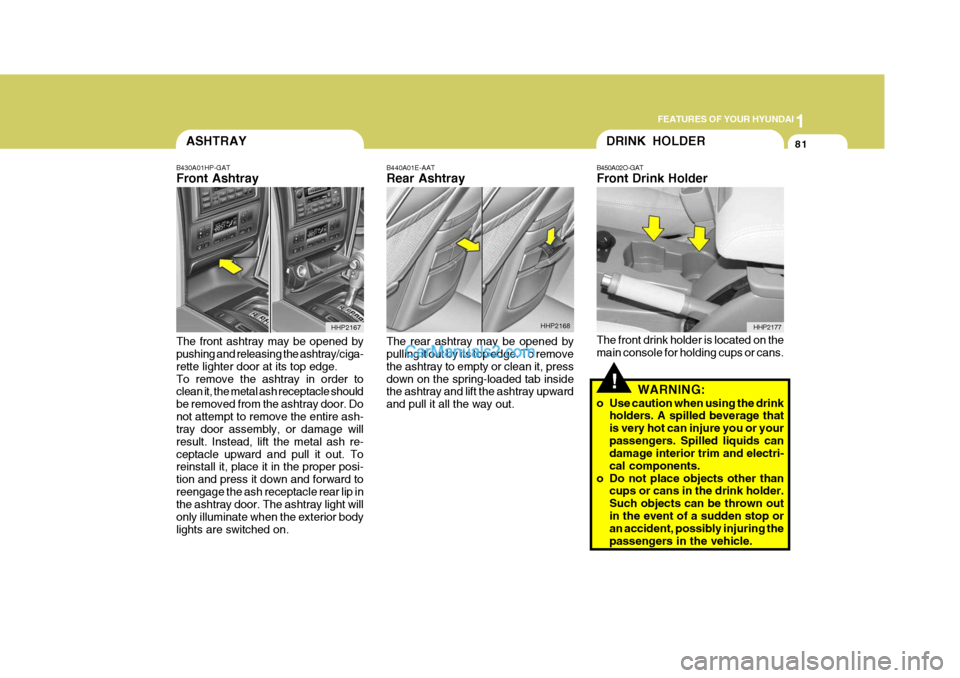

1
FEATURES OF YOUR HYUNDAI
81ASHTRAY
B430A01HP-GAT Front Ashtray The front ashtray may be opened by pushing and releasing the ashtray/ciga- rette lighter door at its top edge.To remove the ashtray in order to clean it, the metal ash receptacle should be removed from the ashtray door. Donot attempt to remove the entire ash- tray door assembly, or damage will result. Instead, lift the metal ash re-ceptacle upward and pull it out. To reinstall it, place it in the proper posi- tion and press it down and forward toreengage the ash receptacle rear lip in the ashtray door. The ashtray light will only illuminate when the exterior bodylights are switched on. HHP2167
B440A01E-AAT Rear Ashtray The rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray to empty or clean it, pressdown on the spring-loaded tab inside the ashtray and lift the ashtray upward and pull it all the way out.
HHP2168DRINK HOLDER
!
B450A02O-GAT Front Drink Holder The front drink holder is located on the main console for holding cups or cans.
WARNING:
o Use caution when using the drink holders. A spilled beverage thatis very hot can injure you or yourpassengers. Spilled liquids can damage interior trim and electri- cal components.
o Do not place objects other than cups or cans in the drink holder.Such objects can be thrown outin the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle. HHP2177

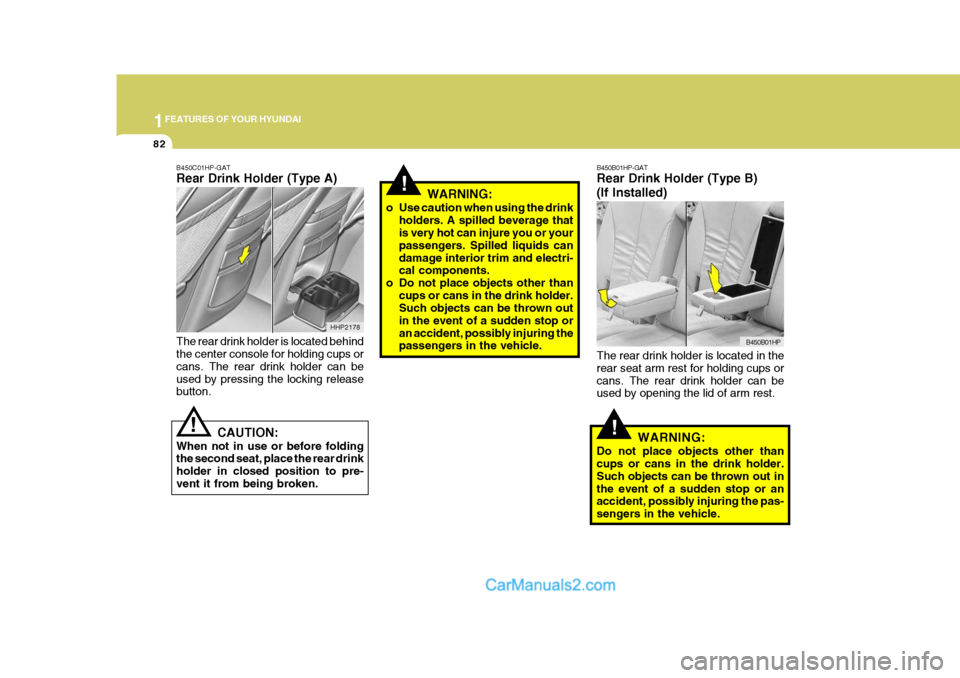

1FEATURES OF YOUR HYUNDAI
82
!
B450B01HP-GAT Rear Drink Holder (Type B) (If Installed) The rear drink holder is located in the rear seat arm rest for holding cups orcans. The rear drink holder can be used by opening the lid of arm rest.
WARNING:
Do not place objects other thancups or cans in the drink holder. Such objects can be thrown out inthe event of a sudden stop or an accident, possibly injuring the pas- sengers in the vehicle. B450B01HP
!
B450C01HP-GAT Rear Drink Holder (Type A) The rear drink holder is located behind the center console for holding cups or cans. The rear drink holder can beused by pressing the locking release button.
HHP2178WARNING:
o Use caution when using the drink holders. A spilled beverage thatis very hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place objects other than cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop oran accident, possibly injuring the passengers in the vehicle.
CAUTION:
When not in use or before folding the second seat, place the rear drink holder in closed position to pre-vent it from being broken.!
