2006 Hyundai Terracan Owner's Manual

1
FEATURES OF YOUR HYUNDAI
83COIN HOLDERSUNSHADE
B470A01HP-AAT (If Installed) The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sun-shade will open automatically when the sunroof is opened, but it must be closed manually. HHP2023
!WARNING:
Never adjust the sunshade while driving.
B505D01HR-GAT The coin holder is used to store coins.
HHP2173
B460B01HP-GAT Opening or Closing the Sunroof The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by pushing the "Open" button, and to stop at the de-sired position, push in any buttons (OPEN, CLOSE, UP, DOWN).B460B01HP
SUNROOF
B460A01S-AAT (If Installed) The sunroof can be operated with the ignition key in the "ON" position.

1FEATURES OF YOUR HYUNDAI

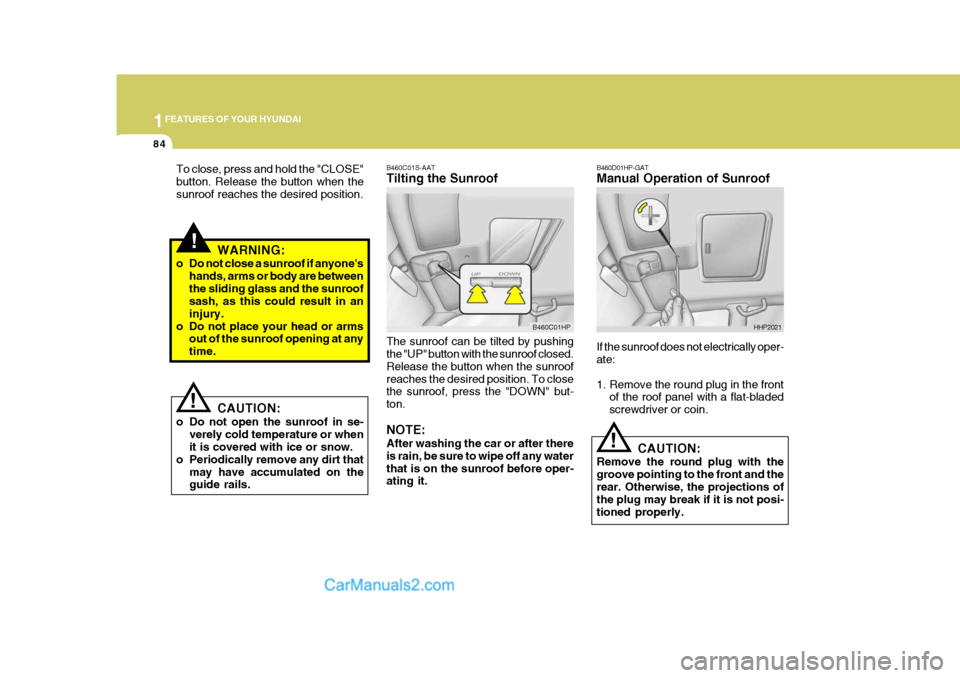

84
B460D01HP-GAT Manual Operation of Sunroof
CAUTION:
Remove the round plug with the groove pointing to the front and therear. Otherwise, the projections of the plug may break if it is not posi- tioned properly.
!
If the sunroof does not electrically oper- ate:
1. Remove the round plug in the front
of the roof panel with a flat-bladed screwdriver or coin. HHP2021
!
!WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in an injury.
o Do not place your head or arms out of the sunroof opening at anytime.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails. B460C01S-AAT Tilting the Sunroof The sunroof can be tilted by pushing the "UP" button with the sunroof closed. Release the button when the sunroofreaches the desired position. To close the sunroof, press the "DOWN" but- ton. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper- ating it.
B460C01HP
To close, press and hold the "CLOSE" button. Release the button when thesunroof reaches the desired position.

1
FEATURES OF YOUR HYUNDAI

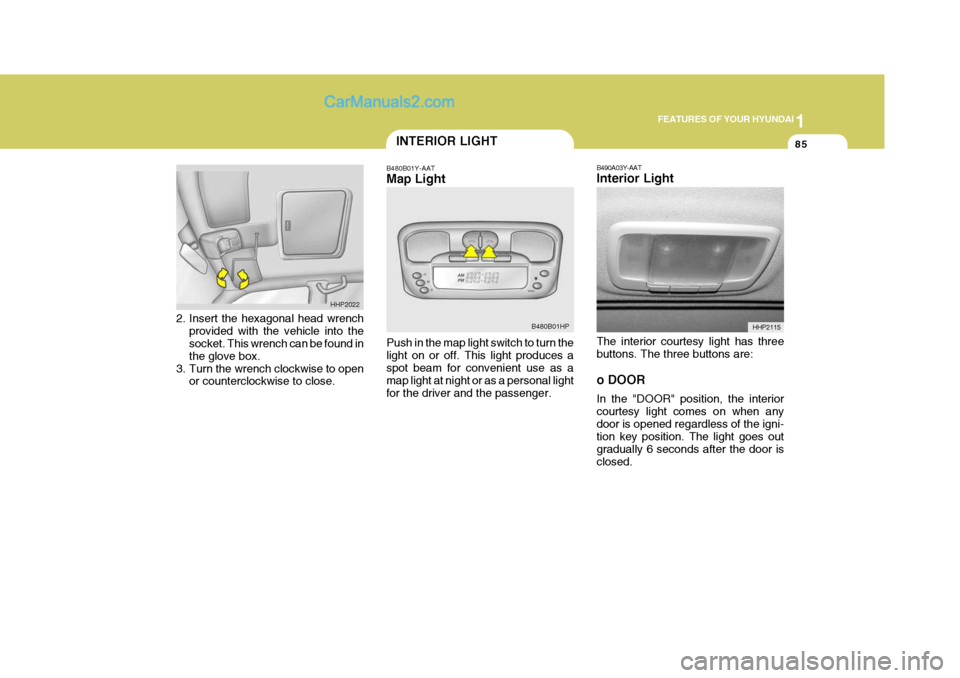

85INTERIOR LIGHT
B480B01Y-AAT Map Light Push in the map light switch to turn the light on or off. This light produces aspot beam for convenient use as a map light at night or as a personal light for the driver and the passenger. B480B01HP
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the glove box.
3. Turn the wrench clockwise to open or counterclockwise to close. HHP2022
B490A03Y-AAT Interior Light The interior courtesy light has three buttons. The three buttons are: o DOOR In the "DOOR" position, the interior courtesy light comes on when anydoor is opened regardless of the igni- tion key position. The light goes out gradually 6 seconds after the door isclosed. HHP2115

1FEATURES OF YOUR HYUNDAI
86

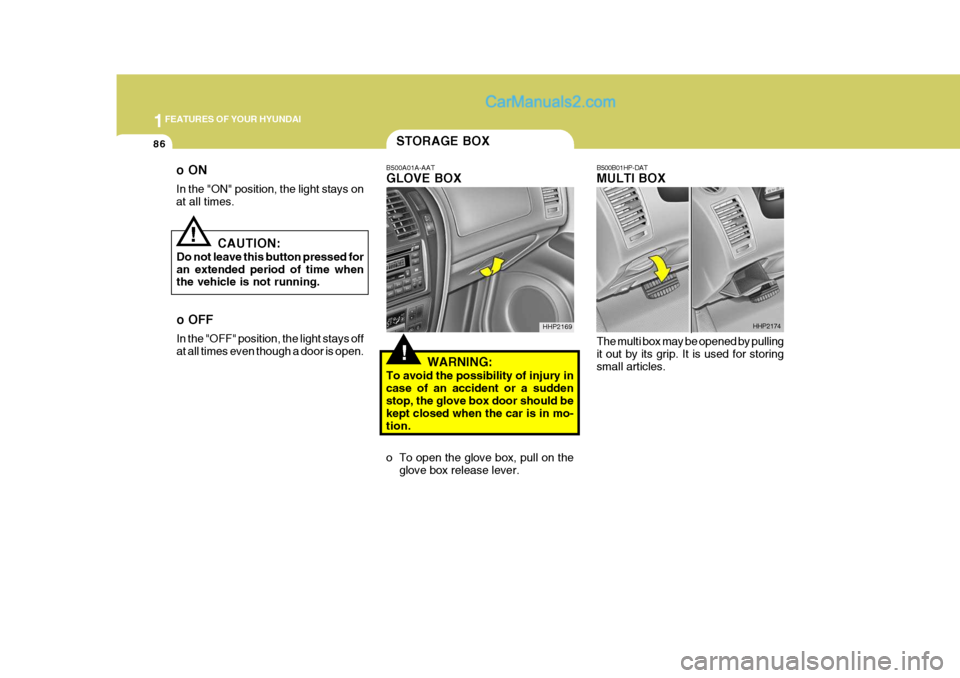

B500B01HP-DAT MULTI BOX The multi box may be opened by pulling it out by its grip. It is used for storing small articles. HHP2174
STORAGE BOX
!
!
B500A01A-AAT GLOVE BOX
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.
o ON In the "ON" position, the light stays on at all times.
CAUTION:
Do not leave this button pressed foran extended period of time when the vehicle is not running. o OFF In the "OFF" position, the light stays off at all times even though a door is open. HHP2169

1
FEATURES OF YOUR HYUNDAI
87
!

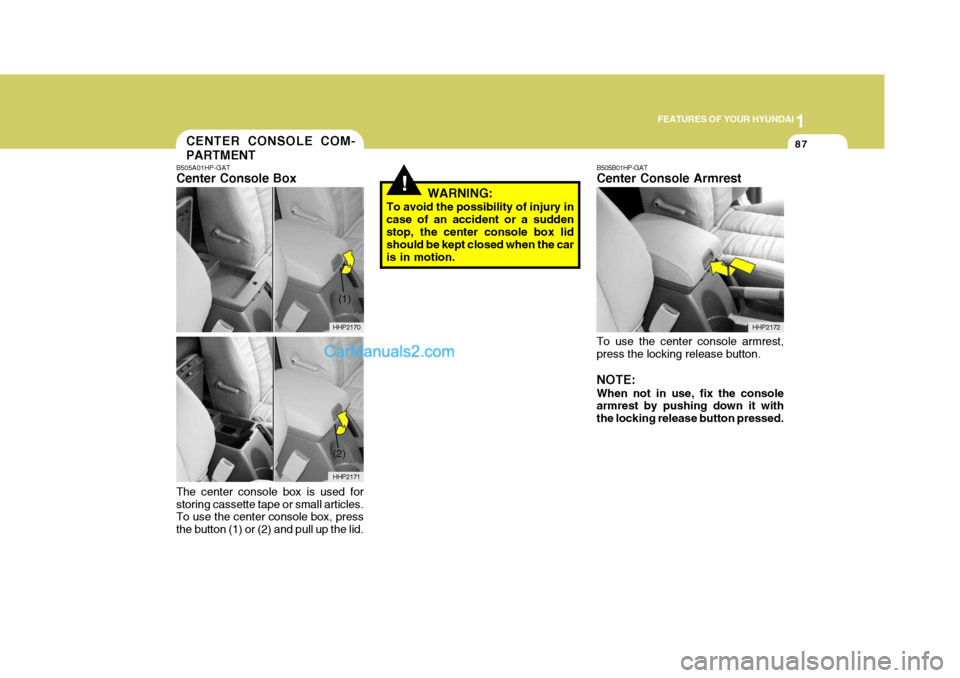

CENTER CONSOLE COM- PARTMENT
B505A01HP-GAT Center Console Box The center console box is used for storing cassette tape or small articles. To use the center console box, press the button (1) or (2) and pull up the lid. WARNING:
To avoid the possibility of injury incase of an accident or a sudden stop, the center console box lid should be kept closed when the caris in motion.
HHP2170
HHP2171
(2)
(1)
B505B01HP-GAT Center Console Armrest To use the center console armrest, press the locking release button. NOTE: When not in use, fix the console armrest by pushing down it with the locking release button pressed. HHP2172

1FEATURES OF YOUR HYUNDAI
88
B510B01Y-AAT Electric Type (If Installed)
B510B01HP
The outside rearview mirrors can be adjusted to your preferred rear vision,both directly behind the vehicle, and to the rear of the left and right sides. The remote control outside rearviewmirror switch controls the adjustments for both right and left outside mirrors.
OUTSIDE REARVIEW MIRROR
B510A01A-AAT Manual Type The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by thecontrol lever in the bottom front corner of the window. Before driving away, always checkthat your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behindyour vehicle. When using the mirror, always exercise caution when attempt- ing to judge the distance of vehiclesbehind or along side of you. B510A01HP
CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma-nipulating the face of the mirror. Use an approved spray de-icer (not radiator antifreeze) to release thefrozen mechanism or move the ve- hicle to a warm place and allow the ice to melt.
!

1
FEATURES OF YOUR HYUNDAI
89
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the correspondingdoor mirror.
2. Adjust mirror angle by depressing
the appropriate perimeter switch asillustrated.
B510B02HPCAUTION:
o Do not operate the switch con- tinuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
!
!WARNING:
Be careful when judging the size or distance of any object seen in thepassenger side rearview mirror. It is a convex mirror with a curved surface. Any objects seen in thismirror are closer than they appear.
B510D02HP-GAT OUTSIDE REARVIEW MIRROR HEATER (If Installed) The outside rearview mirror heater is actuated in connection with the front/rear window defroster. To heat the outside rearview mirror glass, push in the switch for the front/rear windowdefroster. The rearview mirror glass will be heated for defrosting or defog- ging and will give you improved rearvision in inclement weather conditions. Push the switch again to turn the heater off. The outside rearview mirror heaterautomatically turns itself off after 20 minutes. HHP2119
Type A
Type B

1FEATURES OF YOUR HYUNDAI
90DAY/NIGHT INSIDE REAR- VIEW MIRROR
B520A01A-AAT Your Hyundai is equipped with a day/ night inside rearview mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re- duced. HHP2071
!
B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in lossof control, and an accident causing death, serious injury or property damage. B515A01HP-GAT (If Installed)
Traffic and road conditions can be viewed on the lower right-hand side of the vehicle with the side under viewmirror.
HHP2074 SIDE UNDER VIEW MIRROR
HHP2076
