CONTROLS AND EQUIPMENT
21
!
B080G01O-AAT UNDER TRAY
The tray is located under the front passenger seat. It is opend by pulling forward. WARNING:
To avoid the possibility of injury in case of an accident or a suddenstop, the tray should be kept closed when the car is in motion. B100A02HP-EAT SEAT WARMER (Not all models) The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi- tion, push either of the switches towarm the driver's seat or the passenger's seat. During mild weather or under condi-tions where the operation of the seat warmer is not needed, keep the switches in the "OFF" position.
HHP2037-EB100A01HP-E
!
CAUTION:
o The seat warmer will not operate if ambient temperature is higher than 88.7°F (31.5°C).
o If the seat warmer doesn't work when ambient temperature islower than 76.1°F (24.5°C), it must be checked by authorised Hyundairepairer.

1CONTROLS AND EQUIPMENT
22
!

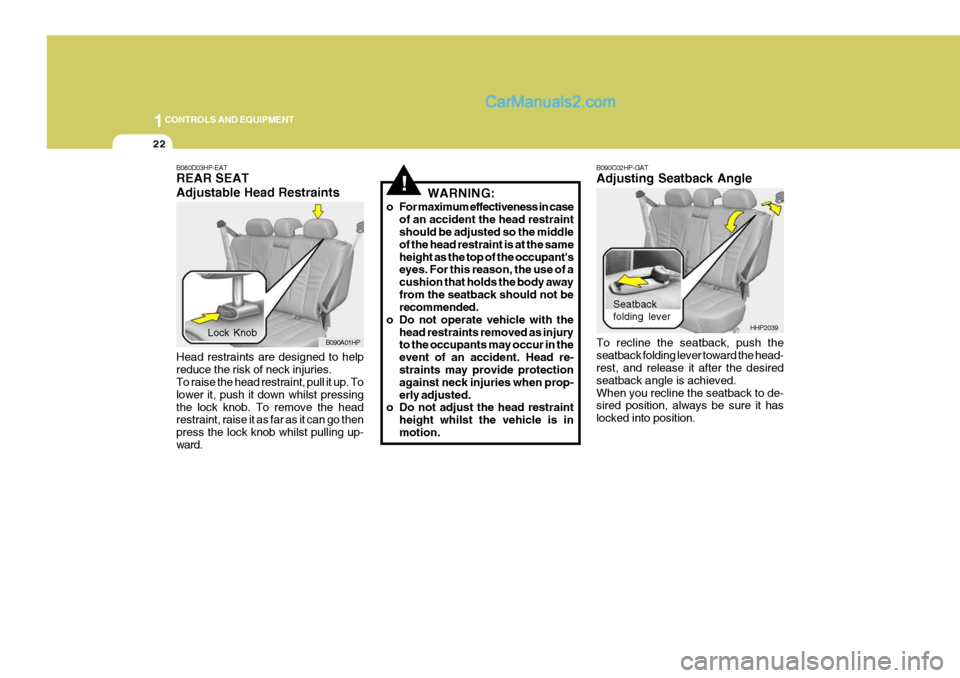

B080D03HP-EAT REAR SEAT Adjustable Head Restraints Head restraints are designed to help reduce the risk of neck injuries. To raise the head restraint, pull it up. To lower it, push it down whilst pressingthe lock knob. To remove the head restraint, raise it as far as it can go then press the lock knob whilst pulling up-ward. WARNING:
o For maximum effectiveness in case of an accident the head restraint should be adjusted so the middle of the head restraint is at the sameheight as the top of the occupant's eyes. For this reason, the use of a cushion that holds the body awayfrom the seatback should not be recommended.
o Do not operate vehicle with the
head restraints removed as injuryto the occupants may occur in the event of an accident. Head re- straints may provide protection against neck injuries when prop-erly adjusted.
o Do not adjust the head restraint
height whilst the vehicle is inmotion.
Lock Knob B090A01HP B090C02HP-GAT Adjusting Seatback Angle To recline the seatback, push the seatback folding lever toward the head- rest, and release it after the desired seatback angle is achieved.When you recline the seatback to de- sired position, always be sure it has locked into position.
Seatback folding lever
HHP2039

1
CONTROLS AND EQUIPMENT
23
!
B090B02HP-EAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may befolded down and up.
HHP2041
HHP2057
WARNING:
To minimize the risk of personal injury in the event of a collision or a sudden stop, the seatbacks should remain in an upright position whilstthe car is in motion. The protection provided by the seat belts may be reduced significantly when theseatbacks are reclined. There is a greater risk that the seat occupants will slide under the belt resulting inserious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seatback is re- clined.
HHP2040
(1)
NOTE: Before folding the seat, fit the seat belt webbing in the clip and put the seat belt buckle between the seatbackand the seat cushion.

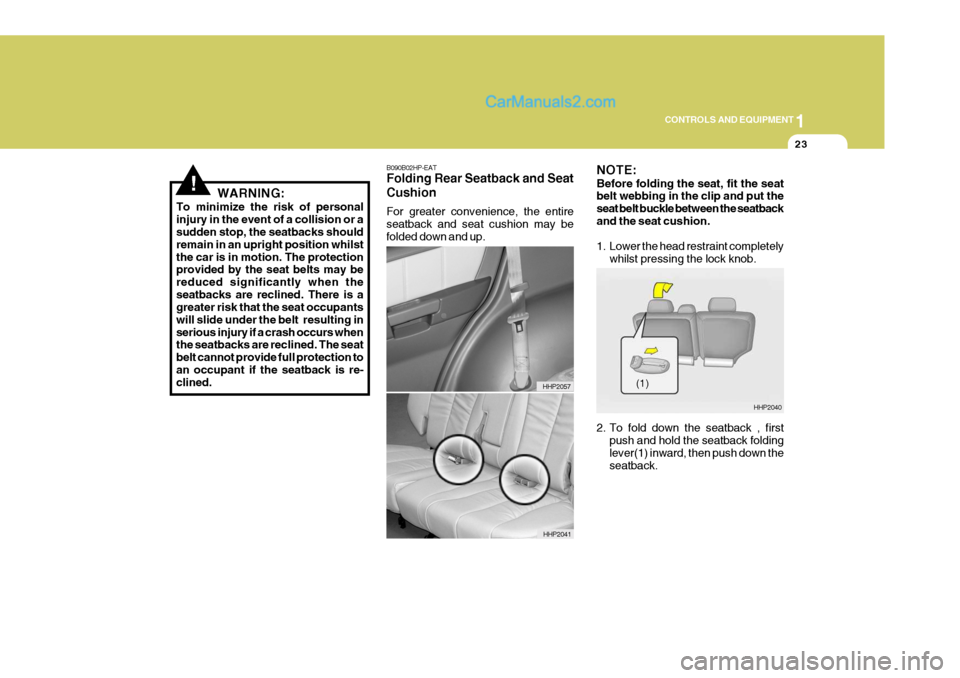

1. Lower the head restraint completely
whilst pressing the lock knob.
2. To fold down the seatback , first push and hold the seatback folding lever(1) inward, then push down the seatback.

1CONTROLS AND EQUIPMENT
24
!
HHP2042
HHP2043
(3)HHP2043-1
WARNING:
When folding down or returning the seatback, always hold the seatback. Otherwise, the seatback could move suddenly and result in unexpectedinjury.

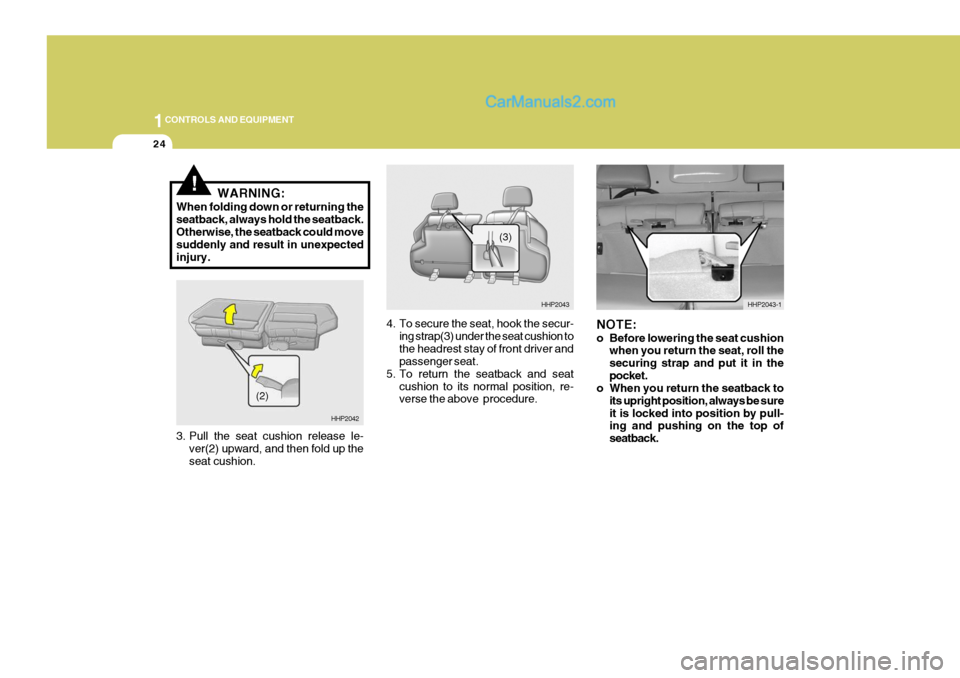

4. To secure the seat, hook the secur-ing strap(3) under the seat cushion tothe headrest stay of front driver and passenger seat.
5. To return the seatback and seat cushion to its normal position, re-verse the above procedure. NOTE:
o Before lowering the seat cushion
when you return the seat, roll the securing strap and put it in thepocket.
o When you return the seatback to
its upright position, always be sureit is locked into position by pull- ing and pushing on the top of seatback.
(2)
3. Pull the seat cushion release le- ver(2) upward, and then fold up theseat cushion.

1
CONTROLS AND EQUIPMENT
25
!

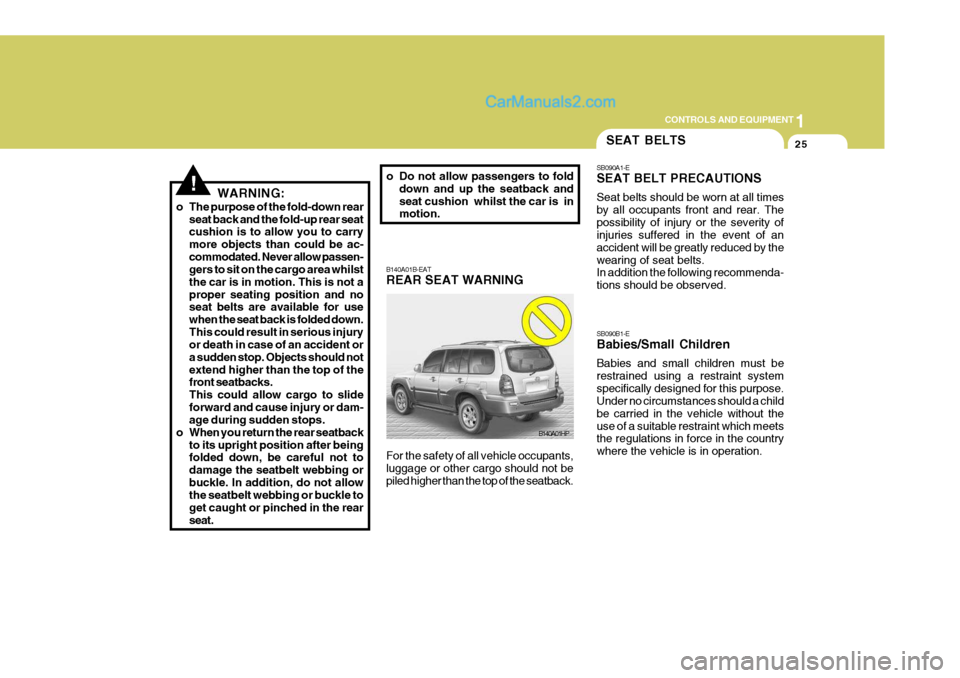

B140A01B-EAT REAR SEAT WARNING For the safety of all vehicle occupants, luggage or other cargo should not be piled higher than the top of the seatback.
B140A01HP
WARNING:
o The purpose of the fold-down rear seat back and the fold-up rear seat cushion is to allow you to carry more objects than could be ac-commodated. Never allow passen- gers to sit on the cargo area whilst the car is in motion. This is not aproper seating position and no seat belts are available for use when the seat back is folded down.This could result in serious injury or death in case of an accident or a sudden stop. Objects should notextend higher than the top of the front seatbacks. This could allow cargo to slideforward and cause injury or dam- age during sudden stops.
o When you return the rear seatback
to its upright position after beingfolded down, be careful not to damage the seatbelt webbing orbuckle. In addition, do not allow the seatbelt webbing or buckle to get caught or pinched in the rearseat. o Do not allow passengers to fold
down and up the seatback andseat cushion whilst the car is in motion.
SB090B1-E Babies/Small Children Babies and small children must be restrained using a restraint systemspecifically designed for this purpose. Under no circumstances should a child be carried in the vehicle without theuse of a suitable restraint which meets the regulations in force in the country where the vehicle is in operation.
SEAT BELTS
SB090A1-E SEAT BELT PRECAUTIONS Seat belts should be worn at all times by all occupants front and rear. Thepossibility of injury or the severity of injuries suffered in the event of an accident will be greatly reduced by thewearing of seat belts. In addition the following recommenda- tions should be observed.

1CONTROLS AND EQUIPMENT
26

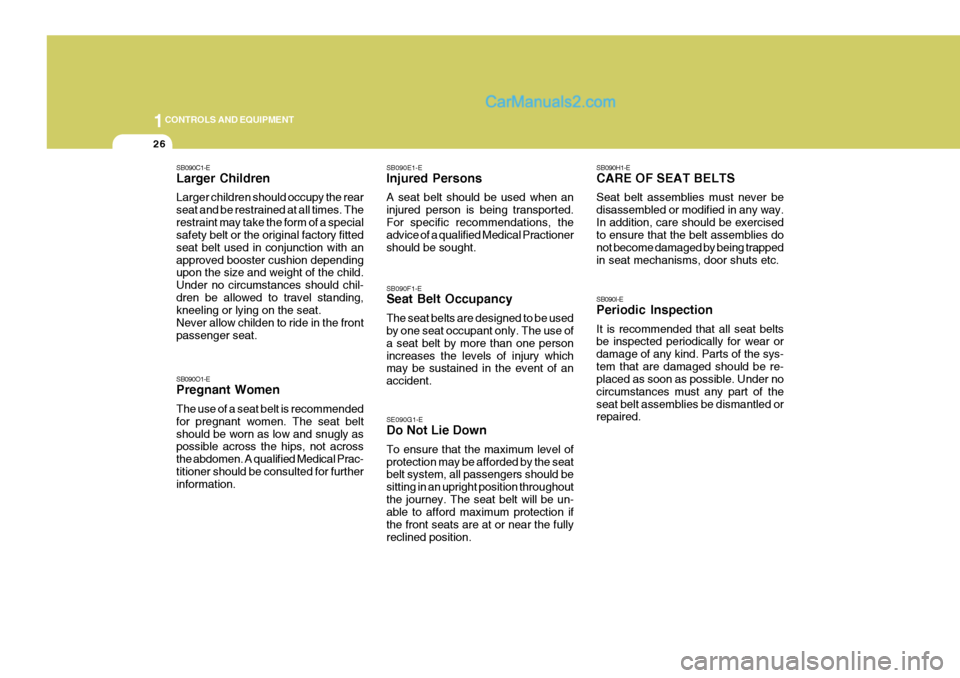

SB090C1-E Larger Children Larger children should occupy the rear seat and be restrained at all times. Therestraint may take the form of a special safety belt or the original factory fitted seat belt used in conjunction with anapproved booster cushion depending upon the size and weight of the child. Under no circumstances should chil-dren be allowed to travel standing, kneeling or lying on the seat. Never allow childen to ride in the frontpassenger seat. SB090O1-E Pregnant Women The use of a seat belt is recommended for pregnant women. The seat beltshould be worn as low and snugly as possible across the hips, not across the abdomen. A qualified Medical Prac-titioner should be consulted for further information. SB090E1-E Injured Persons A seat belt should be used when an injured person is being transported.For specific recommendations, the advice of a qualified Medical Practioner should be sought. SB090F1-E Seat Belt Occupancy The seat belts are designed to be used by one seat occupant only. The use of a seat belt by more than one personincreases the levels of injury which may be sustained in the event of an accident. SE090G1-E Do Not Lie Down To ensure that the maximum level of protection may be afforded by the seat belt system, all passengers should be sitting in an upright position throughoutthe journey. The seat belt will be un- able to afford maximum protection if the front seats are at or near the fullyreclined position.SB090H1-E CARE OF SEAT BELTS Seat belt assemblies must never be disassembled or modified in any way.In addition, care should be exercised to ensure that the belt assemblies do not become damaged by being trappedin seat mechanisms, door shuts etc. SB090I-E Periodic Inspection It is recommended that all seat belts be inspected periodically for wear or damage of any kind. Parts of the sys-tem that are damaged should be re- placed as soon as possible. Under no circumstances must any part of theseat belt assemblies be dismantled or repaired.

1
CONTROLS AND EQUIPMENT
27

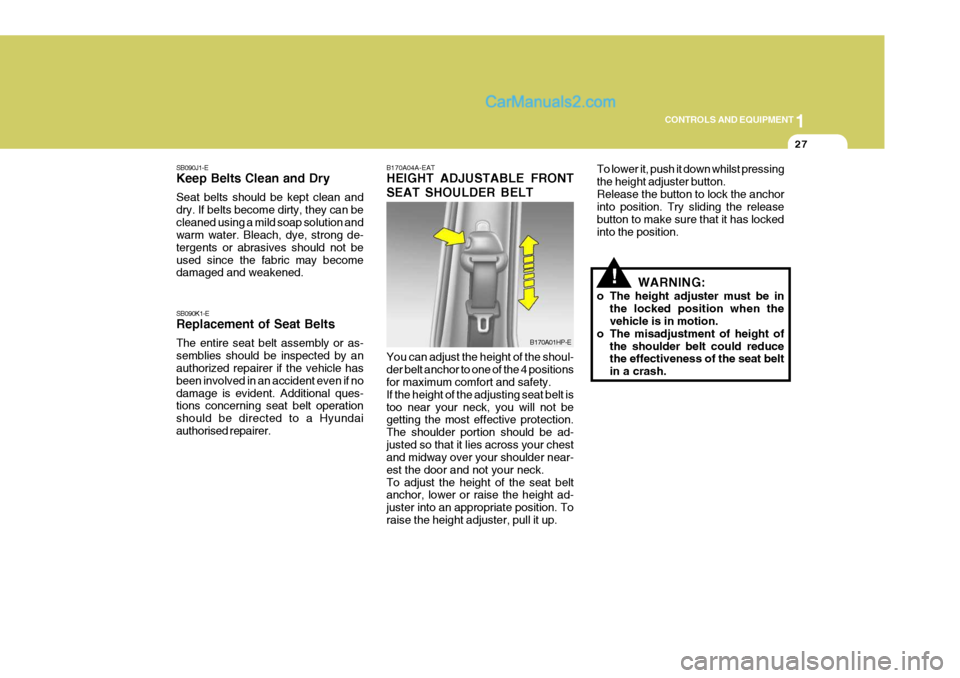

SB090J1-E Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned using a mild soap solution and warm water. Bleach, dye, strong de- tergents or abrasives should not beused since the fabric may become damaged and weakened. SB090K1-E Replacement of Seat Belts The entire seat belt assembly or as- semblies should be inspected by an authorized repairer if the vehicle has been involved in an accident even if nodamage is evident. Additional ques- tions concerning seat belt operation should be directed to a Hyundaiauthorised repairer. B170A04A-EAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT You can adjust the height of the shoul- der belt anchor to one of the 4 positions for maximum comfort and safety. If the height of the adjusting seat belt istoo near your neck, you will not be getting the most effective protection. The shoulder portion should be ad-justed so that it lies across your chest and midway over your shoulder near- est the door and not your neck.To adjust the height of the seat belt anchor, lower or raise the height ad- juster into an appropriate position. Toraise the height adjuster, pull it up.
B170A01HP-E
!
To lower it, push it down whilst pressing the height adjuster button.Release the button to lock the anchor into position. Try sliding the release button to make sure that it has lockedinto the position.
WARNING:
o The height adjuster must be in the locked position when the vehicle is in motion.
o The misadjustment of height of the shoulder belt could reducethe effectiveness of the seat belt in a crash.

1CONTROLS AND EQUIPMENT
28

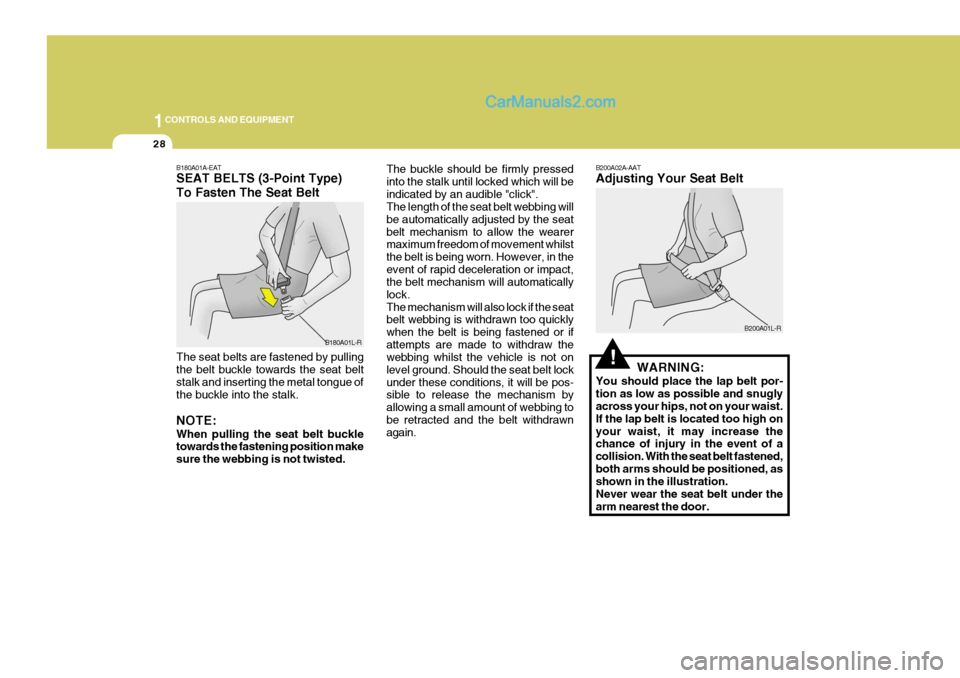

B180A01A-EAT SEAT BELTS (3-Point Type) To Fasten The Seat Belt The seat belts are fastened by pulling the belt buckle towards the seat belt stalk and inserting the metal tongue of the buckle into the stalk. NOTE: When pulling the seat belt buckle towards the fastening position make sure the webbing is not twisted. The buckle should be firmly pressedinto the stalk until locked which will beindicated by an audible "click". The length of the seat belt webbing will be automatically adjusted by the seatbelt mechanism to allow the wearer maximum freedom of movement whilst the belt is being worn. However, in theevent of rapid deceleration or impact, the belt mechanism will automatically lock.The mechanism will also lock if the seat belt webbing is withdrawn too quickly when the belt is being fastened or ifattempts are made to withdraw the webbing whilst the vehicle is not on level ground. Should the seat belt lockunder these conditions, it will be pos- sible to release the mechanism by allowing a small amount of webbing tobe retracted and the belt withdrawn again.
B180A01L-R
!
B200A02A-AAT Adjusting Your Seat Belt
WARNING:
You should place the lap belt por- tion as low as possible and snugly across your hips, not on your waist. If the lap belt is located too high onyour waist, it may increase the chance of injury in the event of a collision. With the seat belt fastened,both arms should be positioned, as shown in the illustration. Never wear the seat belt under thearm nearest the door. B200A01L-R
