2006 Hyundai Terracan Owner's Manual

1
CONTROLS AND EQUIPMENT
61

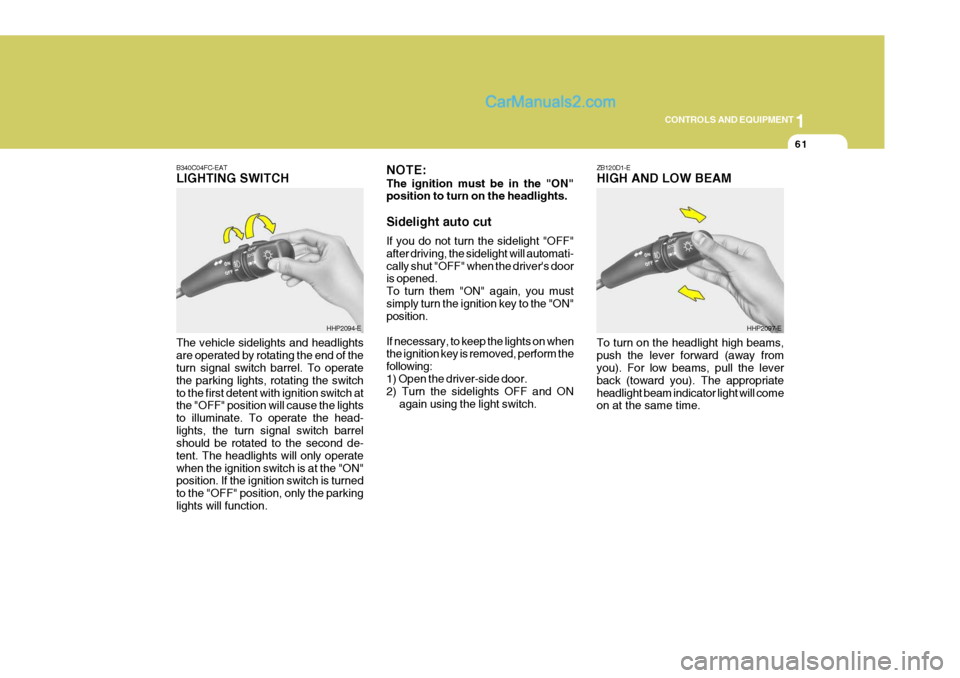

ZB120D1-E HIGH AND LOW BEAM
B340C04FC-EATLIGHTING SWITCH The vehicle sidelights and headlights are operated by rotating the end of the turn signal switch barrel. To operate the parking lights, rotating the switchto the first detent with ignition switch at the "OFF" position will cause the lights to illuminate. To operate the head-lights, the turn signal switch barrel should be rotated to the second de- tent. The headlights will only operatewhen the ignition switch is at the "ON" position. If the ignition switch is turned to the "OFF" position, only the parkinglights will function.
HHP2094-E NOTE: The ignition must be in the "ON" position to turn on the headlights. Sidelight auto cut If you do not turn the sidelight "OFF" after driving, the sidelight will automati-cally shut "OFF" when the driver's door is opened. To turn them "ON" again, you mustsimply turn the ignition key to the "ON" position. If necessary, to keep the lights on when the ignition key is removed, perform the following:1) Open the driver-side door. 2) Turn the sidelights OFF and ON
again using the light switch.HHP2097-E
To turn on the headlight high beams, push the lever forward (away from you). For low beams, pull the lever back (toward you). The appropriateheadlight beam indicator light will come on at the same time.

1CONTROLS AND EQUIPMENT

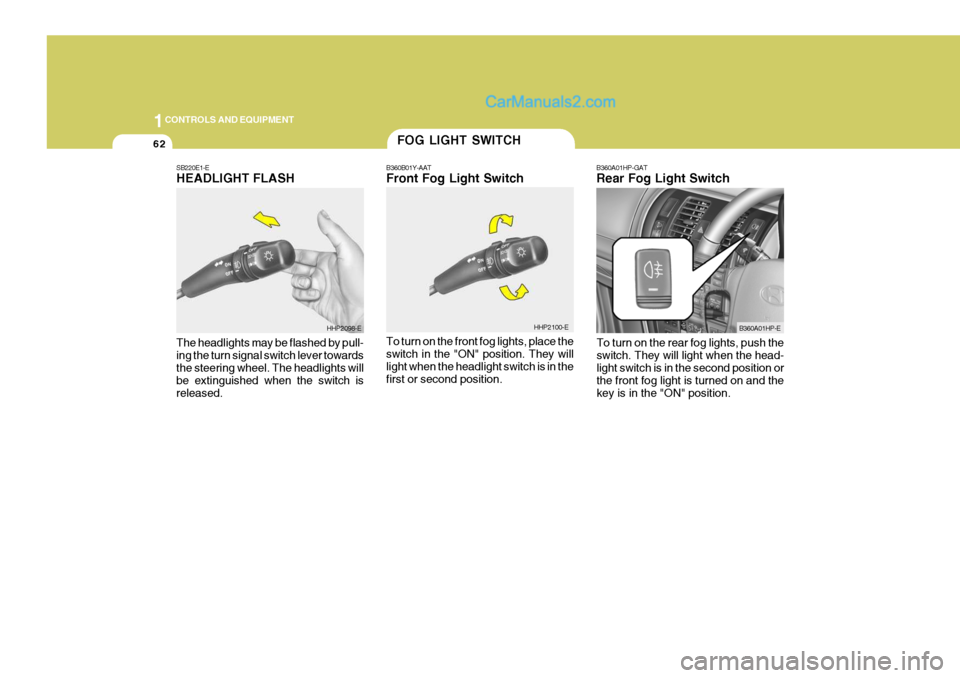

62FOG LIGHT SWITCH
B360B01Y-AAT Front Fog Light Switch To turn on the front fog lights, place the switch in the "ON" position. They will light when the headlight switch is in thefirst or second position. B360A01HP-GAT Rear Fog Light Switch
HHP2100-E B360A01HP-E
SB220E1-EHEADLIGHT FLASH The headlights may be flashed by pull- ing the turn signal switch lever towards the steering wheel. The headlights will be extinguished when the switch isreleased.
HHP2098-E
To turn on the rear fog lights, push the switch. They will light when the head- light switch is in the second position or the front fog light is turned on and thekey is in the "ON" position.

1
CONTROLS AND EQUIPMENT
63

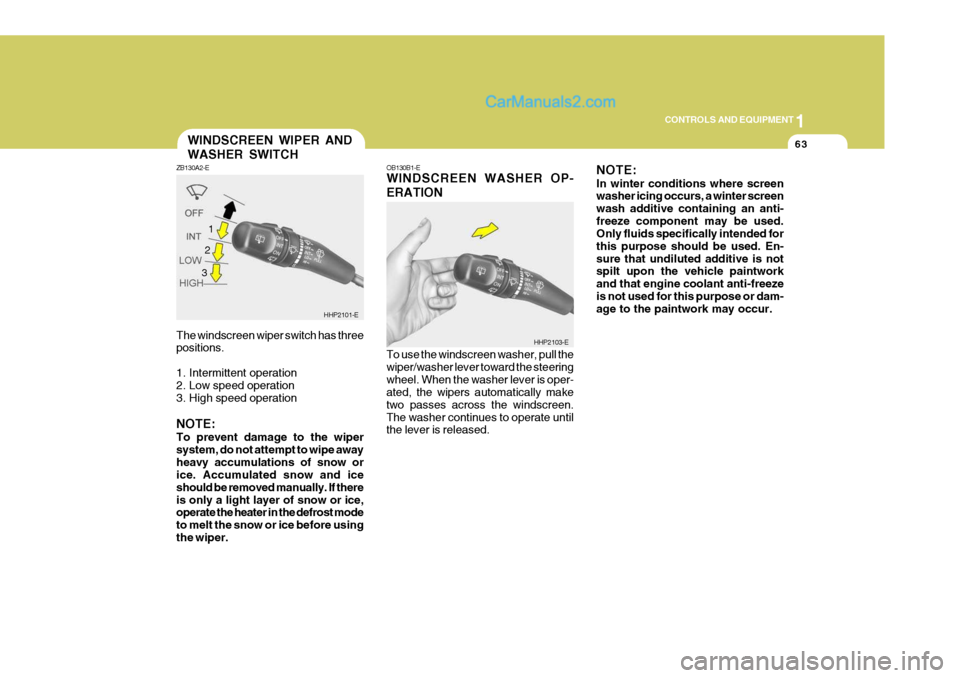

The windscreen wiper switch has three positions.
1. Intermittent operation
2. Low speed operation
3. High speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe awayheavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. If thereis only a light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before usingthe wiper.WINDSCREEN WIPER AND WASHER SWITCH
ZB130A2-E
HHP2101-E
1
OB130B1-E WINDSCREEN WASHER OP- ERATION To use the windscreen washer, pull the wiper/washer lever toward the steeringwheel. When the washer lever is oper- ated, the wipers automatically make two passes across the windscreen.The washer continues to operate until the lever is released. NOTE: In winter conditions where screen washer icing occurs, a winter screen wash additive containing an anti-freeze component may be used. Only fluids specifically intended for this purpose should be used. En-sure that undiluted additive is not spilt upon the vehicle paintwork and that engine coolant anti-freezeis not used for this purpose or dam- age to the paintwork may occur.
HHP2103-E
2 3

1CONTROLS AND EQUIPMENT
64

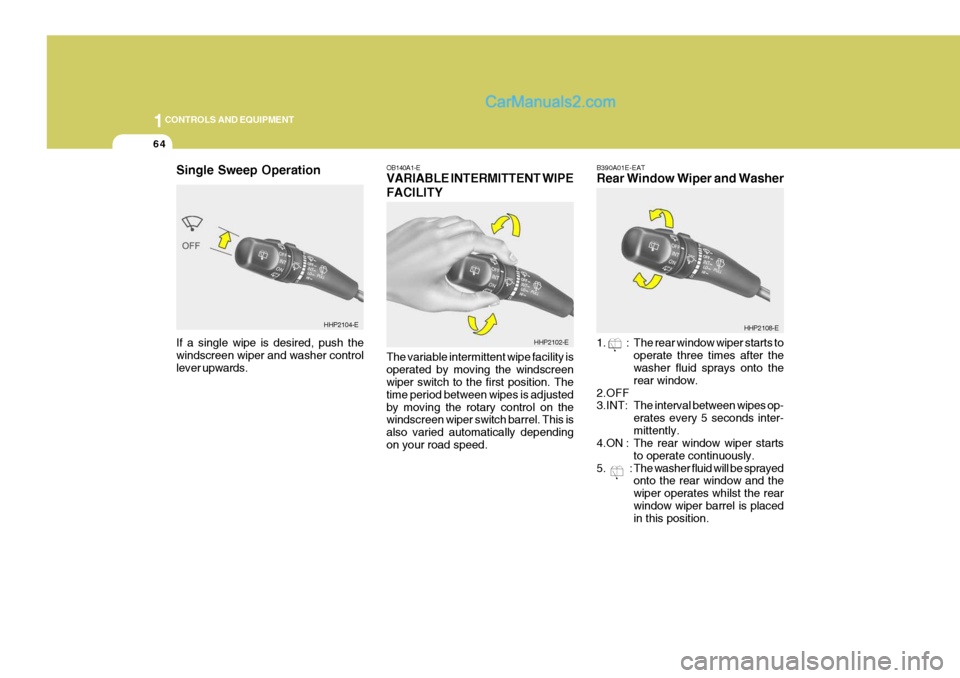

OB140A1-E VARIABLE INTERMITTENT WIPE FACILITY The variable intermittent wipe facility is operated by moving the windscreen wiper switch to the first position. The time period between wipes is adjustedby moving the rotary control on the windscreen wiper switch barrel. This is also varied automatically dependingon your road speed.
HHP2102-E
HHP2108-E
Single Sweep Operation If a single wipe is desired, push the windscreen wiper and washer control lever upwards.HHP2104-E
B390A01E-EAT Rear Window Wiper and Washer
1. : The rear window wiper starts to
operate three times after the washer fluid sprays onto the rear window.
2.OFF 3.INT: The interval between wipes op- erates every 5 seconds inter-mittently.
4.ON : The rear window wiper starts
to operate continuously.
5. : The washer fluid will be sprayed onto the rear window and thewiper operates whilst the rearwindow wiper barrel is placed in this position.

1
CONTROLS AND EQUIPMENT
65

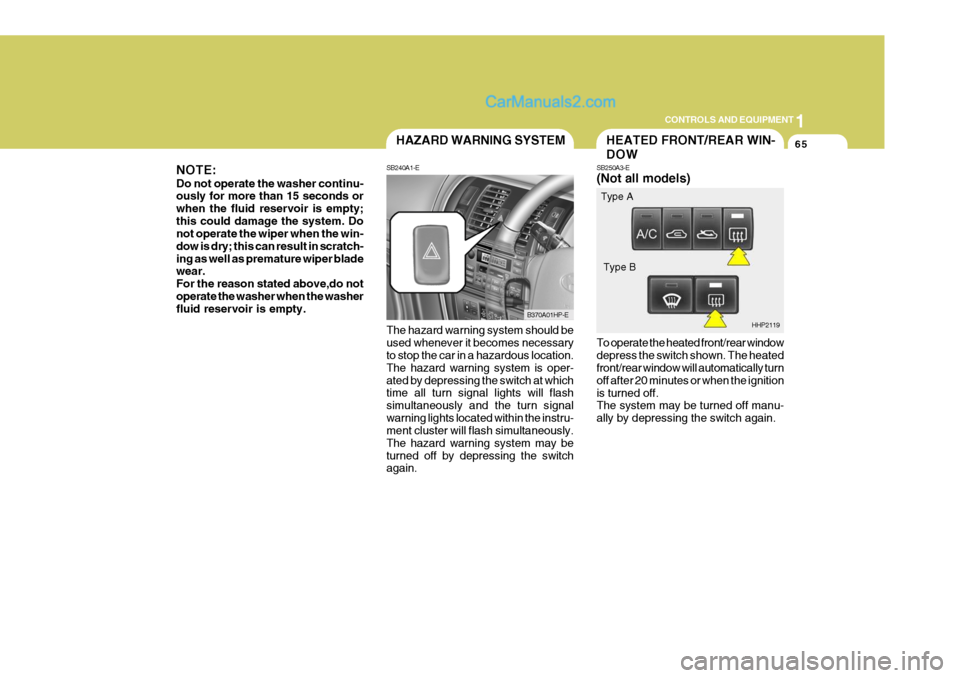

The hazard warning system should be used whenever it becomes necessary to stop the car in a hazardous location. The hazard warning system is oper-ated by depressing the switch at which time all turn signal lights will flash simultaneously and the turn signalwarning lights located within the instru- ment cluster will flash simultaneously. The hazard warning system may beturned off by depressing the switch again.HAZARD WARNING SYSTEM
SB240A1-E
B370A01HP-E
NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty;this could damage the system. Do not operate the wiper when the win- dow is dry; this can result in scratch-ing as well as premature wiper blade wear. For the reason stated above,do notoperate the washer when the washer fluid reservoir is empty.
To operate the heated front/rear window depress the switch shown. The heated front/rear window will automatically turn off after 20 minutes or when the ignitionis turned off. The system may be turned off manu- ally by depressing the switch again.
HEATED FRONT/REAR WIN- DOW
SB250A3-E (Not all models)
HHP2119
Type A
Type B

1CONTROLS AND EQUIPMENT

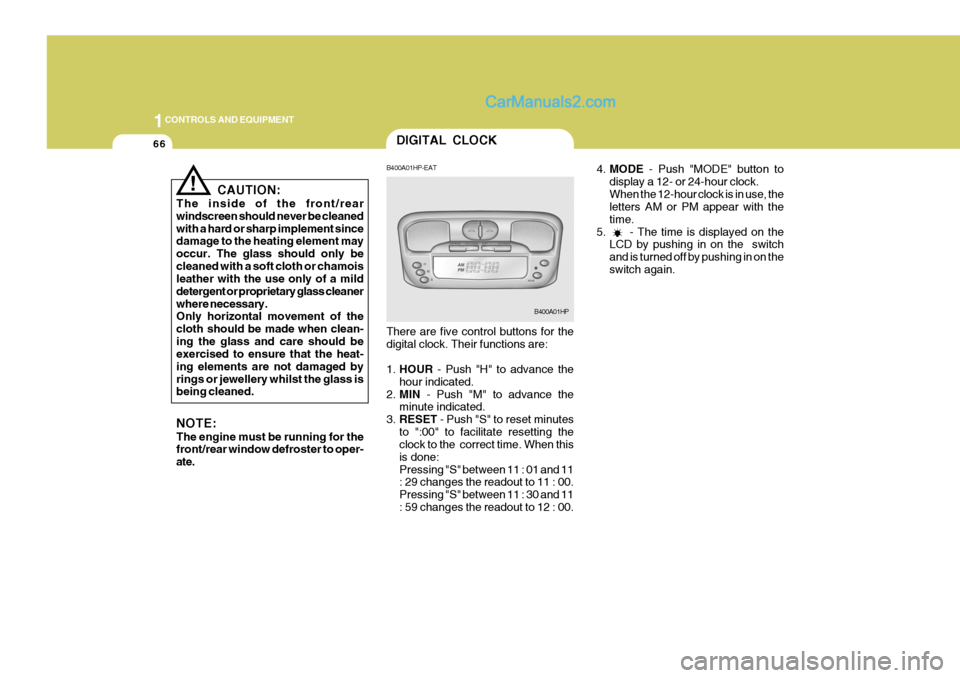

66DIGITAL CLOCK
4.MODE - Push "MODE" button to
display a 12- or 24-hour clock. When the 12-hour clock is in use, the letters AM or PM appear with the time.
5. - The time is displayed on the LCD by pushing in on the switchand is turned off by pushing in on theswitch again.
! CAUTION:
The inside of the front/rear windscreen should never be cleanedwith a hard or sharp implement since damage to the heating element may occur. The glass should only becleaned with a soft cloth or chamois leather with the use only of a mild detergent or proprietary glass cleanerwhere necessary. Only horizontal movement of the cloth should be made when clean-ing the glass and care should be exercised to ensure that the heat- ing elements are not damaged byrings or jewellery whilst the glass is being cleaned. NOTE: The engine must be running for the front/rear window defroster to oper- ate. B400A01HP-EAT There are five control buttons for the digital clock. Their functions are: 1.
HOUR - Push "H" to advance the
hour indicated.
2. MIN - Push "M" to advance the
minute indicated.
3. RESET - Push "S" to reset minutes
to ":00" to facilitate resetting the clock to the correct time. When this is done:Pressing "S" between 11 : 01 and 11 : 29 changes the readout to 11 : 00. Pressing "S" between 11 : 30 and 11: 59 changes the readout to 12 : 00.
B400A01HP

1
CONTROLS AND EQUIPMENT
67

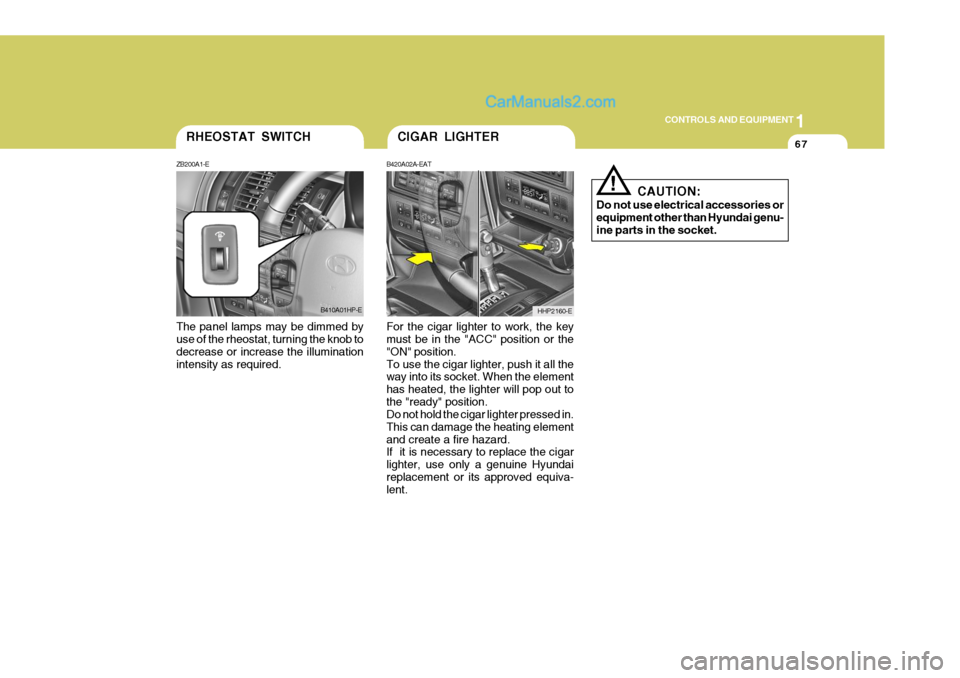

The panel lamps may be dimmed by use of the rheostat, turning the knob to decrease or increase the illuminationintensity as required. For the cigar lighter to work, the key must be in the "ACC" position or the "ON" position.To use the cigar lighter, push it all the way into its socket. When the element has heated, the lighter will pop out tothe "ready" position. Do not hold the cigar lighter pressed in. This can damage the heating elementand create a fire hazard. If it is necessary to replace the cigar lighter, use only a genuine Hyundaireplacement or its approved equiva- lent.
RHEOSTAT SWITCH
ZB200A1-E
B410A01HP-E
CIGAR LIGHTER
B420A02A-EAT
HHP2160-E CAUTION:
Do not use electrical accessories or equipment other than Hyundai genu- ine parts in the socket.
!

1CONTROLS AND EQUIPMENT
68

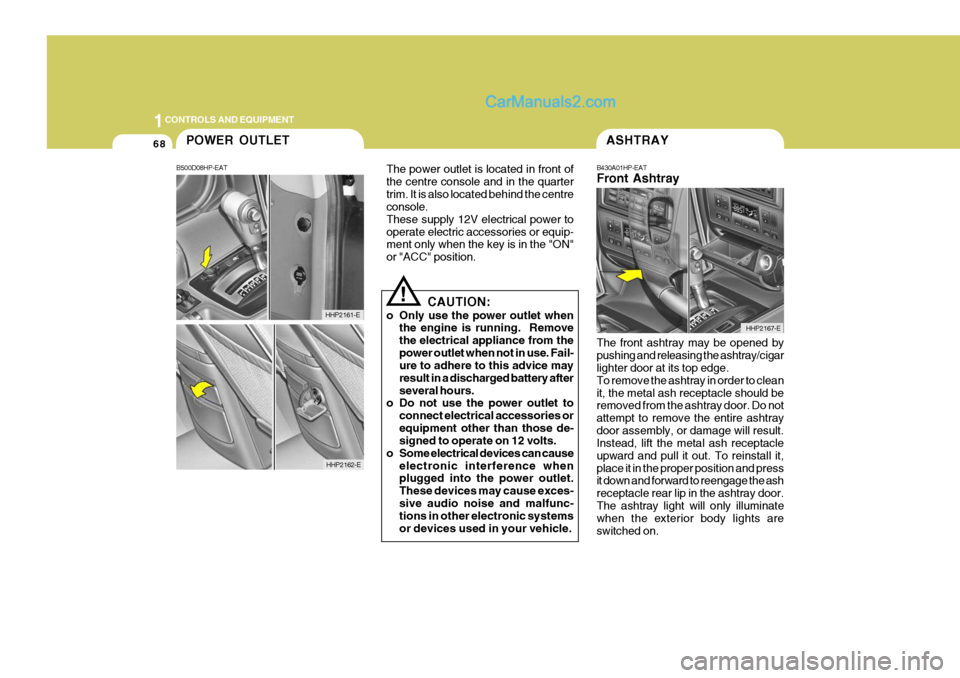

The front ashtray may be opened by pushing and releasing the ashtray/cigar lighter door at its top edge. To remove the ashtray in order to cleanit, the metal ash receptacle should be removed from the ashtray door. Do not attempt to remove the entire ashtraydoor assembly, or damage will result. Instead, lift the metal ash receptacle upward and pull it out. To reinstall it,place it in the proper position and press it down and forward to reengage the ash receptacle rear lip in the ashtray door.The ashtray light will only illuminate when the exterior body lights are switched on.
ASHTRAY
B430A01HP-EAT Front Ashtray
HHP2167-E
!
The power outlet is located in front of the centre console and in the quartertrim. It is also located behind the centre console. These supply 12V electrical power tooperate electric accessories or equip- ment only when the key is in the "ON" or "ACC" position.
CAUTION:
o Only use the power outlet when the engine is running. Removethe electrical appliance from thepower outlet when not in use. Fail- ure to adhere to this advice may result in a discharged battery afterseveral hours.
o Do not use the power outlet to
connect electrical accessories orequipment other than those de- signed to operate on 12 volts.
o Some electrical devices can cause
electronic interference whenplugged into the power outlet. These devices may cause exces-sive audio noise and malfunc- tions in other electronic systems or devices used in your vehicle.
POWER OUTLET
B500D08HP-EAT
HHP2162-E
HHP2161-E
