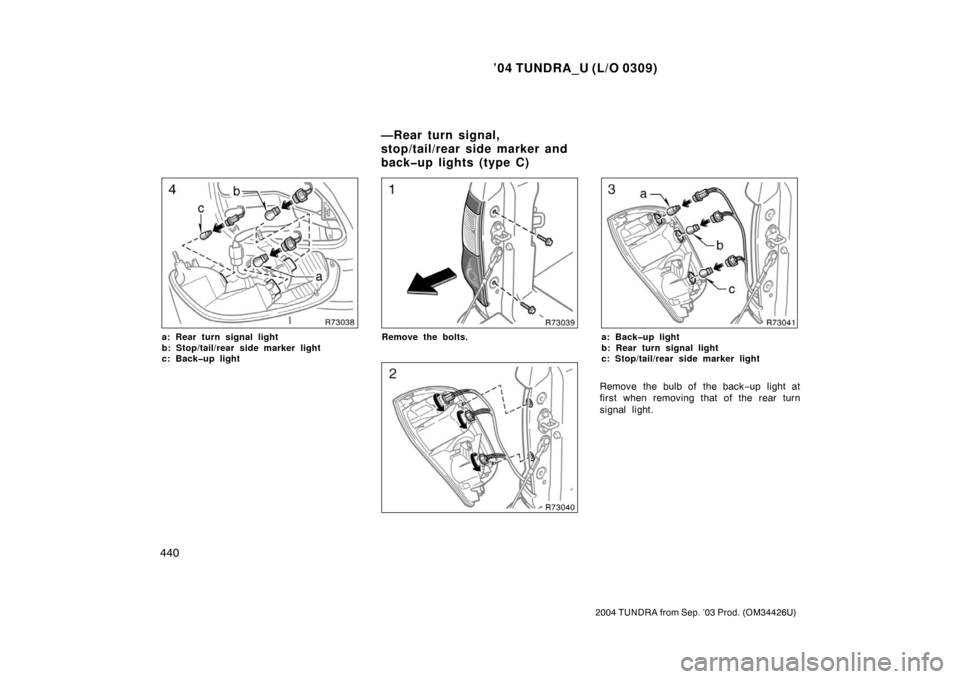

a: Rear turn signal light
b: Stop/tail/rear side marker light
c: Backup lightRemove the bolts.a: Backup light
b: Rear turn signal light
c: Stop/tail/rear side marker light
Remove the bulb of the back −up light at
first when removing that of the rear turn
signal light.
—Rear turn signal,
stop/tail/rear side marker and
backup lights (type C)

’04 TUNDRA_U (L/O 0309)
441
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

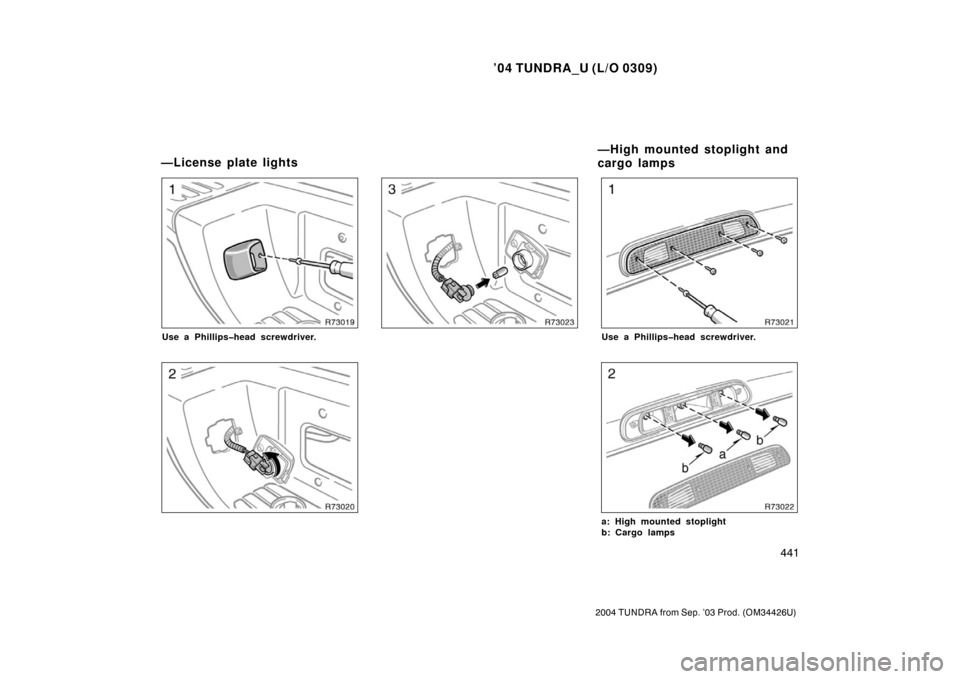

Use a Phillipshead screwdriver.Use a Phillipshead screwdriver.
a: High mounted stoplight
b: Cargo lamps
—License plate lights —High mounted stoplight and
cargo lamps

’04 TUNDRA_U (L/O 0309)
442
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)
443
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
SPECIFICATIONS
Specifications
Dimensions 444
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Payload 446
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Towing capacity 448
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Engine 449
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 449
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 449
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 453
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 454
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’04 TUNDRA_U (L/O 0309)
444
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Tw o−wheel drive models
mm (in.)
Standard cab modelsAccess cab modelsDouble cab modelsStandard bedStepSide bed
Overall length5525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25845 (230.1)
Overall width1910 (75.2)
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42000 (78.7)2015 (79.3)∗3
2025 (79.7)∗4
Overall height∗51795 (70.7)1790 (70.5)∗6
1800 (70.9)∗7or81790 (70.5)
1880 (74.0)∗6
1890 (74.4)∗7
1895 (74.6)∗8
Wheelbase3260 (128.3)3260 (128.3)3260 (128.3)3570 (140.5)
Front tread1680 (66.1)1680 (66.1)1680 (66.1)1680 (66.1)
Rear tread1648 (64.9)1648 (64.9)1648 (64.9)1710 (67.3)
∗1: With steel bumper∗2: With plastic bumper∗3: With wheel arch moulding∗4: With over fender∗5: Unladen vehicle∗6: With P245/70R16 tires∗7: With P265/70R16 tires∗8: With P265/65R17 tires
Dimensions

’04 TUNDRA_U (L/O 0309)
445
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Four−wheel drive models
mm (in.)
Standard cab modelsAccess cab modelsDouble cab modelsStandard bedStepSide bed
Overall length5525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25525 (217.5)∗1
5545 (218.3)∗25845 (230.1)
Overall width1910 (75.2)
1945 (76.6)∗3
1910 (75.2)
1945 (76.6)∗3
2015 (79.3)∗42000 (78.7)2015 (79.3)∗3
2025 (79.7)∗4
Overall height∗51805 (71.1)∗6
1815 (71.5)∗7or81810 (71.3)∗6
1820 (71.7)∗7or81810 (71.3)
1890 (74.4)∗6
1900 (74.8)∗7
1905 (75.0)∗8
Wheelbase3260 (128.3)3260 (128.3)3260 (128.3)3570 (140.5)
Front tread1675 (65.9)1675 (65.9)1675 (65.9)1675 (65.9)
Rear tread1648 (64.9)1648 (64.9)1648 (64.9)1710 (67.3)
∗1: With steel bumper∗2: With plastic bumper∗3: With wheel arch moulding∗4: With over fender∗5: Unladen vehicle∗6: With P245/70R16 tires∗7: With P265/70R16 tires∗8: With P265/65R17 tires

’04 TUNDRA_U (L/O 0309)
446
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
U.S.A. kg (lb.)
Cab type
EngineDriving systemTransmission typeGrade∗ 1Deck typePayload∗2
Standard cab
models5VZ −FETw o −wheel driveManual transmissionStandardStandard bed714 (1575)
Automatic transmissionStandardStandard bed701 (1545)
2UZ −FEFour −wheel driveAutomatic transmissionSR5Standard bed776 (1710)
Access cab
models
5VZ −FE
Tw o −wheel driveManual transmissionSR5Standard bed699 (1540)
Automatic transmissionSR5Standard bed678 (1495)
Four −wheel driveManual transmissionSR5Standard bed710 (1565)
Automatic transmissionSR5Standard bed689 (1520)
2UZ −FE
Tw o −wheel driveAutomatic transmission
SR5Standard bed794 (1750)
StepSide bed687 (1515)
LimitedStandard bed816 (1800)
StepSide bed726 (1600)
Four −wheel driveAutomatic transmission
SR5Standard bed669 (1475)
StepSide bed576 (1270)
LimitedStandard bed692 (1525)
StepSide bed601 (1325)
∗
1: See “Model code” on page ix in the beginning of this m anual if you are not sure of which model your vehicle is.∗
2:
Maximum payload including weight of driver, passengers, optional equipment and cargo
Payload

’04 TUNDRA_U (L/O 0309)
447
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
kg (lb.)
Cab type
EngineDriving systemTransmission typeGrade∗ 1Deck typePayload∗2
Double cab
models2UZ −FE
Tw o −wheel driveAutomatic transmissionSR5Standard bed851 (1875)
LimitedStandard bed826 (1820)
Four −wheel driveAutomatic transmissionSR5Standard bed742 (1635)
LimitedStandard bed717 (1580)
Canada kg (lb.)
Cab type
EngineDriving systemGrade∗ 1Payload∗2
Standard cab models5VZ −FETw o −wheel driveStandard708 (1560)
2UZ −FEFour −wheel driveStandard782 (1725)
Access cab models2UZ −FE
Tw o −wheel driveSR5787 (1735)
Four −wheel driveSR5662 (1460)
Limited685 (1510)
Double cab models2UZ −FE
Tw o −wheel driveSR5844 (1860)
Four −wheel driveSR5735 (1620)
Limited712 (1570)
∗
1: See “Model code” on page ix in the beginning of this m anual if you are not sure of which model your vehicle is.∗
2:
Maximum payload including weight of driver, passengers, optional equipment and cargo
