2004 TOYOTA TUNDRA Owners Manual

’04 TUNDRA_U (L/O 0309)
32
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Standard and access cab modelsDouble cab models

’04 TUNDRA_U (L/O 0309)
33
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

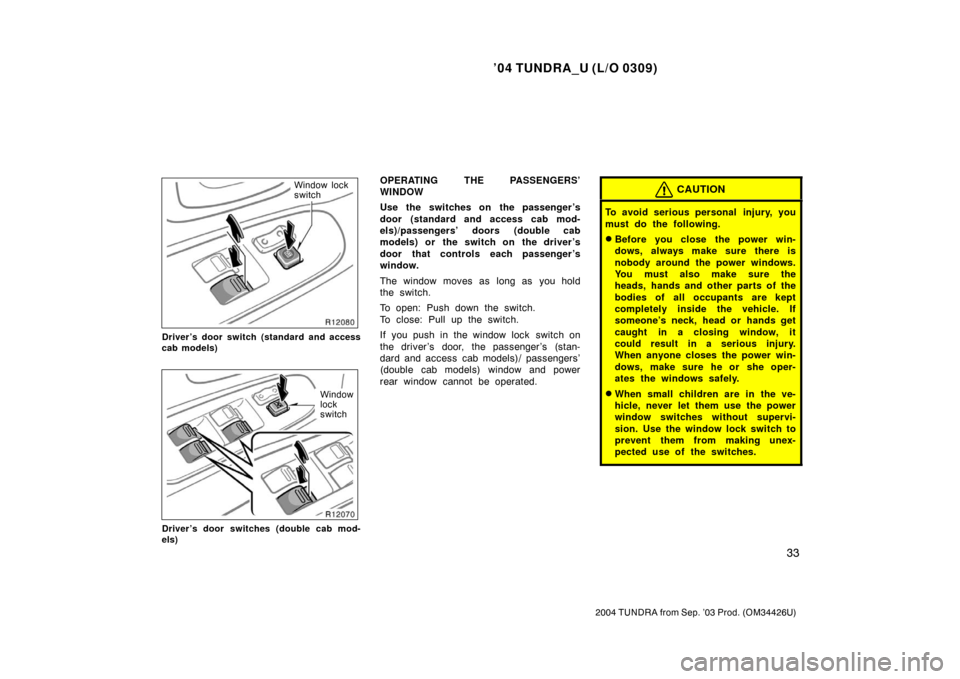

Window lock
switch
Driver’s door switch (standard and access
cab models)
Window
lock
switch
Driver’s door switches (double cab mod-
els)
OPERATING THE PASSENGERS’
WINDOW
Use the switches on the passenger ’s
door (standard and access cab mod-
els)/passengers’ doors (double cab
models) or the switch on the driver’s
door that controls each passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s (stan-
dard and access cab models)/ passengers’
(double cab models) window and power
rear window cannot be operated.CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.

’04 TUNDRA_U (L/O 0309)
34
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

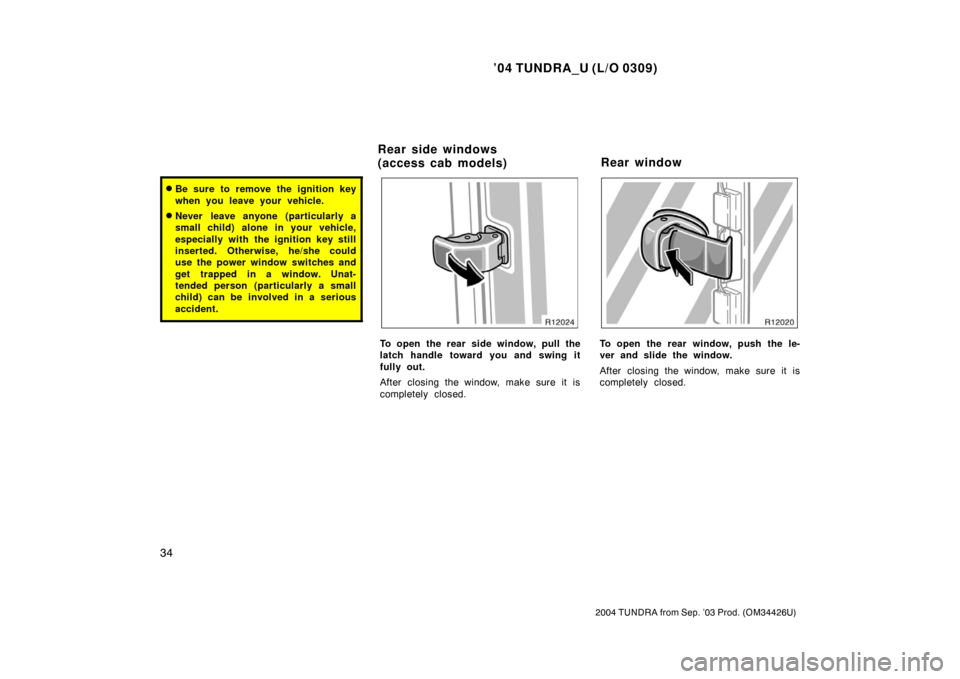

To open the rear side window, pull the
latch handle toward you and swing it
fully out.
After closing the window, make sure it is
completely closed.To open the rear window, push the le-
ver and slide the window.
After closing the window, make sure it is
completely closed.
Rear side windows
(access cab models) Rear window

’04 TUNDRA_U (L/O 0309)
35
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

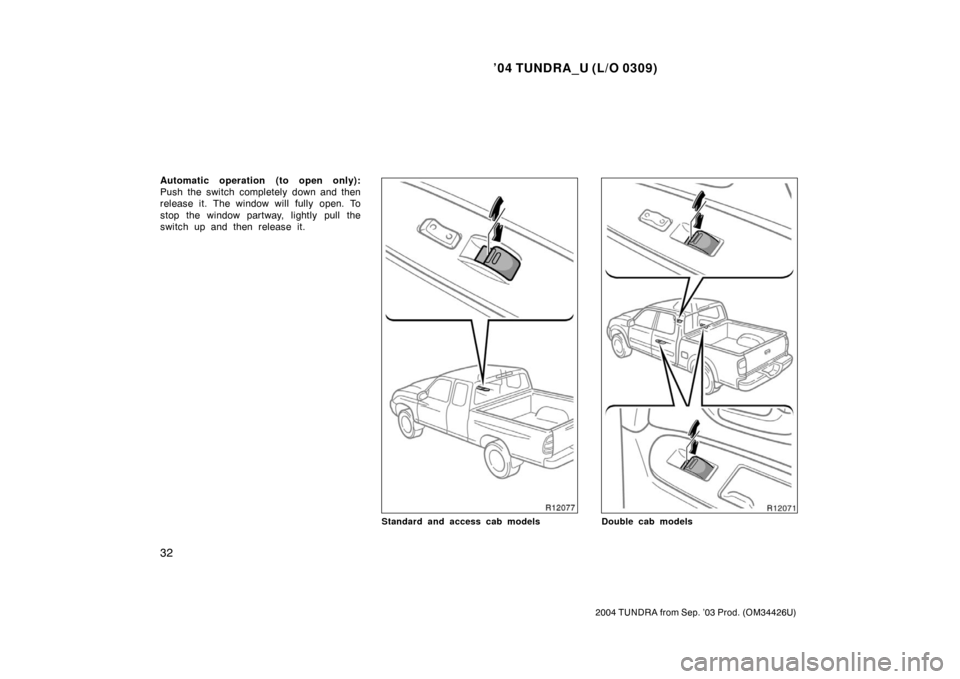

Access cab models
Double cab models
The rear window can be operated with
the switch on the instrument panel.
The ignition key must be in the “ON” posi-
tion.
Key off operation: If both front doors are
closed, they work 43 seconds even after
the ignition switch is turned off. The pow-
er rear window stops working when either
front door is opened.
The rear window moves as long as you
hold the switch.
To open: Push the switch on the “
”
(standard and access cab models) or “
”
(double cab models) side.
To close: Push the switch on the “
”
(standard and access cab models) or “
”
(double cab models) side.
Double cab models only—At this time, the
window will stop partway. Push the switch
again to fully close the window.
Standard and access cab models
Double cab models
Power rear window

’04 TUNDRA_U (L/O 0309)
36
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
If you push in the window lock switch on
the driver ’s door, the rear window cannot
be operated.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power rear
window, always make sure there is
nobody around the power rear win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power rear
window, make sure he or she oper-
ates the window safely.
When small children are in the ve-
hicle, never let them use the power
rear window switch without supervi-
sion.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the rear window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
OPENING
To open the tailgate, pull the handle up.
The support cables will hold the tailgate
horizontal.
See “—Stowage precautions” in Section 2
for precautions when loading luggage.
After closing the tailgate, try pulling and
pushing it to make sure it is securely
closed.
NOTICE
Avoid driving with the tailgate open.
Tailgate

’04 TUNDRA_U (L/O 0309)
37
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Support cable bracket
REMOVAL
1. Open the tailgate to the angle where you can release the brackets on the
support cables from the lugs on
both sides.
To release the support cable bracket, lift
it up and slide it off.2. Tilt the tailgate to about 30 ° from
vertical and pull up the right side of
the tailgate to unhook the right side.3. Slide the tailgate a little to the right to unhook the left side.
To attach the tailgate, follow the removal
procedure in reverse order.
After closing the tailgate, try pulling it to-
ward you to make sure it is securely
closed.
We recommend you keep the tailgate
closed when not in use.
NOTICE
Make sure the support brackets are
securely latched on both side panels
when installing the tailgate.

’04 TUNDRA_U (L/O 0309)
38
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it to lock or unlock the tailgate.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Hood

’04 TUNDRA_U (L/O 0309)
39
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.SETTING THE SYSTEM
You can set the system as follows.
1. Remove the key from the ignition switch.
2. Have all passengers get out of the vehicle.
3. Close all the doors securely.
4. Lock all the doors with the key or re- mote keyless entry transmitter. At this
time, the TVIP indicator light comes
on.
The system will be set in 30 seconds.
When the system is set, the indicator
light will start to flash. 5. Make sure that the indicator light
flashes. Then you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.
Activating the alarm
If the system detects a threat to the
vehicle, blows the horn intermittently
for one minute while flashing head-
lights, tail lights and front side marker
lights, and turns on the interior light.
The system detects a threat under any of
the following conditions:
Either of the front doors is unlocked by
means other than the key or remote
keyless entry transmitter.
If the key is not in the ignition switch,
all the doors will be automatically
locked again.
Any door is forcibly opened.
The side windows are tapped or bro-
ken.
The battery terminal is disconnected
and then reconnected.
The ignition is hotwired.
Toyota vehicle intrusion protection
system (TVIP) (standard and
access cab models for U.S.A. only)
