Model code
Check the model code to see what type of model your vehicle is.
V C K 3 0 T R D
The model code appears on the Certification Label with the heading “MODEL”.
See “Your Toyota’s identification” in Section 2 for the Certification Label location.
Grade
D: Standard grade
S: SR5 grade
L: Limited grade
Engine type
VCK: 5VZ −FE engine
UCK: 2UZ −FE engine
Driving system
30, 31: Two −wheel drive
40, 41: Four −wheel driveDeck type
R: Standard bed
S: StepSide bed
Cap type
T: Standard cab
A: Access cab
P: Double cab

’04 TUNDRA_U (L/O 0309)
1
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 12
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’04 TUNDRA_U (L/O 0309)
2
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Personal lights
5. Garage door opener box or auxiliary
box
6. Side defroster outlet
7. Glove box
8. Power door lock switches
9. Power window switches
10. Manual transmission gear shift lever
11. Front drive control lever
12. Rear console box
13. Cup holders
14. Parking brake lever
15. Lower vent
16. Hood lock release lever
17. Window lock switch
18. Power rear view mirror control switches

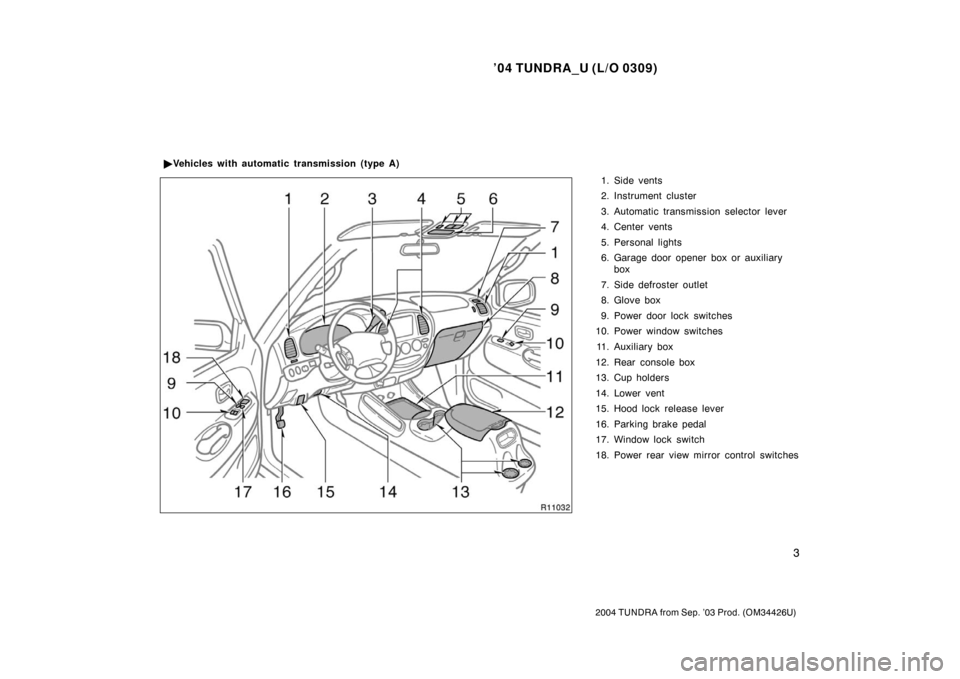

Instrument panel overview (standard and access cab models)
 Vehicles with manual transmission

’04 TUNDRA_U (L/O 0309)
3
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Auxiliary box
12. Rear console box
13. Cup holders
14. Lower vent
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches

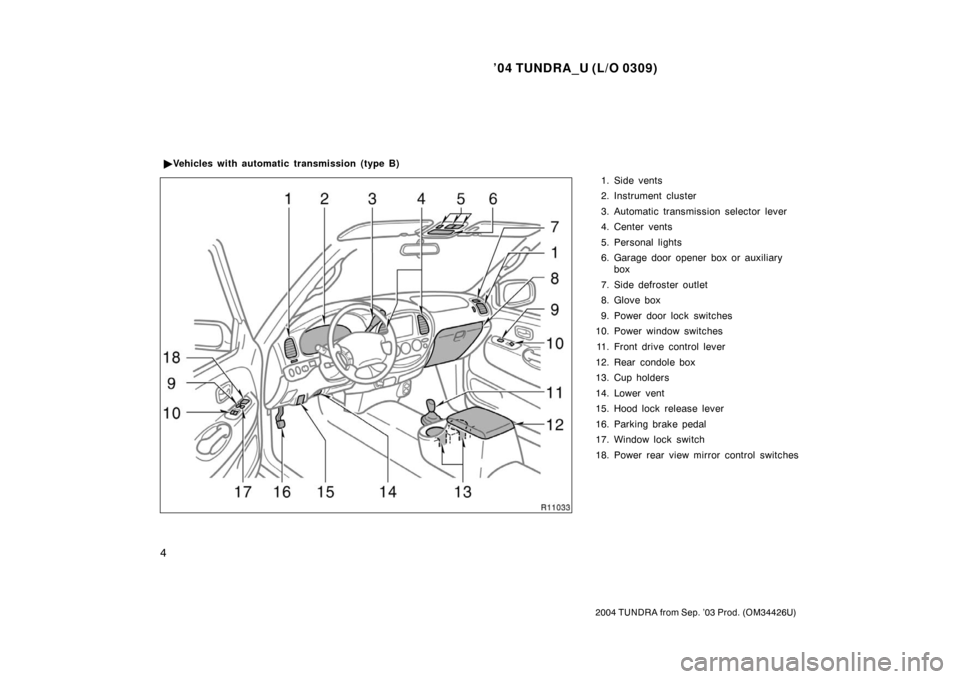

Vehicles with automatic transmission (type A)

’04 TUNDRA_U (L/O 0309)
4
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
1. Side vents
2. Instrument cluster
3. Automatic transmission selector lever
4. Center vents
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Side defroster outlet
8. Glove box
9. Power door lock switches
10. Power window switches
11. Front drive control lever
12. Rear condole box
13. Cup holders
14. Lower vent
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches

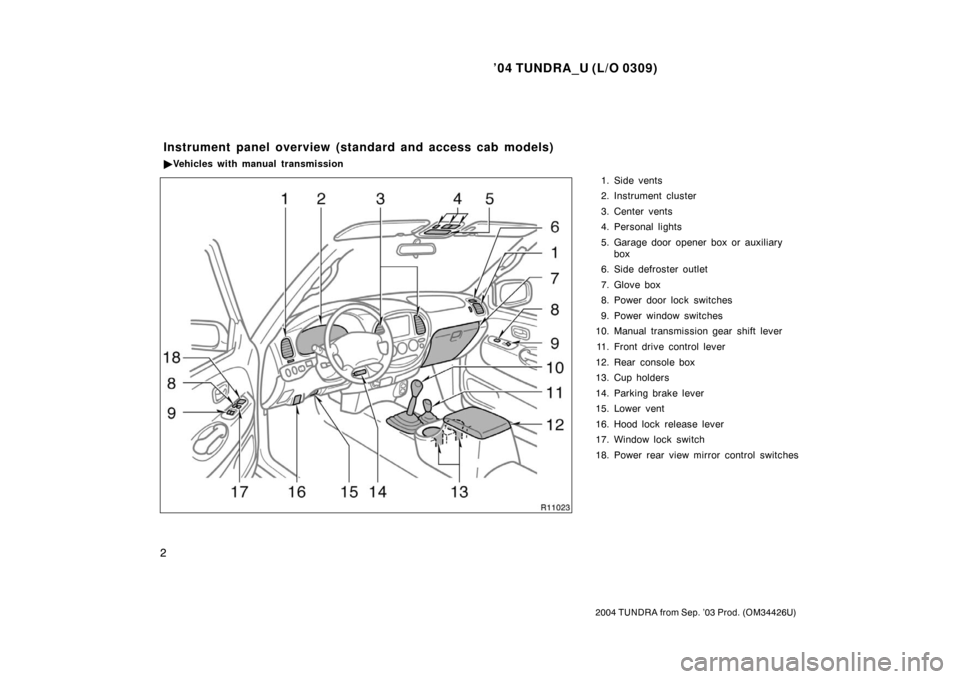

Vehicles with automatic transmission (type B)

’04 TUNDRA_U (L/O 0309)
5
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

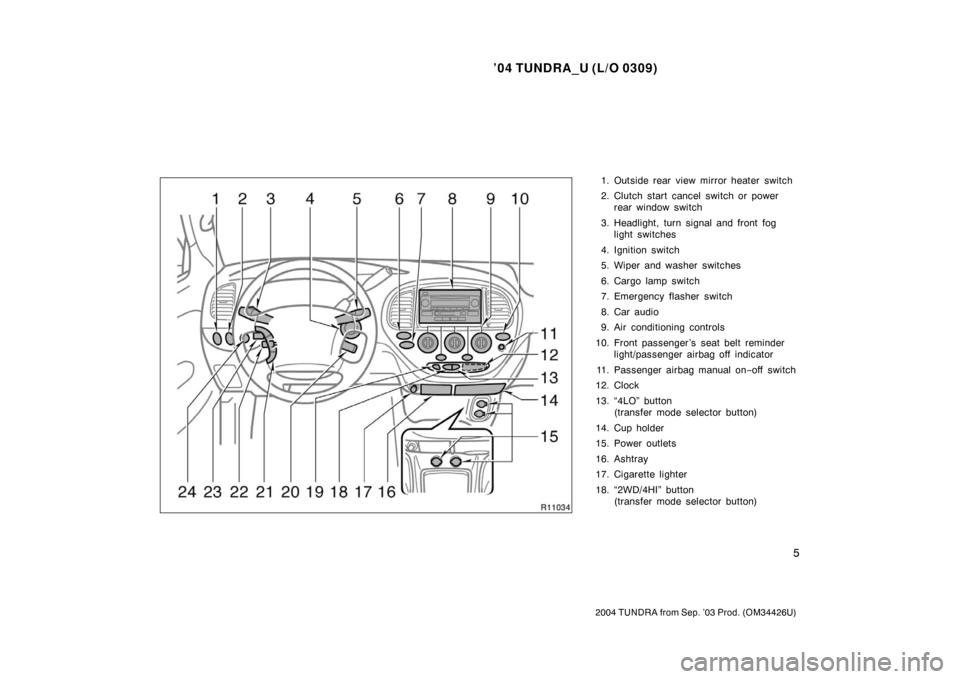

1. Outside rear view mirror heater switch
2. Clutch start cancel switch or power
rear window switch
3. Headlight, turn signal and front fog light switches
4. Ignition switch
5. Wiper and washer switches
6. Cargo lamp switch
7. Emergency flasher switch
8. Car audio
9. Air conditioning controls
10. Front passenger ’s seat belt reminder light/passenger airbag off indicator
11. Passenger airbag manual on −off switch
12. Clock
13. “4LO” button (transfer mode selector button)
14. Cup holder
15. Power outlets
16. Ashtray
17. Cigarette lighter
18. “2WD/4HI” button (transfer mode selector button)

’04 TUNDRA_U (L/O 0309)
6
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
19. “AUTO LSD” switch
20. Cruise control switch
21. Audio remote control switches
22. Tilt steering lock release lever
23. Toyota vehicle intrusion protection
system indicator light
24. Instrument panel light control knob

’04 TUNDRA_U (L/O 0309)
7
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

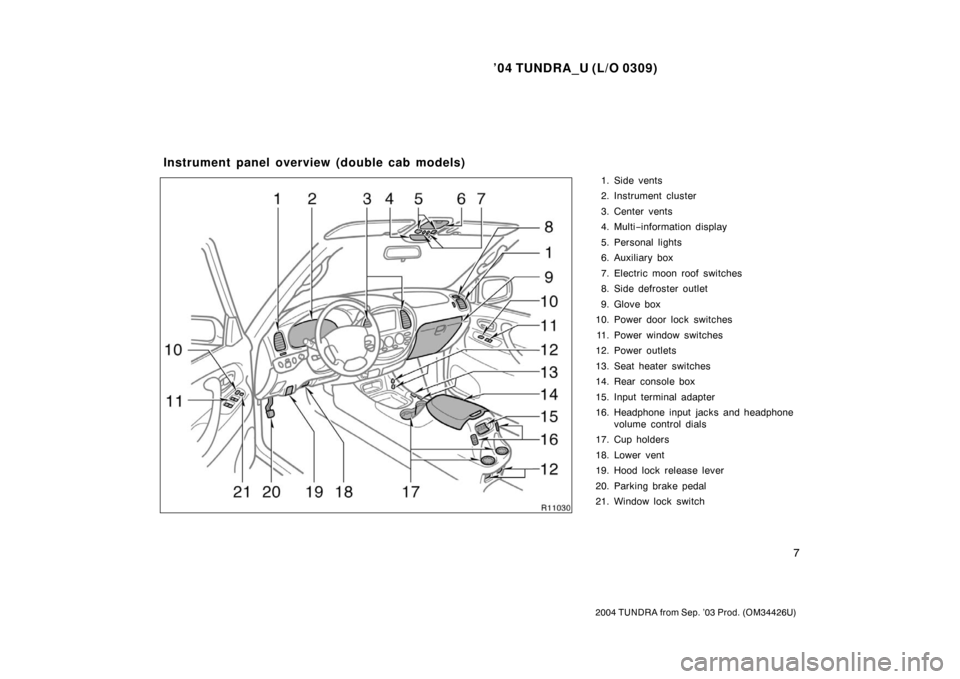

1. Side vents
2. Instrument cluster
3. Center vents
4. Multi −information display
5. Personal lights
6. Auxiliary box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Power outlets
13. Seat heater switches
14. Rear console box
15. Input terminal adapter
16. Headphone input jacks and headphone volume control dials
17. Cup holders
18. Lower vent
19. Hood lock release lever
20. Parking brake pedal
21. Window lock switch
Instrument panel overview (double cab models)
