2004 TOYOTA TUNDRA Owners Manual

’04 TUNDRA_U (L/O 0309)
11 2
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
Move seat fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be installed
on the front passenger seat only
when it is unavoidable. Always move
the seat as far back as possible, be-
cause the front passenger airbag
could inflate with considerable speed
and force. Otherwise, the child may
be killed or seriously injured.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” in this
Section for details.

’04 TUNDRA_U (L/O 0309)
11 3
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

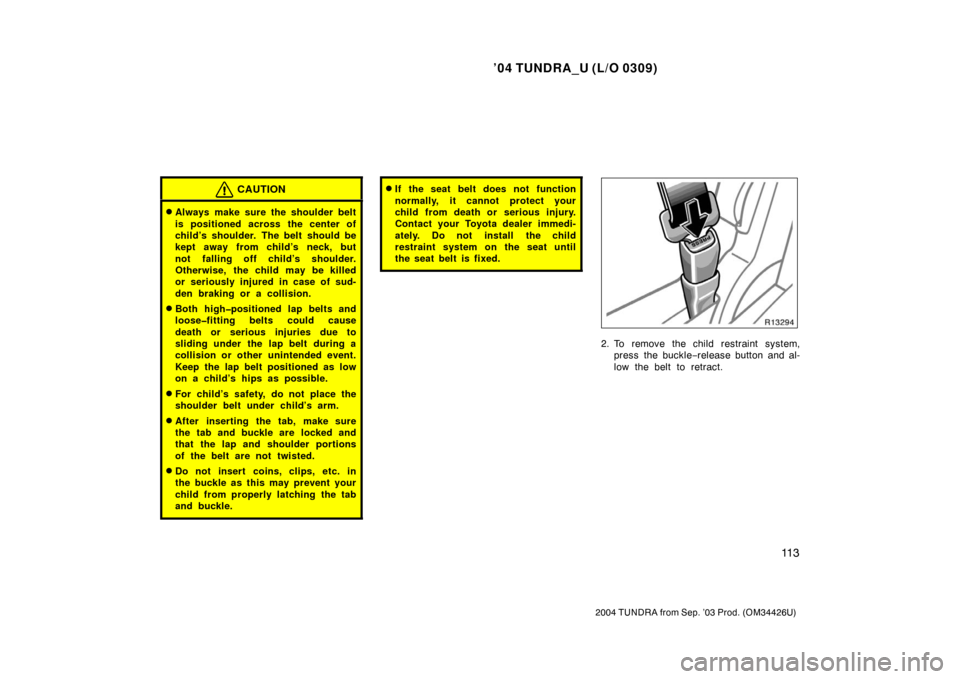

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. To remove the child restraint system, press the buckle −release button and al-
low the belt to retract.

’04 TUNDRA_U (L/O 0309)
11 4
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

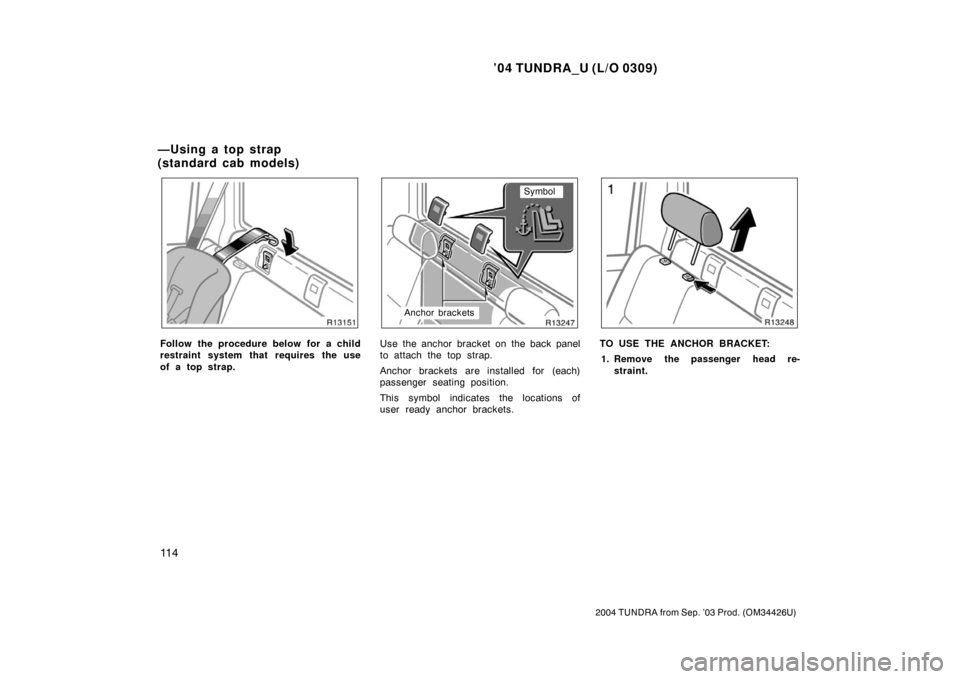

Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Symbol
Anchor brackets
Use the anchor bracket on the back panel
to attach the top strap.
Anchor brackets are installed for (each)
passenger seating position.
This symbol indicates the locations of
user ready anchor brackets.TO USE THE ANCHOR BRACKET: 1. Remove the passenger head re- straint.
— U sin g a to p st rap
(standard cab models)

’04 TUNDRA_U (L/O 0309)
11 5
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

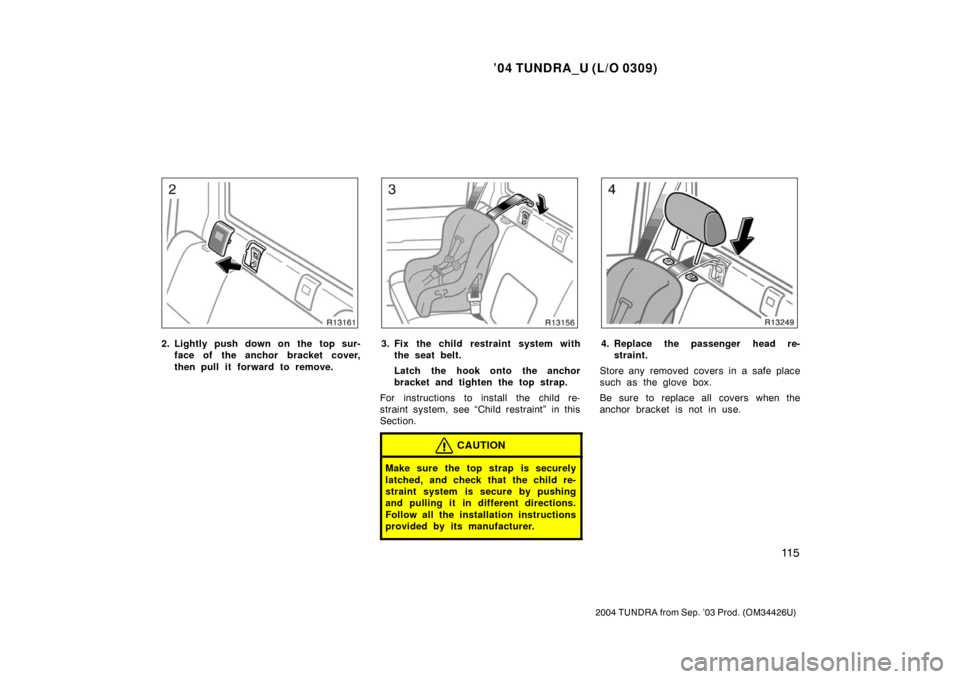

2. Lightly push down on the top sur-
face of the anchor bracket cover,
then pull it forward to remove.3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the passenger head re- straint.
Store any removed covers in a safe place
such as the glove box.
Be sure to replace all covers when the
anchor bracket is not in use.

’04 TUNDRA_U (L/O 0309)
11 6
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

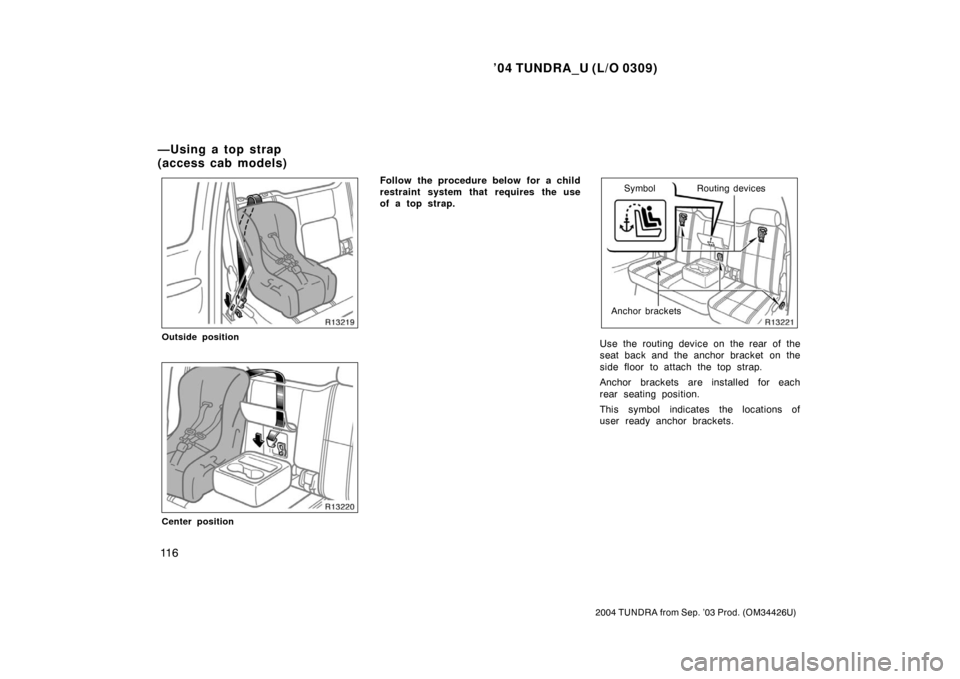

Outside position
Center position
Follow the procedure below for a child
restraint system that requires the use
of a top strap.Symbol Routing devices
Anchor brackets
Use the routing device on the rear of the
seat back and the anchor bracket on the
side floor to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of
user ready anchor brackets.
— U sin g a to p st rap
(access cab models)

’04 TUNDRA_U (L/O 0309)
11 7
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

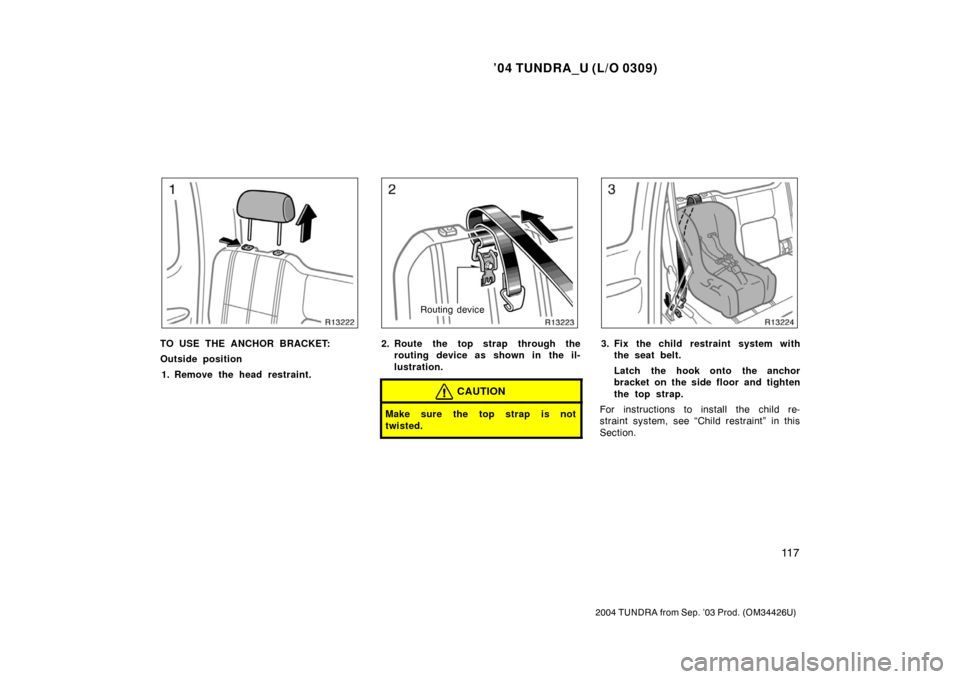

TO USE THE ANCHOR BRACKET:
Outside position
1. Remove the head restraint.
Routing device
2. Route the top strap through the routing device as shown in the il-
lustration.
CAUTION
Make sure the top strap is not
twisted.
3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket on the side floor and tighten
the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.

’04 TUNDRA_U (L/O 0309)
11 8
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint.Center position
1. Fold down the cup holder, unfasten the Velcro that attaches the anchor
bracket cover, and lift the cover.

’04 TUNDRA_U (L/O 0309)
11 9
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

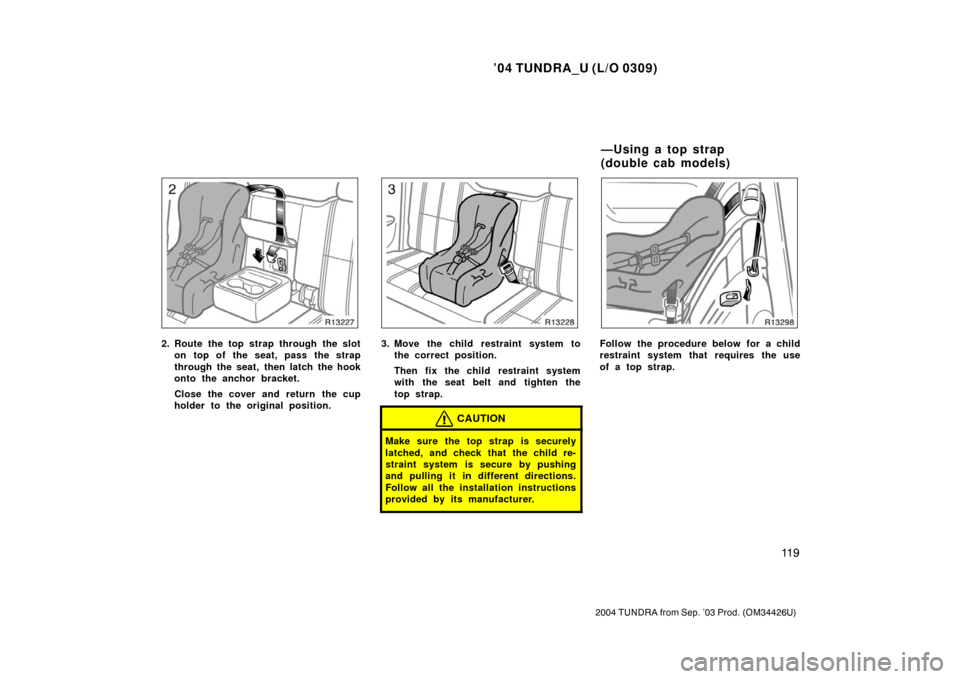

2. Route the top strap through the slot
on top of the seat, pass the strap
through the seat, then latch the hook
onto the anchor bracket.
Close the cover and return the cup
holder to the original position.3. Move the child restraint system tothe correct position.
Then fix the child restraint system
with the seat belt and tighten the
top strap.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(double cab models)
