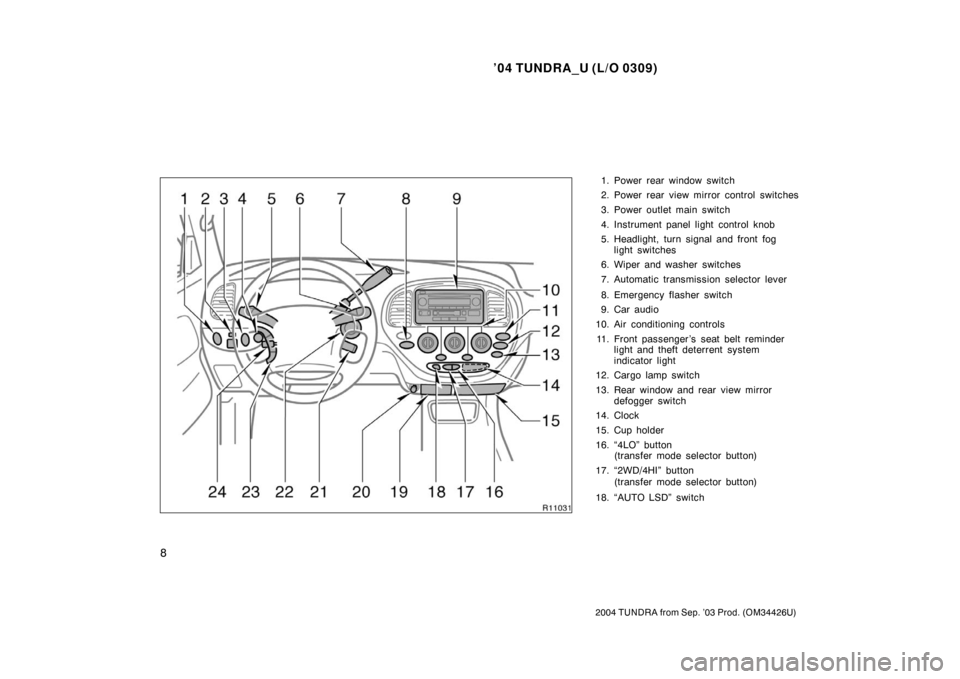

1. Power rear window switch
2. Power rear view mirror control switches
3. Power outlet main switch
4. Instrument panel light control knob
5. Headlight, turn signal and front fog
light switches
6. Wiper and washer switches
7. Automatic transmission selector lever
8. Emergency flasher switch
9. Car audio
10. Air conditioning controls 11. Front passenger ’s seat belt reminder light and theft deterrent system
indicator light
12. Cargo lamp switch
13. Rear window and rear view mirror defogger switch
14. Clock
15. Cup holder
16. “4LO” button (transfer mode selector button)
17. “2WD/4HI” button (transfer mode selector button)
18. “AUTO LSD” switch

’04 TUNDRA_U (L/O 0309)
9
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
19. Ashtray
20. Cigarette lighter
21. Cruise control switch
22. Ignition switch
23. Audio remote control switches
24. Tilt steering lock release lever

’04 TUNDRA_U (L/O 0309)
10
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

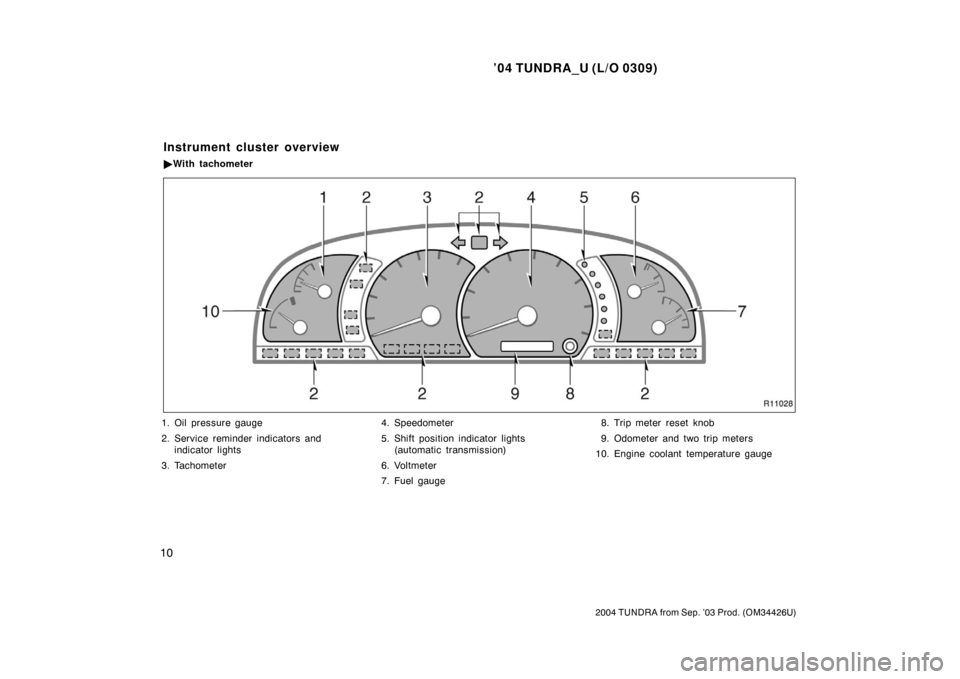

1. Oil pressure gauge
2. Service reminder indicators and
indicator lights
3. Tachometer 4. Speedometer
5. Shift position indicator lights
(automatic transmission)
6. Voltmeter
7. Fuel gauge 8. Trip meter reset knob
9. Odometer and two trip meters
10. Engine coolant temperature gauge
Instrument cluster overview
 With tachometer

’04 TUNDRA_U (L/O 0309)
11
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights 3. Speedometer
4. Fuel gauge
5. Trip meter reset knob
6. Odometer and two trip meters

Without tachometer

’04 TUNDRA_U (L/O 0309)
12
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Driver ’s seat belt reminder light∗
1
Low engine oil pressure warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1or
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system warning
light∗1
Traction control system warning light∗1
“AUTO LSD” system warning light∗1
SRS warning light∗1
Automatic transmission fluid temperature
warning light∗1
Unengaged “Park” warning light∗1
Low windshield washer fluid level warning
light∗1
Headlight high beam indicator light Passenger airbag off indicator light
Open door warning light∗1
Indicator symbols on the instrument panel

’04 TUNDRA_U (L/O 0309)
13
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 1 −6.
∗
2: If this light flashes, see “Four −wheel drive system” in Sec-
tion 1 −7.
∗
3: If this light flashes, see “Cruise control” in Section 1− 7.
Cruise control indicator light
∗
3
Low speed four −wheel drive indicator light∗
2
Four −wheel drive indicator light
High speed four −wheel drive indicator light
∗
2
Automatic transmission indicator lights
Overdrive −off indicator light
Turn signal indicator lights
“AUTO LSD” indicator light
Slip indicator light
Vehicle stability control system off indicator light

’04 TUNDRA_U (L/O 0309)
14
