If driving through water, such as
when crossing shallow streams,
first check the depth of the water
and the bottom of the river bed for
firmness. Drive slowly and avoid
deep water.
 Take all necessary safety measures
to ensure that water damage to the
engine or other components does
not occur.
Water entering the engine air intake
will cause severe engine damage.
Water can wash the grease from
wheel bearings, causing rusting and
premature failure, and may also en-
ter the differentials, transmission
and transfer case, reducing the gear
oil’s lubricating qualities.
 Sand and mud that has accumulated
in brake drums and around brake
discs may affect braking efficiency
and may damage brake system com-
ponents.
Always perform a maintenance in-
spection after each day of offroad
driving that has taken you through
rough terrain, sand, mud, or water.
For scheduled maintenance in-
formation, refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.Make sure your coolant is properly pro-
tected against freezing.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non −silicate, non −amine, non− nitrite,
and non −borate coolant with long −life hy-
brid organic acid technology.
See “Checking the engine coolant level” in
Section 7 −2 for details of coolant type
selection.
“Toyota Super Long Life Coolant” is pre −
mixed with 50% coolant and 50% deion-
ized water. This coolant provides protec-
tion down to about −35 C ( −31 F).
NOTICE
Do not use plain water alone.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 7− 3 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge.
Winter driving tips

’04 TUNDRA_U (L/O 0309)
353
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Make sure the engine oil viscosity is
suitable for the cold weather.
See Section 7 −2 for recommended viscos-
ity. Leaving a heavy summer oil in your
vehicle during winter months may cause
harder starting. If you are not sure about
which oil to use, call your Toyota deal-
er—he will be pleased to help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing. To open
a frozen lock, try heating the key before
inserting it.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” (automatic) or into first or reverse
(manual) and block the front wheels. Do
not use the parking brake, or snow or
water accumulated in and around the
parking brake mechanism may freeze,
making it hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing

’04 TUNDRA_U (L/O 0309)
354
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Your vehicle is designed primarily as a
passenger −and− load− carrying vehicle. Tow-
ing a trailer will have an adverse effect on
handling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction depend
on the proper use of correct equipment
and cautious driving habits. For your safe-
ty and the safety of others, you must not
overload your vehicle or trailer. Ask your
local Toyota dealer for further details be-
fore towing.
We recommend you use a weight distribut-
ing hitch when towing to keep your ve-
hicle level with the ground.
NOTICE
When towing a trailer, be sure to con-
sult your Toyota dealer for further in-
formation on additional requirements
such as a towing kit, etc.
WEIGHT LIMITS
Before towing, make sure the total trail-
er weight, gross combination weight,
gross vehicle weight, gross axle weight
and trailer tongue load are all within
the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at highway weighing stations, build-
ing supply companies, trucking companies,
junk yards, etc.
CAUTION

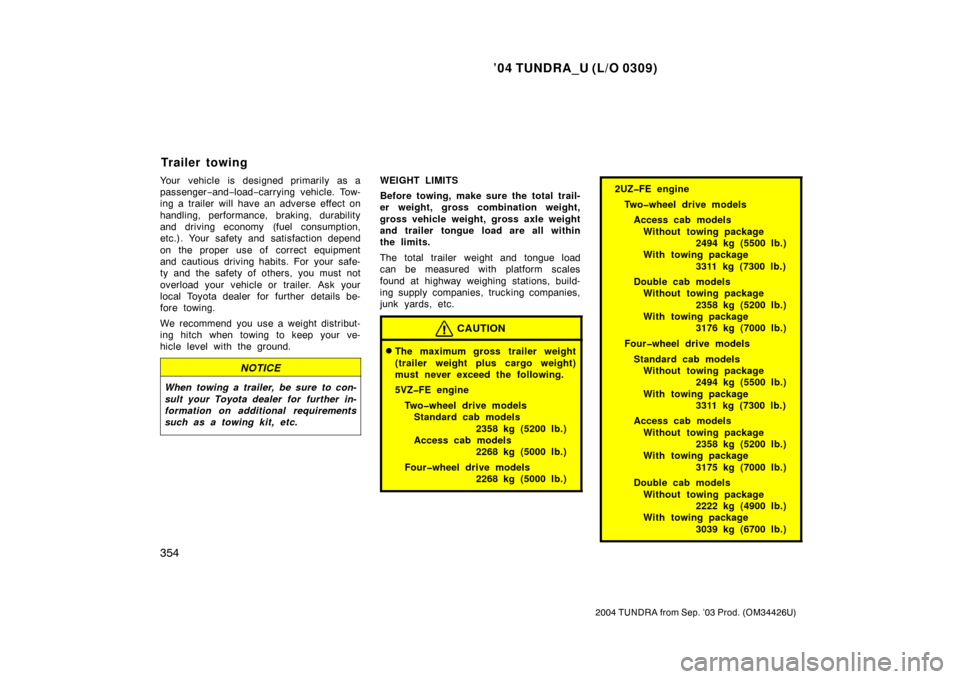

The maximum gross trailer weight
(trailer weight plus cargo weight)
must never exceed the following.
5VZFE engine
Twowheel drive modelsStandard cab models
2358 kg (5200 lb.)
Access cab models 2268 kg (5000 lb.)
Fourwheel drive models 2268 kg (5000 lb.)
2UZFE engine
Twowheel drive modelsAccess cab models Without towing package 2494 kg (5500 lb.)
With towing package
3311 kg (7300 lb.)
Double cab models Without towing package
2358 kg (5200 lb.)
With towing package 3176 kg (7000 lb.)
Fourwheel drive models Standard cab models Without towing package 2494 kg (5500 lb.)
With towing package 3311 kg (7300 lb.)
Access cab models Without towing package 2358 kg (5200 lb.)
With towing package
3175 kg (7000 lb.)
Double cab models Without towing package 2222 kg (4900 lb.)
With towing package
3039 kg (6700 lb.)
Trailer towing

’04 TUNDRA_U (L/O 0309)
355
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

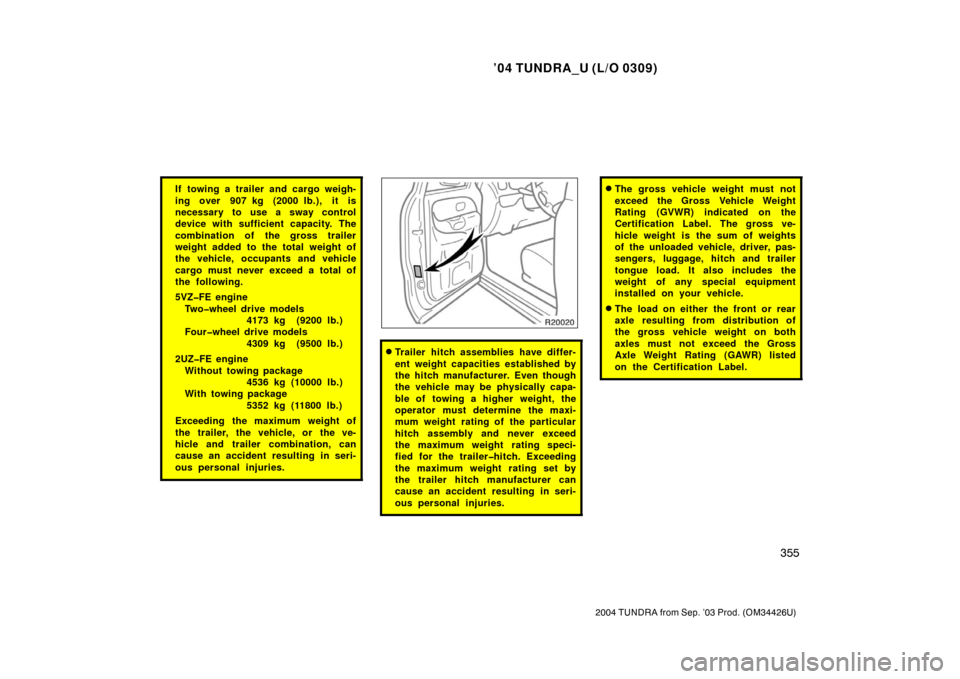

If towing a trailer and cargo weigh-
ing over 907 kg (2000 lb.), it is
necessary to use a sway control
device with sufficient capacity. The
combination of the gross trailer
weight added to the total weight of
the vehicle, occupants and vehicle
cargo must never exceed a total of
the following.
5VZFE engine
Twowheel drive models 4173 kg (9200 lb.)
Fourwheel drive models
4309 kg (9500 lb.)
2UZFE engine Without towing package 4536 kg (10000 lb.)
With towing package
5352 kg (11800 lb.)
Exceeding the maximum weight of
the trailer, the vehicle, or the ve-
hicle and trailer combination, can
cause an accident resulting in seri-
ous personal injuries.
Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailerhitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.
The gross vehicle weight must not
exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the
Certification Label. The gross ve-
hicle weight is the sum of weights
of the unloaded vehicle, driver, pas-
sengers, luggage, hitch and trailer
tongue load. It also includes the
weight of any special equipment
installed on your vehicle.
The load on either the front or rear
axle resulting from distribution of
the gross vehicle weight on both
axles must not exceed the Gross
Axle Weight Rating (GAWR) listed
on the Certification Label.

’04 TUNDRA_U (L/O 0309)
356
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

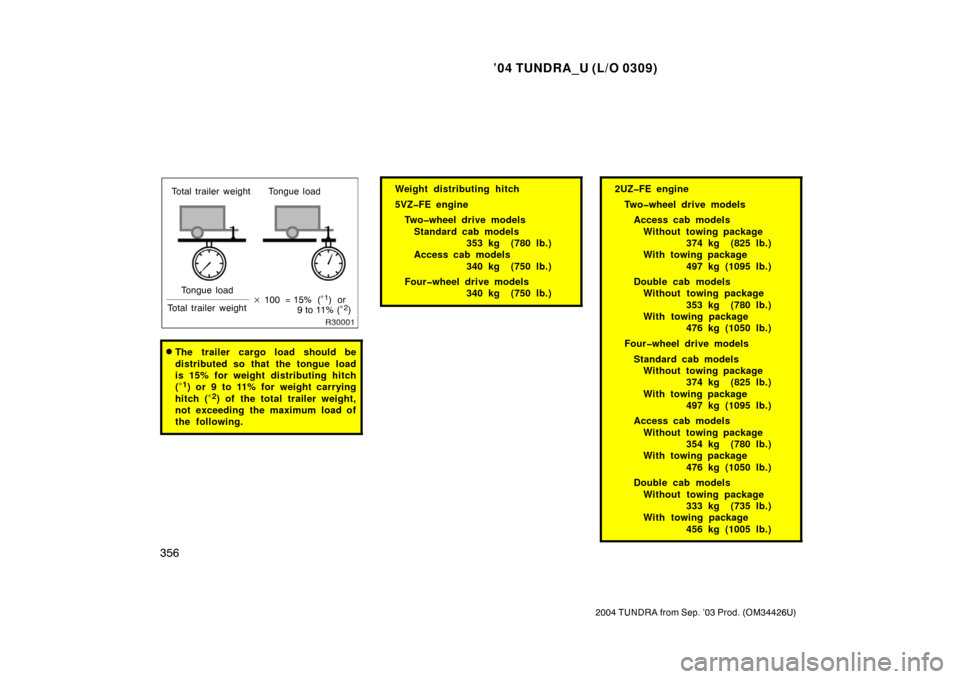

Total trailer weight Tongue load
Tongue load
Total trailer weight
100 = 15% (
∗
1)or
9to11%(∗ 2)
The trailer cargo load should be
distributed so that the tongue load
is 15% for weight distributing hitch
(
∗1) or 9 to 11% for weight carrying
hitch (∗ 2) of the total trailer weight,
not exceeding the maximum load of
the following.
Weight distributing hitch
5VZFE engine
Twowheel drive modelsStandard cab models 353 kg (780 lb.)
Access cab models
340 kg (750 lb.)
Fourwheel drive models 340 kg (750 lb.)2UZFE engine
Twowheel drive modelsAccess cab models Without towing package 374 kg (825 lb.)
With towing package
497 kg (1095 lb.)
Double cab models Without towing package
353 kg (780 lb.)
With towing package 476 kg (1050 lb.)
Fourwheel drive models Standard cab models Without towing package 374 kg (825 lb.)
With towing package 497 kg (1095 lb.)
Access cab models Without towing package 354 kg (780 lb.)
With towing package
476 kg (1050 lb.)
Double cab models Without towing package 333 kg (735 lb.)
With towing package
456 kg (1005 lb.)

’04 TUNDRA_U (L/O 0309)
357
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

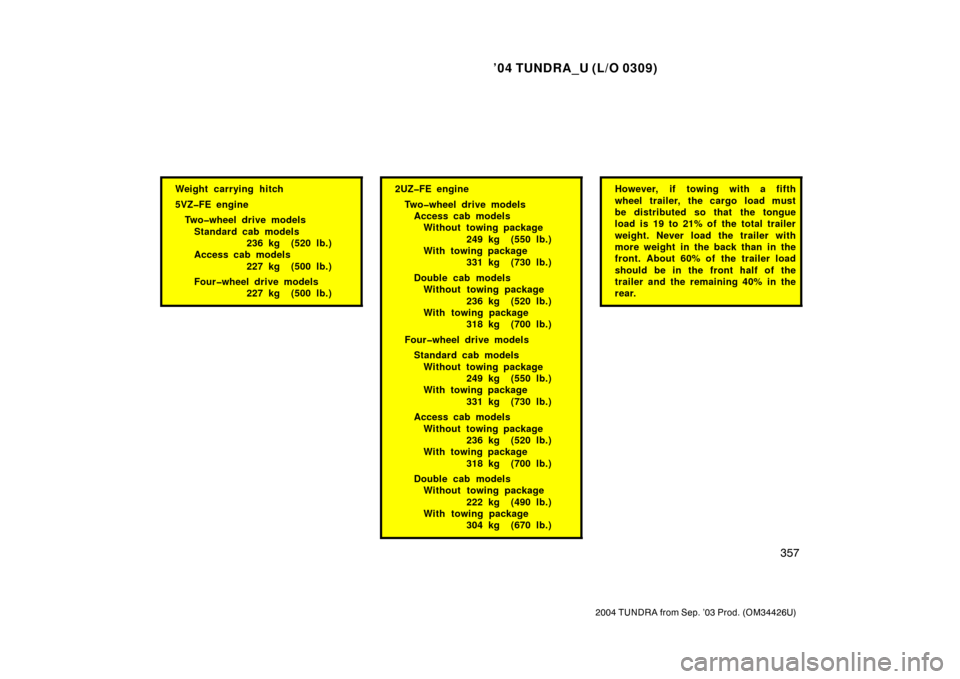

Weight carrying hitch
5VZFE engine
Twowheel drive modelsStandard cab models 236 kg (520 lb.)
Access cab models
227 kg (500 lb.)
Fourwheel drive models 227 kg (500 lb.)2UZFE engine
Twowheel drive modelsAccess cab models Without towing package
249 kg (550 lb.)
With towing package 331 kg (730 lb.)
Double cab models Without towing package
236 kg (520 lb.)
With towing package 318 kg (700 lb.)
Fourwheel drive models Standard cab models Without towing package 249 kg (550 lb.)
With towing package
331 kg (730 lb.)
Access cab models Without towing package 236 kg (520 lb.)
With towing package
318 kg (700 lb.)
Double cab models Without towing package
222 kg (490 lb.)
With towing package 304 kg (670 lb.)However, if towing with a fifth
wheel trailer, the cargo load must
be distributed so that the tongue
load is 19 to 21% of the total trailer
weight. Never load the trailer with
more weight in the back than in the
front. About 60% of the trailer load
should be in the front half of the
trailer and the remaining 40% in the
rear.

’04 TUNDRA_U (L/O 0309)
358
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
HITCHES
If you wish to install a trailer hitch, you
should consult with your Toyota dealer.
Use only a hitch recommended by the
hitch manufacturer and the one which
conforms to the total trailer weight
requirement.
The hitch must be bolted securely to
the vehicle frame and installed accord-
ing to the hitch manufacturer ’s instruc-
tions.
The hitch ball and king pin should have
a light coat of grease.
Toyota recommends removing the trail-
er hitch whenever you are not towing
a trailer to reduce the possibility of
additional damage caused by the hitch
if your vehicle is struck from behind.
After removing the hitch, seal any
mounting holes in the vehicle body to
prevent entry of pollutants such as ex-
haust fumes, dirt, water, etc.
NOTICE
Do not use axlemounted hitches as
they can cause damage to the axle
housing, wheel bearings, wheels or
tires. Also, never install a hitch which
may interfere with the normal function
of an Energy Absorbing Bumper, if so
equipped.
1 Trailer ball load rating

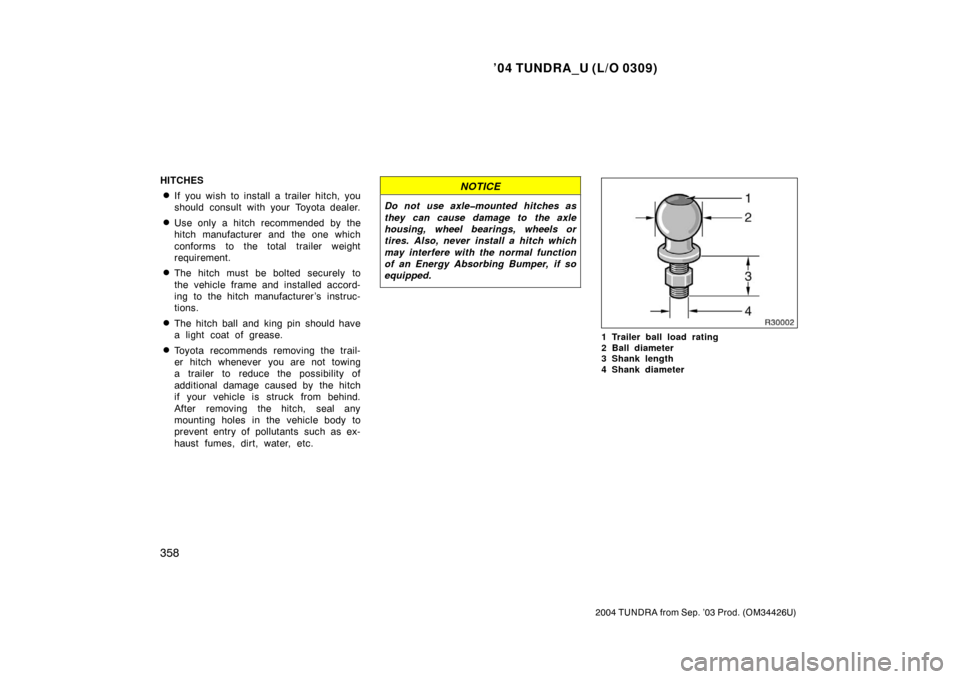

2 Ball diameter
3 Shank length
4 Shank diameter

’04 TUNDRA_U (L/O 0309)
359
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
TRAILER BALL
Follow these easy steps to properly deter-
mine the correct trailer ball for your ap-
plication:
1. Determine the correct trailer ball size for the trailer coupler. Most couplers
are stamped with the required trailer
ball size. The sizes you will most likely
find stamped on the coupler are:
Trailer class
Typical trailer ball size
IV2 5/16 in.
II and III2 in.
I1 7/8 in.
2. Select the appropriate trailer ball to match or exceed the gross trailer
weight rating of the trailer. The trailer
ball load rating should be printed on
the top of the ball.
3. When mounted in the ball mount, the threaded ball shank must protrude be-
yond the bottom of the lock washer
and nut at least 2 threads. The trailer
ball shank must be matched to the ball
mount hole diameter size.
NOTICE
Vehicles with 2UZFE engine (with
towing package)—Only use a ball
mount attachment specified for the
Toyota Tundra.
BUMPER TOWING

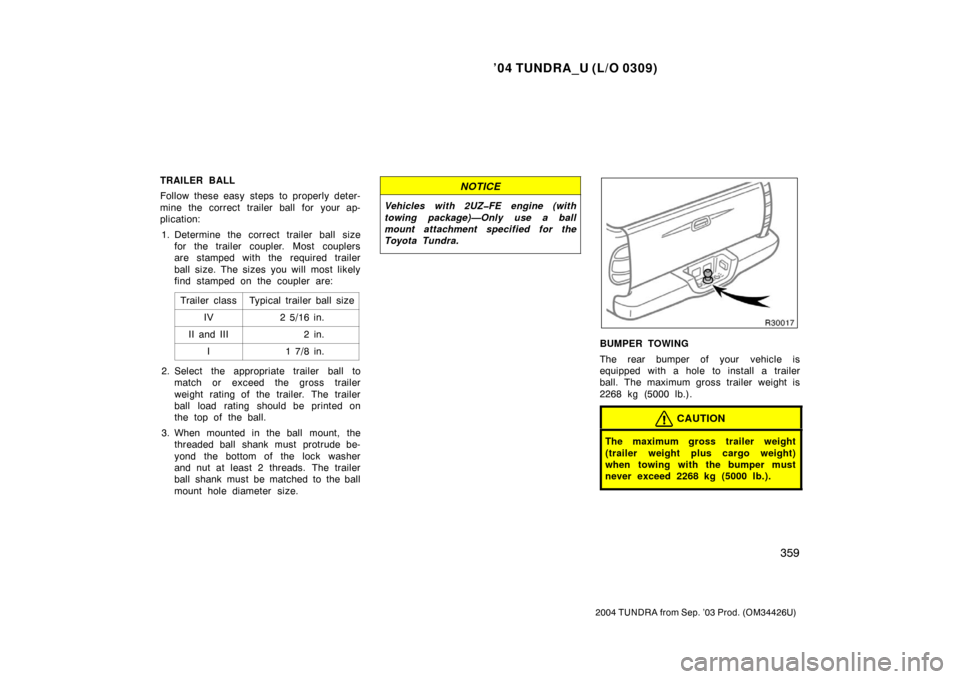

The rear bumper of your vehicle is
equipped with a hole to install a trailer
ball. The maximum gross trailer weight is
2268 kg (5000 lb.).
CAUTION
The maximum gross trailer weight
(trailer weight plus cargo weight)
when towing with the bumper must
never exceed 2268 kg (5000 lb.).
