2004 TOYOTA TUNDRA Owners Manual

’04 TUNDRA_U (L/O 0309)
48
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

’04 TUNDRA_U (L/O 0309)
49
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

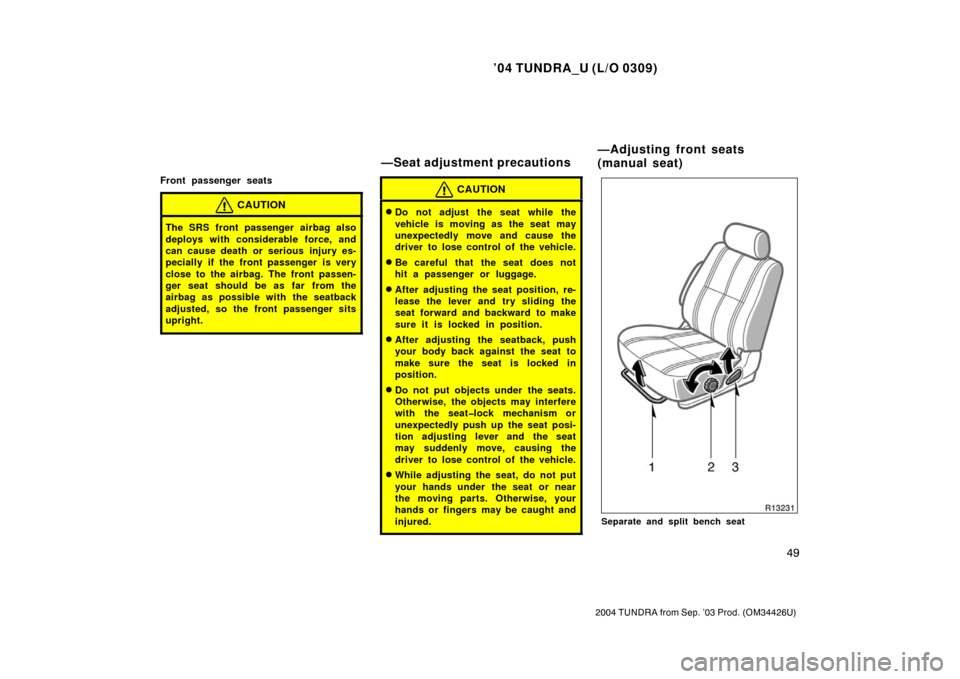

Front passenger seats
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
Separate and split bench seat
—Seat adjustment precautions —Adjusting front seats
(manual seat)

’04 TUNDRA_U (L/O 0309)
50
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Nonsplit bench seat
1. SEAT POSITION ADJUSTING LEVER
Separate and split bench seat: Hold the
center of the lever and pull it up. Then
slide the seat to the desired position
with slight body pressure and release
the lever.
Nonsplit bench seat: Pull the lever up.
Then slide the seat to the desired posi-
tion with slight body pressure and re-
lease the lever. 2. DRIVER’S SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.

’04 TUNDRA_U (L/O 0309)
51
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
1. SEAT POSITION AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT LUMBAR SUPPORT ADJUSTING SWITCH
Push the control switch on either way.
The amount of lumbar support will change
while the switch is pushed.
—Adjusting front seats (power
seats)

’04 TUNDRA_U (L/O 0309)
52
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
For easy access to the rear seat, do
this.
Lift the seatback angle adjusting lever or
press the pedal behind the seatback.
The seatback will tilt forward.
After passengers are in, lift up the seat-
back until it locks.
CAUTION
After putting back the seatback, try
pushing the seatback forward and
rearward to make sure it is secured
in place.
Never allow anyone to rest their
foot on the press pedal while the
vehicle is moving.
Pull the seatback lock release lever and
fold down the seatback.
Hold the lever until you have swung the
seatback forward slightly.
—Tilting passenger ’s seatback
for rear seat entry
(access cab models) —Folding seatback
(nonsplit bench seat)

’04 TUNDRA_U (L/O 0309)
53
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

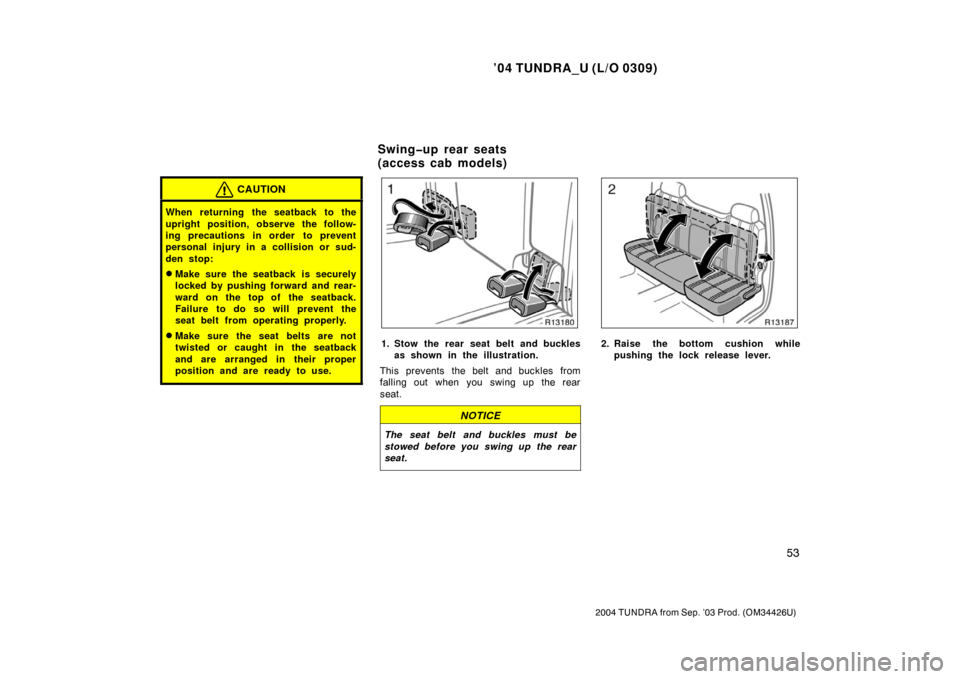

CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.1. Stow the rear seat belt and buckles
as shown in the illustration.
This prevents the belt and buckles from
falling out when you swing up the rear
seat.
NOTICE
The seat belt and buckles must be
stowed before you swing up the rear
seat.
2. Raise the bottom cushion while pushing the lock release lever.
Swingup rear seats
(access cab models)

’04 TUNDRA_U (L/O 0309)
54
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
When returning the bottom cushion to
its original position, observe the fol-
lowing precautions in order to pre-
vent personal injury in a collision or
sudden stop:
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the bottom cushion.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the bottom
cushion and are arranged in their
proper position and are ready to
use.BEFORE TUMBLING REAR SEATS
Stow the rear seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the seatback.
NOTICE
The seat belt buckles must be stowed
before you fold up the rear seat.
TUMBLING REAR SEATS
1. Lower the head restraints to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pu lling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
Tumbling rear seats
(double cab models)

’04 TUNDRA_U (L/O 0309)
55
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
To avoid serious injury, do not sit
on the folded seatback.
Use the seat lock release lever on
the side only when tumbling the
seat.
2. Take the holding strap out of its
hole, and hook the strap onto the
assist grip. Then, pull the strap on
the free end to secure the seat.
When returning the rear seat to its original
position, put the holding strap into the
hole.
CAUTION
When tumbling the rear seats, fix the
seats securely by adjusting the length
of the holding strap. Failure to do so
may cause an unexpected accident or
severe injury in the event of emergen-
cy braking or a collision.
WHEN RETURNING THE REAR SEATS
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it forcibly. Release the lock of the
seat belt in the following way. Push in
the lower front edge of the seatback
cushion to slacken the seat belt (1) and
let the seat belt retract a little (2).
