(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION

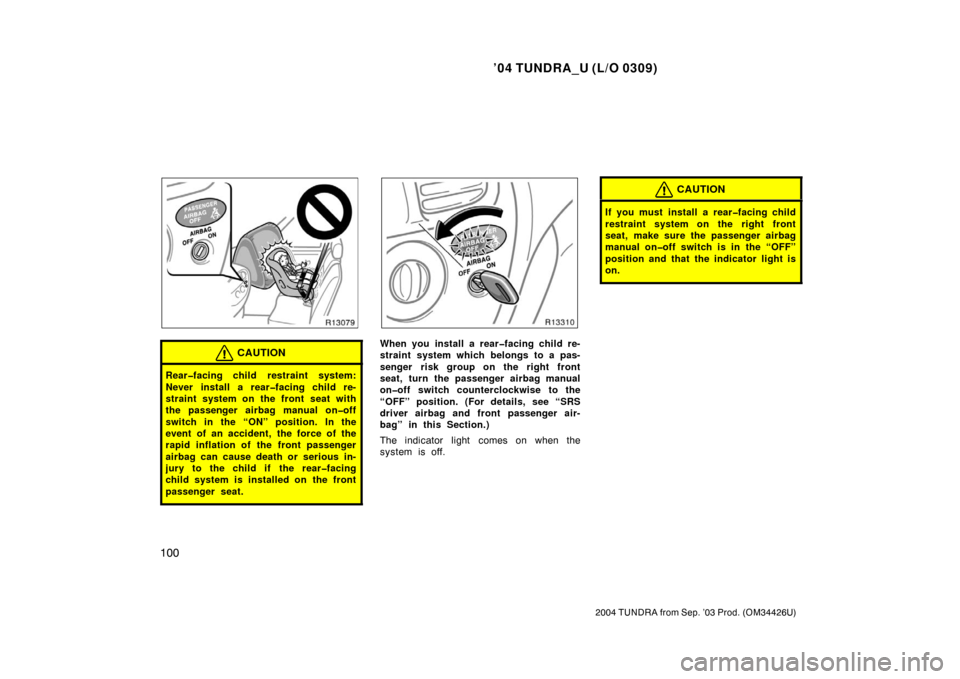

Never install a rearfacing child re-
straint system on the front seat with
the passenger airbag manual onoff
switch in the “ON” position. In the
event of an accident, the force of the
rapid inflation of the front passenger
airbag can cause death or serious in-
jury to the child if the rearfacing
child system is installed on the front
passenger seat.
When you install a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and front passenger air-
bag” in this Section.)
The indicator light comes on when the
system is off.
—Installation with 3point
type seat belt (standard and
access cab models)

’04 TUNDRA_U (L/O 0309)
97
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
If you must install a rearfacing child
restraint system on the right front
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.
CAUTION
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupants, may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

’04 TUNDRA_U (L/O 0309)
98
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

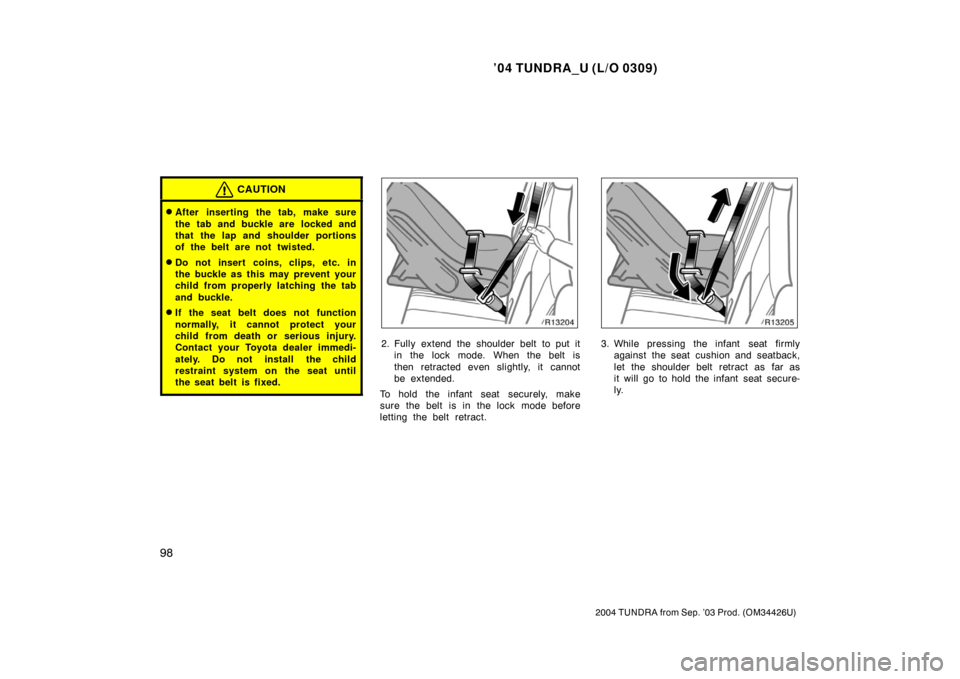

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

’04 TUNDRA_U (L/O 0309)
99
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION

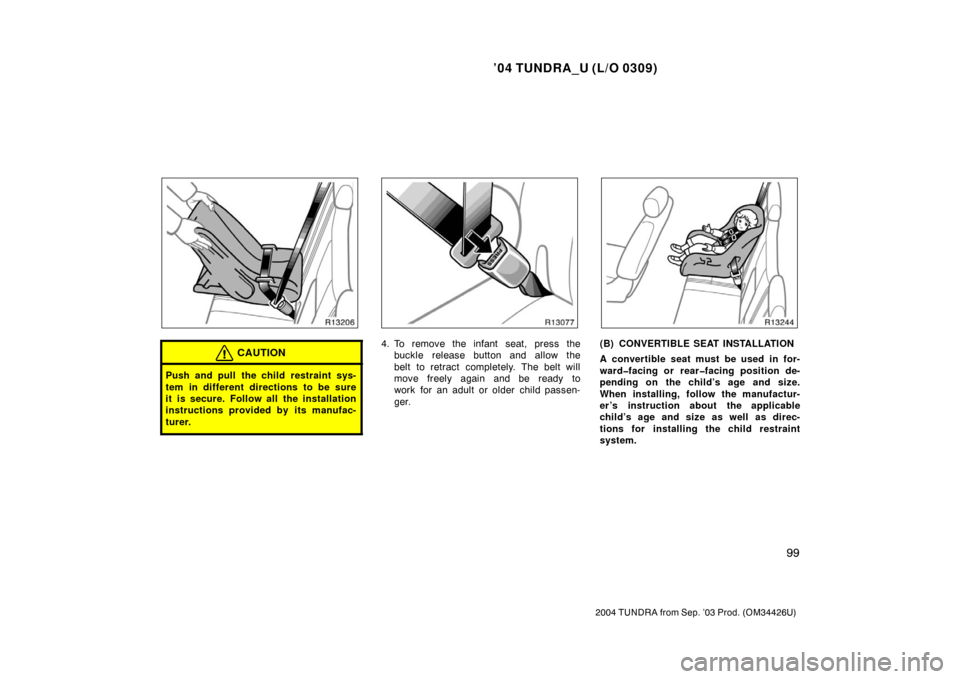

Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press the
buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the child’s age and size.
When installing, follow the manufactur-
er ’s instruction about the applicable
child’s age and size as well as direc-
tions for installing the child restraint
system.

’04 TUNDRA_U (L/O 0309)
100
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
Rearfacing child restraint system:

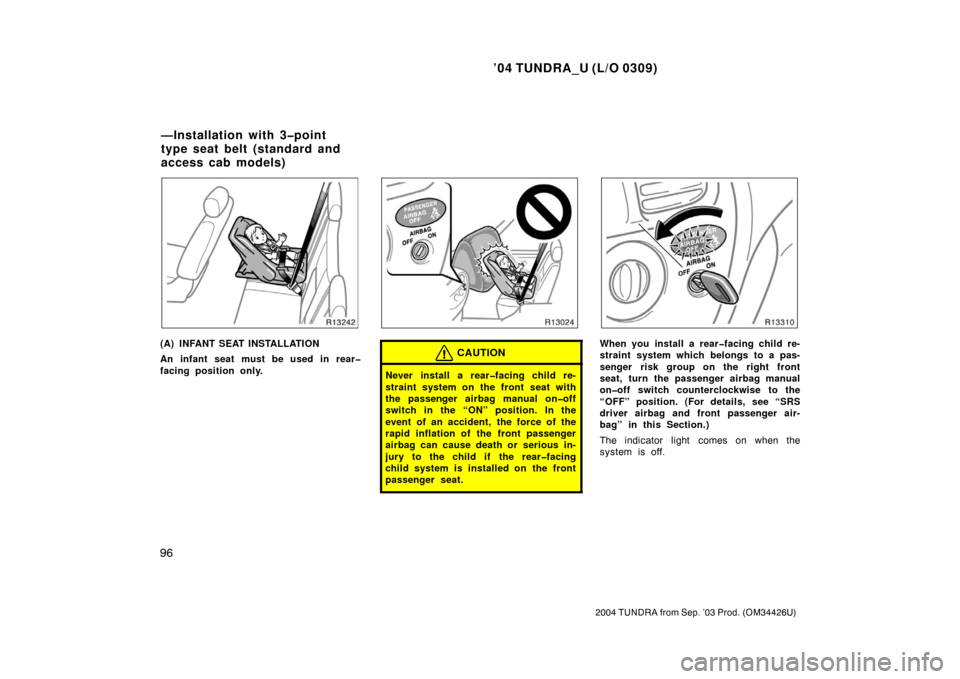

Never install a rearfacing child re-
straint system on the front seat with
the passenger airbag manual onoff
switch in the “ON” position. In the
event of an accident, the force of the
rapid inflation of the front passenger
airbag can cause death or serious in-
jury to the child if the rearfacing
child system is installed on the front
passenger seat.
When you install a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and front passenger air-
bag” in this Section.)
The indicator light comes on when the
system is off.
CAUTION
If you must install a rearfacing child
restraint system on the right front
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.

’04 TUNDRA_U (L/O 0309)
101
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION

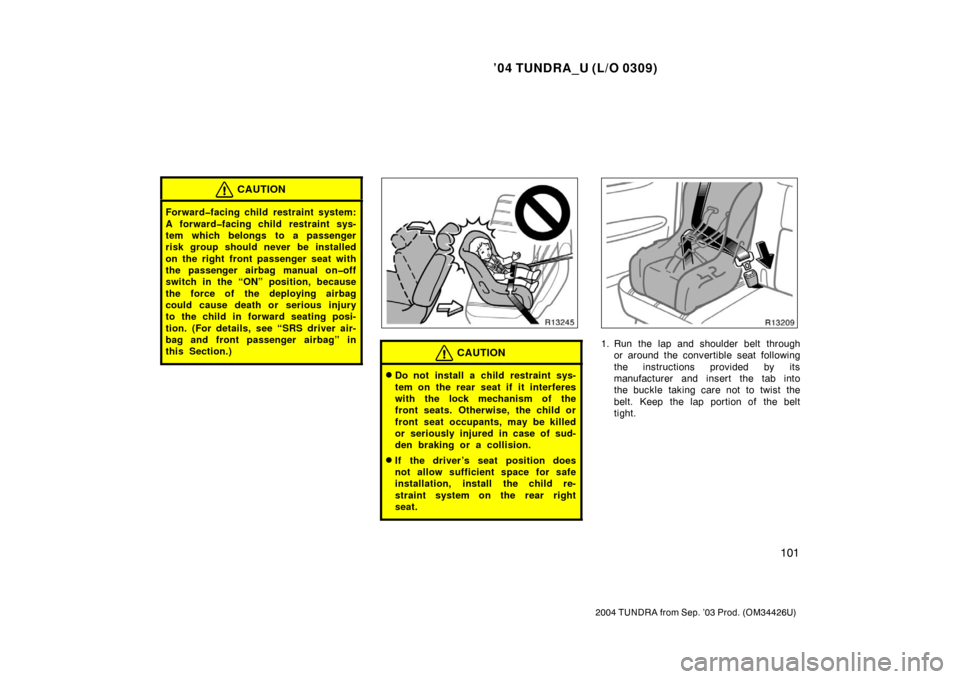

Forwardfacing child restraint system:
A forwardfacing child restraint sys-
tem which belongs to a passenger
risk group should never be installed
on the right front passenger seat with
the passenger airbag manual onoff
switch in the “ON” position, because
the force of the deploying airbag
could cause death or serious injury
to the child in forward seating posi-
tion. (For details, see “SRS driver air-
bag and front passenger airbag” in
this Section.)
CAUTION
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupants, may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

’04 TUNDRA_U (L/O 0309)
102
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

’04 TUNDRA_U (L/O 0309)
103
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION

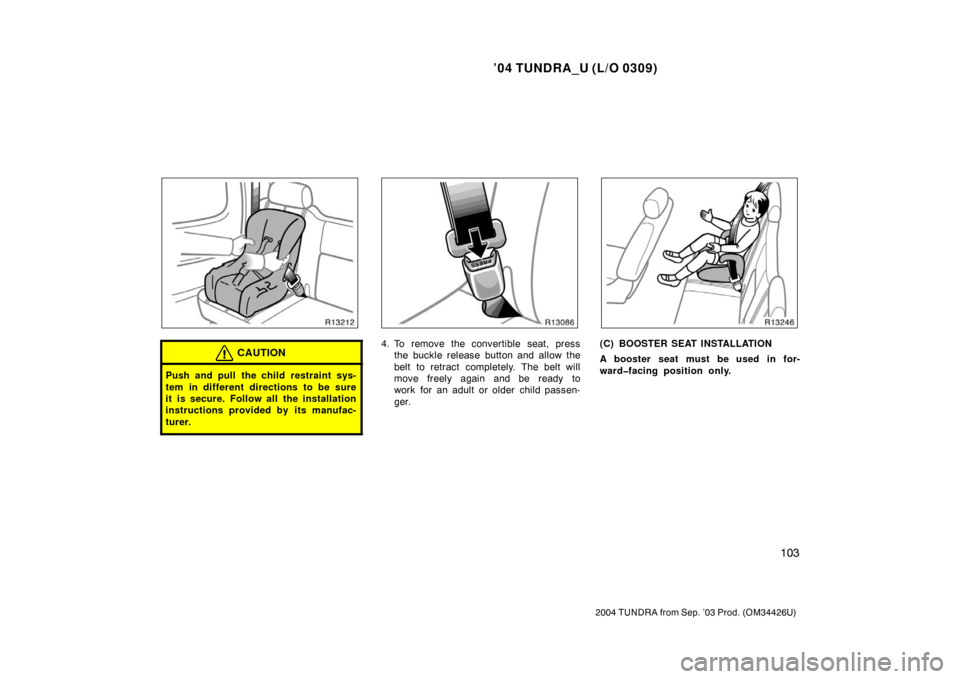

Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
