42. ST3 30 A: Starting system, “STA” fuse
43. POWER 30 A: Power door lock sys-
tem, power windows, power seat
Fuse (type C)
44. FL ALT 100 A (without towing pack- age) or 140 A (with towing package):
“AM1”, “HTR”, “J/B”, “MIR HTR”,
“FOG”, “TOW BRK”, “SUB BATT”,
“TOW TAIL”, “PWR OUTLET 1” and
“PWR OUTLET 2” fuses
Engine compartment
Fuses (type A)
1. HLP RH 10 A (with daytime running light system): Right−hand headlight
(high beam)
2. HLP LH 10 A (with daytime running light system): Left−hand headlight
(high beam)
3. A/C 7.5 A: Air conditioning system
4. HLP RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
5. HLP LL 10 A (with daytime running light system): Left−hand headlight (low
beam)
Engine compartment
6. RSE 7.5 A: Rear seat audio system,
rear seat entertainment system
7. TOWING TAIL 30 A: Trailer lights (tail
lights)
8. BATT CHARGE 30 A: Trailer sub bat-
tery
9. TOWING BRK 30 A: Trailer brake con-
troller
10. CARGO LP 7.5 A: Cargo lamp
11. SPARE 15 A: Spare fuse
12. SPARE 20 A: Spare fuse
13. SPARE 30 A: Spare fuse
Fuses (double cab models)

’04 TUNDRA_U (L/O 0309)
457
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
Engine compartment
14. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
15. EFI NO.1 20 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electric throttle control
system
16. HLP RH 15 A (without daytime run- ning light system): Right−hand head-
light
17. TOWING 30 A: Trailer lights (stop
lights, turn signal lights)
18. ALTS 7.5 A: Charging system
Front passenger’s side cowl panel
19. DRL 15 A (with daytime running light
system): Daytime running light system
HLP LH 15 A (without daytime run-
ning light system): Left−hand head-
light
20. AM2 25 A: Starting system
21. TURNHAZ 20 A: Turn signal lights,
emergency flashers
22. RAD NO.3 20 A: Car audio/video sys-
tem
Instrument panel
23. ST 30 A: Starting system, “STA” fuse
24. HORN 10 A: Horns
25. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, electronic throttle control
system
26. DOME 10 A: Center interior and per-
sonal lights, personal lights, gauges
and meters, clock, ignition switch light,
door courtesy lights, step light, vanity
lights

’04 TUNDRA_U (L/O 0309)
458
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
27. ECUB 7.5 A: Multiplex communication
system (power door lock system, secu-
rity system, headlight and tail light auto
cut system, illuminated entry system,
daytime running light system), driver
and front passenger door lock system,
gauges and meters, wireless door lock
system, vehicle stability control system,
door courtesy lights
28. MIR HTR 15 A: Outside rear view mir-
ror heaters
29. RAD NO.1 25 A: Car audio system
30. STA 7.5 A: Starting system
31. TAIL 15 A: Tail lights, trailer lights (tail
lights), parking lights, multiport fuel in-
jection system/sequential multiport fuel
injection system, license plate lights
32. ECUIG 10 A: Charging system, cruise
control system, anti −lock brake system,
vehicle stability control system, traction
control system, electronically controlled
automatic transmission system, electric
moon roof, driver and front passenger
door lock system, gauges and meters,
multi −information display, power outlets
33. WSH 25 A: Wipers and washer
34. AC INV 15 A: Power outlets 35. IGN 2 20 A:
Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
36. PWR NO.3 20 A: Rear passenger ’s
power window (right side)
37. PWR NO.4 20 A: Rear passenger ’s
power window (left side)
38. CIG 15 A: Cigarette lighter
39. RAD NO.2 7.5 A: Car audio/video sys-
tem, rear seat audio system, rear seat
entertainment system, power rear view
mirror control, power outlets, multiplex
communication system (power door
lock system, security system, headlight
and tail light auto cut system, illumi-
nated entry system, daytime running
light system), clock, shift position indi-
cator lights
40. 4WD 20 A: A.D.D. control system,
four −wheel drive system
41. STOP 15 A: Stop lights, high− mounted
stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, vehicle stability control system,
traction control system, trailer light
(stop lights), trailer brake controller,
multiplex communication system
42. OBD 7.5 A: On−board diagnosis sys-
tem 43. PANEL 7.5 A:
Instrument panel lights,
glove box light, lights of seat heaters,
cigarette lighter, ashtrays, multi −infor-
mation display, car audio/video system,
gauges and meters, air conditioning
systems, power outlets
44. PWR NO.1 25 A: Driver ’s door lock
system driver’s power wi ndow
45. WIP 25 A: Wiper and washers
46. IGN 1 10 A: Charging system, SRS
airbag system, multiport fuel injection
system/s equential multiport fuel injec-
tion system, vehicle stability control
system
47. SUN ROOF 25 A: Electric moon roof
48. PWR NO.2 25 A: Front passengers’
door lock system, front passenger ’s
power window
49. HTR 10 A: Air conditioning systems,
electric cooling fan, rear window defog-
ger, outside rear view mirror heater,
seat heaters
50. FOG 15 A: Front fog lights

’04 TUNDRA_U (L/O 0309)
459
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
51. GAUGE 15 A: Back−up lights, gauge
and meters, emergency flashers, slip
indicator light, vehicle stability control
system, four −wheel drive system, trailer
lights (back −up lights), multiport fuel
injection system/sequential multiport
fuel injection system, shift position indi-
cator lights
52. PWR OUTLET 15 A: Power outlets
53. SEAT HTR 15 A: Seat heaters
Fuses (type B)
54. ABS NO.1 30 A (without vehicle sta- bility control system) or ABS NO.1
50 A (with vehicle stability control
system): Anti−lock brake system
55. HEATER 50 A: Air conditioning system
56. DEFOG 40 A: Rear window defogger
57. MAIN 40 A: “H−LP RH”, “H −LP LH”
“H −LP LL” and “H −LP RL” fuses
58. DOOR NO.2 30 A: Multiplex commu-
nication system (power door lock sys-
tem, security system)
59. PWR SEAT 30 A: Power front seats
60. AM1 40 A: “HTR”, “CIG”, “GAUGE”,
“RAD NO.2”, “ECU −IG”, “WIP”, “WSH”
and “4WD” fuses
61. PWR NO.5 30 A: Power rear window Fuses (type C)
62. ALT 140 A: “DEFOG”, “ABS NO.1”,
“CARGO LP”, “HEATER”, “AM1”, “PWR
SEAT”, “TAIL”, “STOP”, “SUN ROOF”,
“PANEL”, “OBD”, “FOG”, “PWR NO.1”,
“PWR NO.2”, “PWR NO.5”, “AC INV”,
“PWR NO.3”, “PWR NO.4”, “PWR OUT-
LET”, “SEAT HTR” “BATT CHARGE”,
“TOWING BRK”, and “TOWING TAIL”
fuses
63. ABS NO.2 60 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system

’04 TUNDRA_U (L/O 0309)
460
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)
461
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND CAMPER INFORMATION
Reporting safety defects for U.S. owners and camper
information
Reporting safety defects for U.S. owners 462
. . . . . . . . . . . . . . . . . . . . . .
Camper information 462
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 9

’04 TUNDRA_U (L/O 0309)
462
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Ad-
ministration (NHTSA) in addition to
notifying Toyota Motor Sales,
U.S.A., Inc. (Tollfree:
18003314331).
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become in-
volved in individual problems be-
tween you, your dealer, or Toyota
Motor Sales, U.S.A., Inc. To contact NHTSA, you may either
call the Auto Safety Hotline tollfree
at 18004249393 (or 3660123 in
Washington, D.C. area) or write to:
NHTSA, U.S. Department of Trans-
portation, Washington, D.C. 20590.
You can also obtain other informa-
tion about motor vehicle safety from
the Hotline.This information has been prepared in ac-
cordance with regulation issued by the Na-
tional Highway Traffic Safety Administra-
tion of the U.S. Department of
Transportation. It provides the purchasers
and/or prospective purchasers of Toyota
vehicles with information on truck
−camper
loading. Your Toyota dealer will help an-
swer any questions you may have as you
read this information.
Reporting safety defects for
U.S. owners Camper information—

’04 TUNDRA_U (L/O 0309)
463
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

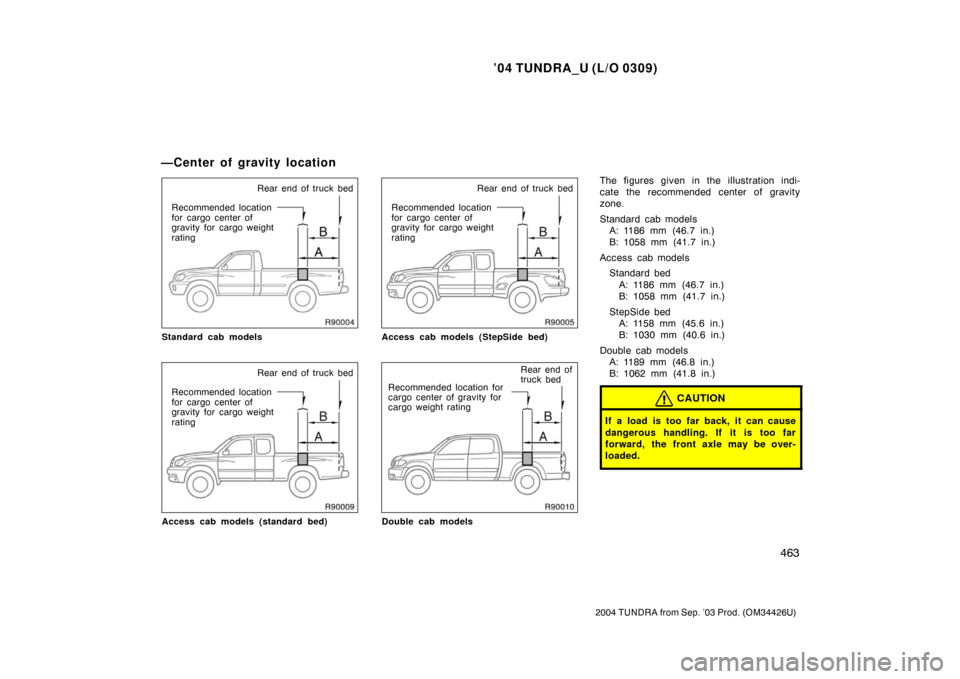

Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Standard cab models
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (standard bed)
Rear end of truck bed
Recommended location
for cargo center of
gravity for cargo weight
rating
Access cab models (StepSide bed)
Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of
truck bed
Double cab models
The figures given in the illustration indi-
cate the recommended center of gravity
zone.
Standard cab models A: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
Access cab models Standard bedA: 1186 mm (46.7 in.)
B: 1058 mm (41.7 in.)
StepSide bed A: 1158 mm (45.6 in.)
B: 1030 mm (40.6 in.)
Double cab models A: 1189 mm (46.8 in.)
B: 1062 mm (41.8 in.)
CAUTION
If a load is too far back, it can cause
dangerous handling. If it is too far
forward, the front axle may be over-
loaded.
—Center of gravity location
