2004 TOYOTA TUNDRA Owners Manual

’04 TUNDRA_U (L/O 0309)
128
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

’04 TUNDRA_U (L/O 0309)
129
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Outside rear view mirrors 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 133
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

’04 TUNDRA_U (L/O 0309)
130
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt steering wheel Outside rear view mirrors—

’04 TUNDRA_U (L/O 0309)
131
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the outside rear view
mirror heater switch is on.
Standard and access cab models
Double cab models
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

’04 TUNDRA_U (L/O 0309)
132
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

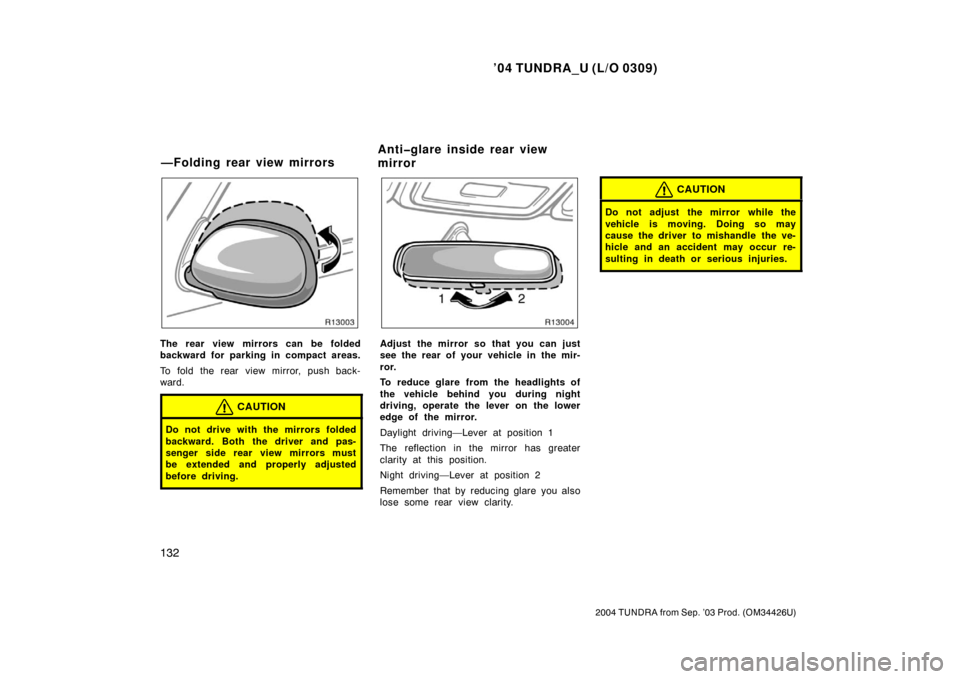

The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
—Folding rear view mirrors Antiglare inside rear view
mirror

’04 TUNDRA_U (L/O 0309)
133
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)

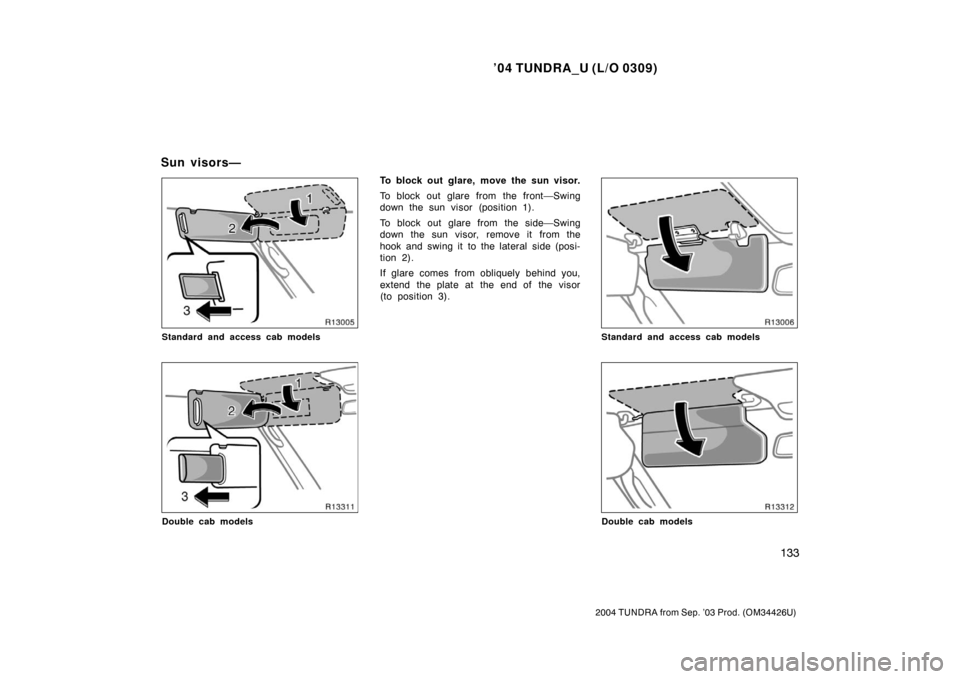

Standard and access cab models
Double cab models
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
Standard and access cab models
Double cab models
Su n viso rs—

’04 TUNDRA_U (L/O 0309)
134
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
To block the glare from the front when the
main sun visor is swung to the lateral
side (position 2), swing down the sub vi-
sor.
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
Standard and access cab models
Double cab models
To use the vanity mirrors, swing down
the sun visor and open the cover.
The vanity light(s) comes on when you
open the cover.
—Vanity mirrors (with light)

’04 TUNDRA_U (L/O 0309)
135
2004 TUNDRA from Sep. ’03 Prod. (OM34426U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights and Wipers
Headlights and turn signals 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Personal lights 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Center interior and personal lights 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch and step lights 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo lamp 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Windshield wipers and washer 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror heaters 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 145
. . . . . . . . . . .
SECTION 1 5
