2004 Peugeot Partner VP Owner's Manual

22-12-2003
10YOUR PARTNER AT A GLANCE
HEATING
N¡ Symbol Function
Air flow adjustment.
1
Air flow adjustment and air intake control.
2 3
Air distribution adjustment.
4 Temperature adjustment.
50

22-12-2003
AIR CONDITIONING
52
N¡ Symbol Function
Air conditioning control.
1
Air flow adjustmentand air intake control.
2 3
Air distribution adjustment.
4 Temperature adjustment.
11YOUR PARTNER AT A GLANCE

12YOUR PARTNER AT A GLANCE
22-12-2003

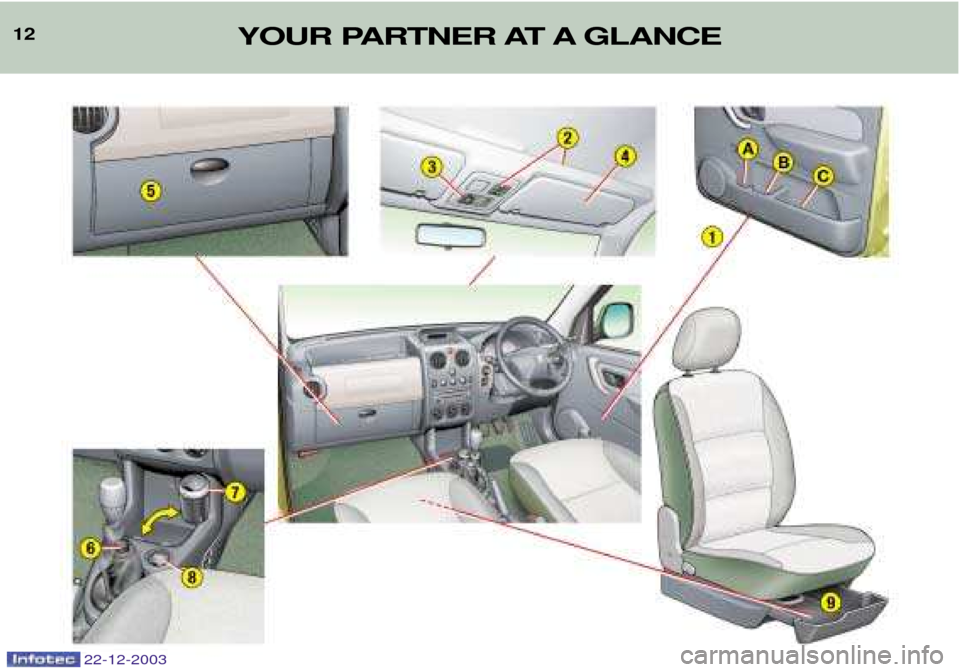

FRONT FITTINGS
1. DOOR STORAGE COMPARTMENTSA.Bottle holder.
B. Can holder.
C. Storage compartment.
2. OVERHEAD STORAGE WITH MAP READING LIGHT
3. COURTESY LIGHT
4. SUN VISORS
5. GLOVE BOX To open the glove box with lid, lift the handle (version with air conditioning).
6. LIGHTER
7. REMOVABLE ASHTRAY Lift the lid to open the ashtray.
To empty it, after opening, remove it by pulling upwards.
8. 12 V ACCESSORIES SOCKET This is located at the bottom of the centre console.
It permits the connection of a telephone charger, a baby's bottle warmer,...
9. STORAGE DRAWER To open, lift it slightly and pull forwards.
13
22-12-2003
81
YOUR PARTNER AT A GLANCE

14YOUR PARTNER AT A GLANCE
OPENING THE BONNET Inside the vehicle:Pull the
control on the left-hand side, under the fascia panel. Outside the vehicle: Lift
the control, raise the bonnet and secure thestrut to keep the bonnetopen.
FILLING WITH FUEL This operation must be carried out with
the engine switched off.
 Insert the key then turn it to the left.
 Remove the cap.
An indication shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump. This could cause a malfunction. The capacity of the tank is approximately 55 litres for petrol engines and 60 litres for Diesel engines. Note: the right-hand sliding side door cannot be opened while the fuel tank
cap is removed.
Low fuel level warning light From the time this light comes on, you have enough fuel left to cover approximately 30 miles (50 km) .
7271
22-12-2003

22-12-2003
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30 000 km) or every two years.
¥ For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years.
¥ For indirect injection diesel engines: every 10,000 miles (15 000 km) or every two years.
Your service indicator informs you when a service is due; the point at which a service is due is calculated from the last indicator zero reset (see corresponding section). This point is determined by two parameters:- the distance travelled,- the time elapsed since the last service.Note:the distance remaining may be weighted by the time factor, depending on the driver's style of driving.
The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 10,000 miles (15 000 km) for petrol engines; every 6,000 miles (10 000 km) for direct injection diesel engines and every 5,000 miles (7 500 km) for indirect injection diesel engines.
A PEUGEOT dealer will carry out a quick check and top up the levels if necessary (oil, coolant, windscreen wash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2,000 to 3,000 miles (3 000 to 5 000 km), depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO USE ONLY LUBRICANTS WHICH ARE SUITED TO YOUR ENGINE AND RECOMMENDED
BY THE MANUFACTURER (see "Lubricants" pages).
PEUGEOT SERVICING
18

22-12-2003
PEUGEOT SERVICING19
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The brake fluid must be replaced every 36,000/40,000 miles (60 000 km) or every 2 years.
The passenger compartment filter must be checked at each visitto the PEUGEOT dealer (intermediate visits and
regular services).The timing belt : consult your PEUGEOT dealer.
Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold in low temperatures.
Or in long stays in the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.¥ Cold countries with temperatures often below minus 15 ¡C.¥ Countries with a dusty atmosphere.¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous Conditions" servicing schedule, which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year for petrol engine vehicles. ¥ Every 10,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.¥ Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.

22-12-2003
PEUGEOT SERVICING19
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The brake fluid must be replaced every 36,000/40,000 miles (60 000 km) or every 2 years.
The passenger compartment filter must be checked at each visitto the PEUGEOT dealer (intermediate visits and
regular services).The timing belt : consult your PEUGEOT dealer.
Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold in low temperatures.
Or in long stays in the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.¥ Cold countries with temperatures often below minus 15 ¡C.¥ Countries with a dusty atmosphere.¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous Conditions" servicing schedule, which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year for petrol engine vehicles. ¥ Every 10,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.¥ Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.
