2004 Peugeot Partner VP Owner's Manual

YOUR PARTNER IN DETAIL49
22-12-2003
VENTILATION 1
. Windscreen de-icing or demisting vents.
2 . Front window de-icing or demisting vents.
3 . Side vents.
4 . Centre vents.
5 . Air outlets to front footwells.
Advice on operation
- Select the air distribution most suited to your requirements and the climatic conditions.
- Gradually adjust the temperature setting for your comfort.
- Position the air control in the ''Outside Air'' position.
- For perfectly even air distribution, take care not to obstruct the exterior air intake grille and the vents. Check that the pa s-
senger compartment filter is in good condition.
De-icing the rear screen and mirrors With the engine running, pressing the control de-ices the rear screen and mirrors.
It switches off automatically after approximately twelve minutes.Pressing the control again switches the de-icing system on again for twleve minutes.
It is possible to switch off the de-icing by pressing the control before the twelve minutes have elapsed.

2. Air flow adjustment and airintake control
Turn the control from position 1to position 4to
obtain an air flow sufficientto ensure your comfort.
Intake of exterior air.
This is the normal operating position. Passenger compartmentisolation.
This position prevents exteriorodours and smoke entering the passenger compartment. As soon as possible, position thecontrol in the exterior air intakeposition to prevent misting of thewindows.
HEATING
1. Air flow adjustment
Turn the control from position 1to position 4to
obtain an air flow sufficientto ensure your comfort.
YOUR PARTNER IN DETAIL
50
22-12-2003

Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended forhigh temperatures.
4. Air distribution adjustment
Windscreen and side windows (de-icing/demisting).
To quickly de-ice or demist the windscreen and side windows:
- position the air intake control in the ''Outside Air" position,
- turn the temperature and air flow controls to maximum,
- close the centre vents.
YOUR PARTNER IN DETAIL 51
22-12-2003
3. Temperature adjustment
To be adjusted to your requirements. From blue (exterior temperature) to red (hot).

1. Air conditioning
The air conditioning is designed to operate in all seasons. In summer, it enables
the temperature to be lowered and in winter, above 0¡ C, it increases the
effectiveness of the demisting.Press the switch to activate the air conditioning. The indicator light comes on. 2. Air flow adjustment and air
intake control
Turn the control from position 1to position 4to
obtain an air flow sufficientto ensure your comfort.
YOUR PARTNER IN DETAIL
52
22-12-2003
AIR CONDITIONING
The air conditioning does not operate while the air flow adjustment control is in the minimum position. Note: It is quite normal that the condensation created by the air conditioning
results in a flow of water under the vehicle when it is stationary.

4. Air distribution adjustmentWindscreen and side windows (de-icing/demisting).
To quickly de-ice or demist the windscreen and side windows:
- turn the temperature and air flow controls to maximum,
- close the centre vents,
- position the air intake control in the "Outside Air" position,
- start the air conditioning.
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended forhigh temperatures.
Intake of exterior air.
This is the normal operating position.
Recirculation of interior air.
This position prevents exteriorodours and smoke entering the passenger compartment. Used simultaneously with the air conditioning, recirculation enablesboth heating and cooling performance to be improved. Used without the air conditioning, recirculation may result in misting of the windows. As soon as possible, position the control in the exterior air intake position.
YOUR PARTNER IN DETAIL 53
22-12-2003
3. Temperature adjustment
To be adjusted to your requirements.From blue (cold when the air conditioning is on) to red (hot).
Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order.
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer. Note:
to optimise the operation of
the air conditioning, leave the vents open.

22-12-2003
YOUR PARTNER IN DETAIL
54

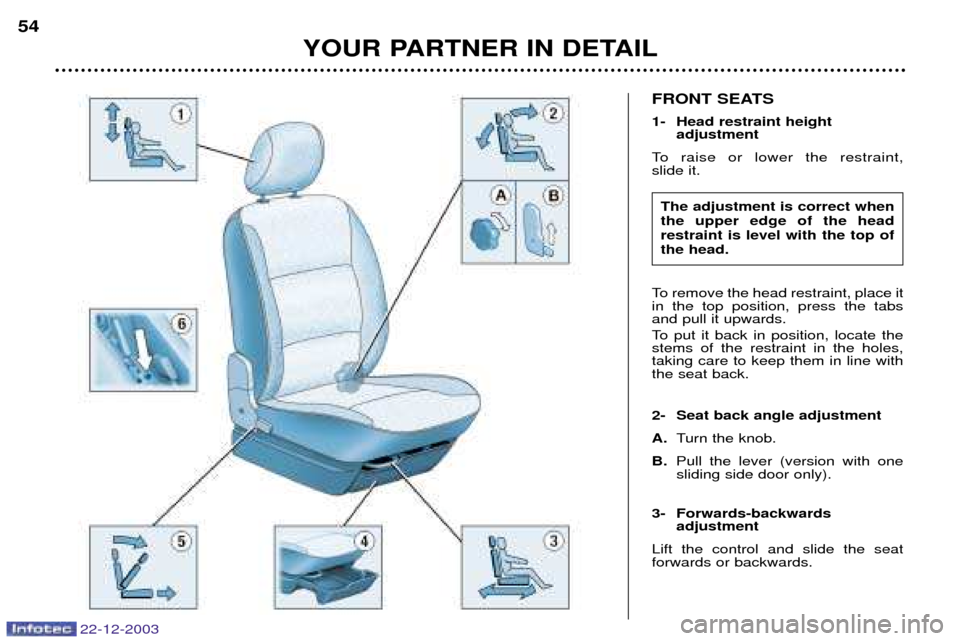

FRONT SEATS
1- Head restraint height
adjustment
To raise or lower the restraint, slide it.
To remove the head restraint, place it in the top position, press the tabsand pull it upwards.
To put it back in position, locate the stems of the restraint in the holes,taking care to keep them in line withthe seat back.
2- Seat back angle adjustment A. Turn the knob.
B. Pull the lever (version with one
sliding side door only).
3- Forwards-backwards adjustment
Lift the control and slide the seat forwards or backwards.
The adjustment is correct when the upper edge of the headrestraint is level with the top ofthe head.

22-12-2003
YOUR PARTNER IN DETAIL55
Never drive with the head restraints removed; theymust be in place and correctly adjusted.
Do not place heavy objects in thedrawers.
4- Storage drawer (version with passenger air bag)
There is a storage drawer under the front passenger seat.
To open it, lift it and pull.
5- Access to rear seats (version with one sliding side door only)
Lift the control to fold the seat backand move the seat forwards. On repositioning, the seat returns to its initial position (driver's side). 6- Heated seats switch
Press the switch. The temperature is
controlled automatically. Pressing the switch again stops operation. Note:
the command for activation of
heating of the seat(s) remains memorised for two minutes after the
ignition has been switched off.
No person or object mustprevent the seat fromreturning to its initial position; return to this
position is necessary for the seatto lock in place.

22-12-2003
YOUR PARTNER IN DETAIL
56
REAR SEAT
To fold the rear seat:
- lower the head restraint,
- press control
1to unlock the seat back 2,
- fold the seat back 2onto the seat,
- place the seat in the "folded" position. When repositioning:
- tilt the folded seat rearwards,
- lift the seat back,
- check that the seat is locked correctly.
Take care not to trap the seat belts.
