SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to themanufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows thedistance remaining (in round figures)before the next service. Example:4,800 miles/km remain
before the next service is due. When the ignition comes on and for 5 seconds the display indicates: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and thedisplay shows the total or trip dis-tances. The distance remaining before thenext service is less than 500 miles(1,000 km). Example:
400 miles (900 km)
remain before the next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances. The service is overdue. Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 miles/km. The service should be
carried out very shortly. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and the
symbol remains lit. The displayshows the total or trip distances. Note: the service spanner lights if
the two-year interval has been exceeded (see "PEUGEOTServicing" section).
PEUGEOT SERVICING
20

22-12-2003
PEUGEOT SERVICING21
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service. The reset procedure is as follows: - Switch off the ignition.
- Press and hold button 1.
- Switch on the ignition.
The display begins a 10 second countdown.
- Keep button 1pressed for
10 seconds.
The display shows [= 0]and the ser-
vice symbol disappears.

TYPES OF SERVICE Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating two types of service, A and C, intermediate visits and a few additional operations depending on your vehicle; these correspond to key stages in the life of your vehicle. When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
22-12-2003
THE MAINTENANCE CYCLE FOR YOUR PARTNER PETROL
Service every 20,000 miles (30,000 km) or 2 years.
1st service at 6,000 miles(10,000 km) or 6 months*.
This is necessary in
order to benefit from the warranty.
* Whichever comes first.
Intermediate top-up visit included in the Fixed Services.
MILES (KM) 20,000 (30,000) 40,000 (60,000) 60,000 (90,000) 80,000 (120,000)
100,000 (150,000) 120,000 (180,000) 140,000 (210,000) 160,000 (240,000) 180,000 (270,000)
These services are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil may also be used.
Arduous conditions of use (see corresponding section).

PEUGEOT SERVICING23
22-12-2003
Intermediate top-up visit included in the Fixed Services.
THE MAINTENANCE CYCLE FOR YOUR PARTNER TURBO DIESEL HDI
Service every 12,000 miles (20,000 km) or 2 years.
1st Service at 6,000 miles (10,000 km)
or 6 months*.
This is necessary in order
to benefit from the warranty.
These services are carried out with synthetic based oil; Fuel Economy oil or synthetic oil may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
MILES (KM) 12,000 (20,000) 24,000 (40,000) 36,000 (60,000) 48,000 (80,000) 60,000 (100,000)
72,000 (120,000) 84,000 (140,000) 96,000 (160,000) 108,000 (180,000) 120,000 (200,000) 132,000 (220,000) 144,000 (240,000)

22-12-2003
PEUGEOT SERVICING
24
Intermediate top-up visit included in the Fixed Services.
THE MAINTENANCE CYCLE FOR YOUR PARTNER INDIRECT INJECTION DIESEL
Service every 10,000 miles (15,000 km) or 2 years.
1st Service at 6,000 miles (10,000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
These fixed services are carried out with synthetic based oil; Fuel Economy oil or synthetic oil may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
MILES (KM)10,000/90,000 (15,000/135,000)20,000/100,000 (30,000/150,000) 30,000/110,000 (45,000/165,000)
40,000/120,000 (60,000/180,000) 50,000/130,000 (75,000/195 000) 60,000/140,000 (90,000/210,000) 70,000/150,000 (105,000/225,000)80,000/160,000 (120,000/240,00)

22-12-2003
PEUGEOT SERVICING25
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation1st serviceA C Intermediate
DRAIN/REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter- Petrol filter* (according to engine)REPLACE- Diesel filter or element (according to engine)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if cap is removableLEVEL- Screen wash (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)CHECK- Condition of rubber boots and gaiters- Brake pads - Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification) - Visual check of the whole vehicle
SERVICE*- Courtesy vehicleROAD TEST
: All driving conditions.: Arduous conditions. * According to destination.

DIESEL
DIESEL
PETROL PETROL
(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ; Diesel engines: ACEA B3 and API CF/CD.
ACEA = Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) -
API = American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.
* This Fuel Economy oil can only be used in engines designed for its use.

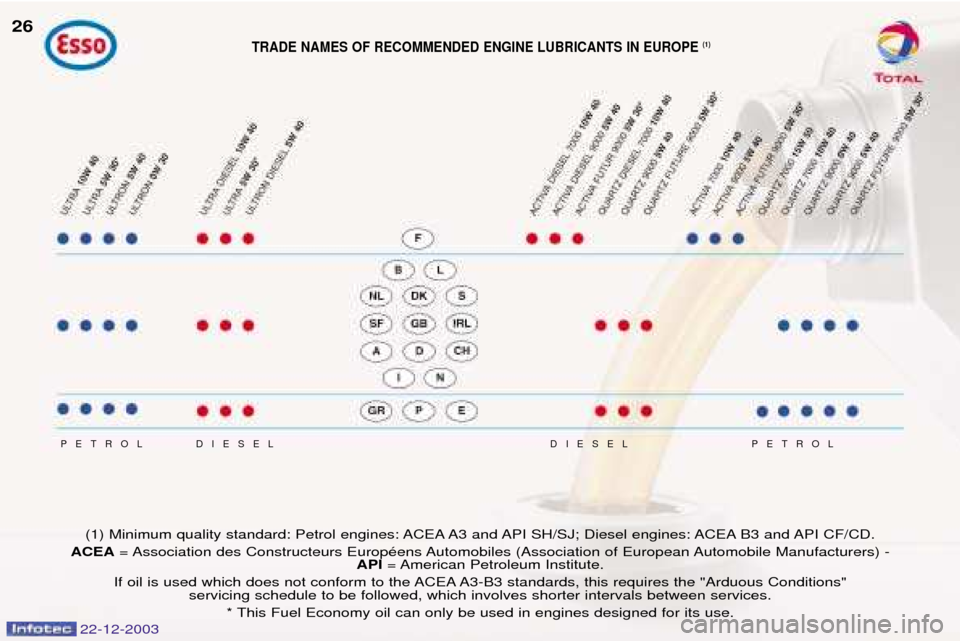

TRADE NAMES OF RECOMMENDED ENGINE LUBRICANTS IN EUROPE (1)
26
22-12-2003

27
PEUGEOT SERVICING
22-12-2003
Recommendations for recommended lubricants The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at whichthe oils are to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of ACEA A1/A2
and API SH/SJ/SL quality (for petrol
engines), or ACEA B1/B2 and APICD/CF quality (for diesel engines)may be used by following the"Arduous Conditions" servicingschedule which specifies shorterintervals. Do not hesitate to ask for advice
from a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
Other recommended products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLYprotection to -35¡C
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BV TOTAL TRANSMISSION BV
75W80 PR 9736.41 75W80 PR 9730.A2
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94 PR 9730.A3
