2004 Peugeot Partner VP Owner's Manual

INSTRUMENTS AND CONTROLS
28
22-12-2003

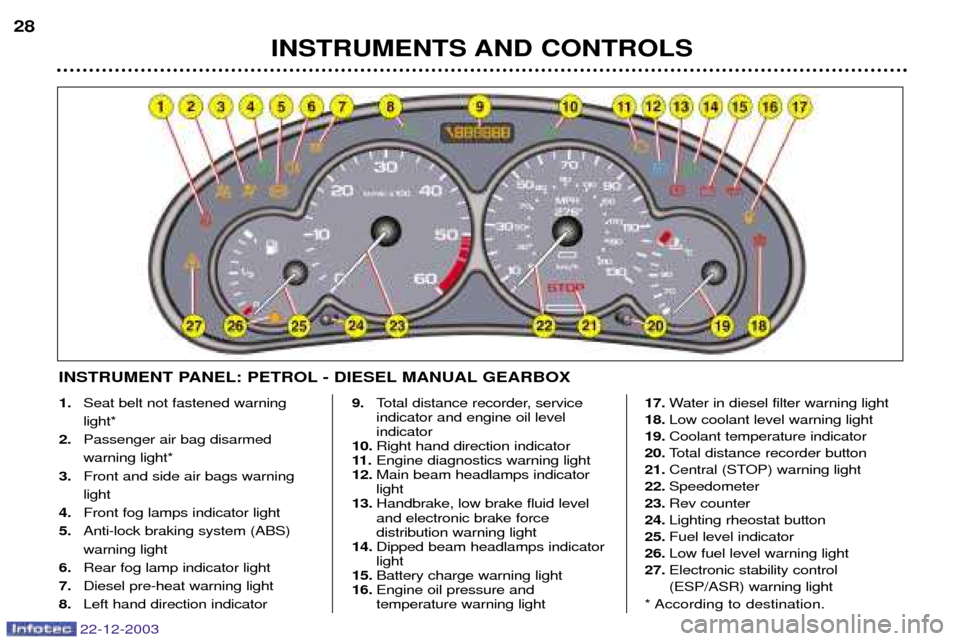

INSTRUMENT PANEL: PETROL - DIESEL MANUAL GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmed warning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator 9.
Total distance recorder, service indicator and engine oil level indicator
10. Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distribution warning light
14. Dipped beam headlamps indicatorlight
15. Battery charge warning light
16. Engine oil pressure and temperature warning light 17.
Water in diesel filter warning light
18. Low coolant level warning light
19. Coolant temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Rev counter
24. Lighting rheostat button
25. Fuel level indicator
26. Low fuel level warning light
27. Electronic stability control (ESP/ASR) warning light
* According to destination.

Handbrake, low brake fluid level andElectronic BrakeForce Distribution
system fault warning light
Linked to the central (STOP) war- ning light. This indicates one of the following:
- that the handbrake is applied or not fully released,
- an excessive drop in brake fluid level (if the warning light remains on even when the handbrake isreleased),
- a fault in the Electronic Brake Force Distribution system, if lit at
the same time as the ABS war-ning light.
You must stop.
Consult a PEUGEOT dealer.
INSTRUMENTS ANDCONTROLS
A permanently lit warning light or one flashing, with the engine run-ning, indicates an operating faultof the unit concerned. The illumi-nation of certain warning lightsmay be accompanied by anaudible signal and a message on
the multifunction display. Do notignore this warning: consult aPEUGEOT dealer as soon as pos-sible.
If the central STOP warning light comes on when you are driving,
stop your vehicle immediately,where it is safe to do so.
Anti-lock brakingsystem (ABS) warninglight
This comes on for a few secondseach time the ignition is switchedon. If the warning light remains on or comes on above 8 mph (12 km/h),
this indicates an ABS malfunction.
However, the vehicle retains conven- tional servo-assisted braking. Lighting of this warning light, accom- panied by an audible signal, indi-
cates an ABS fault.
Consult a PEUGEOT dealer.
Diesel engine low coolant level warninglight
Linked to the central (STOP) war-ning light.
You must stop.
Wait for the engine to cool before topping up the level. The cooling circuit is pressurised.In the event of breakdown and to prevent any risk of burns , unscrew
the cap by two turns to allow thepressure to drop. When the pressure has dropped, remove the cap and top up the level.
Consult a PEUGEOT dealer.

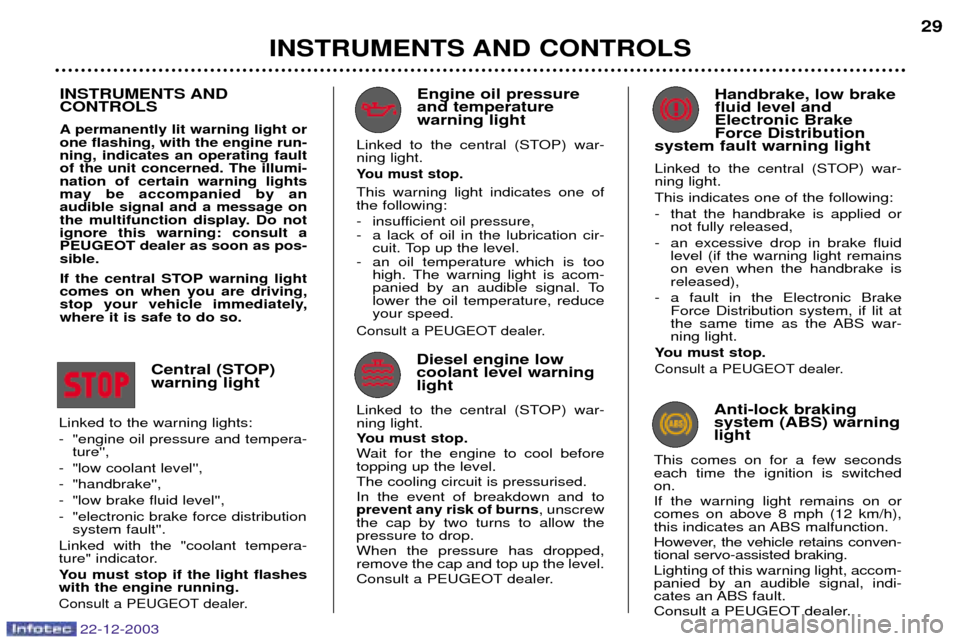

Central (STOP) warning light
Linked to the warning lights:
- "engine oil pressure and tempera- ture'',
- "low coolant level'',
- "handbrake'',
- "low brake fluid level'',
- "electronic brake force distribution system fault''.
Linked with the "coolant tempera-
ture" indicator.
You must stop if the light flashes with the engine running.
Consult a PEUGEOT dealer.
Engine oil pressureand temperaturewarning light
Linked to the central (STOP) war-ning light.
You must stop.
This warning light indicates one ofthe following:
- insufficient oil pressure,
- a lack of oil in the lubrication cir- cuit. Top up the level.
- an oil temperature which is too high. The warning light is acom-
panied by an audible signal. Tolower the oil temperature, reduceyour speed.
Consult a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 29
22-12-2003

Seat belt not fastened warning light* When the ignition is swit-
ched on, this indicator light comes on if the driver has not fastened hisseat belt. Above 12 mph (20 kmh), this warning light flashes for two minutes accom-panied by an audible signal which
becomes progressively louder. Oncethe two minutes have elapsed, thewarning light remains on until the dri-ver fastens his seat belt.
Battery charge warning light
This indicates one of the following:
- faulty operation of the charging circuit,
- slack battery or starter terminals,
- a cut or slack alternator belt,
- an alternator failure.
Consult a PEUGEOT dealer.
Engine diagnostics warning light This comes on for a few
seconds each time the ignition is switched on. If it comes on with the engine run- ning, this indicates incorrect opera-tion of the injection, ignition or emis-
sion control system. There is a riskof damage to the catalytic converter(petrol engine only).
Consult a PEUGEOT dealer.
* According to destination. Water in diesel filter indicator*
There is a risk of damage to theinjection system.
Consult a PEUGEOT dealer as soon as possible.
Passenger air bag disarmed warninglight*
If the passenger air bag is disarmed, the warning light comes on whenthe ignition is switched on and itremains on.
Always consult a PEUGEOT dealer if the warning light flashes.
Low fuel levelwarning light
When this light first comes on, youhave enough fuel to drive approxi-
mately 30 miles (50 km) (The tank
capacity is approximately 55 litresfor petrol engines and 60 litres forDiesel engines). Diesel engine pre-heat warning light
Wait until the warning light goes out before starting the engine. If the temperature is high enough, the warning light comes on for less
than one second. You can start theengine without waiting.
INSTRUMENTS AND CONTROLS
30
Electronic stability control system(ESP/ASR) warninglight
This comes on for a few secondseach time the ignition is switched on.
Contact a PEUGEOT dealer if the ESP/ASR switch indicator lightflashes and this warning lightremains on or comes on while theengine is running and the vehicle ismoving. While the engine is running and the vehicle is moving, it flashes if thesystem is activated. It comes on permanently when it is disarmed.
22-12-2003

Instrument panel display After switching on the ignition, three functions are shown in succession: - service indicator (see corresponding section),- engine oil level indicator (Diesel),- total distance recorder/total and trip distances.Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level (Diesel) When the ignition is switched on, the engine oil level is indicated for approximately 10 seconds, after the servicing information.
Maximum Note:a surplus of oil can cause damage to the
engine. Minimum Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with theengine stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Front and side air bags warning light
The light will come on for a fewseconds when the ignition is swit-ched on. With the engine running, illumination of this warning light, accompaniedby an audible signal, indicates afault in the air bags.
Consult a PEUGEOT dealer.
Coolant temperature indicator
- needle in zone (A), the tempera-
ture is correct,
- needle in zone (B), the tempera-
ture is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 31
22-12-2003

Instrument panel display After switching on the ignition, three functions are shown in succession: - service indicator (see corresponding section),- engine oil level indicator (Diesel),- total distance recorder/total and trip distances.Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level (Diesel) When the ignition is switched on, the engine oil level is indicated for approximately 10 seconds, after the servicing information.
Maximum Note:a surplus of oil can cause damage to the
engine. Minimum Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with theengine stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Front and side air bags warning light
The light will come on for a fewseconds when the ignition is swit-ched on. With the engine running, illumination of this warning light, accompaniedby an audible signal, indicates afault in the air bags.
Consult a PEUGEOT dealer.
Coolant temperature indicator
- needle in zone (A), the tempera-
ture is correct,
- needle in zone (B), the tempera-
ture is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 31
22-12-2003

22-12-2003

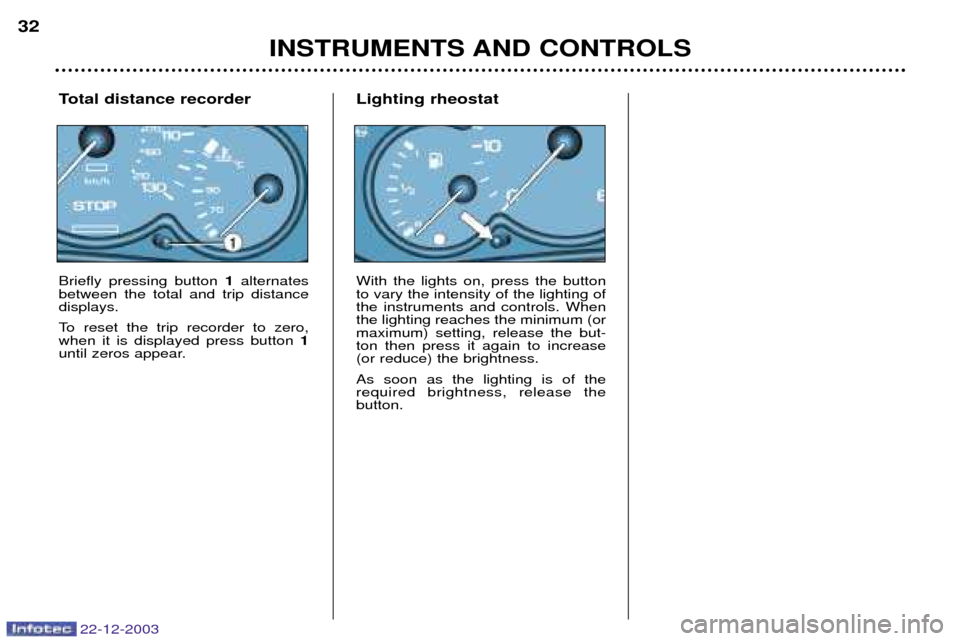

Total distance recorder Briefly pressing button 1alternates
between the total and trip distance displays.
To reset the trip recorder to zero, when it is displayed press button 1
until zeros appear. Lighting rheostat With the lights on, press the button to vary the intensity of the lighting ofthe instruments and controls. Whenthe lighting reaches the minimum (ormaximum) setting, release the but-ton then press it again to increase(or reduce) the brightness. As soon as the lighting is of the required brightness, release the button.
INSTRUMENTS AND CONTROLS
32

MULTIFUNCTION DISPLAY This displays the following informa- tion:
- the time,
- the date,
- the audio system displays,
- a door check (e.g.: ''left front dooropen''),
- warning messages (e.g. ''remote control battery flat'') or information messages (e.g. ''eco mode
active''), displayed temporarily.

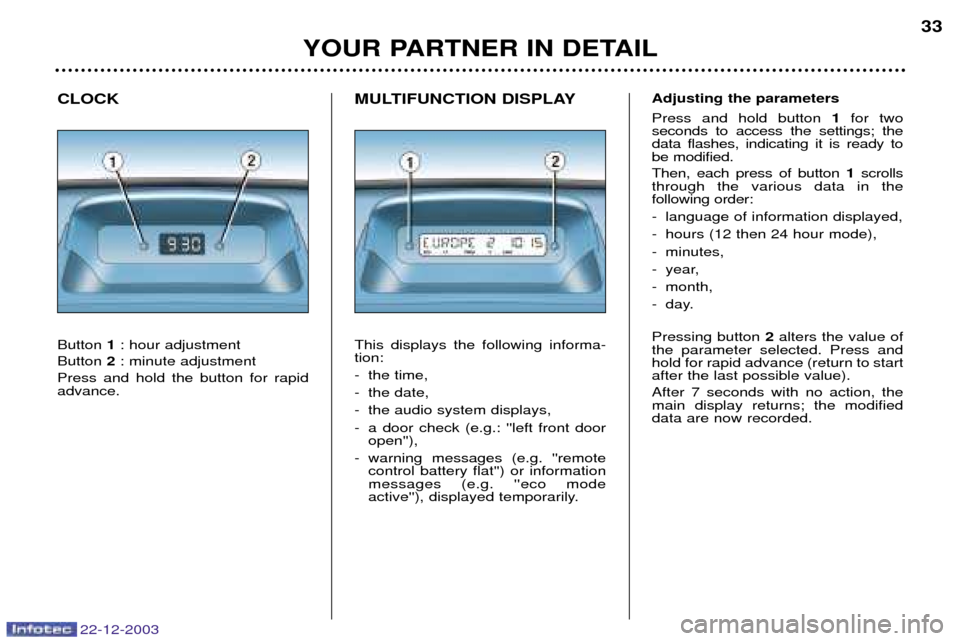

CLOCK Button
1: hour adjustment
Button 2: minute adjustment
Press and hold the button for rapid advance.
YOUR PARTNER IN DETAIL 33
22-12-2003
Adjusting the parameters Press and hold button
1for two
seconds to access the settings; the data flashes, indicating it is ready tobe modified. Then, each press of button 1scrolls
through the various data in the following order:
- language of information displayed,
- hours (12 then 24 hour mode),
- minutes,
- year,
- month,
- day. Pressing button 2alters the value of
the parameter selected. Press and hold for rapid advance (return to startafter the last possible value). After 7 seconds with no action, the main display returns; the modifieddata are now recorded.

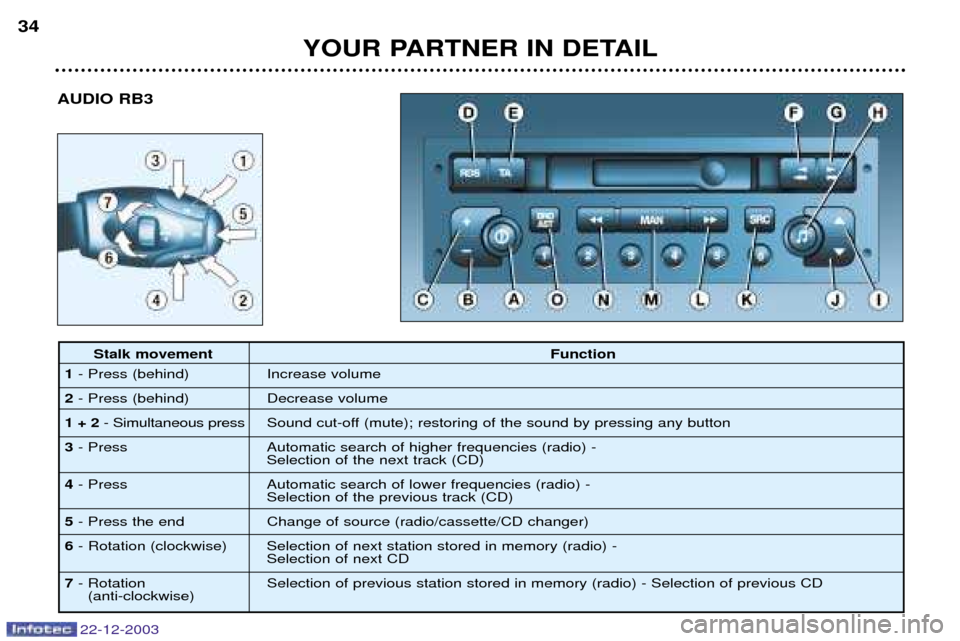

AUDIO RB3
YOUR PARTNER IN DETAIL
34
22-12-2003
Stalk movement
Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio) -
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio) -
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation (clockwise) Selection of next station stored in memory (radio) -
Selection of next CD
7 - Rotation Selection of previous station stored in memory (radio) - Selection of previous CD
(anti-clockwise)
