2004 Peugeot Partner VP Owner's Manual

YOUR PARTNER IN DETAIL
36
22-12-2003

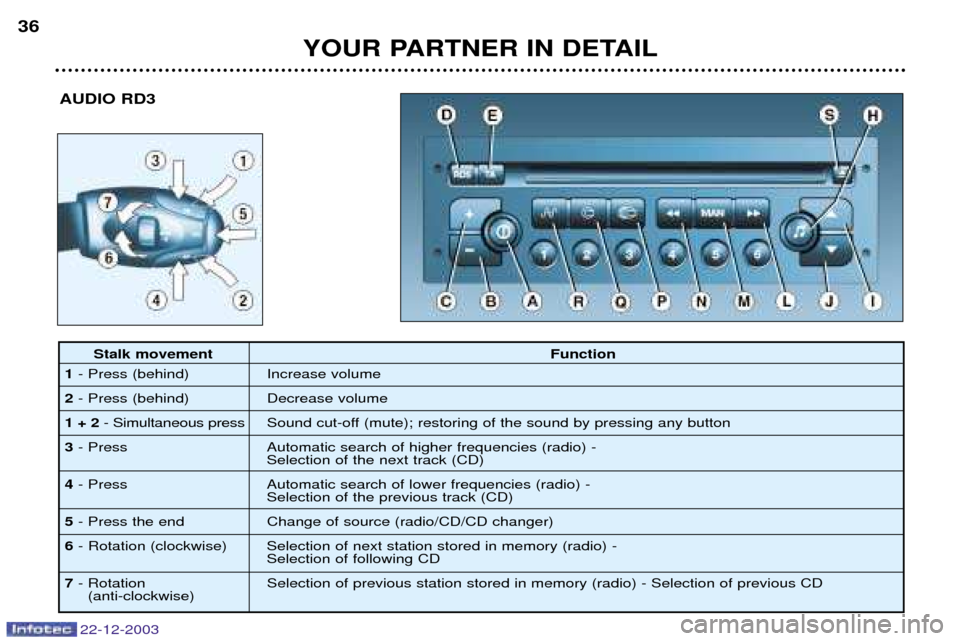

AUDIO RD3
Stalk movement
Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio) -
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio) -
Selection of the previous track (CD)
5 - Press the end Change of source (radio/CD/CD changer)
6 - Rotation (clockwise) Selection of next station stored in memory (radio) -
Selection of following CD
7 - Rotation Selection of previous station stored in memory (radio) - Selection of previous CD
(anti-clockwise)

YOUR PARTNER IN DETAIL37
22-12-2003

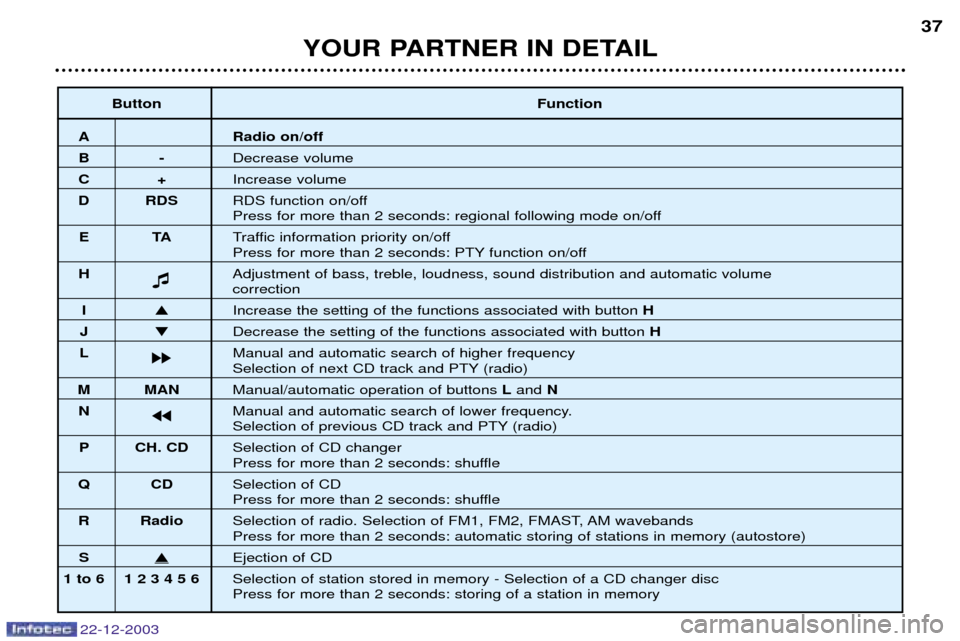

Button
Function
A Radio on/off
B-Decrease volume
C+Increase volume
D RDS RDS function on/off
Press for more than 2 seconds: regional following mode on/off
ET ATraffic information priority on/off
Press for more than 2 seconds: PTY function on/off
H Adjustment of bass, treble, loudness, sound distribution and automatic volume
correction
I
Increase the setting of the functions associated with button H
J Decrease the setting of the functions associated with button H
L kk Manual and automatic search of higher frequency
Selection of next CD track and PTY (radio)
M MAN
Manual/automatic operation of buttons Land N
N jj Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio)
P CH. CD Selection of CD changer
Press for more than 2 seconds: shuffle
QC DSelection of CD
Press for more than 2 seconds: shuffle
R Radio Selection of radio. Selection of FM1, FM2, FMAST, AM wavebands
Press for more than 2 seconds: automatic storing of stations in memory (autostore)
SEjection of CD
1 to 6 1 2 3 4 5 6 Selection of station stored in memory - Selection of a CD changer disc Press for more than 2 seconds: storing of a station in memory

RADIO Notes on radio reception
Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signalsand the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings, etc.), or of being in an area which is not covered by a transmitter. Selecting radio modeAudio RB3 :press button "SRC"several times in succession.
Audio RD3 : press button R.
Selecting a waveband Audio RB3 :briefly press the "BND/AST"button to select the FM1, FM2, FMast and AM wavebands.
Audio RD3 : briefly press button Rto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press button Lor Nto search for the station immediately above or below. By continuing
to press the button in the direction selected, you will obtain continuous scrolling of the
frequency. The scrolling stops at the first station found as soon as the button is released.
If the TAtraffic information programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX"sensitivity, press button Lor Ntwice.
YOUR PARTNER IN DETAIL
40
22-12-2003

Manual station search Press the "MAN"button.
Briefly press button Lor Nto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Audio RB3 : press and hold the "BND/AST"button for more than two seconds.
Audio RD3 : press and hold button Rfor more than two seconds.
Your radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMast
waveband.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1"to "6" to recall the corresponding station.
YOUR PARTNER IN DETAIL 41
22-12-2003

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are going through.Briefly press the "RDS"button to switch the function on or off.
The multi-function display will show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the "TA"button to switch the function on or off.
The multi-function display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette, CD or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages arebroadcast. Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
YOUR PARTNER IN DETAIL
42
22-12-2003

PTY function: Audio RD3 This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).With FMselected, press the "TA"button for more than two seconds to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Lor Nto scroll down the list of the various types of programmes offered,
- when the programme of your choice is displayed, keep button Lor Npressed for more than
two seconds to carry out an automatic search (after an automatic search the PTYfunction is
switched off).
In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons
"1" to "6" for more than two seconds. Briefly press the corresponding button to recall the type of programme stored in the
memory.
EON system: Audio RD3
This connects stations which are part of the same network. It enables the broadcast of traffic information, by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
YOUR PARTNER IN DETAIL 43
22-12-2003

COMPACT DISC : AUDIO RD3 Selecting CD modeAfter insertion of a disc, printed face upwards, the player starts automatically. If a disc is already inserted, press button Q.
Ejection of a disc Press button Sto eject the disc from the player.
Selecting a track Press button Lto select the next track.
Press button Nto return to the start of the current track or to select the previous track.
Accelerated play Keep button Lor Npressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle (RDM) When the CD player is selected, keep button Qpressed for two seconds. The tracks will be played in random sequence.
Pressing the button again for two seconds returns you to normal play.
Shuffle mode is de-activated each time the audio system is switched off.
YOUR PARTNER IN DETAIL 45
22-12-2003
The use of copied compact discs may cause faults.
Insert circular compact discs only.
