2004 Peugeot Partner VP Owner's Manual

22-12-2003
YOUR PARTNER IN DETAIL91
In the
"OFF" position, the passen-
ger air bag will not be triggered in the event of an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bagand thus ensure the safety of yourpassenger in the event of an impact. Operating check
With the ignition on (2nd notch), illumination of thiswarning light indicates thatthe passenger air bag isdisarmed (switch in the"OFF"position).SIDE AIR BAGS* These are incorporated into the frame of the front seat backs, on thedoor side. They are deployed independently of each other depending on which sidethe collision occurs, in collisionswhich could cause injury to thechest, the abdomen or the head. Air bag fault
If this warning light comes on, accompanied by anaudible signal, contact a
PEUGEOT dealer to havethe system checked.
* According to destination.

22-12-2003
YOUR PARTNER IN DETAIL
92

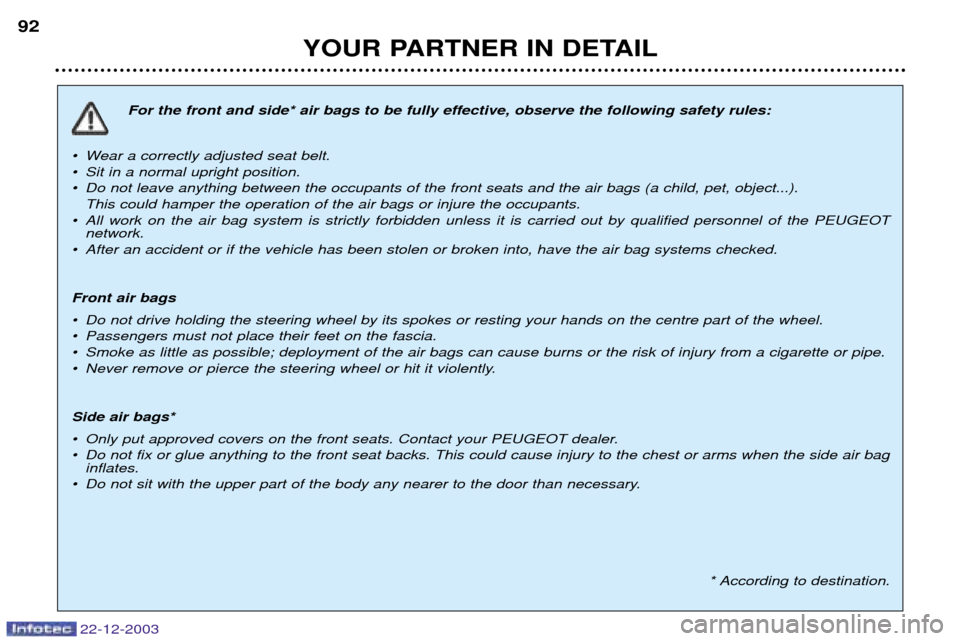

For the front and side* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.

22-12-2003
PRACTICAL INFORMATION93
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil reservoir
* According to destination.

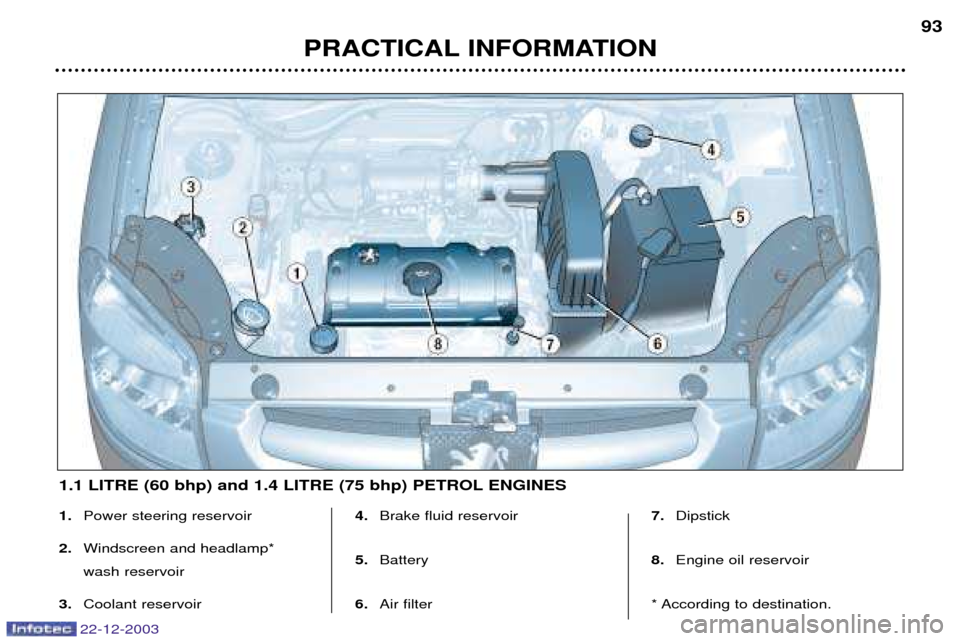

1.1 LITRE (60 bhp) and 1.4 LITRE (75 bhp) PETROL ENGINES

22-12-2003
PRACTICAL INFORMATION
94
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil reservoir
* According to destination.

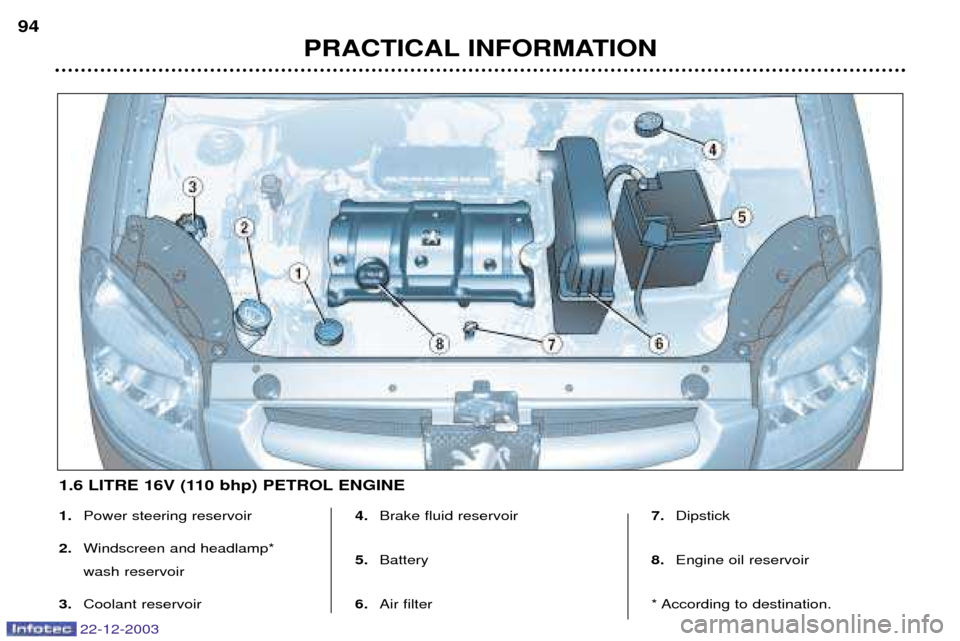

1.6 LITRE 16V (110 bhp) PETROL ENGINE

1.Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil reservoir
* According to destination.

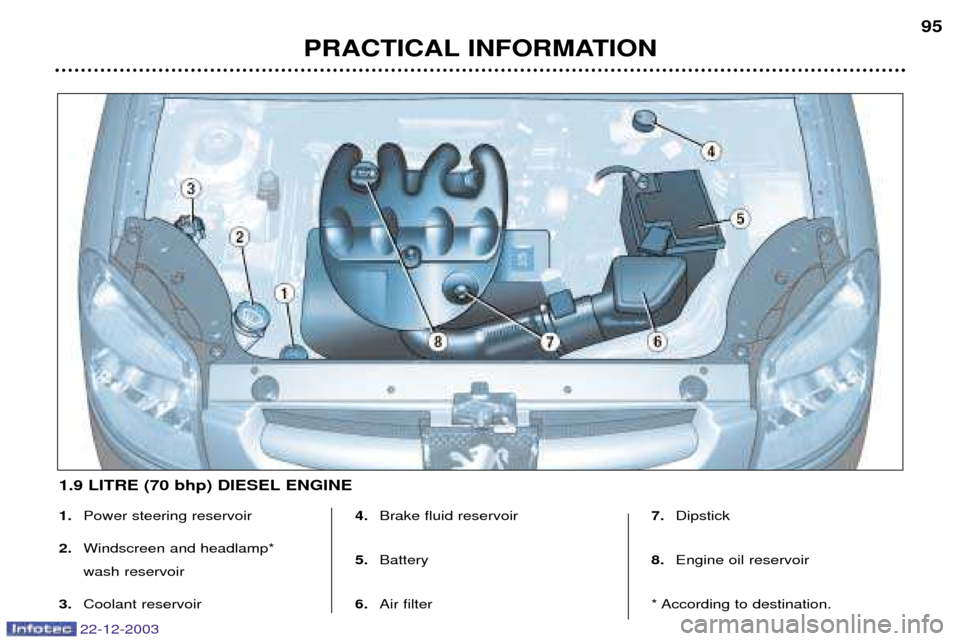

1.9 LITRE (70 bhp) DIESEL ENGINE
PRACTICAL INFORMATION 95
22-12-2003

22-12-2003
PRACTICAL INFORMATION
96
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil reservoir
* According to destination.

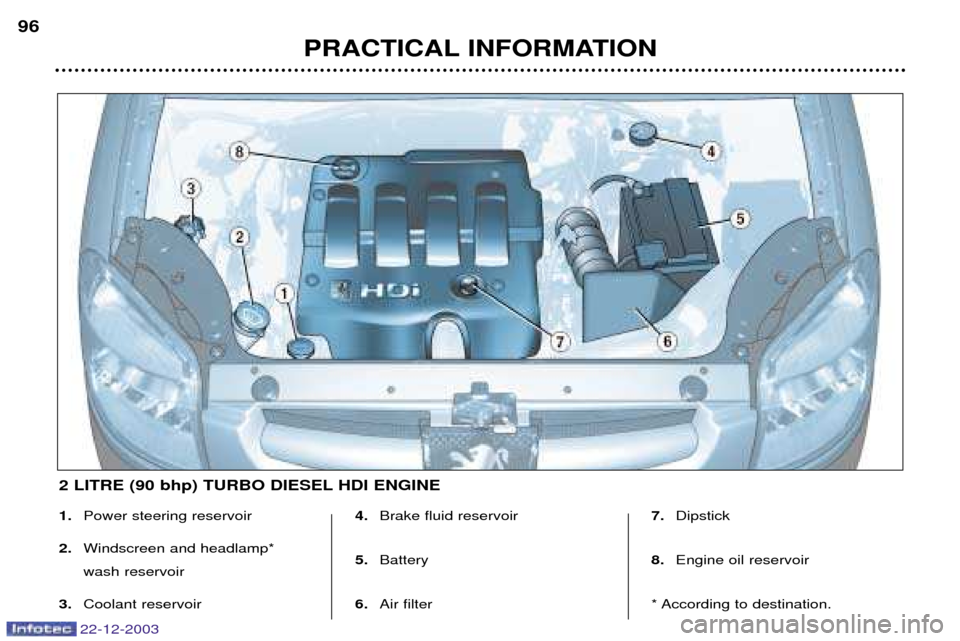

2 LITRE (90 bhp) TURBO DIESEL HDI ENGINE

22-12-2003
CHECKING THE LEVELS Oil level Check the level regularly and top
up between changes. The maxi-mum consumption is 0.5 l per600 miles (1000 km). Check the level with the vehicle level, engine cold, using the oillevel gauge on the instrumentpanel or the dipstick.

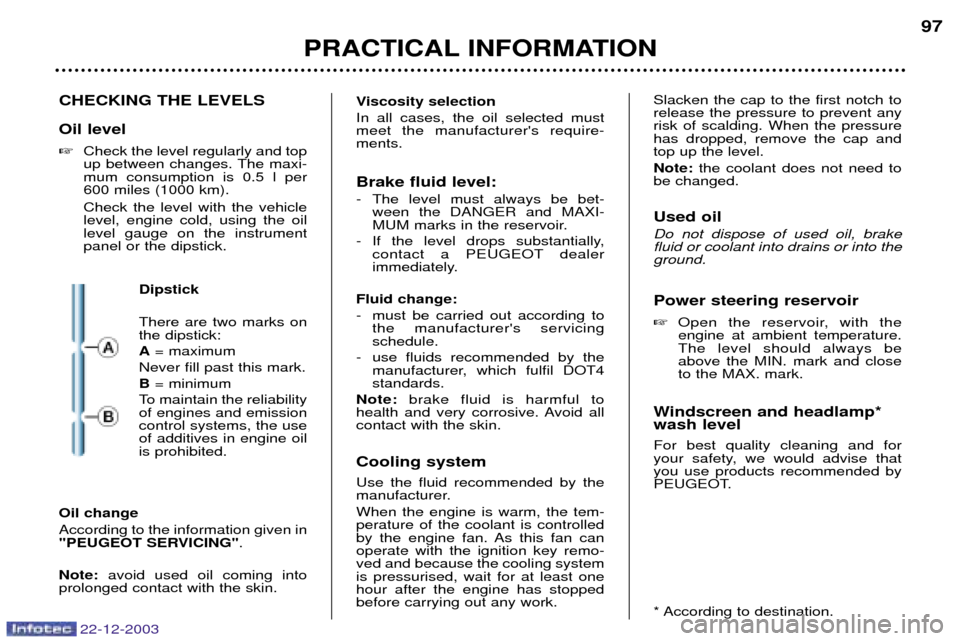

Dipstick There are two marks on the dipstick: A= maximum
Never fill past this mark. B = minimum
To maintain the reliability of engines and emissioncontrol systems, the useof additives in engine oilis prohibited.
PRACTICAL INFORMATION 97
Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments. Brake fluid level:
- The level must always be bet-
ween the DANGER and MAXI-
MUM marks in the reservoir.
- If the level drops substantially, contact a PEUGEOT dealer
immediately.
Fluid change:
- must be carried out according to the manufacturer's servicing schedule.
- use fluids recommended by the manufacturer, which fulfil DOT4standards.
Note: brake fluid is harmful to
health and very corrosive. Avoid allcontact with the skin. Cooling system Use the fluid recommended by the
manufacturer. When the engine is warm, the tem- perature of the coolant is controlled
by the engine fan. As this fan canoperate with the ignition key remo-ved and because the cooling systemis pressurised, wait for at least onehour after the engine has stoppedbefore carrying out any work. Slacken the cap to the first notch torelease the pressure to prevent anyrisk of scalding. When the pressurehas dropped, remove the cap andtop up the level. Note:
the coolant does not need to
be changed. Used oil Do not dispose of used oil, brake fluid or coolant into drains or into theground. Power steering reservoir  Open the reservoir, with the engine at ambient temperature.The level should always beabove the MIN. mark and closeto the MAX. mark.
Windscreen and headlamp*wash level For best quality cleaning and for
your safety, we would advise thatyou use products recommended by
PEUGEOT.
* According to destination.
Oil change According to the information given in
"PEUGEOT SERVICING" .
Note: avoid used oil coming into
prolonged contact with the skin.

22-12-2003
PRACTICAL INFORMATION
98
CHECKS Battery
At the start of winter, have your battery checked by a PEUGEOT
dealer. Air filter and passenger compartment filter Have the filter elements replaced
regularly.
If you drive in dusty
conditions, change them twice asoften. Brake pads Brake pad wear depends on the style of driving, in particular forvehicles which are used in town,over short distances. It may be necessary to check the thickness of the pads, even betweenservices. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system checked by a
PEUGEOT dealer. Oil filter
Change the filter regularly, in accor- dance with the servicing schedule. Manual gearbox This does not require an oil change. Check the level in accordance withthe manufacturer's servicing sche-dule.

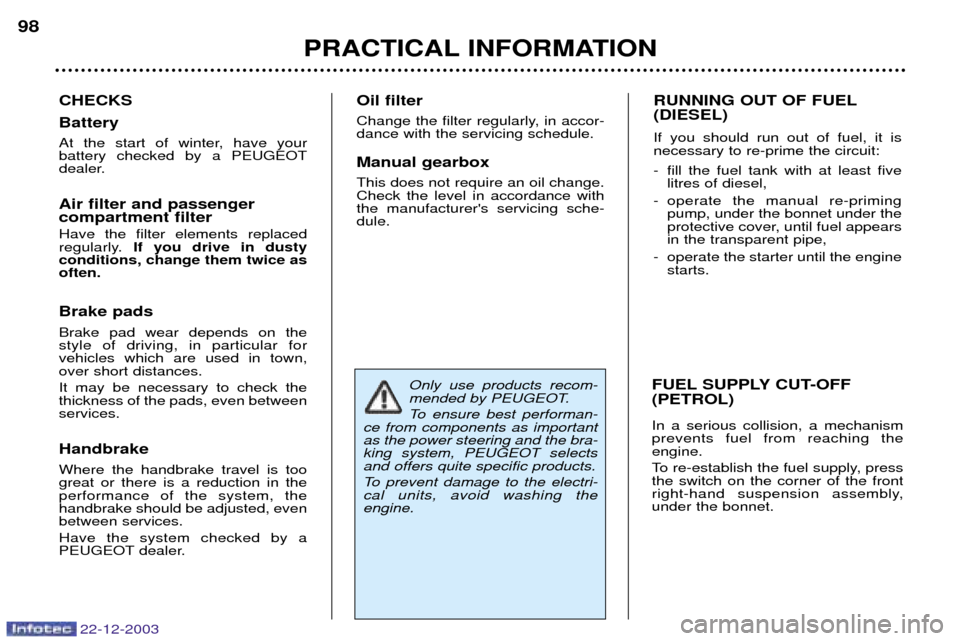

Only use products recom-
mended by PEUGEOT.
To ensure best performan-
ce from components as important as the power steering and the bra-king system, PEUGEOT selectsand offers quite specific products.
To prevent damage to the electri- cal units, avoid washing the engine.
RUNNING OUT OF FUEL (DIESEL) If you should run out of fuel, it is necessary to re-prime the circuit:
- fill the fuel tank with at least five litres of diesel,
- operate the manual re-priming pump, under the bonnet under the
protective cover, until fuel appearsin the transparent pipe,
- operate the starter until the engine starts.
FUEL SUPPLY CUT-OFF (PETROL) In a serious collision, a mechanism prevents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the corner of the front
right-hand suspension assembly,under the bonnet.
