2004 Peugeot Partner VP Owner's Manual

22-12-2003
YOUR PARTNER IN DETAIL65

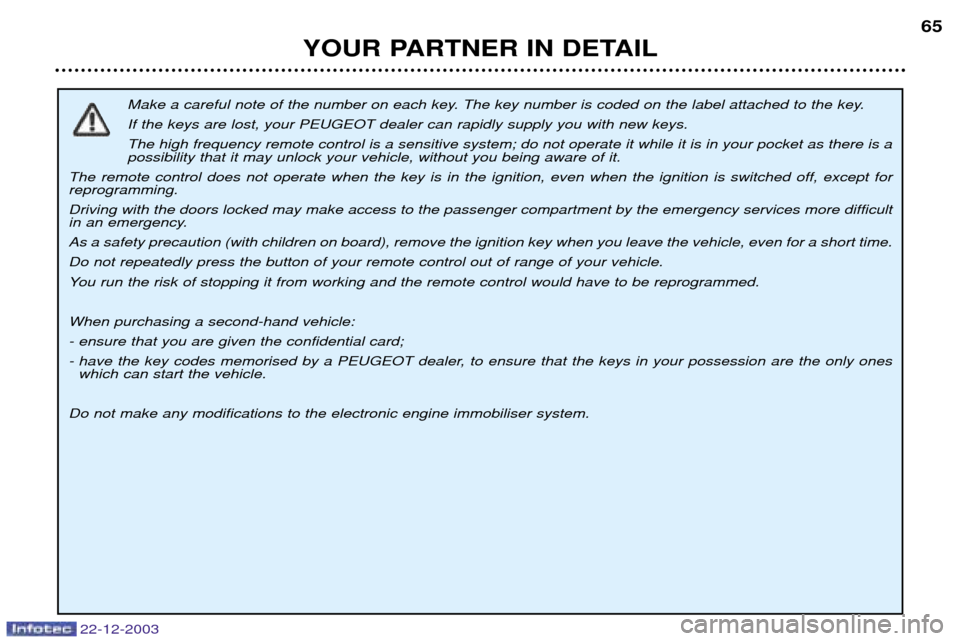

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.Do not repeatedly press the button of your remote control out of range of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.

YOUR PARTNER IN DETAIL
64
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been leftin the ignition.

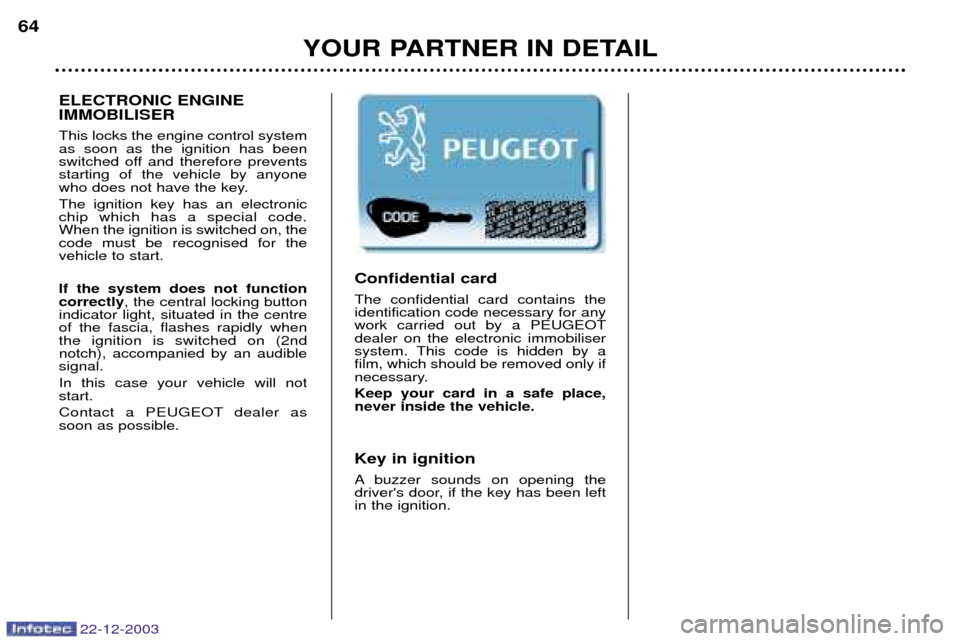

ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for thevehicle to start. If the system does not function correctly
, the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
22-12-2003

22-12-2003
YOUR PARTNER IN DETAIL65
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.Do not repeatedly press the button of your remote control out of range of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.

22-12-2003
YOUR PARTNER IN DETAIL
66

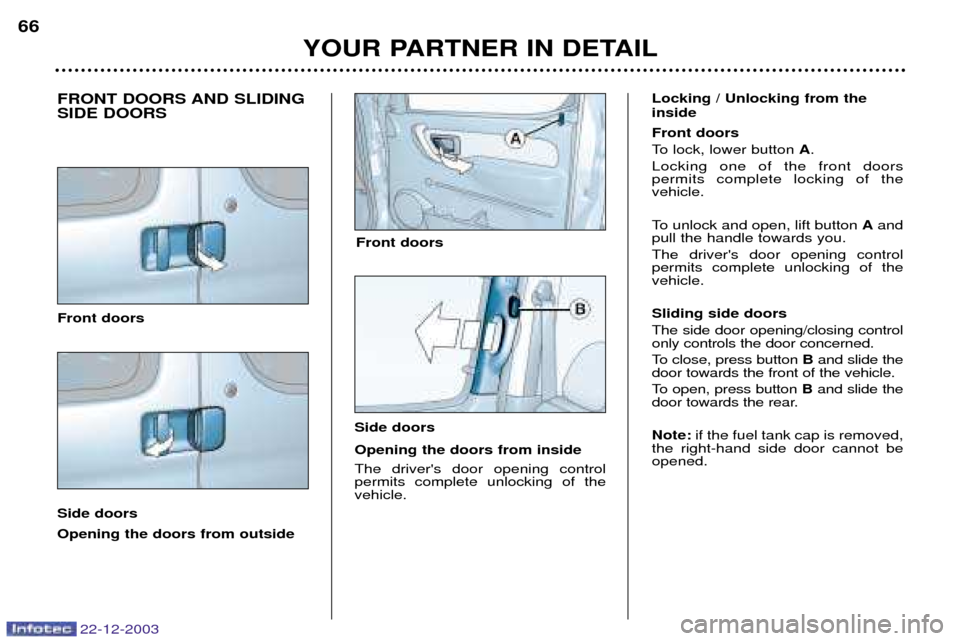

FRONT DOORS AND SLIDING SIDE DOORS Front doors Side doors Opening the doors from outside Locking / Unlocking from the inside Front doors
To lock, lower button
A.
Locking one of the front doors permits complete locking of thevehicle.
To unlock and open, lift button Aand
pull the handle towards you. The driver's door opening control permits complete unlocking of thevehicle. Sliding side doors The side door opening/closing control only controls the door concerned.
To close, press button Band slide the
door towards the front of the vehicle.
To open, press button Band slide the
door towards the rear. Note: if the fuel tank cap is removed,
the right-hand side door cannot be opened.
Side doors Opening the doors from inside The driver's door opening control permits complete unlocking of thevehicle.
Front doors

22-12-2003
YOUR PARTNER IN DETAIL67

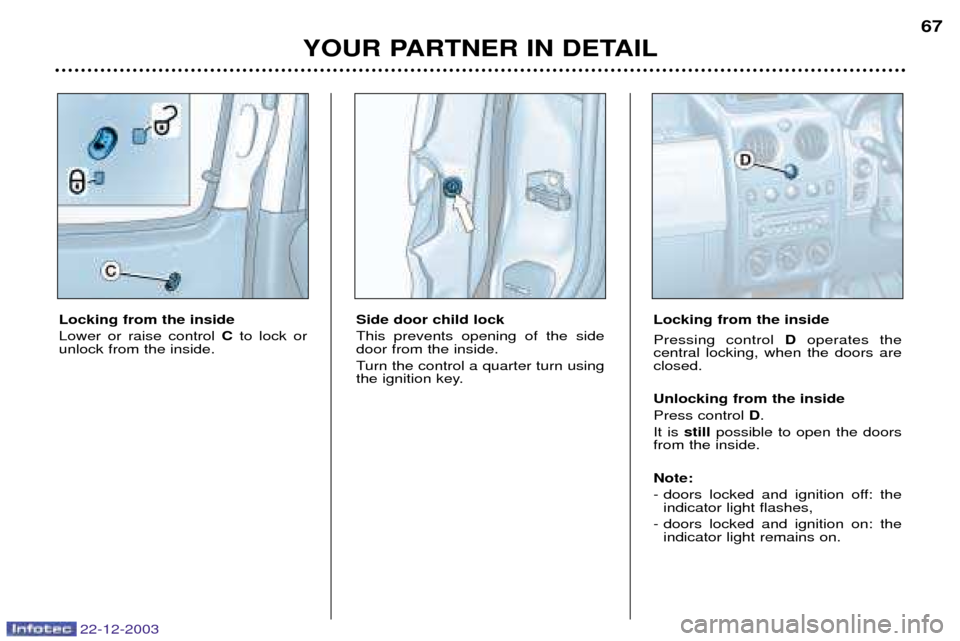

Locking from the inside Lower or raise control
Cto lock or
unlock from the inside. Side door child lockThis prevents opening of the side door from the inside.
Turn the control a quarter turn using
the ignition key.Locking from the inside Pressing control
Doperates the
central locking, when the doors are closed. Unlocking from the inside Press control D.
It is still possible to open the doors
from the inside. Note:
- doors locked and ignition off: the indicator light flashes,
- doors locked and ignition on: the indicator light remains on.

22-12-2003
YOUR PARTNER IN DETAIL
68

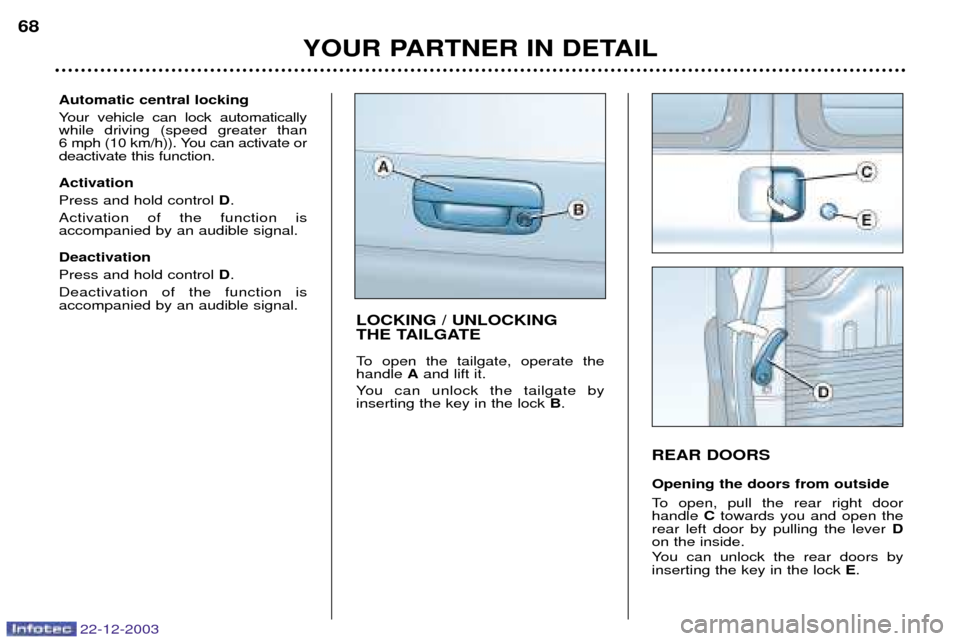

REAR DOORS Opening the doors from outside
To open, pull the rear right door handle
Ctowards you and open the
rear left door by pulling the lever D
on the inside.
You can unlock the rear doors by inserting the key in the lock E.
LOCKING / UNLOCKING
THE TAILGATE
To open the tailgate, operate the handle Aand lift it.
You can unlock the tailgate by inserting the key in the lock B.
Automatic central locking
Your vehicle can lock automatically while driving (speed greater than
6 mph (10 km/h)). You can activate ordeactivate this function. Activation Press and hold control D.
Activation of the function is accompanied by an audible signal. Deactivation Press and hold control D.
Deactivation of the function is accompanied by an audible signal.

22-12-2003
YOUR PARTNER IN DETAIL67
Locking from the inside Lower or raise control
Cto lock or
unlock from the inside. Side door child lockThis prevents opening of the side door from the inside.
Turn the control a quarter turn using
the ignition key.Locking from the inside Pressing control
Doperates the
central locking, when the doors are closed. Unlocking from the inside Press control D.
It is still possible to open the doors
from the inside. Note:
- doors locked and ignition off: the indicator light flashes,
- doors locked and ignition on: the indicator light remains on.

22-12-2003
YOUR PARTNER IN DETAIL
68
REAR DOORS Opening the doors from outside
To open, pull the rear right door handle
Ctowards you and open the
rear left door by pulling the lever D
on the inside.
You can unlock the rear doors by inserting the key in the lock E.
LOCKING / UNLOCKING
THE TAILGATE
To open the tailgate, operate the handle Aand lift it.
You can unlock the tailgate by inserting the key in the lock B.
Automatic central locking
Your vehicle can lock automatically while driving (speed greater than
6 mph (10 km/h)). You can activate ordeactivate this function. Activation Press and hold control D.
Activation of the function is accompanied by an audible signal. Deactivation Press and hold control D.
Deactivation of the function is accompanied by an audible signal.
