3YOUR PARTNER AT A GLANCE
1 -Speaker (tweeter).
2 - Windscreen demisting vents.
3 - Controls:- Electric windows.
- Demisting of rear door
windows or tailgate.
- Air conditioning.
- ASR/ESP.
4 - Central locking button.
5 - Multifunction display or clock.
6 - Hazard lights button.
7 - Central adjustable heating/ventilation vents.
8 - Lights and direction indica-tors stalk.
9 - Cruise control.
10 - Instrument panel.
11 - Driver's air bag.Horn. 12 -
Windscreen wash-wipe stalk.
13 - Audio equipment steeringwheel control.
14 - Steering lock and ignition.
15 - Fuse box.
16 - Passenger air bag disar-ming control*.
17 - Steering wheel adjustmentcontrol.
18 - Passenger's electric mirrorcontrol.
19 - Headlamp height adjustment.
20 - Heated seats control.
21 - Handbrake.
22 - 12 V accessories socket.
23 - Removable ashtray.
24 - Lighter.
25 - Storage.
26 - Gear lever. 27 -
Heating/air conditioningcontrols.
28 - Audio RB3 or RD3.
29 - Lower glove box.
30 - Upper glove box or passenger air bag.
31 - Bonnet release.
32 - Side adjustableheating/ventilation vents.
33 - Side window demistingvents.
* According to country.

5YOUR PARTNER AT A GLANCE
22-12-2003
STEERING WHEEL
STALKS LIGHTING

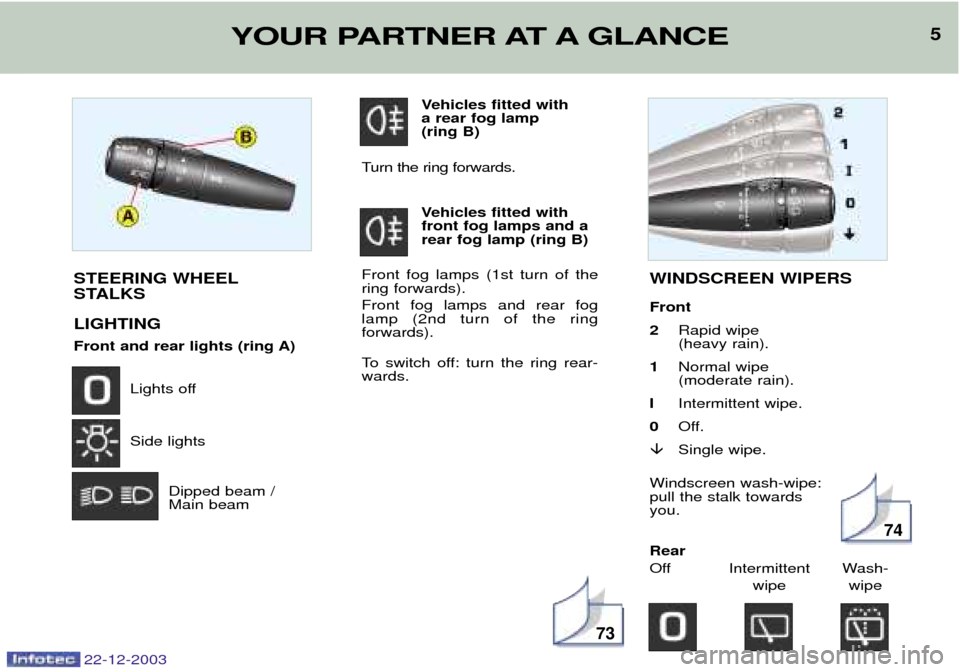

Front and rear lights (ring A)Lights off Side lights
Dipped beam / Main beam
Vehicles fitted with a rear fog lamp (ring B)
Turn the ring forwards.
Vehicles fitted withfront fog lamps and arear fog lamp (ring B)
Front fog lamps (1st turn of thering forwards). Front fog lamps and rear fog lamp (2nd turn of the ring forwards).
To switch off: turn the ring rear- wards.
WINDSCREEN WIPERS Front 2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe.
Windscreen wash-wipe:pull the stalk towardsyou. Rear
Off Intermittent Wash- wipe wipe
73
74

7YOUR PARTNER AT A GLANCE
AIR BAGS The air bag system has been desi- gned to maximise the safety ofthe occupants in the event ofserious collisions. It works inconjunction with the pretensioningseat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag disarm the air bag if you install a rear-facing child seat,
 activate the air bag for an
adult passenger. Disarming the passenger air bag*

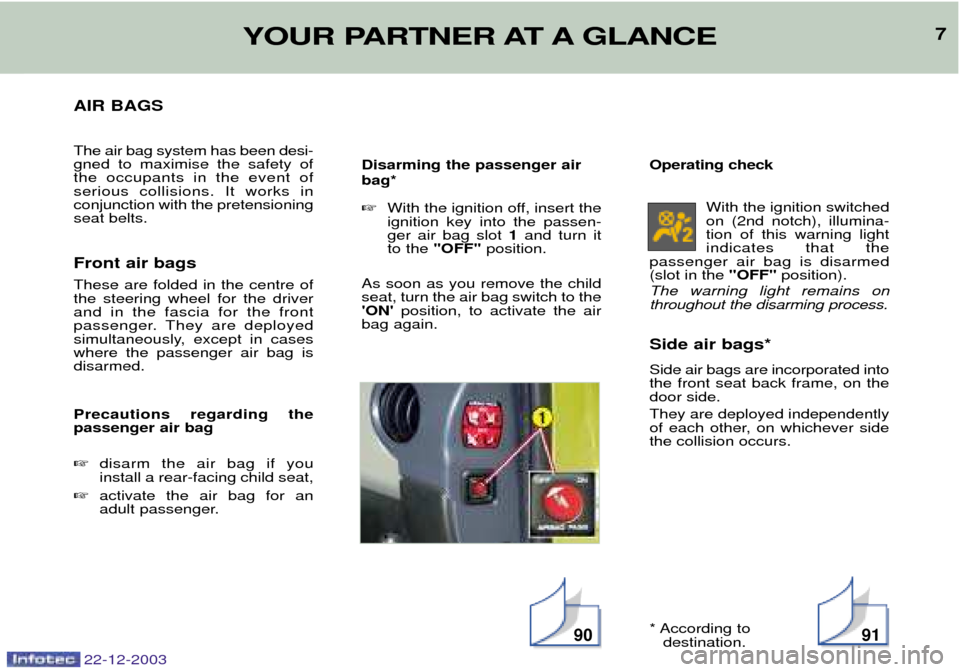

With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it
to the "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the'ON' position, to activate the air
bag again. Operating check
With the ignition switchedon (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF"position).
The warning light remains onthroughout the disarming process.
Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs.
* According to destination.
9091
22-12-2003

9YOUR PARTNER AT A GLANCE

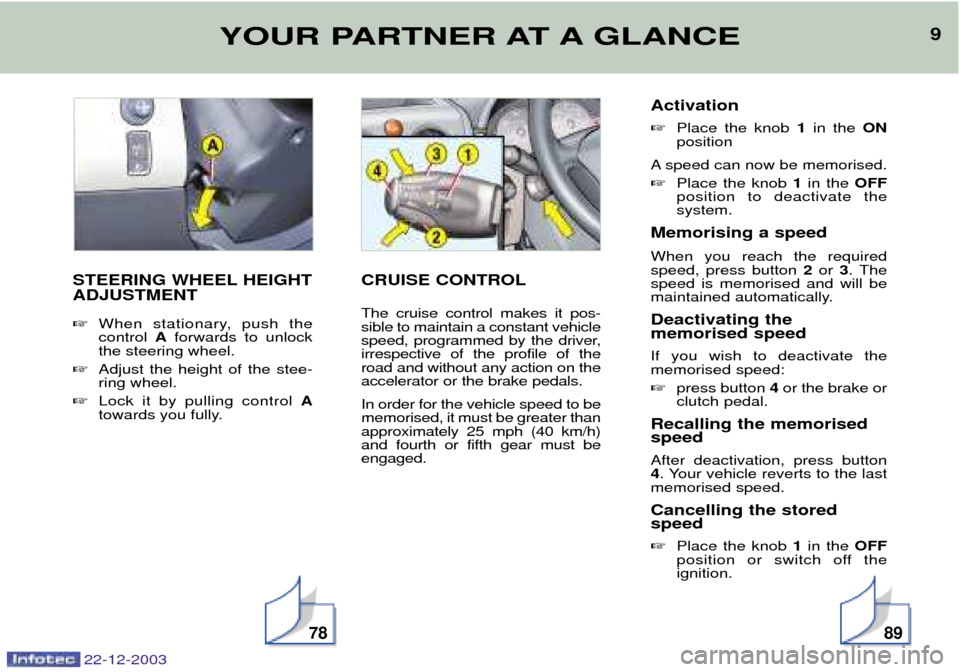

STEERING WHEEL HEIGHT ADJUSTMENT When stationary, push the control Aforwards to unlock
the steering wheel.
 Adjust the height of the stee-ring wheel.
 Lock it by pulling control A
towards you fully.CRUISE CONTROL The cruise control makes it pos- sible to maintain a constant vehicle
speed, programmed by the driver,irrespective of the profile of theroad and without any action on theaccelerator or the brake pedals. In order for the vehicle speed to be memorised, it must be greater thanapproximately 25 mph (40 km/h)and fourth or fifth gear must beengaged.
Activation  Place the knob 1in the ON
position
A speed can now be memorised.  Place the knob 1in the OFF
position to deactivate the system.
Memorising a speed When you reach the required speed, press button 2or 3. The
speed is memorised and will be
maintained automatically. Deactivating the memorised speed If you wish to deactivate the memorised speed:  press button 4or the brake or
clutch pedal.
Recalling the memorised speed After deactivation, press button 4 . Your vehicle reverts to the last
memorised speed. Cancelling the stored speed  Place the knob 1in the OFF
position or switch off the ignition.
7889
22-12-2003

22-12-2003
PEUGEOT SERVICING25
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation1st serviceA C Intermediate
DRAIN/REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter- Petrol filter* (according to engine)REPLACE- Diesel filter or element (according to engine)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if cap is removableLEVEL- Screen wash (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)CHECK- Condition of rubber boots and gaiters- Brake pads - Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification) - Visual check of the whole vehicle
SERVICE*- Courtesy vehicleROAD TEST
: All driving conditions.: Arduous conditions. * According to destination.

27
PEUGEOT SERVICING
22-12-2003
Recommendations for recommended lubricants The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at whichthe oils are to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of ACEA A1/A2
and API SH/SJ/SL quality (for petrol
engines), or ACEA B1/B2 and APICD/CF quality (for diesel engines)may be used by following the"Arduous Conditions" servicingschedule which specifies shorterintervals. Do not hesitate to ask for advice
from a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
Other recommended products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLYprotection to -35¡C
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BV TOTAL TRANSMISSION BV
75W80 PR 9736.41 75W80 PR 9730.A2
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94 PR 9730.A3

22-12-2003
HORNPress one of the spokes or the centre of the steeringwheel.
YOUR PARTNER IN DETAIL
78
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, push the handle fowards to unlock the steeringwheel. Adjust it to the desired height.Pull the handle towards you fully to lock the steering wheel.HAZARD WARNING LIGHTS Press the button, the direction indicators flash. They can operate with the ignition
off.

22-12-2003
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. Otherwise, thechild would risk being killed orseriously injured if the air bagwere to inflate. With the ignition switched off ,
insert the key into the passenger air bag disarming switch 1, turn it
to the "OFF" position, then remo-
ve the key keeping the slot in thisposition.
The air bag warning lighton the instrument panel islit throughout the disarmingprocess.
* According to destination.
YOUR PARTNER IN DETAIL
90
FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passengerair bag is disarmed. Front air bag fault
If this warning light comes onon the instrument panel, accompanied by an audiblesignal, contact a PEUGEOT
dealer to have the systemchecked.
AIR BAGS The air bags have been designed to maximise the safety of the occupants in the event of serious
collisions. They work in conjunctionwith the pretensioning seat belts. The electronic detectors register and analyse any abrupt decelerationof the vehicle: if the triggering threshold is reached, the air bagsinflate instantly and protect theoccupants of the vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occupants nor their exit if necessaryfrom the vehicle. The air bags are not deployed in the case of minor collisions, for which
the seat belt is sufficient to ensure
maximum protection. The serious-ness of a collision depends on thenature of the obstacle and the speedof the vehicle at the moment ofimpact. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant.
