2004 Peugeot Partner VP Owner's Manual

22-12-2003
2YOUR PARTNER AT A GLANCE

22-12-2003

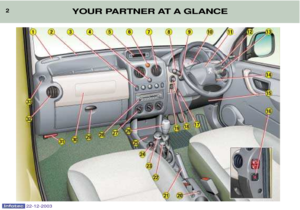

3YOUR PARTNER AT A GLANCE
1 -Speaker (tweeter).
2 - Windscreen demisting vents.
3 - Controls:- Electric windows.
- Demisting of rear door
windows or tailgate.
- Air conditioning.
- ASR/ESP.
4 - Central locking button.
5 - Multifunction display or clock.
6 - Hazard lights button.
7 - Central adjustable heating/ventilation vents.
8 - Lights and direction indica-tors stalk.
9 - Cruise control.
10 - Instrument panel.
11 - Driver's air bag.Horn. 12 -
Windscreen wash-wipe stalk.
13 - Audio equipment steeringwheel control.
14 - Steering lock and ignition.

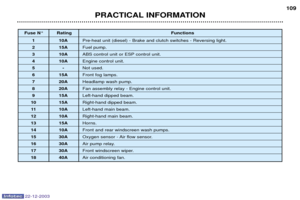

15 - Fuse box.
16 - Passenger air bag disar-ming control*.
17 - Steering wheel adjustmentcontrol.
18 - Passenger's electric mirrorcontrol.
19 - Headlamp height adjustment.
20 - Heated seats control.
21 - Handbrake.
22 - 12 V accessories socket.
23 - Removable ashtray.
24 - Lighter.
25 - Storage.
26 - Gear lever. 27 -
Heating/air conditioningcontrols.
28 - Audio RB3 or RD3.
29 - Lower glove box.
30 - Upper glove box or passenger air bag.
31 - Bonnet release.
32 - Side adjustableheating/ventilation vents.
33 - Side window demistingvents.
* According to country.

22-12-2003

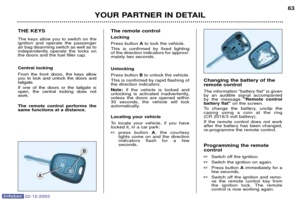

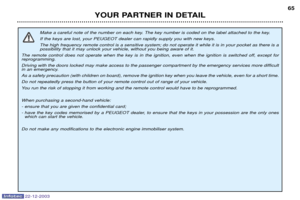

4THE KEYS The keys allow you to switch on the ignition and operate thepassenger air bag disarmingswitch, as well as to indepen-dently operate the locks on thedoors and the fuel filler cap. Central locking From the front doors, the keys allow you to lock and unlock thedoors and tailgate. If one of the doors or the tailgate is open, it is impossible to opera-te the central locking. The remote control performs the same functions at a distance. The remote control Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Unlocking Press button Bto unlock the
vehicle. This is confirmed by rapid flashing of the direction indicators. Locating the vehicle
To locate your vehicle, previous- ly locked, in a car park:  press button A, the courtesy
lights come on and the direc- tion indicators flash for a fewseconds. STARTING
STOP position (S):
the ignition is off.
1st notch, Accessories position (A):
the ignition is off but the acces- sories can be used. 2nd notch, Running position (M): the ignition is on. Starting position (D):
operates the starter.YOUR PARTNER AT A GLANCE
63

5YOUR PARTNER AT A GLANCE
22-12-2003
STEERING WHEEL
STALKS LIGHTING
Front and rear lights (ring A)Lights off Side lights
Dipped beam / Main beam
Vehicles fitted with a rear fog lamp (ring B)
Turn the ring forwards.
Vehicles fitted withfront fog lamps and arear fog lamp (ring B)
Front fog lamps (1st turn of thering forwards). Front fog lamps and rear fog lamp (2nd turn of the ring forwards).
To switch off: turn the ring rear- wards.
WINDSCREEN WIPERS Front 2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe.
Windscreen wash-wipe:pull the stalk towardsyou. Rear
Off Intermittent Wash- wipe wipe
73
74

6YOUR PARTNER AT A GLANCE

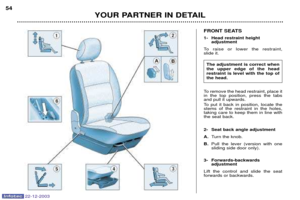

FRONT SEATS Driver and passenger seats 1- Head restraint height adjust-
ment.
Never travel with the head restraints removed.
2 - Seat back angle adjustment.
3 - Forwards-backwards adjust-
ment.
4 - Storage drawer (passenger).
5 - Access to rear seats.
54
22-12-2003

7YOUR PARTNER AT A GLANCE
AIR BAGS The air bag system has been desi- gned to maximise the safety ofthe occupants in the event ofserious collisions. It works inconjunction with the pretensioningseat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag disarm the air bag if you install a rear-facing child seat,
 activate the air bag for an
adult passenger. Disarming the passenger air bag*
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it
to the "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the'ON' position, to activate the air
bag again. Operating check
With the ignition switchedon (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF"position).
The warning light remains onthroughout the disarming process.
Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs.
* According to destination.
9091
22-12-2003

22-12-2003
8ELECTRIC WINDOWS 1 - Driver's electric window
2 - Passenger's electric window. Manual mode: Press the switch. The window stops as soon as the switch is released.
Automatic mode (driver): Press and hold the switch. One touch completely opens or closes the window.
Move the manual control 3in all four directions to adjust.
Electric control for the passenger's side mirror  From the driver's seat, adjust in all four directions by operating the control 4.
YOUR PARTNER AT A GLANCE
EXTERIOR MIRRORS
75
76

9YOUR PARTNER AT A GLANCE
STEERING WHEEL HEIGHT ADJUSTMENT When stationary, push the control Aforwards to unlock
the steering wheel.
 Adjust the height of the stee-ring wheel.
 Lock it by pulling control A
towards you fully.CRUISE CONTROL The cruise control makes it pos- sible to maintain a constant vehicle
speed, programmed by the driver,irrespective of the profile of theroad and without any action on theaccelerator or the brake pedals. In order for the vehicle speed to be memorised, it must be greater thanapproximately 25 mph (40 km/h)and fourth or fifth gear must beengaged.
Activation  Place the knob 1in the ON
position
A speed can now be memorised.  Place the knob 1in the OFF
position to deactivate the system.
Memorising a speed When you reach the required speed, press button 2or 3. The
speed is memorised and will be
maintained automatically. Deactivating the memorised speed If you wish to deactivate the memorised speed:  press button 4or the brake or
clutch pedal.
Recalling the memorised speed After deactivation, press button 4 . Your vehicle reverts to the last
memorised speed. Cancelling the stored speed  Place the knob 1in the OFF
position or switch off the ignition.
7889
