YOUR PARTNER IN DETAIL
76
Manual exterior mirrors Move the lever in all four directions to adjust. When the vehicle is parked, the exterior mirrors can be folded back
manually. Passenger side exterior mirror electric control From the driver's seat, move the control
1in all four directions to
adjust.Manual interior mirror The interior mirror has two positions: - day (normal),- night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror.

22-12-2003
YOUR PARTNER IN DETAIL77

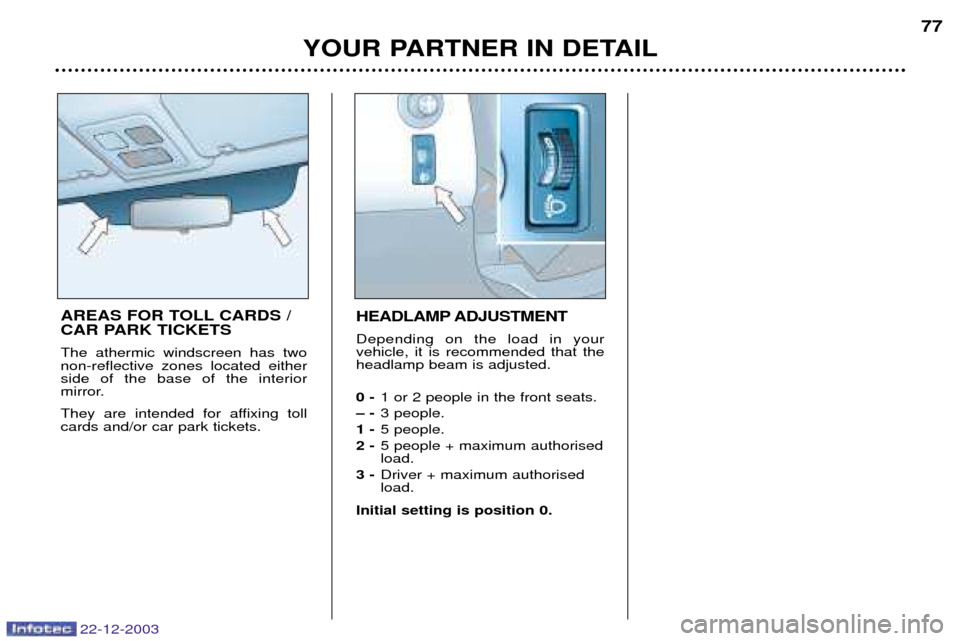

AREAS FOR TOLL CARDS /
CAR PARK TICKETS The athermic windscreen has two non-reflective zones located eitherside of the base of the interior
mirror.
They are intended for affixing toll cards and/or car park tickets. HEADLAMP ADJUSTMENT Depending on the load in your vehicle, it is recommended that theheadlamp beam is adjusted. 0 -
1 or 2 people in the front seats.
Ð - 3 people.
1 - 5 people.
2 - 5 people + maximum authorised load.
3 - Driver + maximum authorisedload.
Initial setting is position 0.

22-12-2003
HORNPress one of the spokes or the centre of the steeringwheel.
YOUR PARTNER IN DETAIL
78
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, push the handle fowards to unlock the steeringwheel. Adjust it to the desired height.Pull the handle towards you fully to lock the steering wheel.HAZARD WARNING LIGHTS Press the button, the direction indicators flash. They can operate with the ignition
off.

22-12-2003
YOUR PARTNER IN DETAIL
80

22-12-2003
YOUR PARTNER IN DETAIL81

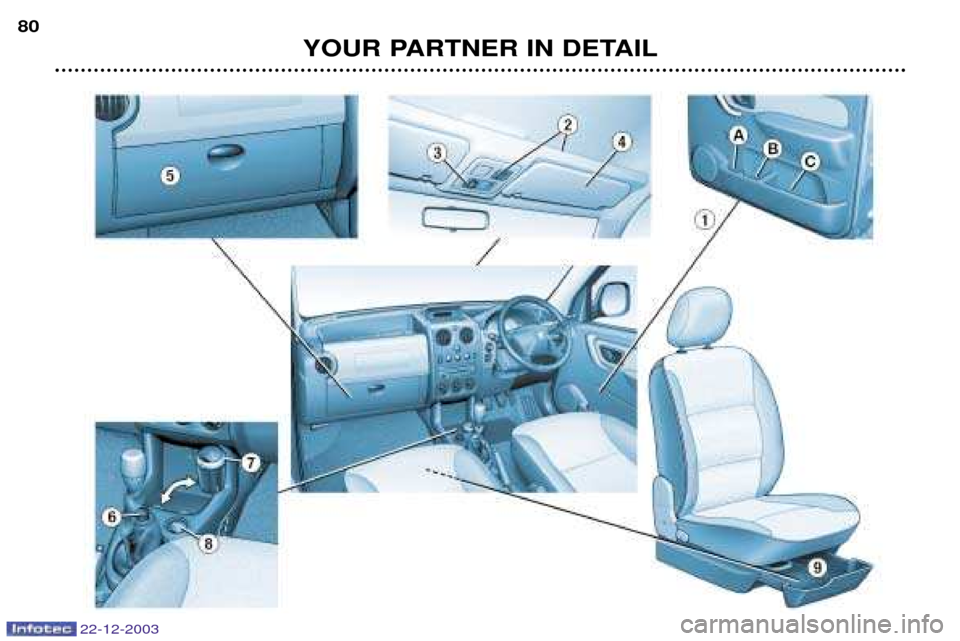

FRONT FITTINGS
1. Storage in the doors A.Bottle holder.
B. Can holder.
C. Storage compartment.
2. Overhead storage with map reading light Overhead storage maximum load: 5 kg.
3. Courtesy light
4. Sun visors
5. Glove box To open the glove box with cover, lift the handle (version with air conditioning).
6. Lighter
7. Removable ashtray Pull the cover to open the ashtray.
To empty, after opening, remove it by pulling upwards.
8. 12 V accessories socket This is located at the bottom of the centre console.
It permits the connection of a telephone charger, a baby's bottle warmer,...
9. Storage drawer To open the drawer, lift it slightly and pull it forwards.

22-12-2003
YOUR PARTNER IN DETAIL
82

YOUR PARTNER IN DETAIL83

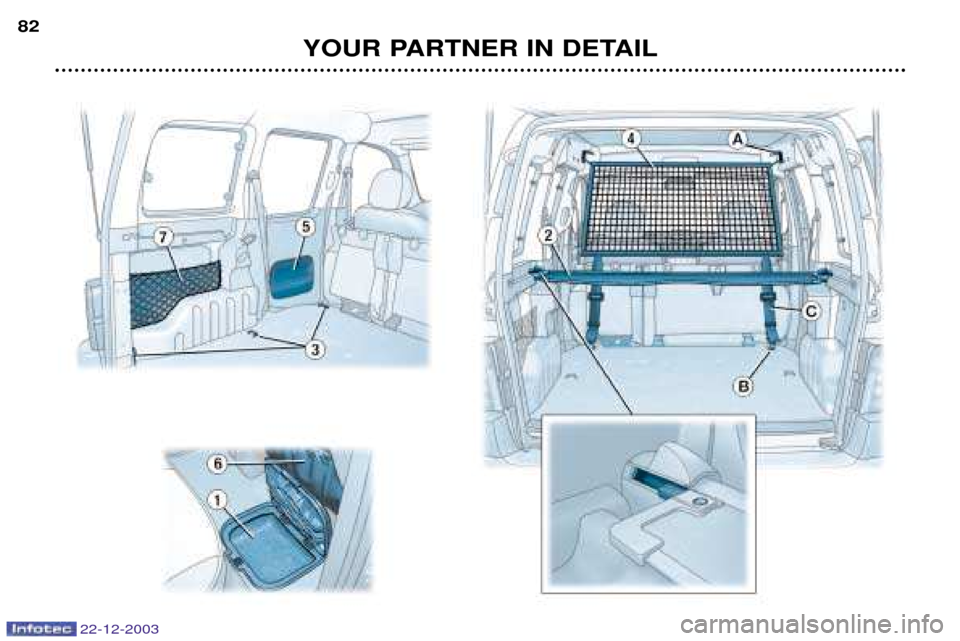

REAR LAYOUT
1. Trays between the front and rear seats
2. Load-space cover To remove it:
- remove the guides from the pillar rails,
- return the cover into its roller,
- compress it and remove it from its support.
To install it:
- position one end of the cover roller on its support,
- compress the opposite end of the roller and position it,
- release it to allow it to engage,
- unroll the cover as far as the boot pillars,
- insert the guides in the rails in the pillars,
3. Stowing rings
4. High load retaining net The high load retaining net can be fitted behind the front or rear seats. Open the covers Aof the corresponding upper fastenings.
Fit the ends of the metal bar in these fastenings.Secure the two net strap hooks behind the front seats, with the rear seat folded, or in the stowing rings Bon the floor.
The rings are located directly below the corresponding upper fastenings.Pull the two straps Ctaut.
5. Side door storage compartments
6. Seat back storage pockets
7. Storage net
