2004 MITSUBISHI ENDEAVOR torque

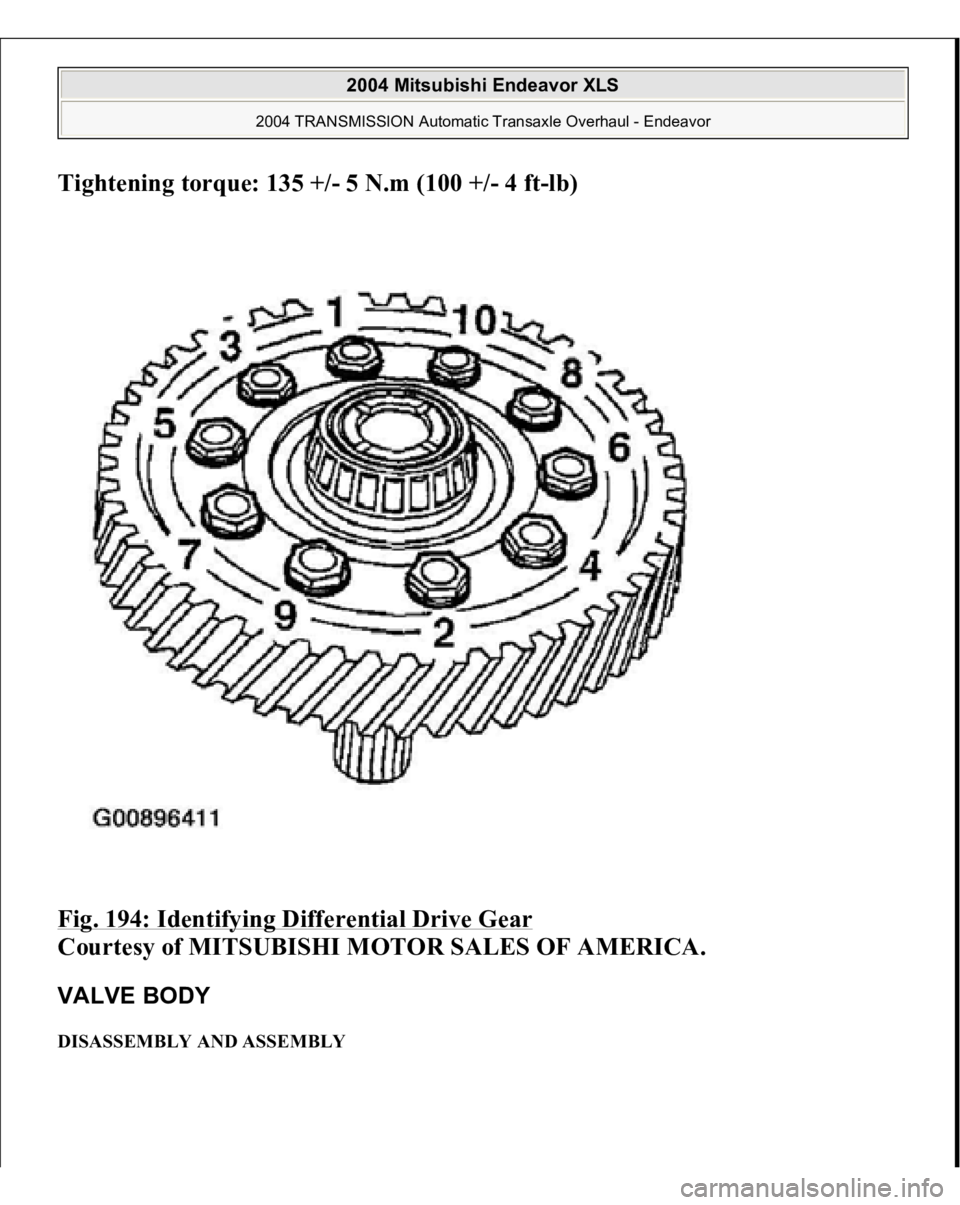

Tightening torque: 135 +/- 5 N.m (100 +/- 4 f
t-lb)
Fig. 194: Identifying Differential Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
VALVE BODY DISASSEMBLY AND ASSEMBLY
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

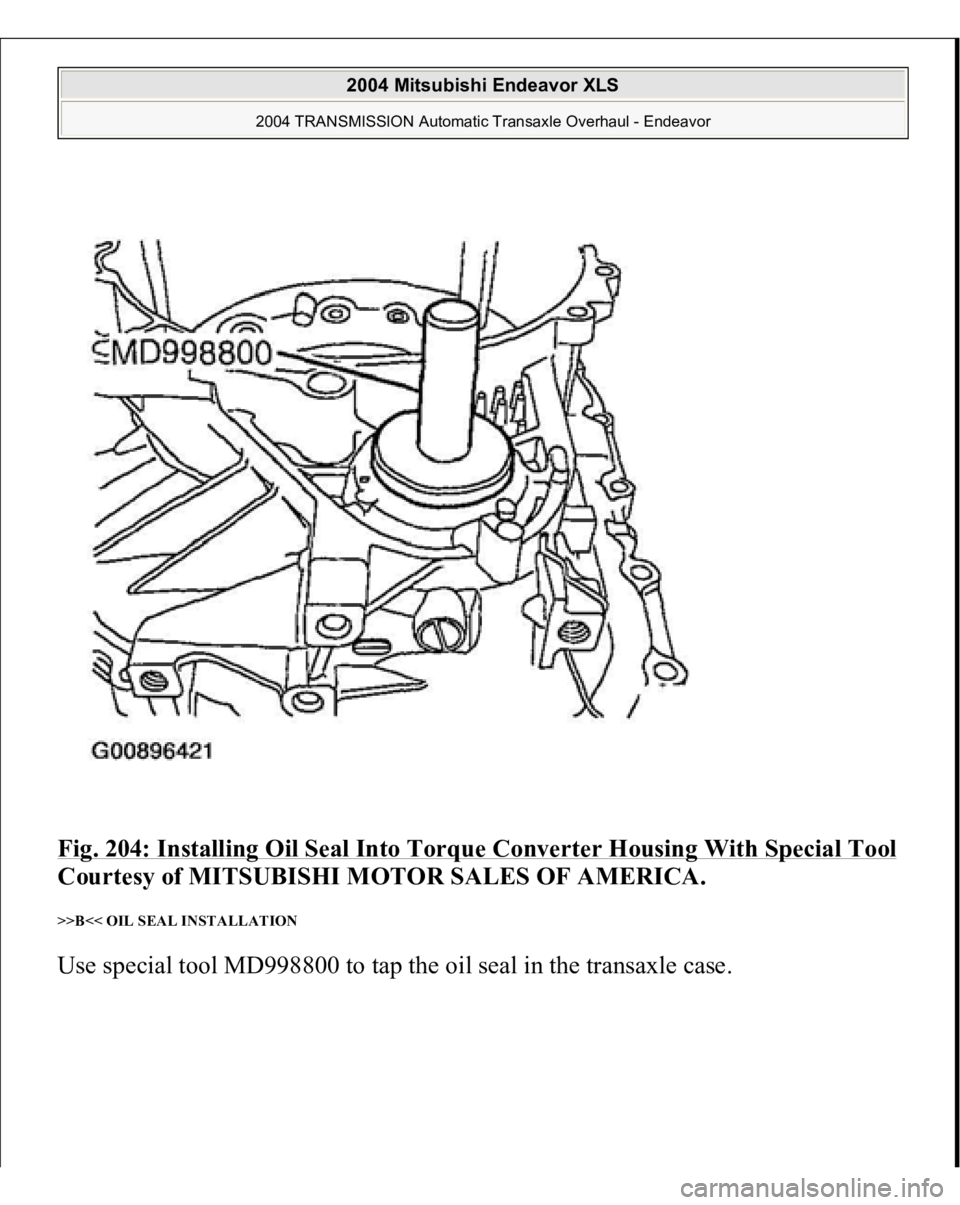

Fig. 204: Installing Oil Seal Into Torque Converter Housing With Special Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>B<< OIL SEAL INSTALLATION Use special tool MD998800 to tap the oil seal in the transaxle case.
2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

2004 DRIVELINE/AXLES
Front Axle - Endeavor

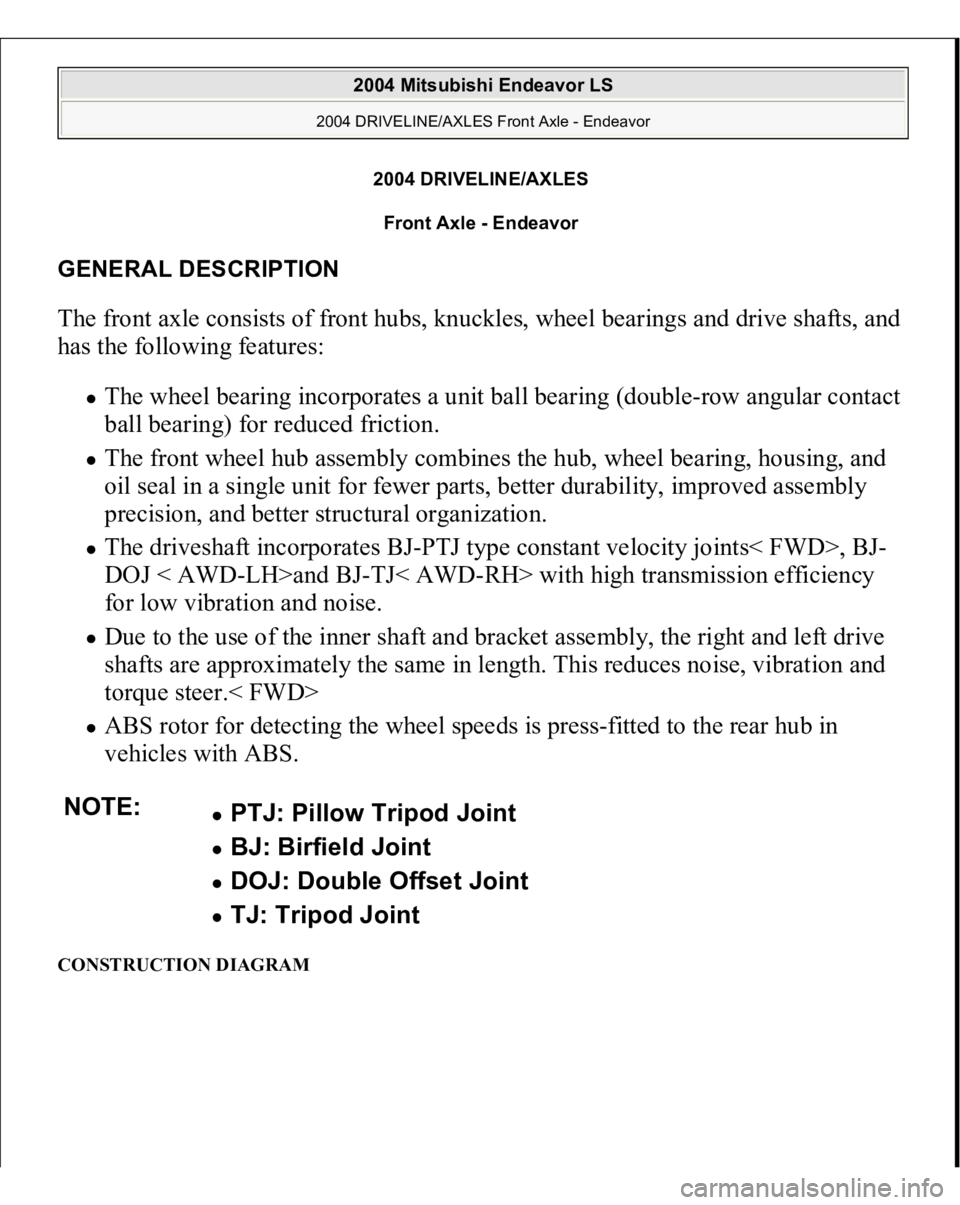

GENERAL DESCRIPTION The front axle consists of front hubs, knuckles, wheel bearings and drive shafts, and
has the following features:
The wheel bearing incorporates a unit ball bearing (double-row angular contact
ball bearing) for reduced friction. The front wheel hub assembly combines the hub, wheel bearing, housing, and
oil seal in a single unit for fewer parts, better durability, improved assembly
precision, and better structural organization. The driveshaft incorporates BJ-PTJ type constant velocity joints< FWD>, BJ-
DOJ < AWD-LH>and BJ-TJ< AWD-RH> with high transmission efficiency
for low vibration and noise. Due to the use of the inner shaft and bracket assembly, the right and left drive
shafts are approximately the same in length. This reduces noise, vibration and
torque steer.< FWD> ABS rotor for detecting the wheel speeds is press-fitted to the rear hub in
vehicles with ABS.
CONSTRUCTION DIAGRAM NOTE:
PTJ: Pillow Tripod Joint BJ: Birfield Joint DOJ: Double Offset Joint TJ: Tripod Joint

2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor


2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor

ON
-VEHICLE SERVIC
E

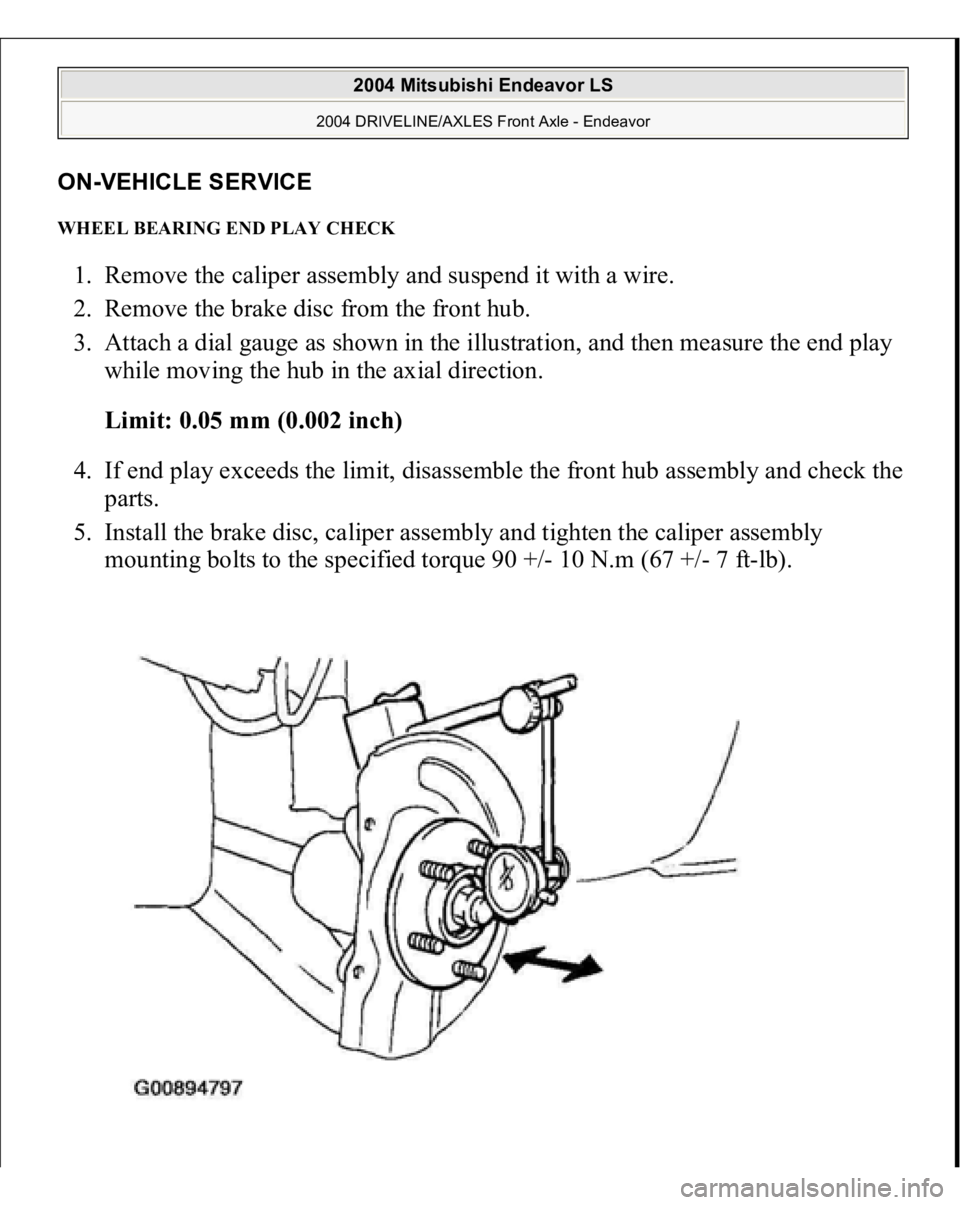

WHEEL BEARING END PLAY CHECK 1. Remove the caliper assembly and suspend it with a wire.
2. Remove the brake disc from the front hub.
3. Attach a dial gauge as shown in the illustration, and then measure the end play
while moving the hub in the axial direction.
Limit: 0.05 mm (0.002 inch)
4. If end play exceeds the limit, disassemble the front hub assembly and check the
parts.
5. Install the brake disc, caliper assembly and tighten the caliper assembly
mounting bolts to the specified torque 90 +/- 10 N.m (67 +/- 7 ft-lb).
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor

while holding the hub with special tool MB990767.
5. Install the brake disc, caliper assembly and tighten the caliper assembly
mounting bolts to the specified torque 90 +/- 10 N.m (67 +/- 7 ft-lb).
Fig. 11: Installing Hub Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor

Fig. 3: Identifying Spacer (MB991000 Or MB990998) & Front Hub Remover & Installer (MB991017)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Installation Service Points A. When installing the axle shaft, be careful that the splined part of the axle shaft
does not damage the oil seal.
B. Assemble the axle shaft washer as shown. See Fig. 4
. Tighten the axle shaft
nut. See TORQUE SPECIFICATIONS
.
Fig. 4: Removing Washer & Axle Shaft Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: DO NOT apply pressure (by vehicle weight) to
wheel bearing before tightening axle shaft nut.

2004 Mitsubishi Endeavor LS
2004 DRIVE AXLES Axle Shafts - Rear - Endeavor

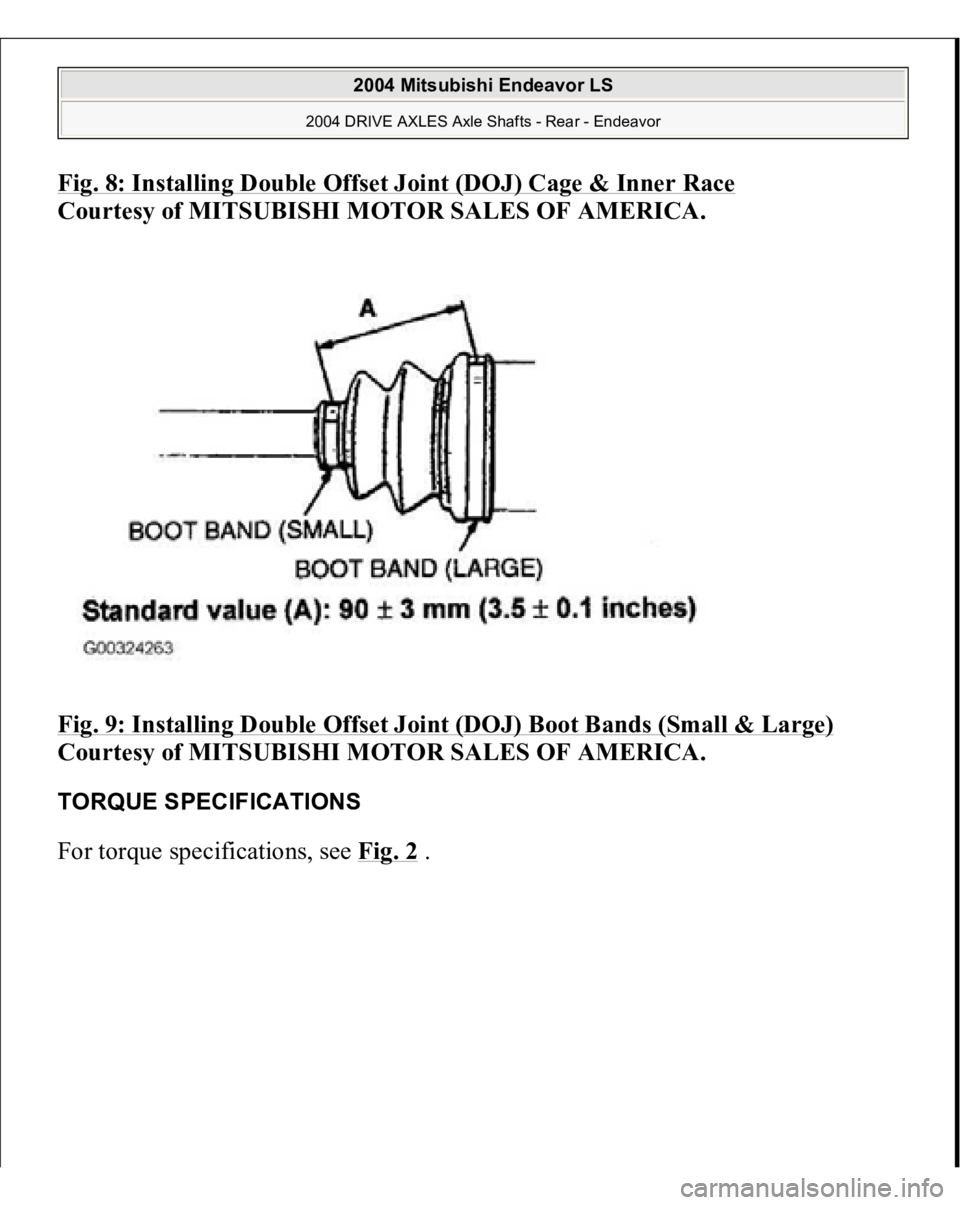

Fig. 8: Installing Double Offset Joint (DOJ) Cage & Inner Race

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 9: Installing Double Offset Joint (DOJ) Boot Bands (Small & Large)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TORQUE SPECIFICATIONS For tor
que s
pecifications, see Fi
g. 2
.

2004 Mitsubishi Endeavor LS
2004 DRIVE AXLES Axle Shafts - Rear - Endeavor

2. If the disc thickness is less than the limits, replace it with a new one. If
thickness variation exceeds the specification, turn rotor with an on-the-car type
brake lathe ("Accuturn-8750" or equivalent). If the calculated final thickness
after turning the rotor is less than the standard value, replace the disc. BRAKE DISC RUN-OUT CHECK AND CORRECTION 1. Remove the brake assembly, and then hold it with wire.
2. Temporarily install the disc with the hub nut.
3. Place a dial gauge approximately 5 mm (0.2 inch) from the outer
circumference of the brake disc, and measure the run-out of the disc.
Limit:
< Front brake disc>: 0.03 mm (0.0012 inch)
< Rear brake disc>: 0.08 mm (0.0031 inch)
Fig. 37: Identifying M12 Flat Washer

Courtes
y of MITSUBISHI MOTOR SALES OF
A
Grind the brake disc with all wheel nuts dia
gon
equall
y tightened to the specified torque 100
N
lb). When all numbers of wheel nuts are not u
s
the ti
ghtenin
g torque is excessive or not equa
brake disc rotor or drum ma
y be deformed, re
s
judder.
