2003 MERCEDES-BENZ SL55AMG Owner's Manual

41 Getting started
Driving
Starting difficulties
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
key: Turn key in starter to position0
and repeat starting procedure.

If you are starting the engine with
KEYLESS-GO: Close any doors that
may be open to allow for better detec-
tion of the card.
Or:
Start the engine with the key as radio
signals from another source may be in-
terfering with the KEYLESS-GO card.

Repeat the starting procedure
(page 39). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 323).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.
Parking brake
1Parking brake
2Release handle

Release the parking brake by pulling on
handle2.
The indicator lamp
;
(USA only) or
3
(Canada only) in the
speedometer goes out.
Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the KEY-
LESS-GO card (if so equipped) with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake, which could result in an acci-
dent and/or serious injury.

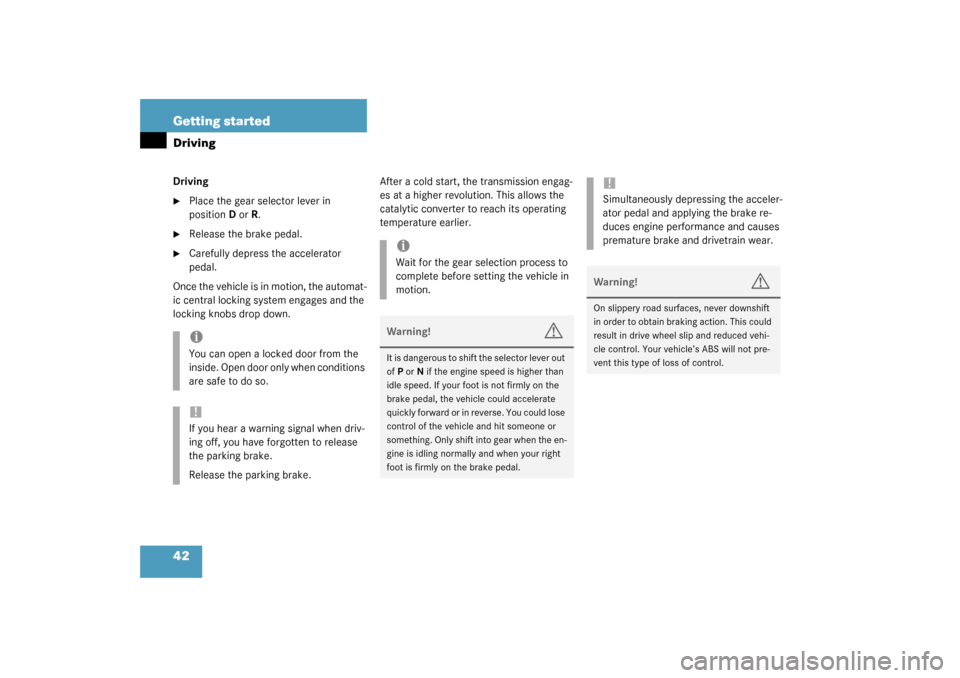

42 Getting startedDrivingDriving
Place the gear selector lever in
positionD orR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the automat-
ic central locking system engages and the
locking knobs drop down.After a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.
iWait for the gear selection process to
complete before setting the vehicle in
motion.Warning!
G
It is dangerous to shift the selector lever out
ofP orN if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or in reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the en-
gine is idling normally and when your right
foot is firmly on the brake pedal.
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.

43 Getting started
Driving
Switching on headlampsExterior lamp switch1Off
2Low beam headlamps on
Turn the switch to
B
.
More information can be found in the
“Controls in detail” section (page 102).
Turn signals and high beam
The combination switch is on the left of the
steering column.Combination switch1Turn signals, right
2Turn signals, left
Press the combination switch up1 or
down2.High beam

Push the combination switch forward.
The high beam symbol
A
in the
tachometer lights up.
iTo signal minor directional changes,
move combination switch to point of
resistance only and release. The turn
signal blinks three times.

44 Getting startedDrivingWindshield wipers
The combination switch is on the left of the
steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure that the ignition is switched
on.Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0 Windshield wipers off
I Intermittent wiping (interval depen-
dent on wetness of windshield)
IINormal wiper speed
IIIFast wiper speed (Canada only:
goes to setting II when the car is
standing still)
Single wipe

Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.
iThe intermittent wiping interval is de-
pendent on wetness of windshield.
Wiping will not occur with a door open.
!Do not leave windshield wipers in inter-
mittent setting when vehicle is taken to
an automatic car wash or during wind-
shield cleaning. Wipers will operate in
the presence of water sprayed on the
windshield, and wipers may be dam-
aged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass when wiping occurs on a dry
windshield.

45 Getting started
Driving
Wiping with windshield washer fluid
Push switch in the direction of arrow1
past the resistance point.
The windshield wiper operates with
washer fluid.
Information on filling up the washer reser-
voir can be found in the "Operation" sec-
tion (page 233).
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.
The coolant temperature gauge is over
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 230).
!If leaves, snow, etc. block the wind-
shield wipers, the wiper motor turns
off.

For safety reasons, withdraw key
from starter switch. Remove block-
age.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed.


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center.

46 Getting startedDrivingIn case of accident
If the vehicle is leaking gasoline:
Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

47 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows:
Parking brake
1Parking brake
2Release handle
Step firmly on the parking brake1.
When the engine is running, the indica-
tor lamp
;
(USA only) or
3
(Can-
ada only) in the speedometer dial will
be illuminated
Warning!
G
Wait until the vehicle is stationary before re-
moving the key from the starter switch. The
vehicle cannot be steered when the key is
removed.Warning!
G
With the engine not running, there is no
power assistance for the steering system. In
this case, it is important to keep in mind that
a considerably higher degree of effort is nec-
essary to steer the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before
turning off
the engine and leaving the vehicle always:


Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the selector lever to positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel against road curb.


Turn the key to starter switch position0
and remove, or press start / stop button
(vehicles with KEYLESS-GO
*).


Take the key and the KEYLESS-GO
*
card (vehicles with KEYLESS-GO
*) and
lock vehicle when leaving.

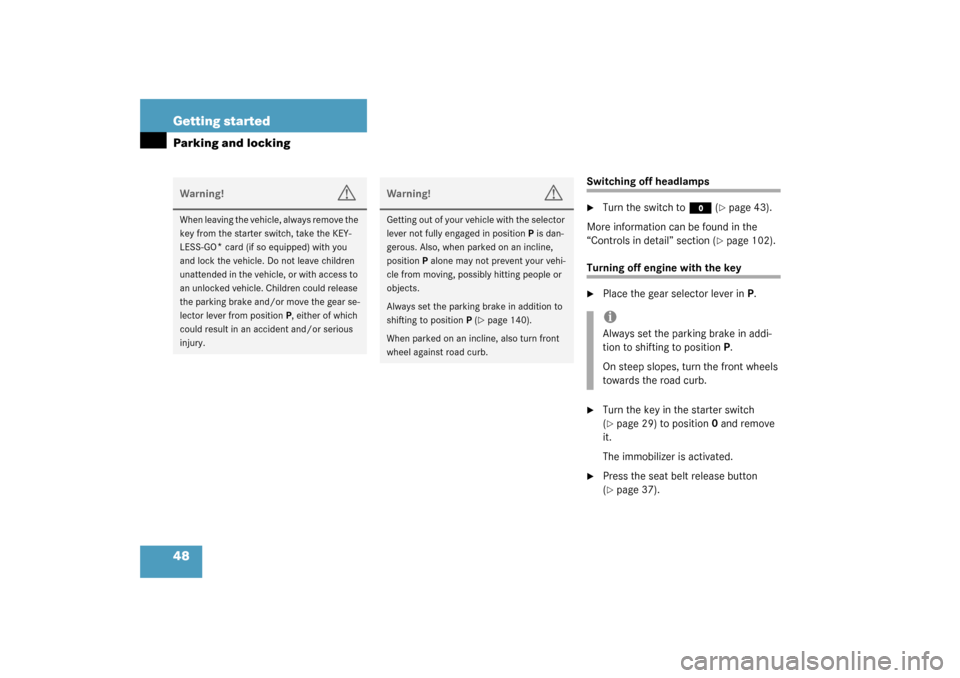

48 Getting startedParking and locking
Switching off headlamps
Turn the switch to
M
(page 43).
More information can be found in the
“Controls in detail” section (
page 102).
Turning off engine with the key
Place the gear selector lever inP.

Turn the key in the starter switch
(page 29) to position0 and remove
it.
The immobilizer is activated.

Press the seat belt release button
(page 37).
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Children could release
the parking brake and/or move the gear se-
lector lever from positionP, either of which
could result in an accident and/or serious
injury.
Warning!
G
Getting out of your vehicle with the selector
lever not fully engaged in positionP is dan-
gerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 140).
When parked on an incline, also turn front
wheel against road curb.
iAlways set the parking brake in addi-
tion to shifting to positionP.
On steep slopes, turn the front wheels
towards the road curb.
