17 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

18 At a glanceCockpit

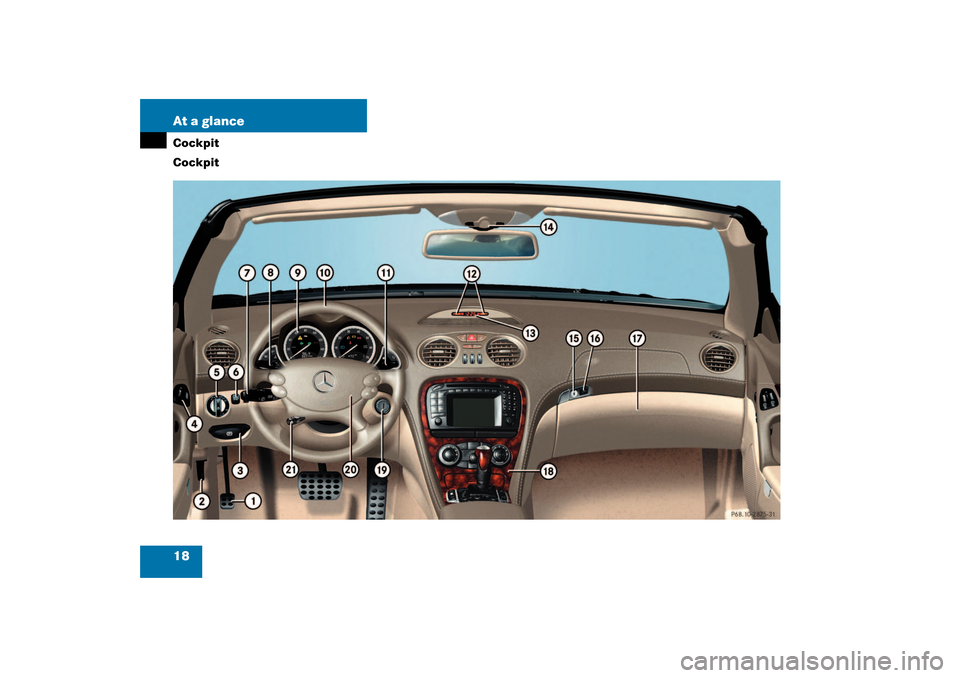

Cockpit

19 At a glance
Cockpit
Item
Page
1
Parking brake pedal
41
2
Hood lock release
227
3
Parking brake release
47
4
Door control panel
26
5
Exterior lamp switch
43,
102
6
Headlamp washer switch
146
7
Combination switch

Turn signals


Windshield wipers


High beam
43
44
104
8
Cruise control switch

Cruise control


Distronic*
168
171
9
Instrument cluster
20,
108
10
Multifunction steering
wheel
22,
111
11
Lever for voice control
system, see separate
operating instructions
12
Front Parktronic* warn-
ing indicator
186
13
Digital clock
122
14
Overhead control panel
25
15
Interior storage compart-
ments (locking/unlock-
ing)
194
16
7
indicator lamp
64
17
Glove box
190
18
Center console
23, 24
19
Starter switch
31
20
Horn
21
Steering wheel adjust-
ment stalk
Heated steering wheel*
34
197
Item
Page

20 At a glanceInstrument cluster
Instrument cluster

21 At a glance
Instrument cluster
Item
Page
1
Coolant temperature
gauge with:D
Coolant temperature
warning lamp
254
2
Speedometer with:;
Brake warning lamp,
except Canada
253
3
Brake warning lamp,
Canada only
v
Antilock Brake Sys-
tem (ABS)/Electronic
Stability Program
(ESP) warning lamp
250
E
Distronic (DTR)* indi-
cator lamp (white) or
warning lamp (red)
1
1Vehicles without Distronic*: Indicator lamp with-
out function. It illuminates with the key in starter
switch position2. It should go out when the engine
is running.
251
L
K
Turn signal indicator
lamps
Item
Page
3
Left multifunction display
with:
Trip odometer
109
Main odometerStored speed for
Distronic*
117
4
Reset knob
5
Tachometer with:
109
A
High beam headlamp
indicator
104
?
Engine malfunction in-
dicator lamp
256
C
Roll bar warning lamp
255
-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
251
Item
Page
1
Supplemental
restraint system
(SRS) indicator lamp
252
<
Seat belt nonusage
warning lamp
256
6
Right multifunction
display with:
Selector lever
position
39
Outside temperature
display
109
Program mode
141
7
Fuel gauge with:A
Fuel reserve warning
lamp
255

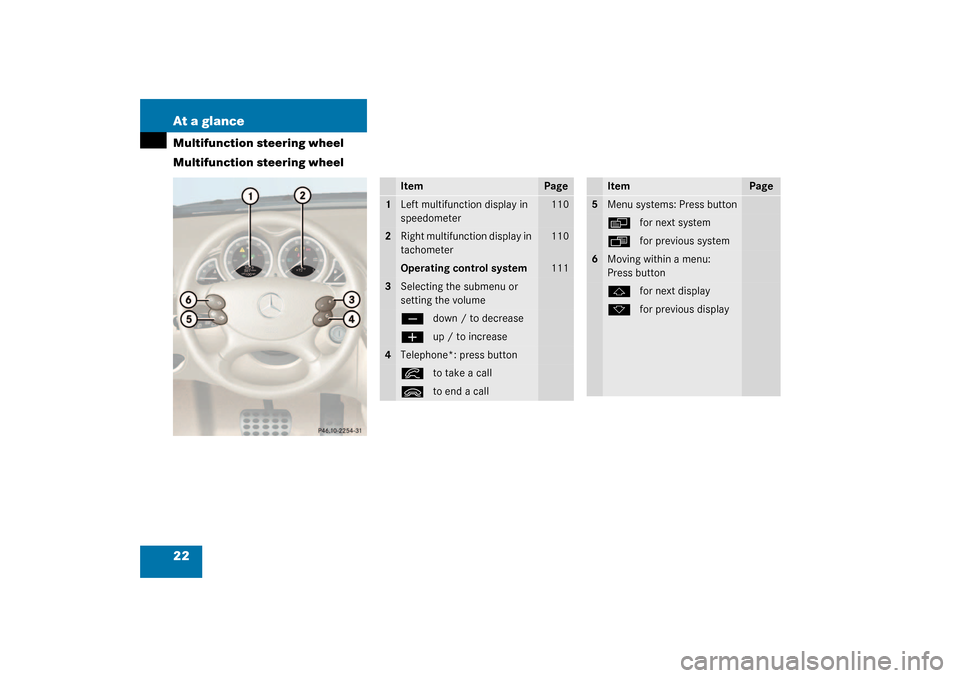

22 At a glanceMultifunction steering wheel
Multifunction steering wheel
Item
Page
1
Left multifunction display in
speedometer
110
2
Right multifunction display in
tachometer
110
Operating control system
111
3
Selecting the submenu or
setting the volumeç
down / to decrease
æ
up / to increase
4
Telephone*: press buttoní
to take a call
ì
to end a call
Item
Page
5
Menu systems: Press buttonè
for next system
ÿ
for previous system
6
Moving within a menu:
Press buttonj
for next display
k
for previous display

23 At a glance
Center console
Center console
Upper part
Item
Page
1
Central locking switch
92
2
Hazard warning flasher
on/off switch
105
3
Central unlocking switch
92
4
Center and side air vent
adjustment
147
5
COMAND system, see
separate operating in-
structions
113
6
Automatic climate control
149
7
Right cup holder
190
8
KEYLESS-GO* start/stop
button
30
9
Ashtray
Cigarette lighter
196
197
10
Left cup holder
190

24 At a glanceCenter consoleLower part
Item
Page
1
Parking assist (Parktronic
system)* deactivation
switch
186
2
Active Body Control (ABC)
switch
183
3
Tow-away alarm switch
77
4
Hardtop open/close con-
trol with buttons for roll bar
159
61
5
Exterior rear view mirror
adjustment
35
Item
Page
6
Vehicle level control switch
184
7
ESP control switch
71
8
Thumbwheel for setting
distance for Distronic*
179
9
Distance warning func-
tion* on/off switch
179
10
Program mode selector for
automatic transmission
141
11
Selector lever for
automatic transmission
137
