2003 MERCEDES-BENZ SL55AMG Owner's Manual

25 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on/off
106
2
Temperature sensor for
automatic climate control
147
3
Right reading lamp on/off
106
4
Interior lighting control
106
5
Hands-free microphone
for Tele Aid (emergency
call system), telephone*
and voice control system*
(see separate operating
instructions)
199
6
Rear view mirror
35,
145
7
Garage door opener
208
8
Tele Aid (emergency call
system) button
200

26 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
89
2
Switches for open-
ing/closing front and rear
side windows
157
3
Memory function (for stor-
ing seat, mirror and steer-
ing wheel settings)
99
4
Seat heater
97
Seat ventilation*
96
5
Seat adjustment
32, 93
6
Remote trunk lid release
switch
90
7
Door pocket
192

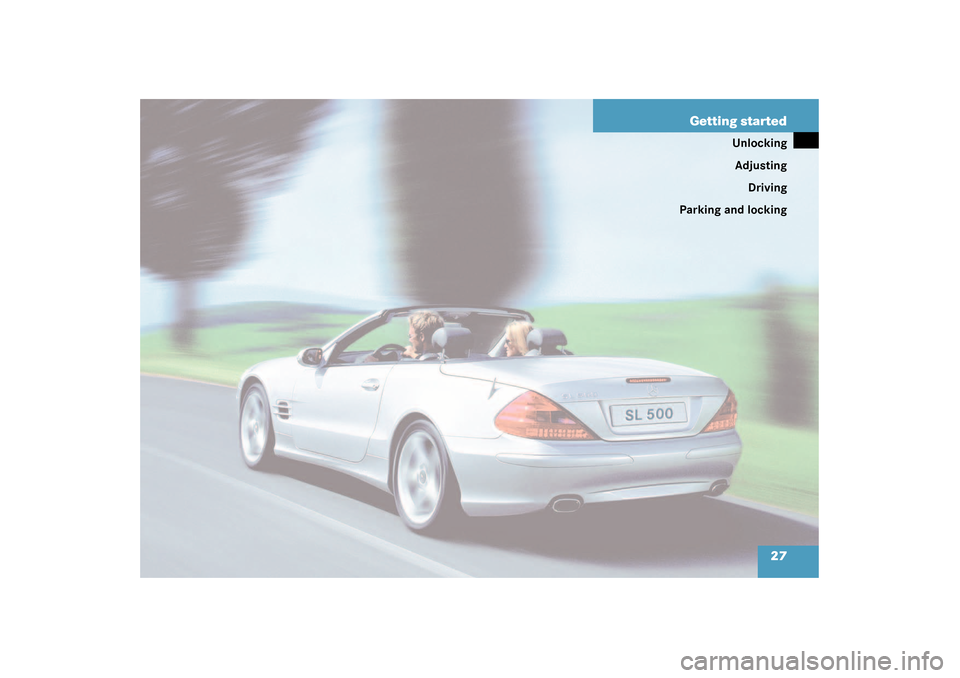

27 Getting started
Unlocking
Adjusting
Driving
Parking and locking

28 Getting startedUnlockingThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.
UnlockingUnlocking with the SmartKeyElectronic key with remote control1‹
Lock button
2
Š
Unlock button for trunk lid
3
Œ
Unlock button
4
Â
Panic button

Press unlock button3
Œ
on the key.
The indicator lamps light up for a short
time. The locking knobs in the doors
move up.

Get in the vehicle and insert the key in
the starter switch.iThe SBC brake system is activated.iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.

29 Getting started
Unlocking

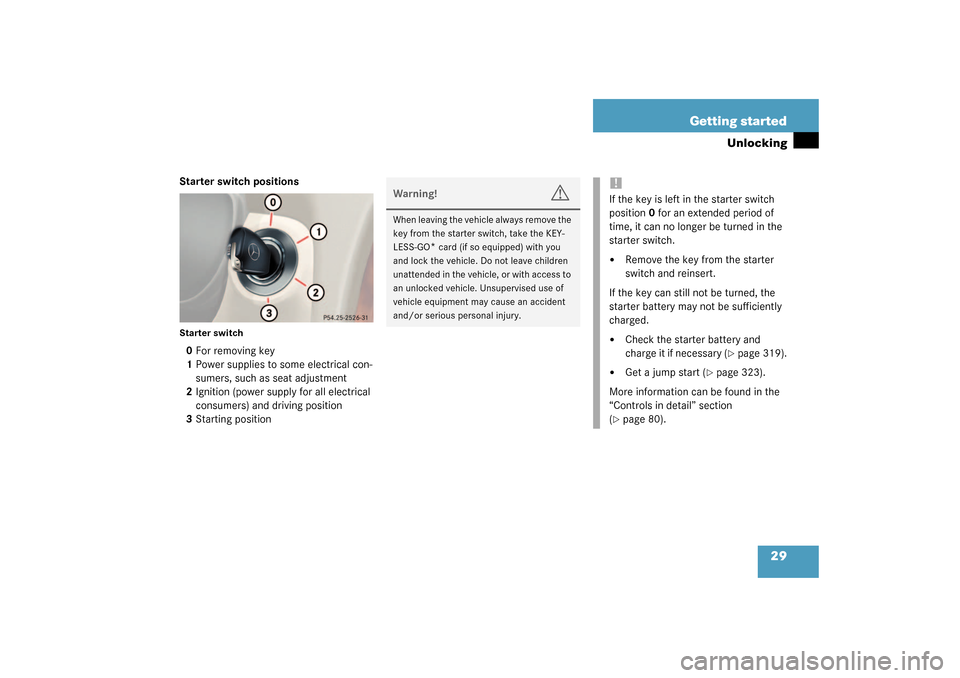

Starter switch positionsStarter switch0For removing key
1Power supplies to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment may cause an accident
and/or serious personal injury.
!If the key is left in the starter switch
position0 for an extended period of
time, it can no longer be turned in the
starter switch.

Remove the key from the starter
switch and reinsert.
If the key can still not be turned, the
starter battery may not be sufficiently
charged.


Check the starter battery and
charge it if necessary (
page 319).


Get a jump start (
page 323).
More information can be found in the
“Controls in detail” section
(
page 80).

30 Getting startedUnlockingUnlocking with KEYLESS-GO*
The functions of the KEYLESS-GO card are
nearly identical to those of the key, except
that it cannot be used to open the retract-
able hardtop. When using the key and the
card at the same time, the key overrules
the card.

Grasp the door handle.
The turn signal lamps blink once. The
locking knobs on the doors move up.Pressing the KEYLESS-GO start/stop but-
ton on the selector lever corresponds to
turning the key to the various starter
switch positions.
1KEYLESS-GO start/stop button
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have the status0 (as with key
removed).
Make sure the gear selector lever is set
toP.
Do not depress the brake pedal.
iThe KEYLESS-GO card must be outside
the vehicle to unlock it.
Warning!
G
When leaving the vehicle, always take the
key and the KEYLESS-GO card with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.iThe SBC brake system is activated.

31 Getting started
Unlocking
Position 1
Press the KEYLESS-GO start/stop but-
ton once.
Power supply for some electrical con-
sumers, such as seat adjustment.Ignition (or Position 2)

Press the KEYLESS-GO start/stop but-
ton twice.
Power supply for all electrical consum-
ers. All the lights in the instrument
cluster light up.
More information can be found in the
“Controls in detail” section (
page 84).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see Starting with KEYLESS-GO
(
page 40).
iIf you now press the KEYLESS-GO
start/stop button twice, the power
supply is again switched off.
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.

32 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries. The seat back and seat
belts provide the best restraint when the
wearer is in an upright position and belts are
properly positioned on the body. Your seat
must be adjusted so that you can correctly
fasten your seat belt (
page 37).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you,
and lock your vehicle.
The power seats can also be operated with
the appropriate door open. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
Infants and small children must be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
